DTC P2610: POWERTRAIN CONTROL MODULE (PCM) INTERNAL POWER OFF TIMER
MALFUNCTION

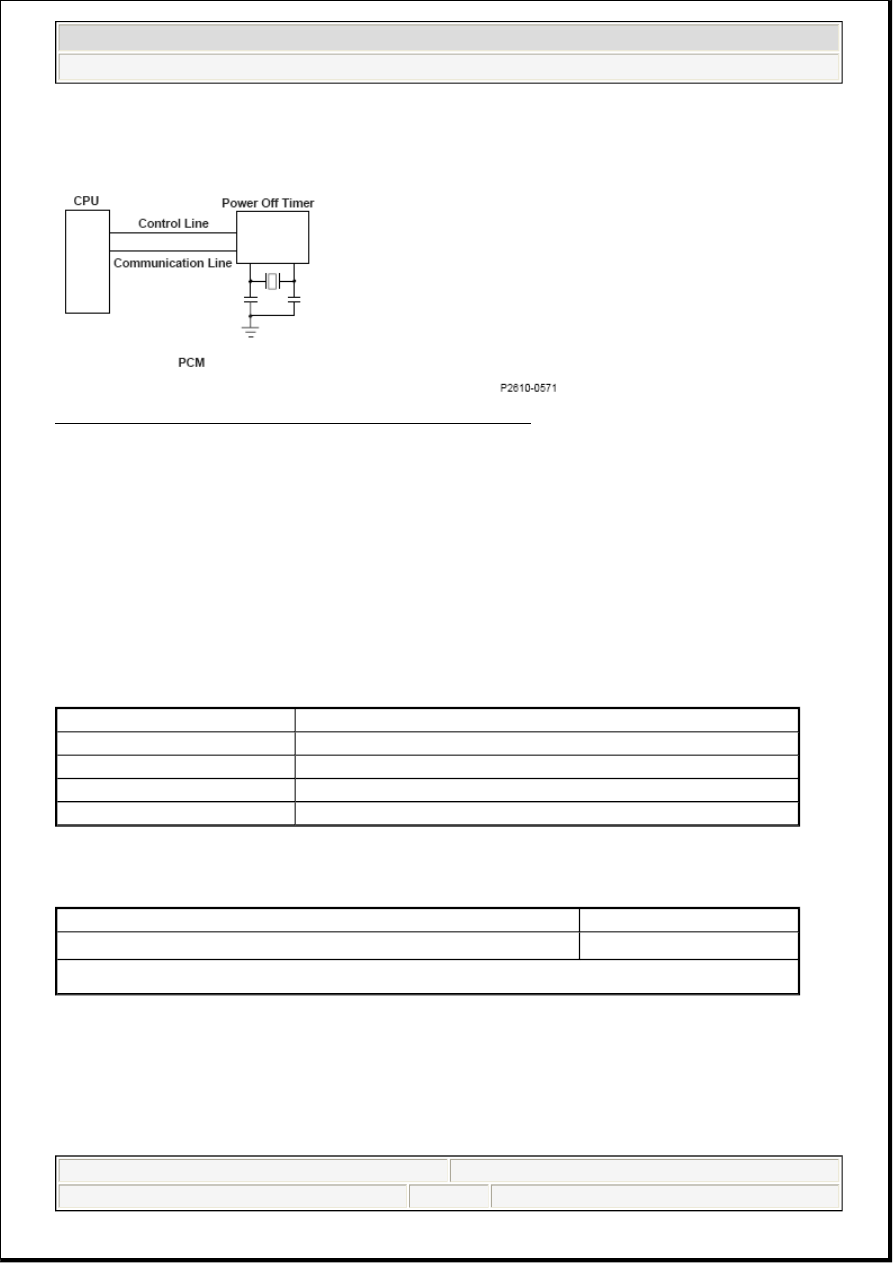

Fig. 304: Powertrain Control Module (PCM) Circuit Diagram

General Description

The powertrain control module (PCM) has a built-in power off timer that measures the duration of time the
ignition switch is off. This measurement is used for evaporative emission (EVAP) leak detection and
temperature assumption of the catalytic converter.

The CPU in the PCM accesses the power off timer when reading the measured duration. When the access
process fails, a malfunction is detected and a DTC is stored. When an abnormality is found in the read data,
a malfunction is detected and a DTC is stored.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION CHART

Enable Conditions

ENABLE CONDITIONS

Malfunction Threshold

The access process to the power off timer fails, or a malfunction is found in the read data for at least 10
seconds.

Diagnosis Details

Execution

Continuous

Sequence

None

Duration

10 seconds or more

DTC Type

One drive cycle, MIL ON

OBD Status

N/A

Condition



Ignition switch

ON

(1)

(1)

Ignition switch on when a battery is disconnected and connected again is excluded.



2007 Acura RL

2007 ENGINE PERFORMANCE Advanced Diagnostics - RL



me



Friday, June 05, 2009 2:32:08 PM

Page 385  © 2005 Mitchell Repair Information Company, LLC.

Conditions for illuminating the MIL

When a malfunction is detected, the MIL comes on and the DTC and the freeze frame data are stored in the
PCM memory.

Conditions for clearing the MIL

The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the
diagnostic runs.

The MIL, the DTC, and the freeze frame data can be cleared by using the scan tool Clear command or by
disconnecting the battery.

DTC P2627 (155): ADVANCED DIAGNOSTICS

DTC P2627: REAR AIR/FUEL RATIO (A/F) SENSOR (BANK 1, SENSOR 1) LABEL CIRCUIT
LOW VOLTAGE

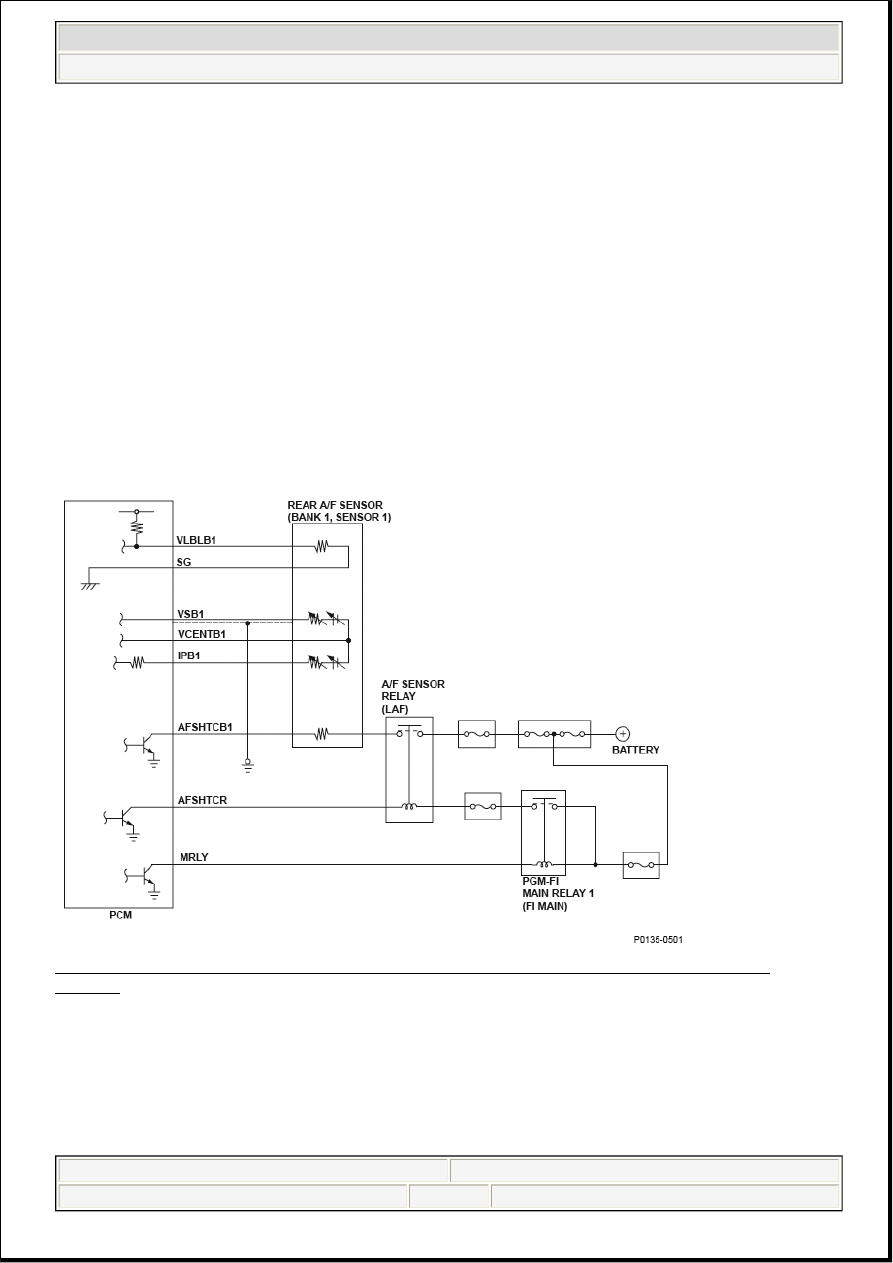

Fig. 305: Rear Air/Fuel Ratio (A/F) Sensor (Bank 1, Sensor 1) LABEL Circuit Diagram (Low
Voltage)


General Description

The rear air/fuel ratio (A/F) sensor (bank 1, sensor 1) is installed in the exhaust manifold and detects oxygen
content in the exhaust gas. The rear A/F sensor transmits a signal to the powertrain control module (PCM).
The PCM controls fuel injection duration by comparing the target air/fuel ratio with the rear A/F sensor
signal. The sensor includes the VS cell, the pump cell, the atmospheric reference cavity, the diffusion layer,
and the heater, and it enables overall feedback control.



2007 Acura RL

2007 ENGINE PERFORMANCE Advanced Diagnostics - RL



me



Friday, June 05, 2009 2:32:08 PM

Page 386  © 2005 Mitchell Repair Information Company, LLC.

The rear A/F sensor (bank 1, sensor 1) has a built-in LABEL resistance to regulate the difference of the
sensor characteristics. The PCM reads the resistance to regulate the difference properly. If the LABEL
resistance (VLBLB1 signal voltage) is a set value or less, the PCM detects a malfunction and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION CHART

Enable Conditions

ENABLE CONDITIONS

Malfunction Threshold

The VLBLB1 voltage is 0.3 V or less for at least 5 seconds.

Diagnosis Details

Conditions for illuminating the MIL

When a malfunction is detected, the MIL comes on and the DTC and the freeze frame data are stored in the
PCM memory.

Conditions for clearing the MIL

The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the
diagnostic runs.

The MIL, the DTC, and the freeze frame data can be cleared by using the scan tool Clear command or by
disconnecting the battery.

DTC P2628 (155): ADVANCED DIAGNOSTICS

DTC P2628: REAR AIR/FUEL RATIO (A/F) SENSOR (BANK 1, SENSOR 1) LABEL CIRCUIT
HIGH VOLTAGE

Execution

Continuous

Sequence

None

Duration

5 seconds or more

DTC Type

One drive cycle, MIL ON

OBD Status

N/A

Condition



Ignition switch

ON

No active DTCs

P0135, P2195, P2237, P2238, P2243, P2245, P2251, P2252, P2628



2007 Acura RL

2007 ENGINE PERFORMANCE Advanced Diagnostics - RL



me



Friday, June 05, 2009 2:32:08 PM

Page 387  © 2005 Mitchell Repair Information Company, LLC.

Fig. 306: Rear Air/Fuel Ratio (A/F) Sensor (Bank 1, Sensor 1) LABEL Circuit (High Voltage)

General Description

The rear air/fuel ratio (A/F) sensor (bank 1, sensor 1) is installed in the exhaust manifold and detects oxygen
content in the exhaust gas. The rear A/F sensor transmits a signal to the powertrain control module (PCM).
The PCM controls fuel injection duration by comparing the target air/fuel ratio with the rear A/F sensor
signal. The sensor includes the VS cell, the pump cell, the atmospheric reference cavity, the diffusion layer,
and the heater, and it enables overall feedback control.

The rear A/F sensor (bank 1, sensor 1) has a built-in LABEL resistance to regulate the differences of the
sensor characteristics. The PCM reads the resistance to regulate the difference properly. If the LABEL
resistance (VLBLB1 signal voltage) is a set value or more, the PCM detects a malfunction and stores a
DTC.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION CHART

Enable Conditions

ENABLE CONDITIONS

Execution

Continuous

Sequence

None

Duration

5 seconds or more

DTC Type

One drive cycle, MIL ON

OBD Status

N/A



2007 Acura RL

2007 ENGINE PERFORMANCE Advanced Diagnostics - RL



me



Friday, June 05, 2009 2:32:08 PM

Page 388  © 2005 Mitchell Repair Information Company, LLC.
