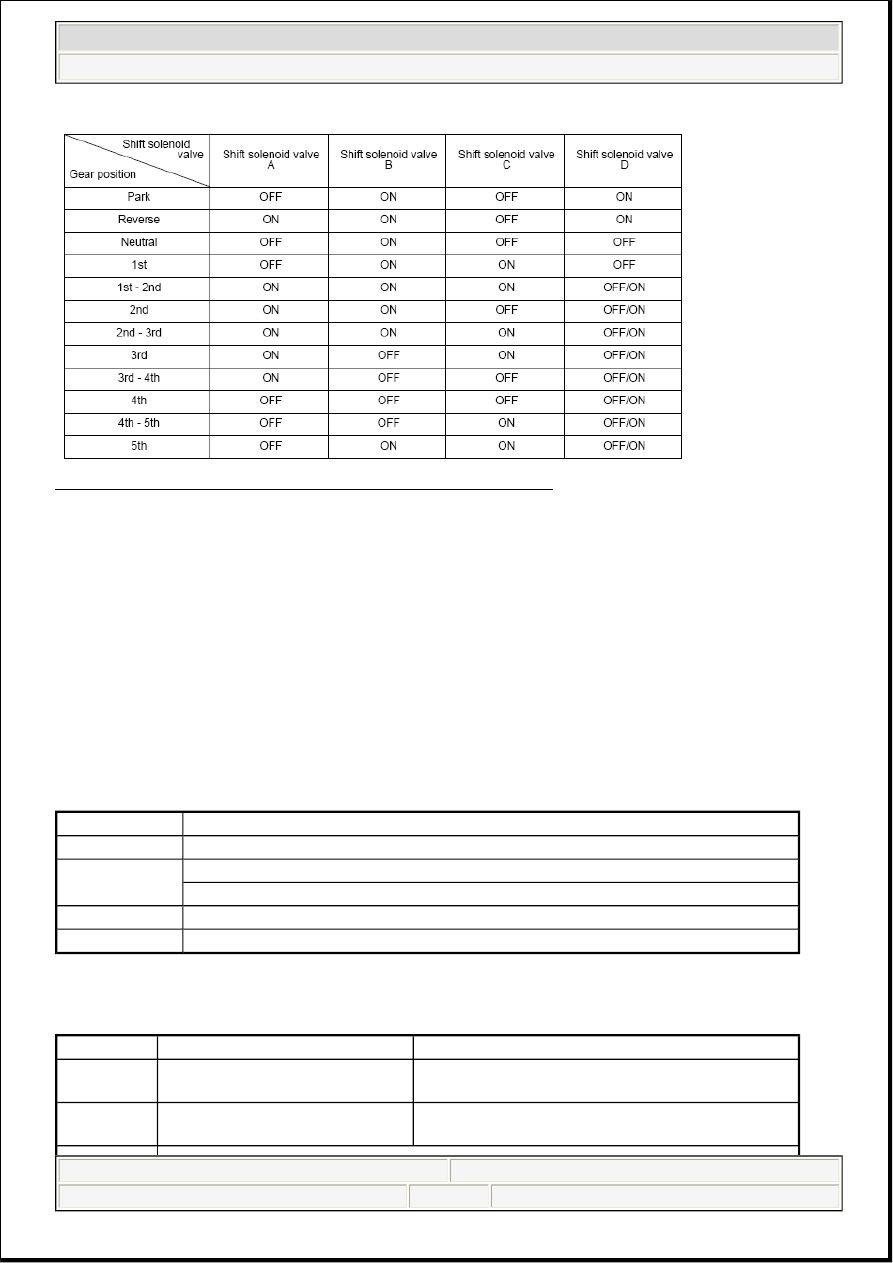

Fig. 158: Shift Solenoid Valve Driving Signal Combination Table

General Description

Shift solenoid valve D is installed in the transmission housing. It is controlled by the ON/OFF signal from
the powertrain control module (PCM) to apply line pressure to lock-up shift valve. The signal from the PCM
is output to apply clutch pressure control pressure to the proper gear change clutch according to the gear
change schedule. When the signal to shift solenoid valve D from the PCM is ON, and line pressure is
applied to the lock-up shift valve, it operates against the lock-up shift valve spring. When the signal to shift
solenoid valve D from the PCM is OFF, and line pressure is discharged, the lock-up shift valve is inactive.
The PCM monitors the input shaft (mainshaft) speed and the output shaft (countershaft) speed at the gear
change determined by the shift schedule. When an improper gear ratio is output compared to the
predetermined gear change mode, a shift solenoid valve D OFF failure is detected and a DTC is stored.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION CHART

Enable Conditions

ENABLE CONDITIONS

Execution

Continuous

Sequence

None

Duration

11 seconds (symptom 1)
3 seconds (symptom 2-A, 2-B)

DTC Type

Two drive cycles, MIL ON, D indicator blinks

OBD Status

PASSED/FAILED/NOT COMPLETED (STILL TESTING)

Condition

Minimum

Maximum

Battery
voltage

11.0 V

Vehicle
speed

6 mph (9 km/h)

(2)

2007 Acura RL

2007 ENGINE PERFORMANCE Advanced Diagnostics - RL

Friday, June 05, 2009 2:32:05 PM

Malfunction Threshold

One of these symptoms occurs.

MALFUNCTION THRESHOLD SYMPTOM 1

MALFUNCTION THRESHOLD SYMPTOM 2

Driving Pattern

Start the engine, and accelerate the vehicle until the transmission shifts into 5th gear in the D position.



Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.

Diagnosis Details

Conditions for illuminating the MIL

When a malfunction is detected during the first drive cycle, a Temporary DTC is stored in the PCM
memory. If the malfunction recurs during the next (second) drive cycle, the MIL comes on and the DTC and
the freeze frame data are stored.

Conditions for clearing the MIL

The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the
diagnostic runs.

The MIL, the DTC, the Temporary DTC, and the freeze frame data can be cleared by using the scan tool
Clear command or by disconnecting the battery.

Shift lever
position

(1)

(2)

Torque
converter
clutch

During controlling operation

(1)

No active
DTCs

P0122, P0123, P0705, P0716, P0717, P0718, P0721, P0722, P0723, P0746, P0747,
P0751, P0752, P0756, P0757, P0761, P0762, P0767, P0776, P0777, P0796, P0797,
P0842, P0843, P0847, P0848, P0962, P0963, P0966, P0967, P0970, P0971, P0973,
P0974, P0976, P0977, P0979, P0980, P0982, P0983, P1743, P1744, P1745, P1780

(1)

Symptom 1

(2)

Symptom 2

Symptom Gear position commanded by the PCM

Actual gear position

3rd --> 4th gear upshift

Turn on the 2nd clutch transmission fluid switch

Symptom

Gear position commanded by the PCM

Actual gear position

2-A

Reverse gear in-gear

Neutral

2-B

Driving in Reverse gear

Neutral

2007 Acura RL

2007 ENGINE PERFORMANCE Advanced Diagnostics - RL

Friday, June 05, 2009 2:32:05 PM

DTC P0767 (73): ADVANCED DIAGNOSTICS

DTC P0767: SHIFT SOLENOID VALVE D STUCK ON

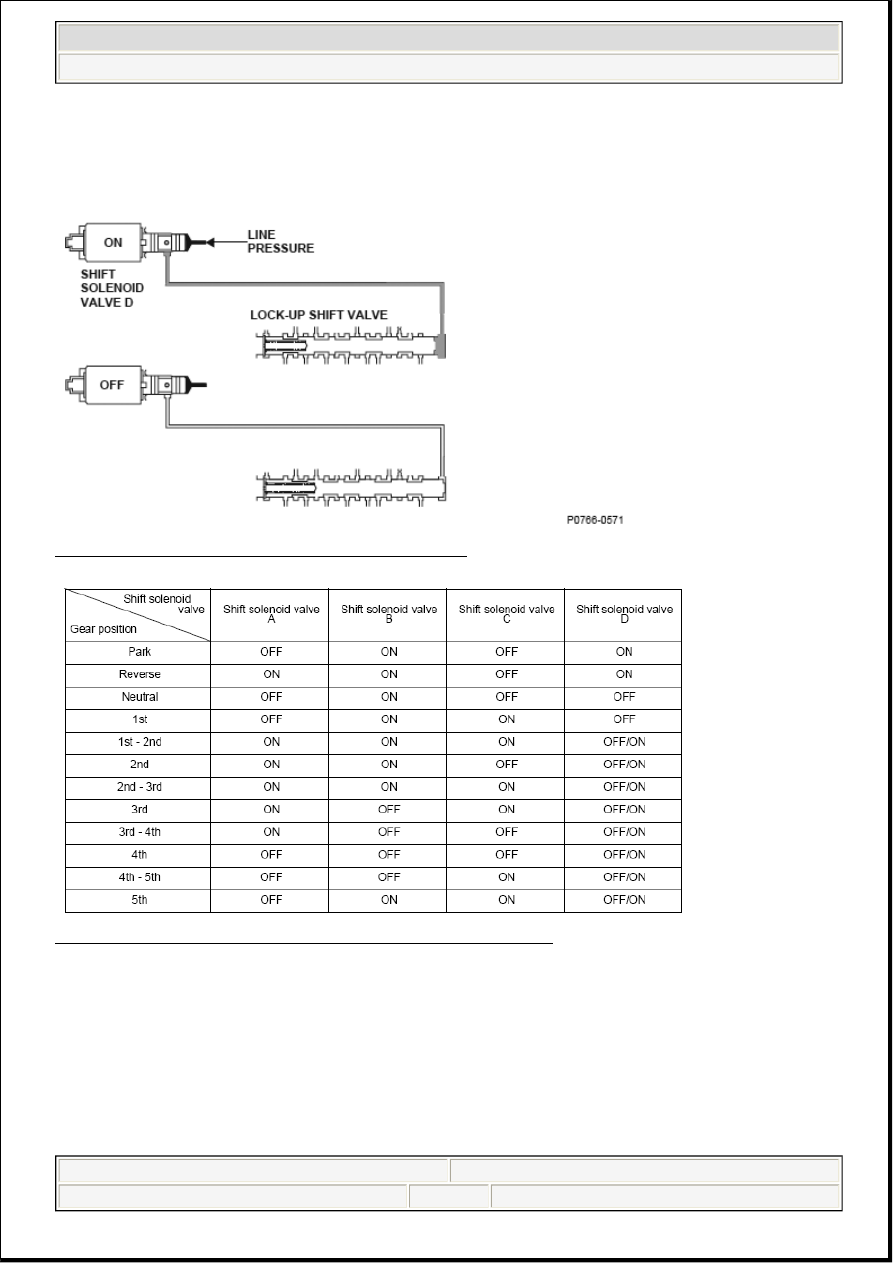

Fig. 159: Shift Solenoid Valve D - Operation Diagram

Fig. 160: Shift Solenoid Valve Driving Signal Combination Table

General Description

Shift solenoid valve D is installed in the transmission housing. It is controlled by the ON/OFF signal from
the powertrain control module (PCM) to apply line pressure to the lock-up shift valve. The signal from the
PCM is output to apply clutch pressure control pressure to the proper gear change clutch according to the
gear change schedule. When the signal to shift solenoid valve D from the PCM is OFF, and line pressure is
discharged, the lock-up shift valve is inactive. When the signal to shift solenoid valve D from the PCM is
ON, and line pressure is applied to lock-up shift valve, it operates against the lock-up shift valve spring. The
PCM monitors the input shaft (mainshaft) speed and the output shaft (countershaft) speed at the gear change

2007 Acura RL

2007 ENGINE PERFORMANCE Advanced Diagnostics - RL

Friday, June 05, 2009 2:32:05 PM

determined by the shift schedule. When an improper gear ratio is output compared to the predetermined gear
change mode, a shift solenoid valve D ON failure is detected and a DTC is stored.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION CHART

Enable Conditions

ENABLE CONDITIONS

Malfunction Threshold

One of these conditions occurs.



The actual gear position is neutral for at least 3 seconds when 1st gear in-gear is commanded, though
there is no record of being in neutral when reverse gear in-gear is commanded.



The actual gear position is neutral for at least 3 seconds though 1st gear in-gear is commanded and
reverse drive occurred during this driving cycle.

Driving Pattern

Start the engine, and accelerate the vehicle until the transmission shifts into 5th gear in the D position.



Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.

Diagnosis Details

Conditions for illuminating the MIL

Execution

Continuous

Sequence

None

Duration

3 seconds or more

DTC Type

Two drive cycles, MIL ON, D indicator blinks

OBD Status

PASSED/FAILED/NOT COMPLETED (STILL TESTING)

Condition

Minimum

Maximum

Battery
voltage

11.0 V

Vehicle
speed

6 mph (9 km/h)

Shift lever
position

D, D3

No active
DTCs

P0122, P0123, P0716, P0717, P0718, P0721, P0722, P0723, P0746, P0747, P0751,
P0752, P0756, P0757, P0761, P0762, P0766, P0776, P0777, P0796, P0797, P0842,
P0843, P0847, P0848, P0962, P0963, P0966, P0967, P0970, P0971, P0973, P0974,
P0976, P0977, P0979, P0980, P0982, P0983, P1743, P1744, P1745, P1780

2007 Acura RL

2007 ENGINE PERFORMANCE Advanced Diagnostics - RL

Friday, June 05, 2009 2:32:05 PM
