24-29

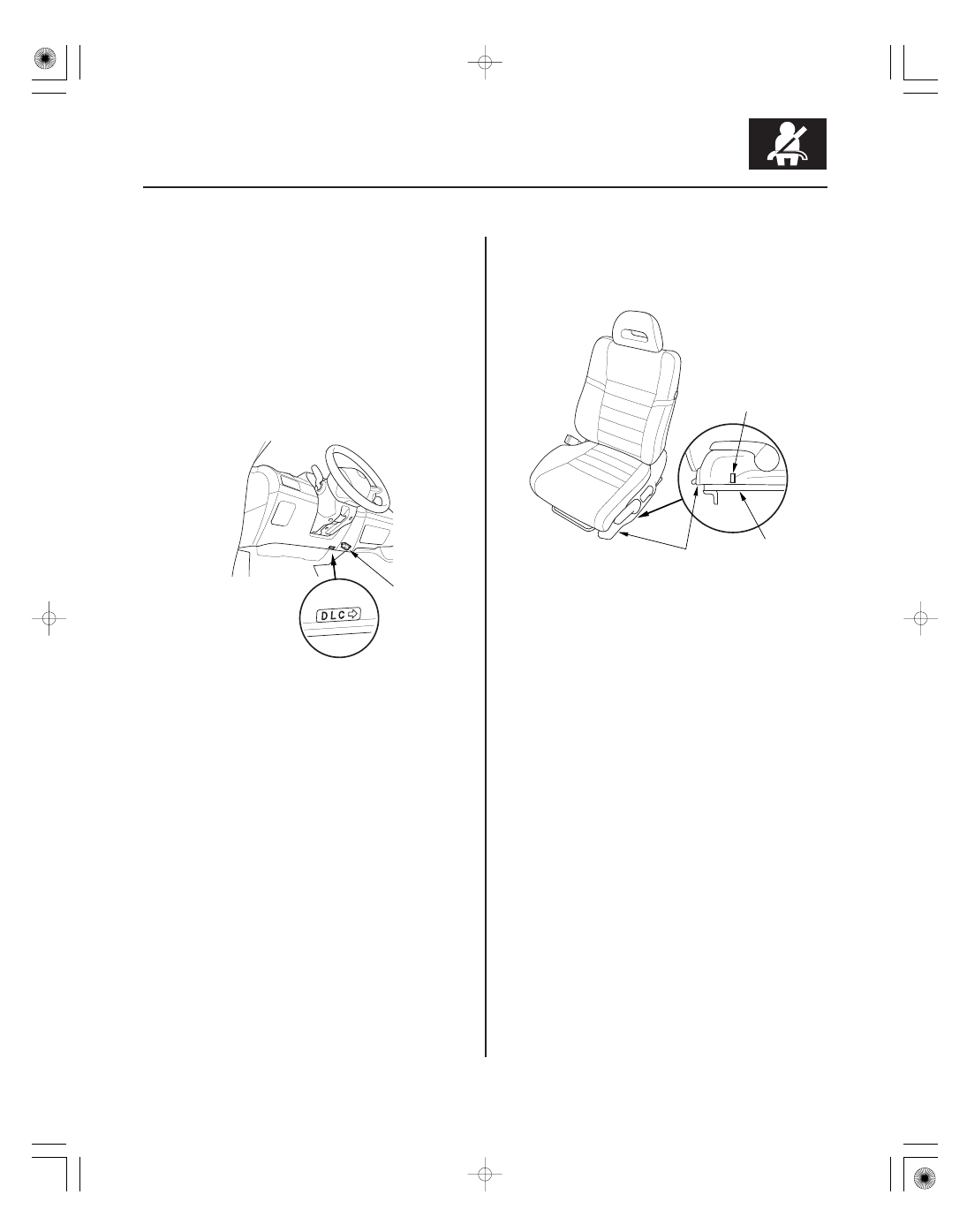

Driver’s Seat Position Sensor Operation Check

Check the driver’s seat position after any of these
actions.

• Driver’s seat position sensor replacement
• Cover plate (front side of driver’s seat slide rail)

replacement

1. Make sure the driver’s seat is at its full forward

position.

2. Make sure the ignition switch is in LOCK (0).

3. Connect the HDS to the data link connector (DLC)

(A).

4. Turn the ignition switch to ON (II).

5. Make sure the HDS communicates with the vehicle

and the SRS unit. If it does not communicate,
troubleshoot the DLC circuit (see page 11-204).

6. From the HDS Main Menu, select SRS, then

Prameter Information, then Buckle Switch, Seat
Position Sensor.

7. Using a piece of tape (A), mark the location on the

seat’s outer cover (B) where the front riser cover
meets the seat riser (C). The driver’s seat position
sensor should read NEAR.

8. Move the seat back in small increments (about

0.2 in., 5 mm) until the driver’s seat position sensor
reads NOT NEAR. The seat should be about 25 mm
(1 in.) from the front.

NOTE:

• It takes a few seconds for the HDS to display

changes, so wait about 5 seconds between each
move.

• If the driver’s seat position sensor data does not

work as described, check the driver’s seat
position sensor or the cover plate for damage,
and replace parts as needed.

9. Turn the ignition switch to LOCK (0), and

disconnect the HDS from the DLC.

08/08/21 13:54:23 61SNR030_240_0029

ＳＮＲ９Ａ００Ｈ４６４００００００００ＧＡＡＴ００

SRS Unit DTC

Detection Item

Notes

24-30

SRS

DTC Troubleshooting Index

11-1x

Open in the driver’s airbag first inflator

(see page 24-48)

11-3x

Short to another wire or decreased resistance in the driver’s airbag first inflator

(see page 24-50)

11-4x

Open in the driver’s airbag second inflator

(see page 24-48)

11-6x

Short to another wire or decreased resistance in the driver’s airbag second inflator

(see page 24-50)

11-8x

Short to power in the driver’s airbag first inflator

(see page 24-52)

11-9x

Short to ground in the driver’s airbag first inflator

(see page 24-54)

11-Ax

Short to power in the driver’s airbag second inflator

(see page 24-52)

11-Bx

Short to ground in the driver’s airbag second inflator

(see page 24-54)

12-1x

Open in the front passenger’s airbag first inflator

(see page 24-56)

12-3x

Short to another wire or decreased resistance in the front passenger’s airbag first
inflator

(see page 24-58)

12-4x

Open in the front passenger’s airbag second inflator

(see page 24-56)

12-6x

Short to another wire or decreased resistance in the front passenger’s airbag
second inflator

(see page 24-58)

12-8x

Short to power in the front passenger’s airbag first inflator

(see page 24-59)

12-9x

Short to ground in the front passenger’s airbag first inflator

(see page 24-61)

12-Ax

Short to power in the front passenger’s airbag second inflator

(see page 24-59)

12-Bx

Short to ground in the front passenger’s airbag second inflator

(see page 24-61)

21-1x

Open in the driver’s seat belt tensioner

(see page 24-62)

21-3x

Short to another wire or decreased resistance in the driver’s seat belt tensioner

(see page 24-63)

21-8x

Short to power in the driver’s seat belt tensioner

(see page 24-65)

21-9x

Short to ground in the driver’s seat belt tensioner

(see page 24-66)

22-1x

Open in the front passenger’s seat belt tensioner

(see page 24-68)

22-3x

Short to another wire or decreased resistance in the front passenger’s seat belt
tensioner

(see page 24-70)

22-8x

Short to power in the front passenger’s seat belt tensioner

(see page 24-72)

22-9x

Short to ground in the front passenger’s seat belt tensioner

(see page 24-74)

27-1x

Open in the driver’s seat belt buckle tensioner

(see page 24-76)

27-3x

Short to another wire or decreased resistance in the driver’s seat belt buckle
tensioner

(see page 24-78)

27-8x

Short to power in the driver’s seat belt buckle tensioner

(see page 24-80)

27-9x

Short to ground in the driver’s seat belt buckle tensioner

(see page 24-82)

28-1x

Open in the front passenger’s seat belt buckle tensioner

(see page 24-84)

28-3x

Short to another wire or decreased resistance in the front passenger’s seat belt
buckle tensioner

(see page 24-86)

28-8x

Short to power in the front passenger’s seat belt buckle tensioner

(see page 24-88)

28-9x

Short to ground in the front passenger’s seat belt buckle tensioner

(see page 24-90)

31-1x

Open in the driver’s side airbag inflator

(see page 24-92)

31-3x

Short to another wire or decreased resistance in the driver’s side airbag inflator

(see page 24-94)

31-8x

Short to power in the driver’s side airbag inflator

(see page 24-96)

31-9x

Short to ground in the driver’s side airbag inflator

(see page 24-97)

08/08/21 13:54:23 61SNR030_240_0030

SRS Unit DTC

Detection Item

Notes

24-31

32-1x

Open in the front passenger’s side airbag inflator

(see page 24-99)

32-3x

Short to another wire or decreased resistance in the front passenger’s side airbag
inflator

(see page 24-100)

32-8x

Short to power in the front passenger’s side airbag inflator

(see page 24-102)

32-9x

Short to ground in the front passenger’s side airbag inflator

(see page 24-104)

33-1x

Open in the left side curtain airbag inflator

(see page 24-106)

33-3x

Short to another wire or decreased resistance in the left side curtain airbag inflator

(see page 24-107)

33-8x

Short to power in the left side curtain airbag inflator

(see page 24-109)

33-9x

Short to ground in the left side curtain airbag inflator

(see page 24-111)

34-1x

Open in the right side curtain airbag inflator

(see page 24-113)

34-3x

Short to another wire or decreased resistance in the right side curtain airbag
inflator

(see page 24-115)

34-8x

Short to power in the right side curtain airbag inflator

(see page 24-117)

34-9x

Short to ground in the right side curtain airbag inflator

(see page 24-118)

41-1x

No signal from the left front impact sensor

(see page 24-120)

41-2x

Internal failure of the left front impact sensor

(see page 24-125)

41-3x

41-Bx

42-1x

No signal from the right front impact sensor

(see page 24-122)

42-2x

Internal failure of the right front impact sensor

(see page 24-125)

42-3x

42-Bx

43-1x

No signal from the left side impact sensor (first)

(see page 24-126)

43-2x

Internal failure of the left side impact sensor (first)

(see page 24-131)

43-3x

43-Bx

44-1x

No signal from the right side impact sensor (first)

(see page 24-128)

44-2x

Internal failure of the right side impact sensor (first)

(see page 24-131)

44-3x

44-Bx

45-1x

No signal from the left side impact sensor (second)

(see page 24-132)

45-2x

Internal failure of the left side impact sensor (second)

(see page 24-137)

45-3x

45-Bx

46-1x

No signal from the right side impact sensor (second)

(see page 24-134)

46-2x

Internal failure of the right side impact sensor (second)

(see page 24-137)

46-3x

46-Bx

51-xx

Internal failure of the SRS unit

(see page 24-138)

52-xx
53-xx
54-xx
55-xx
61-1x

Open in the driver’s seat belt buckle switch

(see page 24-139)

61-2x

Short in the driver’s seat belt buckle switch

(see page 24-141)

62-1x

Open in the front passenger’s seat belt buckle switch

(see page 24-142)

62-2x

Short in the front passenger’s seat belt buckle switch

(see page 24-143)

71-1x

Open in the driver’s seat position sensor

(see page 24-144)

71-2x

Short in the driver’s seat position sensor

(see page 24-145)

81-4x

Internal failure of the ODS unit

(see page 24-149)

81-5x
81-61

No signal from the ODS unit

(see page 24-147)

81-62

Non-stipulated data from the ODS unit

81-63

Internal failure of the ODS unit

(see page 24-149)

81-64
81-71

ODS unit does not calibrate

(see page 24-150)

81-78
81-79

Front passenger’s weight sensors initial check failure

NOTE:

The ‘‘x’’ at the end of each DTC denotes a numeric character (0 thru 9) or an alpha character (A thru F) that you will see on the HDS
display. The character is unrelated to your troubleshooting; it designates the SRS unit manufacturer and other detail used for product
analysis.

08/08/21 13:55:32 61SNR030_240_0031

SRS Unit DTC

Detection Item

Notes

24-32

SRS

82-14

No signal from the front passenger’s weight sensor (front inner side)

(see page 24-151)

82-15

Internal failure of the front passenger’s weight sensor (front inner side)

(see page 24-155)

82-16

No signal from the front passenger’s weight sensor (rear inner side)

(see page 24-156)

82-17

Internal failure of the front passenger’s weight sensor (rear inner side)

(see page 24-155)

83-24

No signal from the front passenger’s weight sensor (front outer side)

(see page 24-159)

82-25

Internal failure of the front passenger’s weight sensor (front outer side)

(see page 24-155)

83-26

No signal from the front passenger’s weight sensor (rear outer side)

(see page 24-163)

82-27

Internal failure of the front passenger’s weight sensor (rear outer side)

(see page 24-155)

85-4x

Internal failure of the ODS unit

(see page 24-166)

85-5x
85-61

No signal from the ODS unit

(see page 24-147)

85-62

Non-stipulated data from the ODS unit

85-63

Internal failure of the ODS unit

(see page 24-166)

85-64
85-71

ODS unit not initialize

(see page 24-167)

85-78
85-79

OPDS sensor initial check failure

86-1x

Faulty OPDS seat-back sensor

(see page 24-168)

86-2x

Faulty OPDS seat support sensor

92-1x

Open in the passenger’s airbag cutoff indicator

(see page 24-169)

92-2x

Open or short to ground in the passenger’s airbag cutoff indicator

(see page 24-170)

A1-1x

Faulty power supply (VA line)

(see page 24-171)

A2-1x

Faulty power supply (VB line)

(see page 24-173)

B2-1x

No signal from the rear safing sensor

(see page 24-174)

B2-17

Internal failure of the rear safing sensor

(see page 24-177)

B2-8x
B2-9x

B2-Ax
B2-Bx

Ex-11

Control operation recorded

(see page 24-138)

Fx-11

Airbags and/or tensioners deployment recorded

(see page 24-139)

NOTE:

08/08/21 13:55:32 61SNR030_240_0032
