Acura CSX. Manual - part 554

ＳＮＲ９Ａ００Ｋ７３２０００Ｙ１１５５ＦＡＡＴ００

−

DTC B1155:

DTC B1156:

DTC B1159:

DTC B1188:

YES

22-263

Gauge Control Module Lost

Communication with the MICU (Headlight
Switch Message)

Gauge Control Module Lost

Communication with the MICU (Wiper Switch
Message)

Gauge Control Module Lost

Communication with the MICU (DOORSW
Message)

Gauge Control Module Lost

Communication with the MICU (RM
Message)

NOTE: If you are troubleshooting multiple DTCs, be
sure to follow the instructions in B-CAN System
Diagnosis Test Mode A (see page 22-93).

1. Clear the DTCs with the HDS.

2. Turn the ignition switch to LOCK (0), and then back

to ON (II).

3. Check for DTCs with the HDS.

Go to step 4.

Intermittent failure. The gauge control

module is OK at this time. Check for loose or poor
connections. If the connections are good, check the
battery condition (see page 22-67), and the
charging system.

4. Check for DTCs with the HDS.

Faulty MICU; replace the under-dash fuse/

relay box (see page 22-66).

Replace the gauge control module (tach)

(see page 22-277).

Ar e DT Cs B1155, B1156, 1157 , B1159, B1160,
and/ or B1188 indicated?

Ar e DT Cs B1155, B1156, 1157 , B1159, B1160,
and/ or B1188 indicated at the same time?

08/08/21 14:35:19 61SNR030_220_0265

ＳＮＲ９Ａ００Ｋ７３２０００Ｙ１１５７ＦＡＡＴ００

ＳＮＲ９Ａ００Ｋ７３２０００Ｙ１１６０ＦＡＡＴ００

−

DTC B1157:

DTC B1160:

YES

22-264

Gauges

Gauge Control Module Lost

Communication with the MICU (MICU
Message)

Gauge Control Module Lost

Communication with the MICU (DRLOCKSW
Message)

NOTE: If you are troubleshooting multiple DTCs, be
sure to follow the instructions in B-CAN System
Diagnosis Test Mode A (see page 22-93).

1. Clear the DTCs with the HDS.

2. Turn the ignition switch to LOCK (0), and then back

to ON (II).

3. Check for DTCs with the HDS.

Go to step 4.

Intermittent failure. The gauge control

module is OK at this time. Check for loose or poor
connections. If the connections are good, check the
battery condition (see page 22-67), and the
charging system.

4. Check for DTCs with the HDS.

Faulty MICU; replace the under-dash fuse/

relay box (see page 22-66).

Replace the gauge control module (tach)

(see page 22-277).

NOTE: If you are troubleshooting multiple DTCs, be
sure to follow the instructions in B-CAN System
Diagnosis Test Mode A (see page 22-93).

1. Clear the DTCs with the HDS.

2. Turn the ignition switch to LOCK (0), and then back

to ON (II).

3. Check for DTCs with the HDS.

Go to step 4.

Intermittent failure. The gauge control

module is OK at this time. Check for loose or poor
connections. If the connections are good, check the
battery condition (see page 22-67), and the
charging system.

4. Check for DTCs with the HDS.

Faulty MICU; replace the under-dash fuse/

relay box (see page 22-66).

Replace the gauge control module (tach)

(see page 22-277).

Is DT C B1157 indicated?

Ar e DT Cs B1157 and B1165 indicated at the same
time?

Is DT C B1160 indicated?

Ar e DT Cs B1160 and B1905 indicated at the same
time?

08/08/21 14:35:19 61SNR030_220_0266

ＳＮＲ９Ａ００Ｋ７３２０００Ｙ１１６８ＦＡＡＴ００

−

DTC B1168:

DTC B1169:

DTC B1170:

DTC B1178:

DTC B1187:

YES

22-265

Gauge Control Module Lost

Communication with ECM/PCM (Engine
Messages)

Gauge Control Module Lost

Communication with the PCM (A/T
Messages)

Gauge Control Module Lost

Communication with the ABS/VSA
modulator-Control Unit (ABS/VSA message)

F-CAN Communication Line Error

Gauge Control Module Lost

Communication with the SRS Unit (SRS
Message)

NOTE: If you are troubleshooting multiple DTCs, be
sure to follow the instructions in B-CAN System
Diagnosis Test Mode A (see page 22-93).

1. Clear the DTCs using the HDS.

2. Turn the ignition switch to LOCK (0), and then back

to ON (II).

3. Start and run the engine for at least 5 seconds then

turn the engine off.

4. Check for DTCs with the HDS.

Go to step 5.

Intermittent failure, the F-CAN

communication line is OK at this time. Check for
loose or poor connections. If the connections are
good, check the battery condition (see page 22-67),
and the charging system.

5. Check for DTCs in the ECM/PCM or ABS/VSA.

Troubleshoot the ECM/PCM or ABS/VSA.

Go to step 6.

6. Do the Gauge Control Module (Tach) Input Test

(see page 22-271).

Go to step 7.

Repair the faulty input then recheck for

DTCs.

7. Substitute a known-good gauge control module

(tach).

8. Clear the DTCs with the HDS.

9. Turn the ignition switch to LOCK (0), and then back

to ON (II).

10. Start and run the engine for at least 5 seconds then

turn the engine off.

11. Check for DTCs with the HDS.

Substitute a known-good ECM/PCM and

retest. If the system/indication goes away, replace
the original ECM/PCM.

The original gauge control module (tach) is

faulty; replace the gauge control module (tach)
(see page 22-277).

Ar e DT Cs B1168, B1169, B117 0, B117 8, and/ or
B1187 indicated?

Ar e any DT Cs indicated?

Ar e all inputs OK ?

Ar e DT Cs B1168, B1169, B117 0, B117 8, and/ or
B1187 indicated?

08/08/21 14:35:19 61SNR030_220_0267

＊０１

ＳＮＲ９Ａ０ＪＫ７３２０００Ｙ１１７３ＦＡＡＴ００

−

DTC B1173:

YES

22-266

Gauges

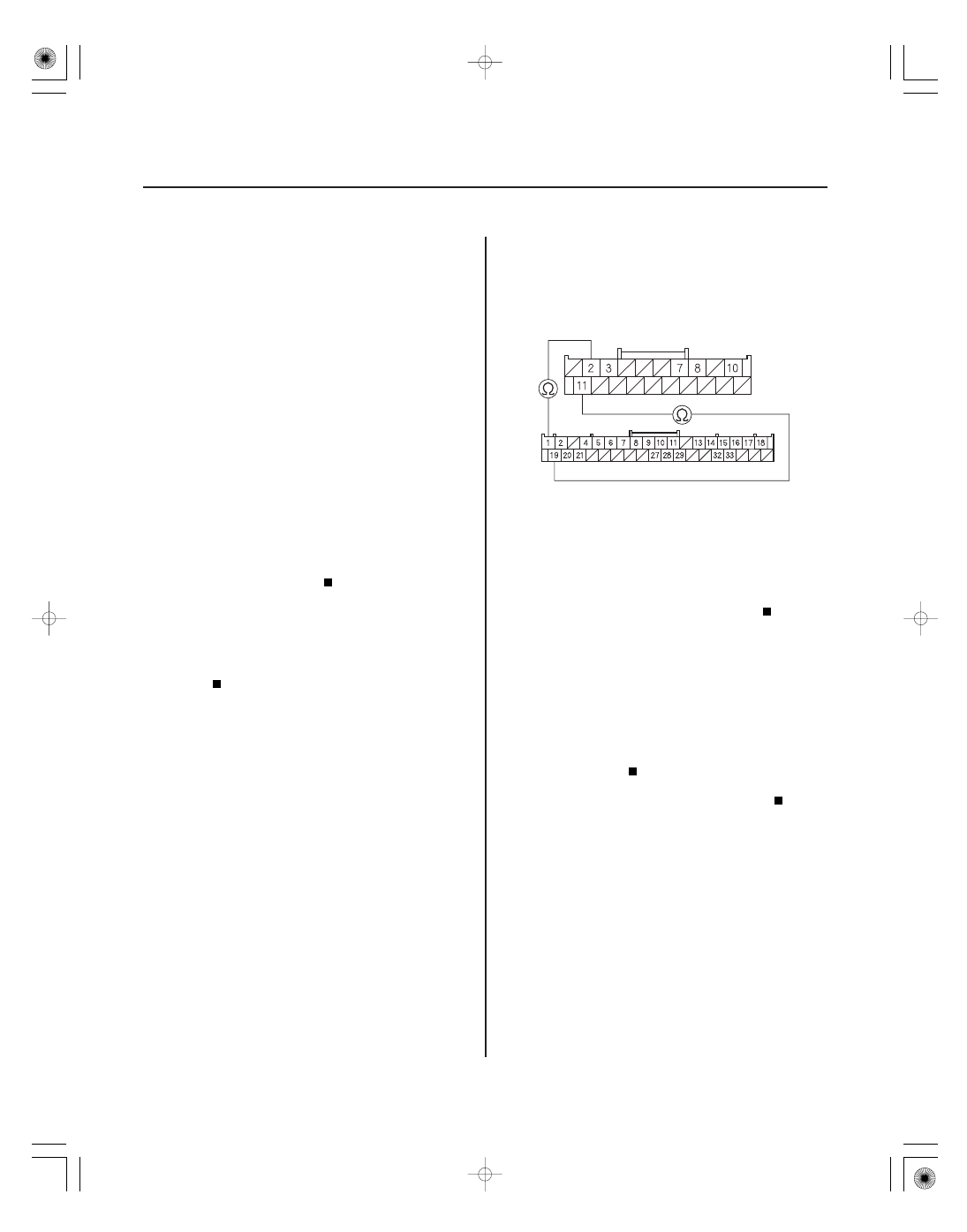

GAUGE CONTROL MODULE (TACH) 36P CONNECTOR

CAN H (WHT)

CAN L (RED)

TPMS CONTROL UNIT 20P CONNECTOR

Gauge Control Module Lost

Communication with the TPMS Control Unit
(TPMS Message) (’08-09 models)

NOTE: If you are troubleshooting multiple DTCs, be
sure to follow the instructions in B-CAN System
Diagnosis Test Mode A (see page 22-93).

1. Clear the DTCs with the HDS.

2. Turn the ignition switch to LOCK (0) and then back

to ON (II).

3. Check for the DTCs with the HDS.

Go to step 4.

Intermittent failure, the F-CAN

communication line is OK at this time. Check for
loose or poor connections. If the connections are
good, check the battery condition (see page 22-67),
and the charging system.

4. Check for DTCs in the TPMS.

Troubleshoot the TPMS DTCs with the

HDS.

Go to step 5.

5. Turn the ignition switch to LOCK (0).

6. Disconnect the gauge control module (tach) 36P

connector.

7. Disconnect the TPMS control unit 20P connector.

8. Check for continuity between gauge control

module (tach) 36P connector terminals No. 1 and
No. 19 and TPMS control unit 20P connector
terminals No. 2 and No. 11 respectively.

Go to step 9.

Repair an open in the wire between the gauge

control module and the TPMS control unit.

9. Check for poor connections, power, and ground to

the TPMS control unit. If OK, substitute a known-
good TPMS control unit.

10. Check for DTCs with the HDS.

Replace the gauge control module (tach)

(see page 22-277).

Replace the original TPMS control unit.

Wire side of female terminals

Is DT C B117 3 indicated?

Ar e any DT Cs indicated?

Is ther e continuity?

Is DT C B117 3 indicated?

08/08/21 14:35:19 61SNR030_220_0268
