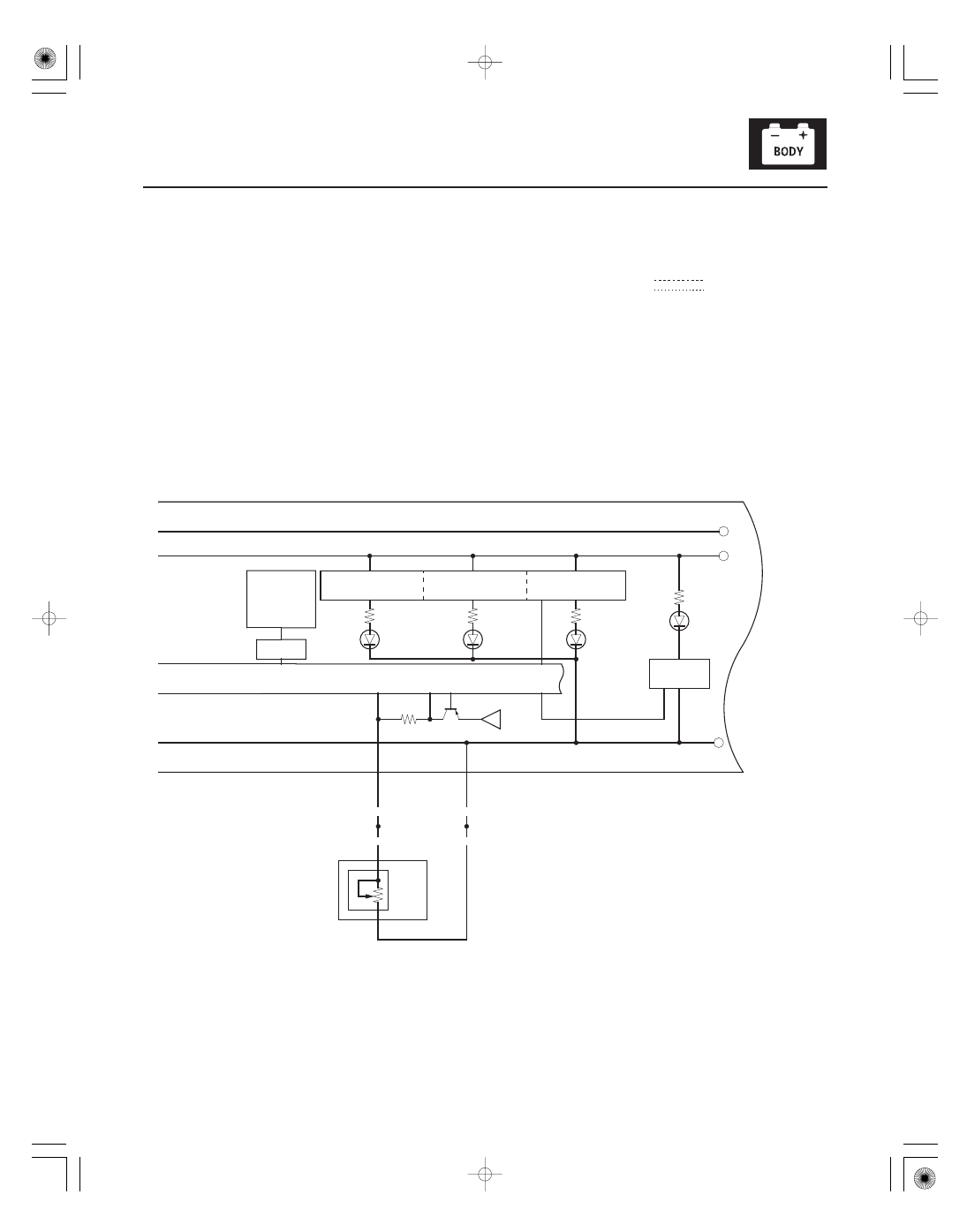

＊９０

−

22-251

: CAN line

MAIN CIRCUIT

33

ORN

ORN

32

LT GRN

3

1

PUR

(LED)

(LED)

(LED)

C

LCD DISPLAY

B

A

GAUGE CONTROL MODULE (TACH)

ILLUMINATION CONTROL &
DIMMING CIRCUIT
FOR POINTER

ILLUMINATION CONTROL &
DIMMING CIRCUIT
FOR LCD

ILLUMINATION CONTROL &
DIMMING CIRCUIT
FOR DIAL

FUEL
GAUGE
SENDING
UNIT

FUEL
TANK
UNIT

: Other communication line

DRIVE
CIRCUIT

A

ODO,
TRIP A/TRIP B
OUTSIDE AIR
TEMPERATURE
CHECK FUEL CAP
SERVICE OIL LIFE

•

•

•
•

LCD DRIVER

SIDE
AIRBAG
CUTOFF
INDICATOR
(LED)

*1: ’08 09 models
*2: ’09 model

08/08/21 14:35:15 61SNR030_220_0253

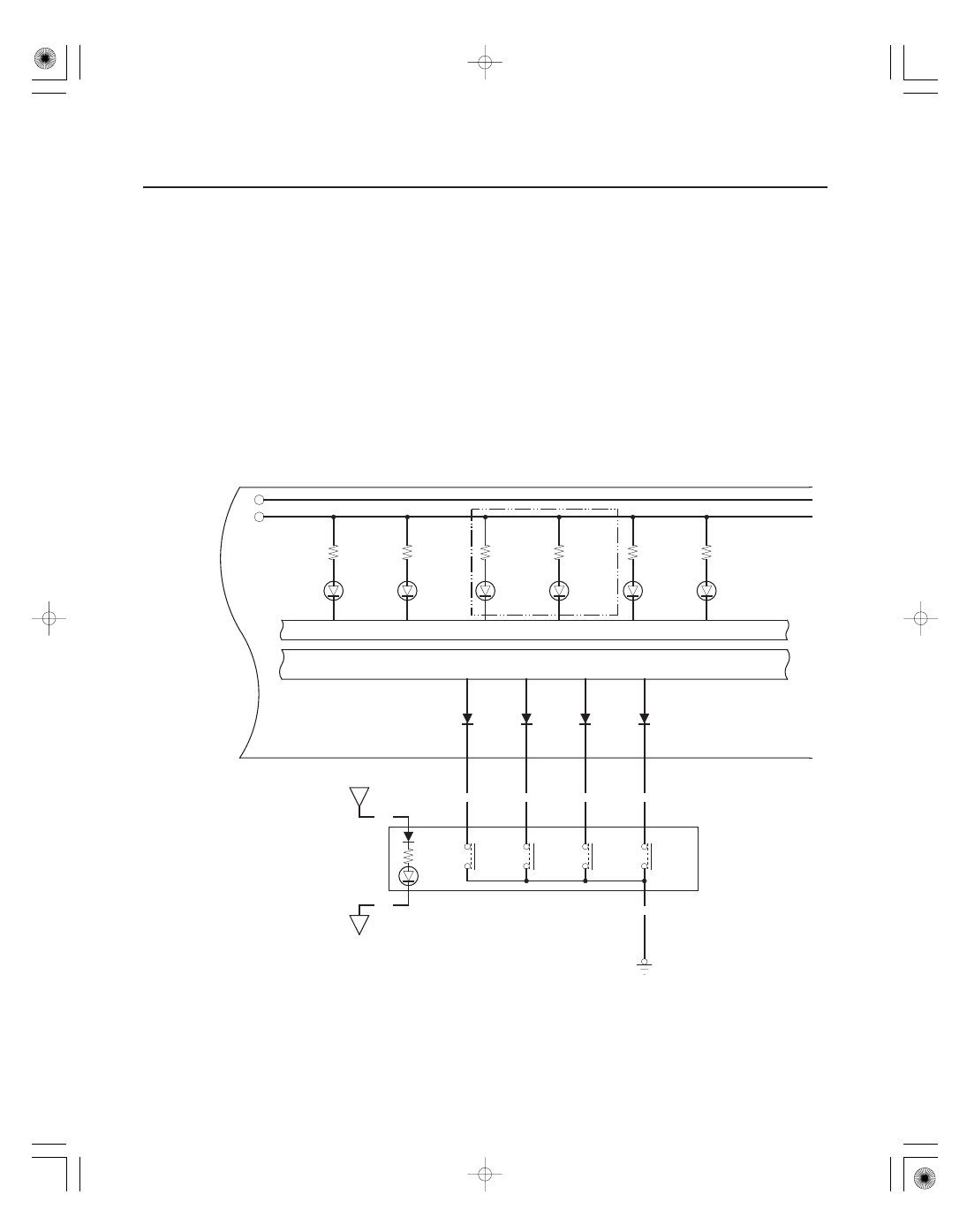

＊９１

22-252

Gauges

RED

•
•
•
•

GAUGE CONTROL MODULE (TACH)

MIAN CIRCUIT

INDICATOR DRIVE CIRCUIT

16

G504

15

14

13

9

10

11

C

B

A

G503

INDICATOR DRIVE CIRCUIT

BLK

BLK

RED

YEL

LT GRN

ORN

LIGHTS-ON/FOG LIGHT
INDICATOR
DIMMING CIRCUIT

CRUISE CONTROL
SET/RESUME/CANCEL
SWITCH

CRUISE
CONTROL
INDICATOR
(LED)

DASH LIGHTS
BRIGHTNESS
CONTROLLER

COMPULSORY
TURNING-ON
CIRCUIT

CRUISE CONTROL
DIMMING CIRCUIT

LIGHTS-ON/FOG LIGHT
INDICATOR

CRUISE
CONTROL
MAIN
SWITCH

FAIL-SAFE
CIRCUIT

MALFUNCTION
INDICATOR
LAMP (MIL)
(LED)

CRUISE
MAIN
INDICATOR
(LED)

AMBIENT LIGHT
SEAT HEATER SWITCHES LIGHT
DRIVER’S FOOTWELL LIGHT
FRONT PASSENGER’S
FOOTWELL LIGHT

NAVIGATION UNIT
HAZARD WARNING SWITCH LIGHT
MOONROOF SWITCH LIGHT
STEERING SWITCHES LIGHT
CLIMATE CONTROL UNIT
DASH LIGHTS BRIGHTNESS
CONTROLLER
FRONT PASSENGER’S
AIRBAG CUTOFF INDICATOR
VSA OFF SWITCH

•
•
•
•
•
•

•

•

B

08/08/21 14:35:16 61SNR030_220_0254

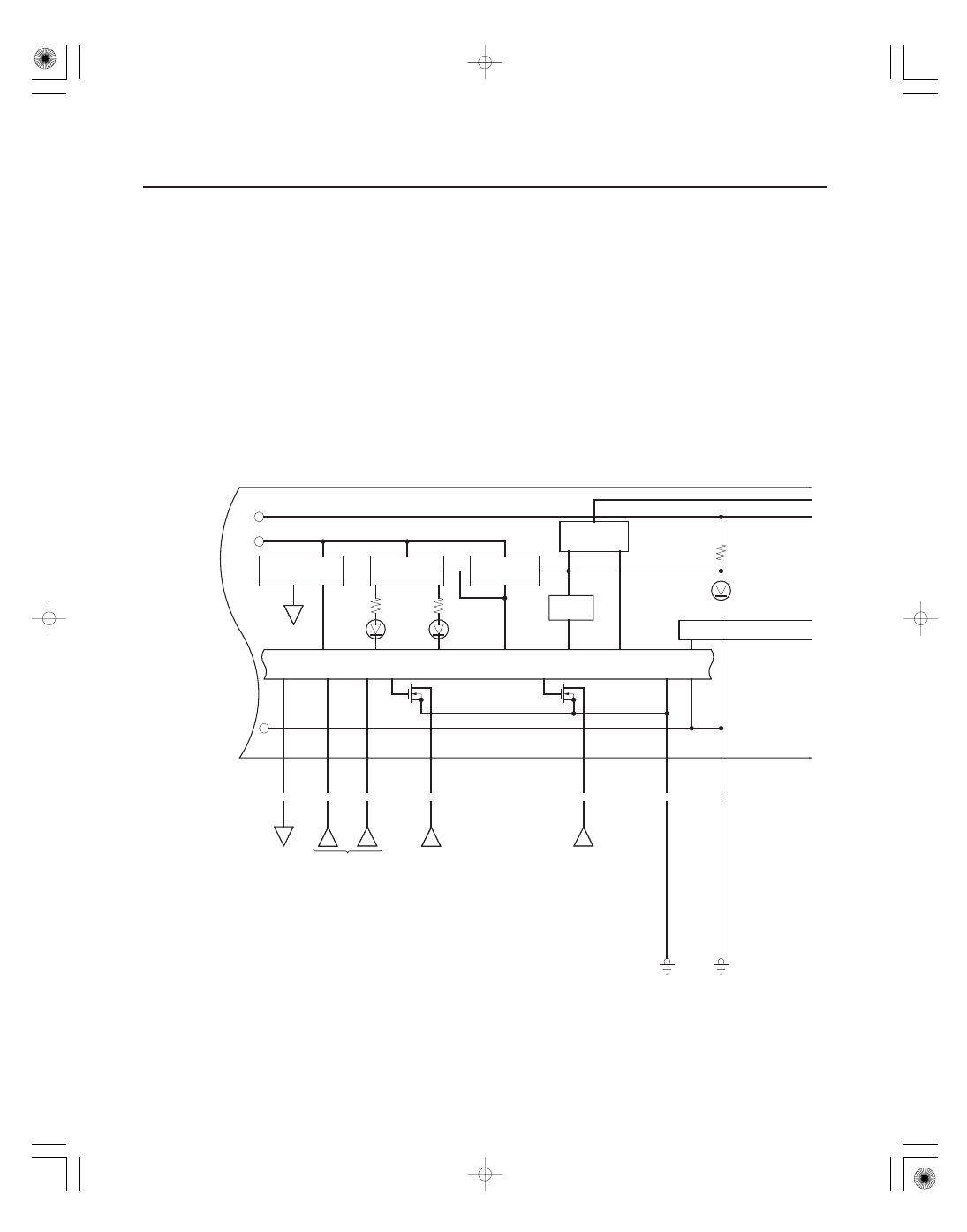

＊９１

22-253

BLU

YEL

BLK

G401

2

1

8

MAIN CIRCUIT

INDICATOR DRIVE CIRCUIT

D

EPS
INDICATOR
(LED)

VSA
INDICATOR
(LED)

SRS
INDICATOR
(LED)

ABS
INDICATOR
(LED)

WASHER
FLUID LEVEL
INDICATOR
(LED)

WASHER
FLUID
LEVEL
SWITCH

VSA
ACTIVATION
INDICATOR
(LED)

5

2

4

1

No. 14 (7.5 A) FUSE

RED

GRY

(0.56 W)

LIGHT

BRN

BLK

(UNDER-DASH
FUSE/RELAY BOX)

VSA
OFF
SWITCH

DASH LIGHTS
BRIGHTNESS
CONTROLLER

G501

29

GAUGE CONTROL MODULE (TACH)

C

08/08/21 14:35:16 61SNR030_220_0255

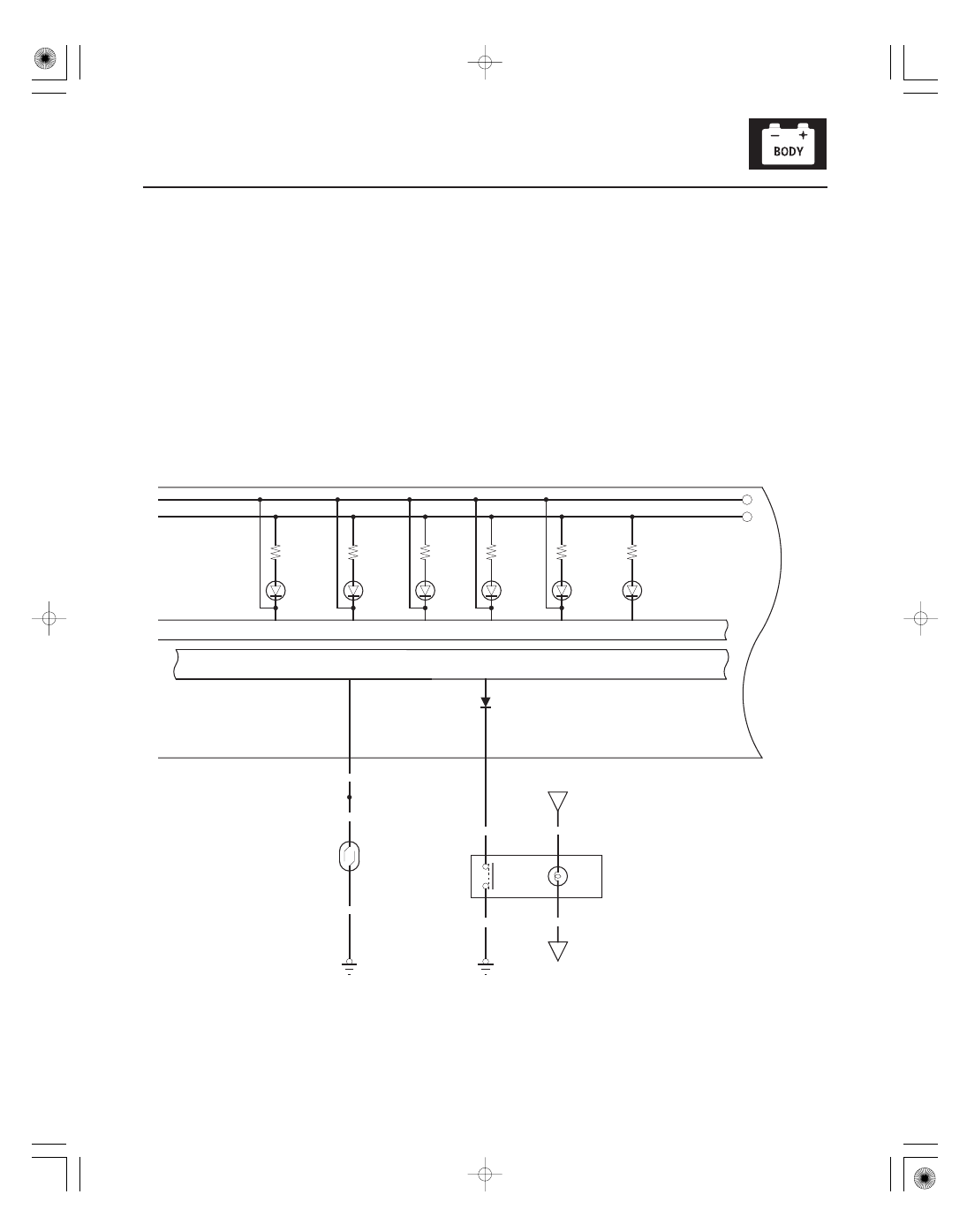

＊９２

−

＋

−

22-254

Gauges

GAUGE CONTROL MODULE (TACH)

D

MAIN CIRCUIT

INDICATOR DRIVE CIRCUIT

DRL
INDICATOR
(LED)

DOOR
INDICATOR
(LED)

TRUNK
INDICATOR
(LED)

MAINTENANCE
MINDER
INDICATOR
(LED)

*

LOW TIRE
PRESSURE
INDICATOR
(LED)

TPMS
INDICATOR
(LED)

G501

4

3

6

7

1

2

5

BLK

PUR

7

BLU

6

YEL

5

4

BRN

GRY

RED

ILLUMI
( )

ILLUMI
( )

SEL/
RESET

km/h
mph

LIGHTS
(LED)

GAUGE CONTROL
MODULE (TACH)

No. 14 (7.5 A) FUSE
(UNDER-DASH
FUSE/RELAY BOX)

DASH LIGHTS BRIGHTNESS CONTROLLER and
ODOMETER SELECT/RESET SWITCH

C
