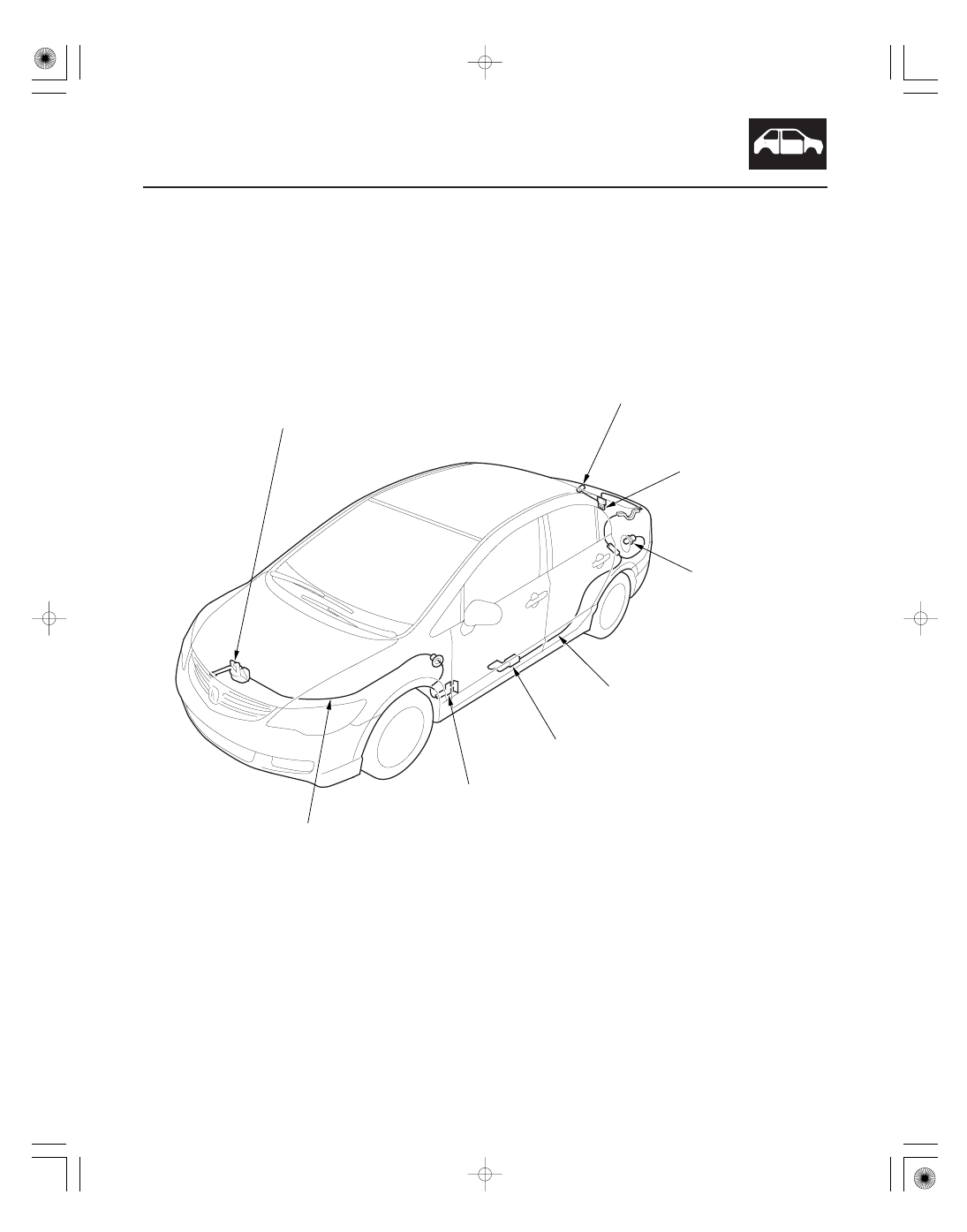

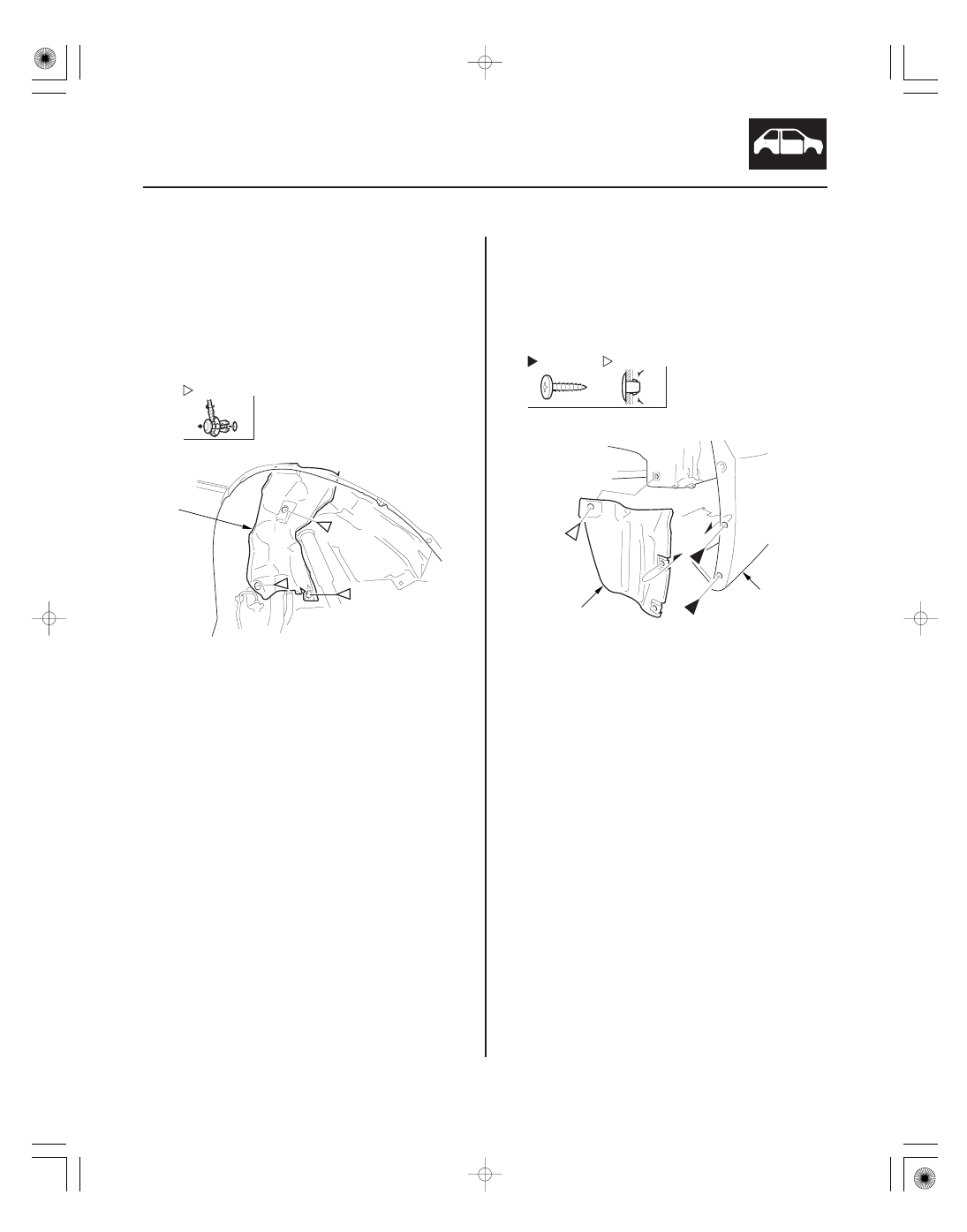

Fenderwell

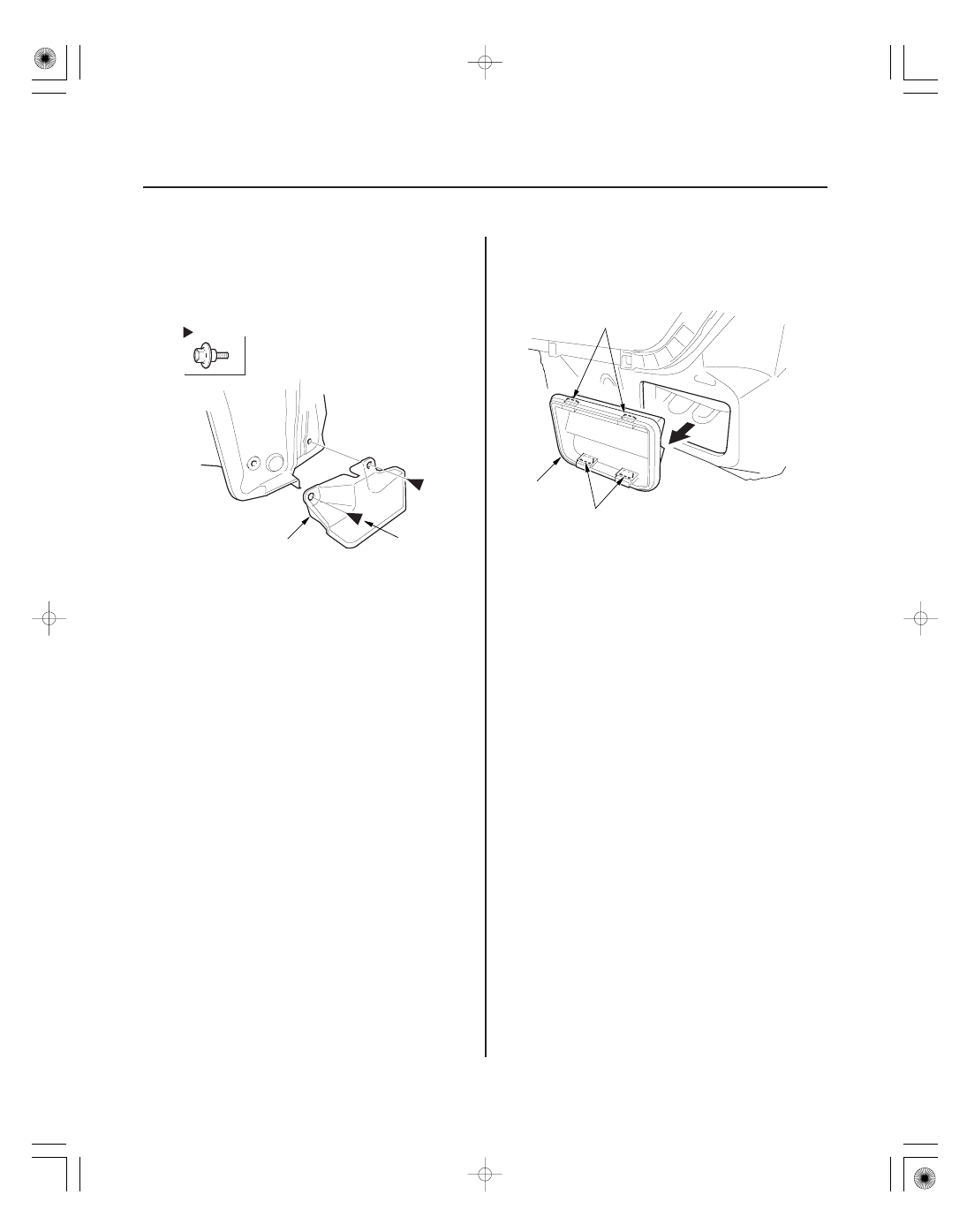

Middle Floor Undercover
Replacement
Rear Floor Undercover
Replacement

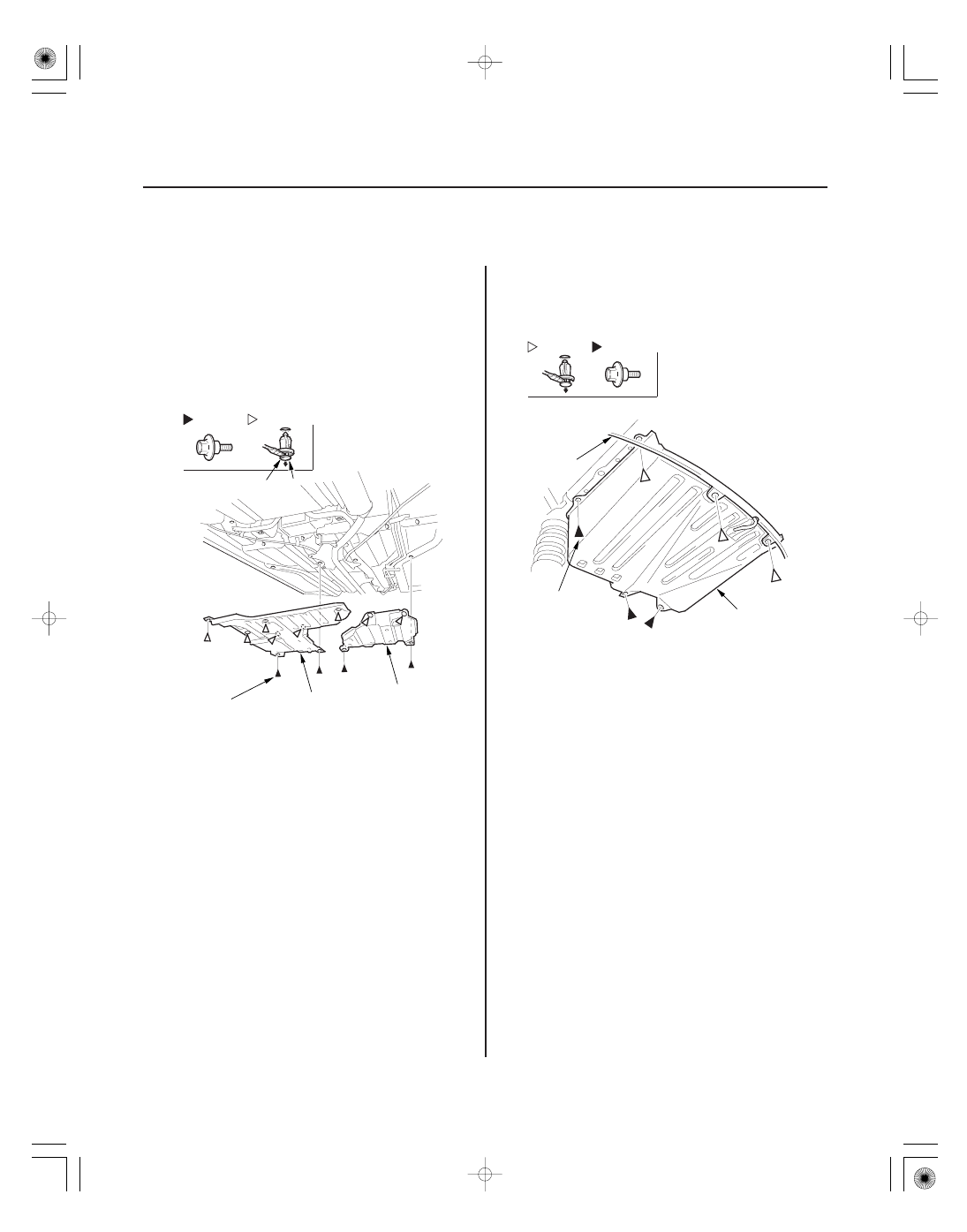

Fastener Locations
: Bolt, 4
: Clip, 8
A
B
6 x 1.0 mm
9.8 N·m
(1.0 kgf·m, 7.2 lbf·ft)
C
C
A
Fastener Locations
: Clip, 3
: Bolt, 3
6 x 1.0 mm
9.8 N·m
(1.0 kgf·m,
7.2 lbf·ft)
B
NOTE: Take care not to scratch the body.
1. Remove the bolts, and detach the clips, then
remove the left middle floor undercover (A) and
right middle undercover (B).
NOTE: To release the clips, pry up on the center pin
at the notch (C).
2. Install the undercovers in the reverse order of
removal, and note these items:
• If the clips are damaged or stress-whitened,
replace them with new ones.
• Push the clips into place securely.
1. Remove the clips and the bolts, then remove the
rear floor undercover (A). Take care not to scratch
the rear bumper (B).
2. Install the undercover in the reverse order of
removal, and note these items:
• If the clips are damaged or stress-whitened,
replace them with new ones.
• Push the clips into place securely.
