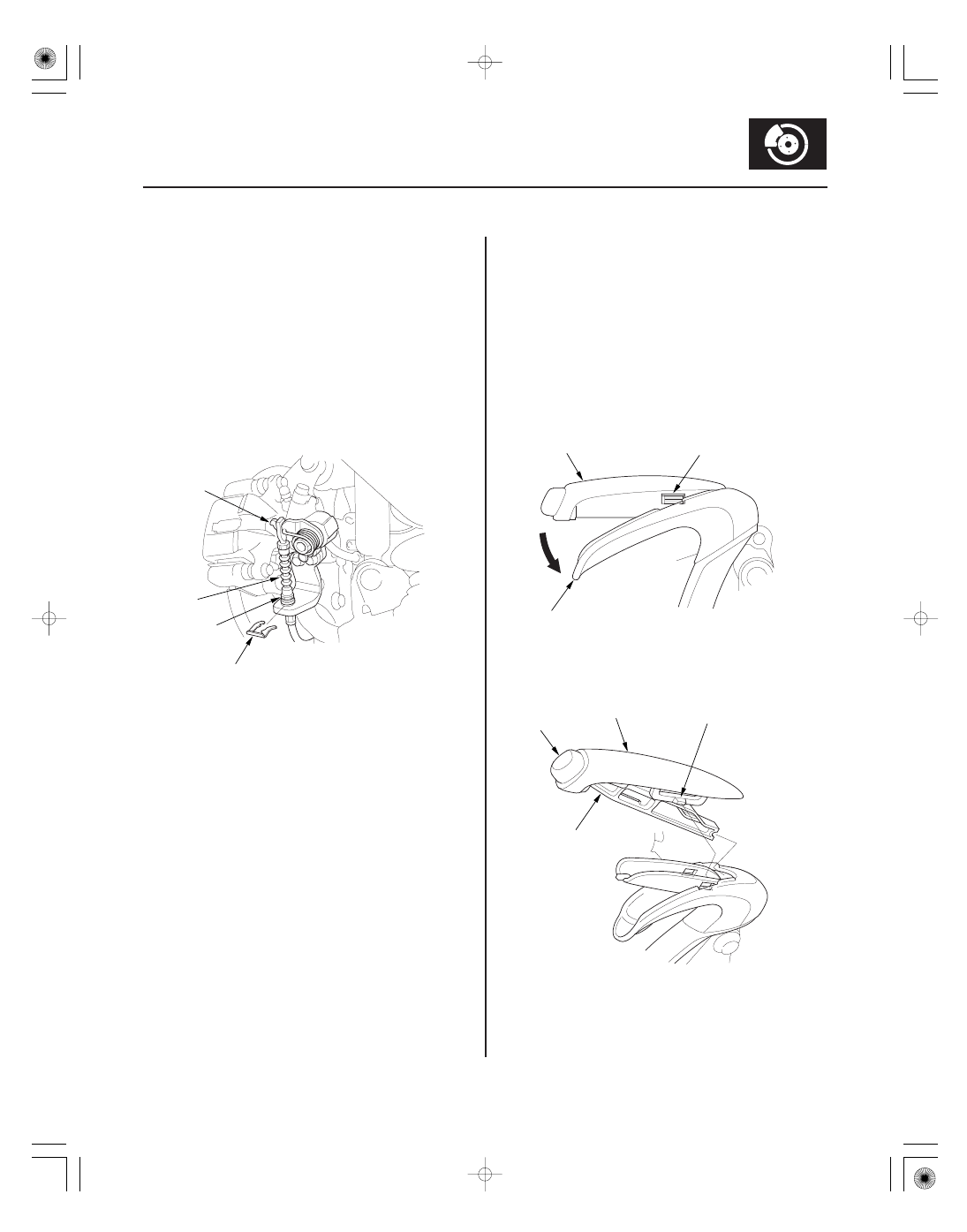

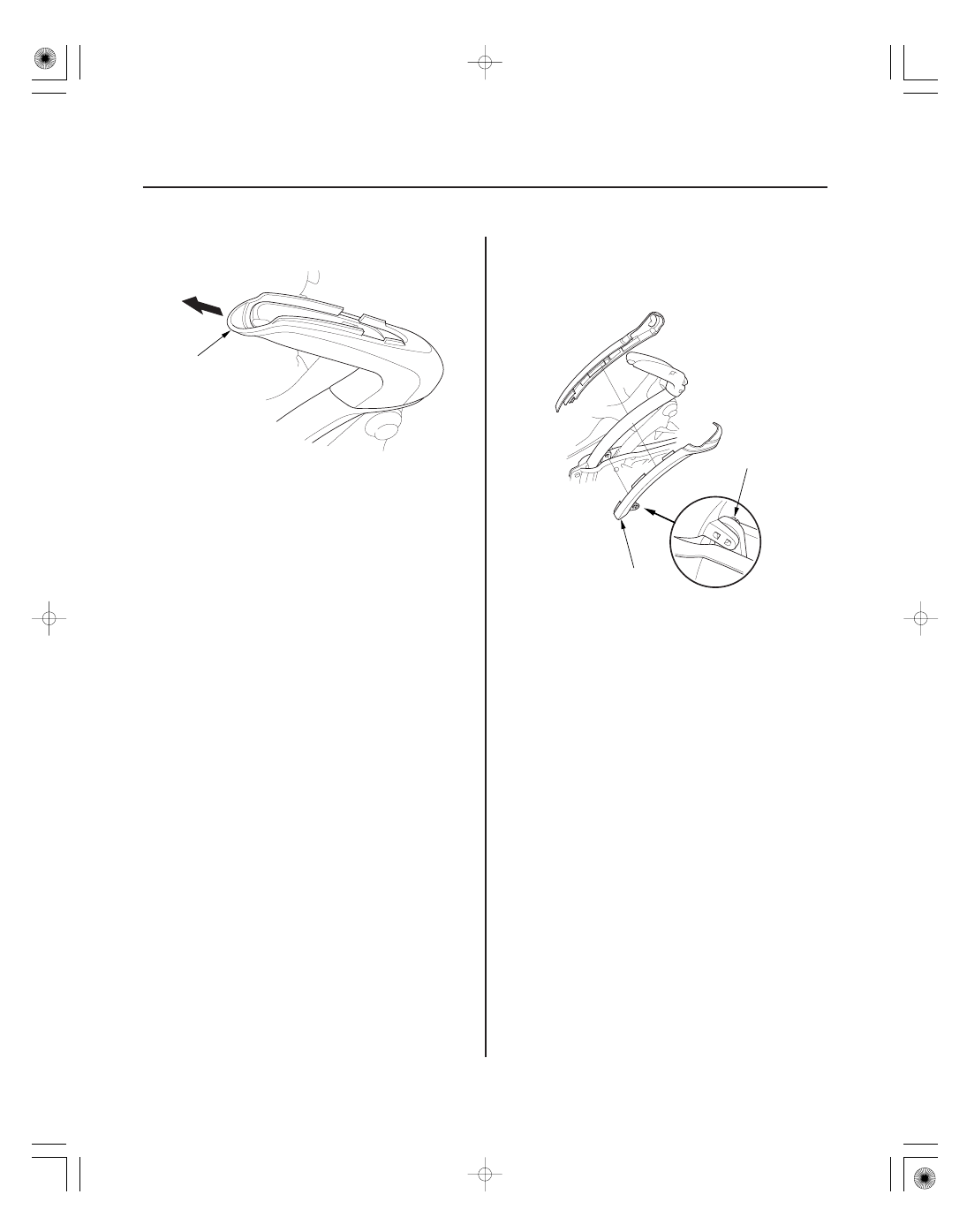

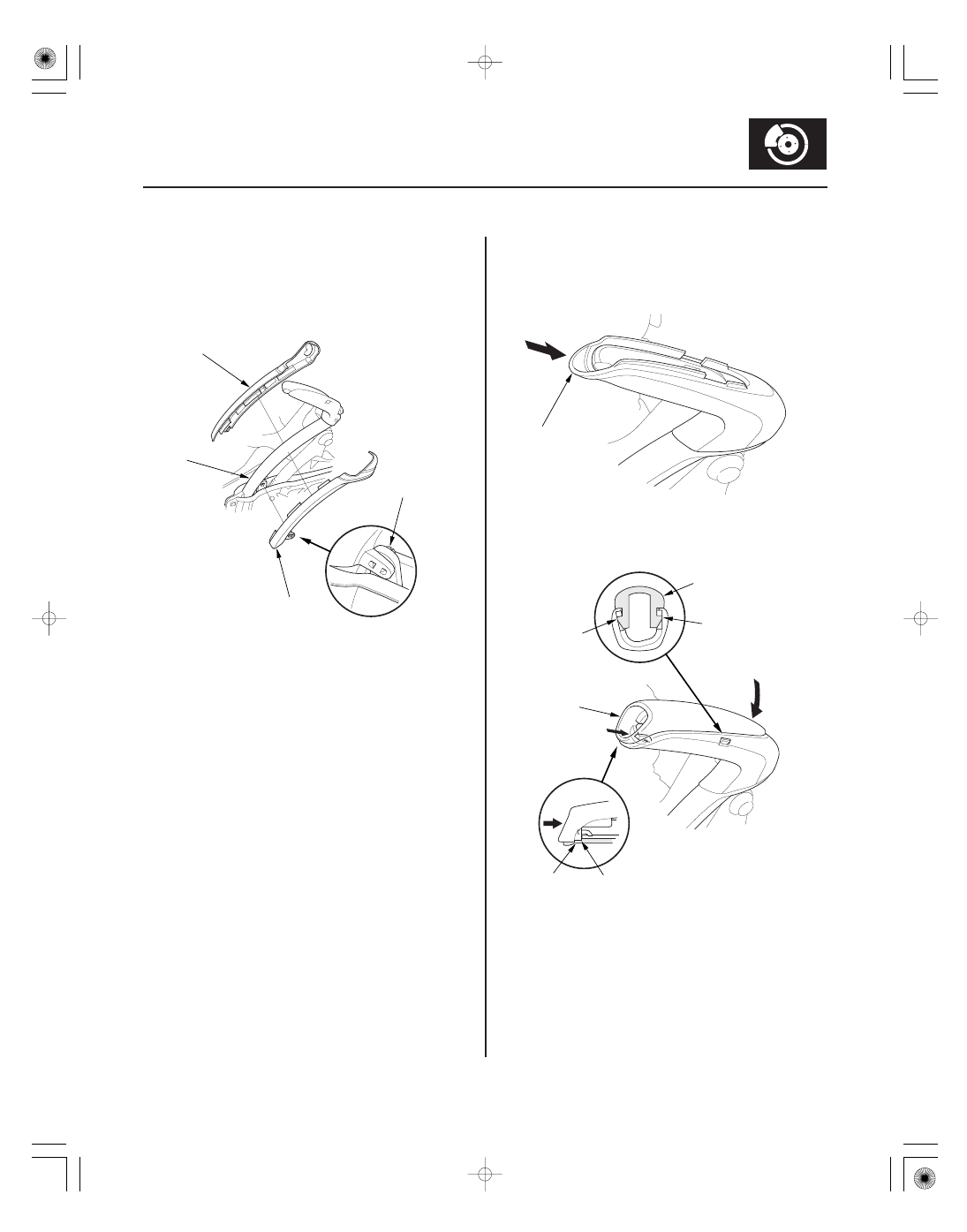

*02 01 01 SNR9A00D00060845121KBAT00 Removal Lever Grip 19-41 19-41 Parking Brake Lever Grip and Cover A B C D A B C D B A C NOTE: • The parking brake cables must not be bent or distorted. This will lead to stiff operation and • Refer to the Exploded View as needed during this procedure. 1. Release the parking brake lever fully. 2. Loosen the parking brake cable adjusting nut (see page 19-8). 3. Remove the parking brake cable clip (A) from the brake cable (B). 4. Disconnect the parking brake cable from the lever (C). 5. Remove the parking brake cable mounting hardware, then remove the cable. 6. Install the parking brake cable in the reverse order of removal, and note these items: • Be careful not to bend or distort the cable and boot (D). • Make sure the parking brake cable clip is fully seated on the cable housing. • Adjust the parking brake (see page 19-8). 1. Remove the center console (see page 20-92). 2. Pull up the parking brake fully (8 to 10 clicks). 3. Start at the front edge (A), peel lever grip away from lever cap (B). Continue to peel the grip from 4. Push in both sides of the hook (A) on the lever cap (B), and remove the lever cap and the pushrod (C) Replace. Replace. 08/08/21 15:02:10 61SNR030_190_0041 |
