Acura CSX. Manual - part 252

＊１１

＊１２

−

YES

14-89

ATPFWD (YEL/RED)

GND (BLK)

TRANSMISSION RANGE
SWITCH CONNECTOR

PCM CONNECTOR B (44P)

ATPFWD (BLU/YEL)

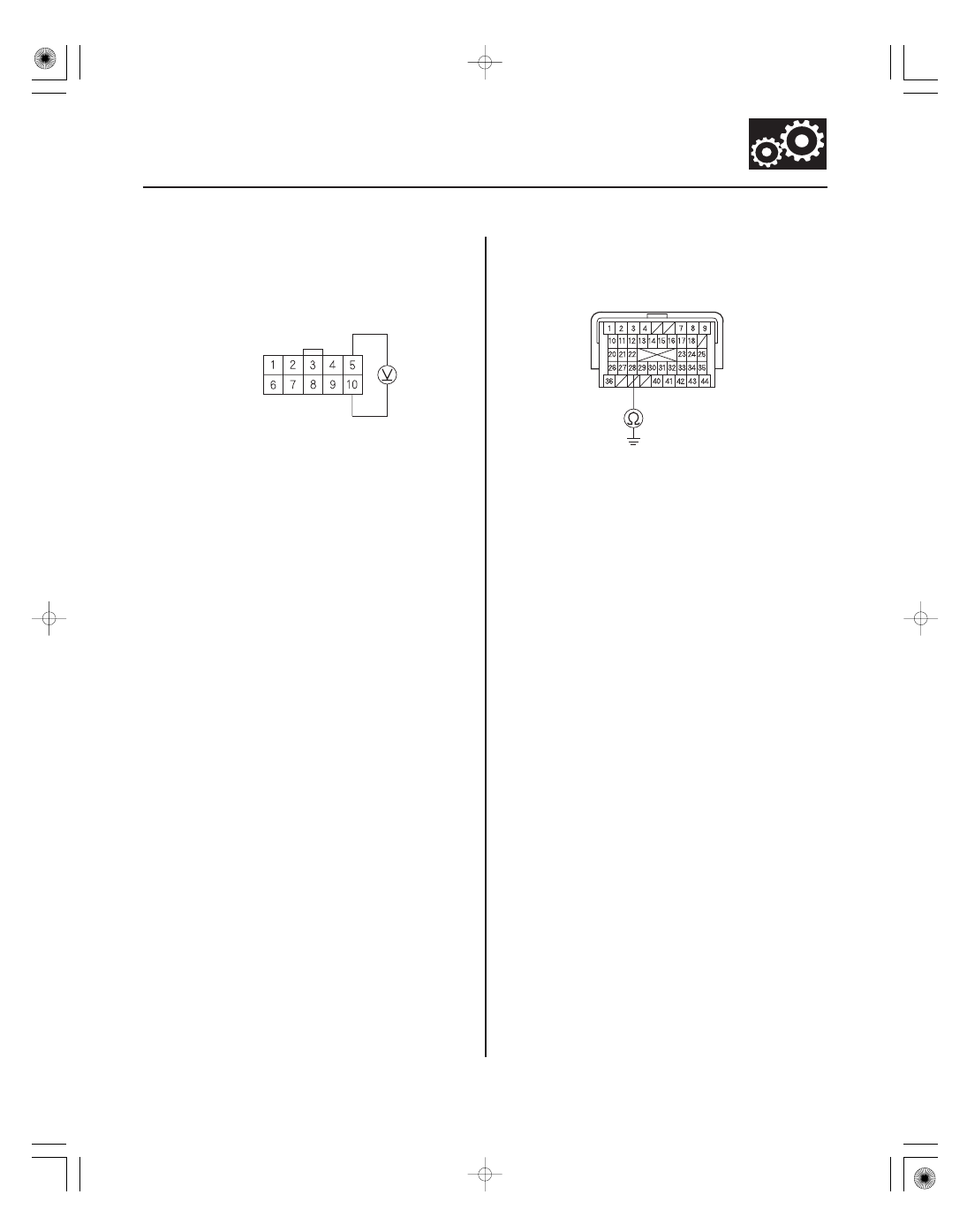

35. Measure the voltage between transmission range

switch connector terminals No. 5 and No. 10.

Go to step 40.

Go to step 36.

36. Turn the ignition switch to LOCK (0).

37. Jump the SCS line with the HDS.

38. Disconnect PCM connector B (44P).

39. Check for continuity between PCM connector

terminal B28 and body ground.

Repair short to body ground in the wire

between PCM connector terminal B28 and the
transmission range switch, then go to step 45.

Go to step 52.

Wire side of female terminals

Terminal side of female terminals

Is ther e about batter y voltage?

Is ther e continuity?

08/08/21 14:41:00 61SNR030_140_0091

＊１３

＊１４

−

YES

14-90

Automatic Transmission

TRANSMISSION RANGE
SWITCH CONNECTOR

ATPRVS
(WHT/RED)

GND (BLK)

PCM CONNECTOR B (44P)

ATPRVS (RED/WHT)

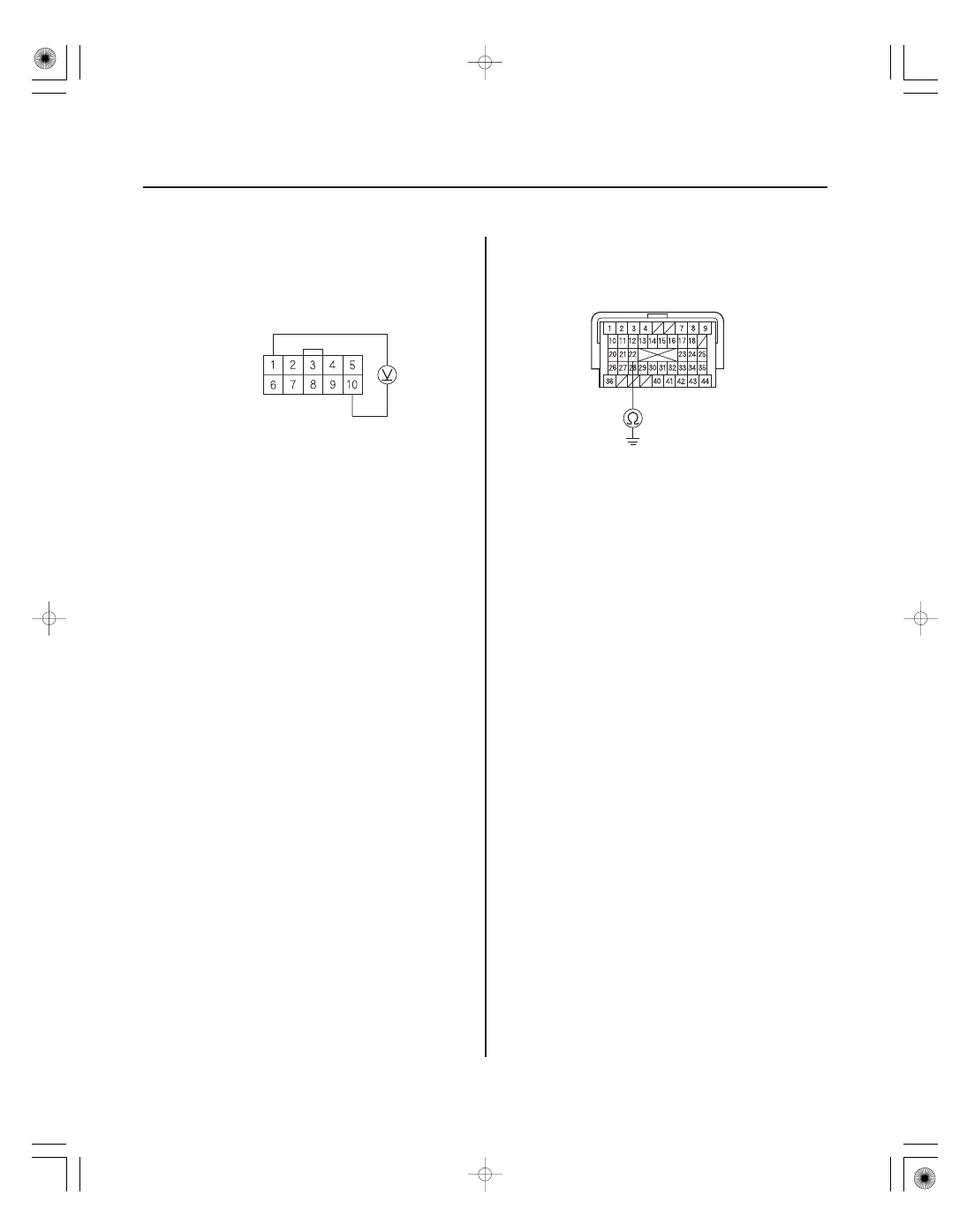

40. Measure the voltage between transmission range

switch connector terminals No. 1 and No. 10.

Go to step 52.

Go to step 41.

41. Turn the ignition switch to LOCK (0).

42. Jump the SCS line with the HDS.

43. Disconnect PCM connector B (44P).

44. Check for continuity between PCM connector

terminal B22 and body ground.

Repair short to body ground in the wire

between PCM connector terminal B22 and the
transmission range switch, then go to step 45.

Go to step 52.

Wire side of female terminals

Terminal side of female terminals

Is ther e about batter y voltage?

Is ther e continuity?

08/08/21 14:41:00 61SNR030_140_0092

−

YES

14-91

45. Reconnect all connectors.

46. Turn the ignition switch to ON (II).

47. Clear the DTC with the HDS.

48. Start the engine.

49. With the brake pedal pressed, move the shift lever

through all positions. Stop for at least 1 second in
each position.

50. Check for Temporary DTCs or DTCs with the HDS.

Check for intermittent short to body ground

in the wires between the transmission range switch
and the PCM, then go to step 1.

Go to step 51.

51. Monitor the OBD STATUS for P0705 in the DTCs

MENU with the HDS.

Troubleshooting is complete. If any other

Temporary DTCs or DTCs were indicated in step 50,
go to the indicated DTC’s troubleshooting.

If the HDS indicates FAILED, check for

intermittent short to body ground in the wires
between the transmission range switch and the
PCM, then go to step 1. If the HDS indicates NOT
COMPLETED, go to step 48.

52. Reconnect all connectors.

53. Update the PCM if it does not have the latest

software (see page 11-227), or substitute a known-
good PCM (see page 11-7).

54. Start the engine.

55. With the brake pedal pressed, move the shift lever

through all positions. Stop for at least 1 second in
each position.

56. Check for Temporary DTCs or DTCs with the HDS.

Check for intermittent short to body ground

in the wires between the transmission range switch
and the PCM. If the PCM was updated, substitute a
known-good PCM (see page 11-7), then go to step
54. If the PCM was substituted, go to step 1.

Go to step 57.

57. Monitor the OBD STATUS for P0705 in the DTCs

MENU with the HDS.

If the PCM was updated, troubleshooting is

complete. If the PCM was substituted, replace the
original PCM (see page 11-228). If any other
Temporary DTCs or DTCs were indicated in step 56,
go to the indicated DTC’s troubleshooting.

If the HDS indicates FAILED, check for

intermittent short to body ground in the wires
between the transmission range switch and the
PCM. If the PCM was updated, substitute a known-
good PCM (see page 11-7), then go to step 54. If the
PCM was substituted, go to step 1. If the HDS
indicates NOT COMPLETED, go to step 54.

Is DT C P07 05 indicated?

Does the HDS indicate PASSED?

Is DT C P07 05 indicated?

Does the HDS indicate PASSED?

08/08/21 14:41:01 61SNR030_140_0093

ＳＮＲ９ＡＡ１Ｋ７７１０００９０７０６ＦＡＡＴ００

−

DTC P0706:

YES

14-92

Automatic Transmission

Open in Transmission Range

Switch Circuit

NOTE:

• Before you troubleshoot, record all freeze data and

any on-board snapshot with the HDS, and review
General Troubleshooting Information (see page 14-3).

• This code is caused by an electrical circuit problem

and cannot be caused by a mechanical problem in the
transmission.

1. Turn the ignition switch to ON (II).

2. Clear the DTC with the HDS.

3. Block the rear wheels and raise the front of the

vehicle, make sure it is securely supported, and
allow the front wheels to rotate freely, or raise the
vehicle on a lift.

4. Start the engine, disable the VSA by pressing the

VSA OFF switch (if equipped), run the vehicle with
the shift lever in D until the vehicle speed reaches
40 km/h (25 mph), then slow down and stop the
wheels.

5. Monitor the OBD STATUS for P0706 in the DTCs

MENU with the HDS.

Go to step 6.

If the HDS indicates PASSED, intermittent

failure, the system is OK at this time. Check for
poor connections or loose terminals between the
transmission range switch and the PCM. If the HDS
indicates NOT COMPLETED, go to step 4.

6. Turn the ignition switch to LOCK (0).

7. Inspect the transmission range switch (see page

14-265).

Go to step 8.

Replace the transmission range switch

(see page 14-267), then go to step 25.

8. Adjust the shift cable (see page 14-259).

9. Turn the ignition switch to ON (II).

10. Clear the DTC with the HDS.

11. Start the engine, disable the VSA by pressing the

VSA OFF switch (if equipped), run the vehicle with
the shift lever in D until the vehicle speed reaches
40 km/h (25 mph), then slow down and stop the
wheels.

12. Monitor the OBD STATUS for P0706 in the DTCs

MENU with the HDS.

Go to step 13.

If the HDS indicates PASSED, troubleshooting

is complete. If the HDS indicates NOT COMPLETED,
go to step 11.

13. Shift to D, and check the Forward Switch (ATPFWD)

and A/T D Switch in the DATA LIST with the HDS.

Go to step 14.

Go to step 18.

14. Shift to S, and check the Forward Switch (ATPFWD)

and A/T S Switch in the DATA LIST with the HDS.

Go to step 15.

Go to step 18.

Does the HDS indicate F AILED?

Is the switch OK ?

Does the HDS indicate F AILED?

Ar e F or war d Switch ( AT PF W D) and A/ T D Switch
ON?

Ar e F or war d Switch ( AT PF W D) and A/ T S Switch
ON?

08/08/21 14:41:01 61SNR030_140_0094
