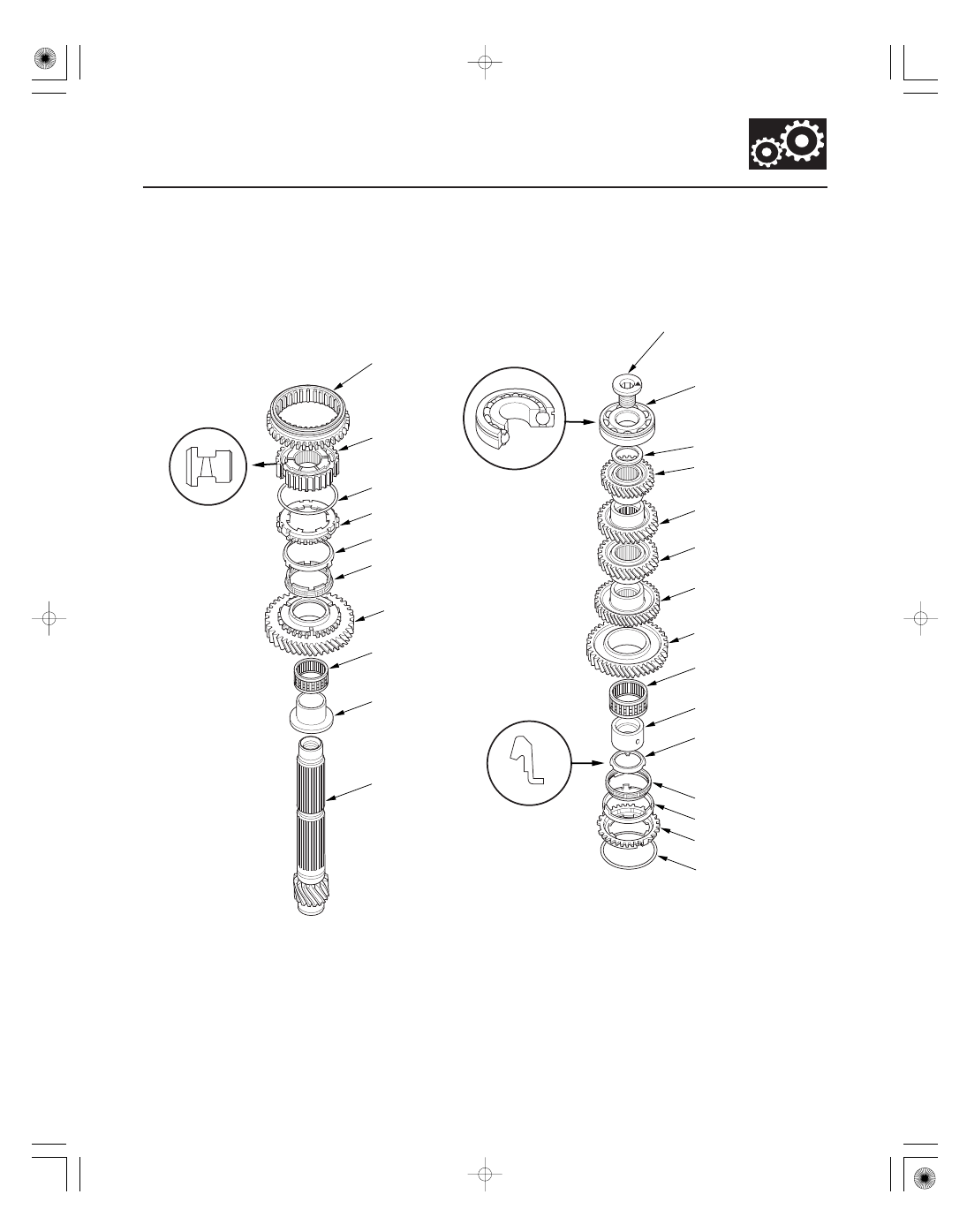

Exploded View

13-121

Countershaft Reassembly

COUNTERSHAFT

3RD GEAR

NEEDLE BEARING

4TH GEAR

5TH GEAR

NEEDLE BEARING

35 mm SHIM

6TH GEAR

REVERSE GEAR
(1ST/2ND SYNCHRO
SLEEVE)

1ST GEAR

SYNCHRO SPRING

1ST GEAR
DISTANCE COLLAR

2ND GEAR

SYNCHRO CONE*

SYNCHRO RING*

INNER RING*

SYNCHRO SPRING

FRICTION DAMPER

2ND GEAR
DISTANCE COLLAR

BALL BEARING

SPECIAL BOLT
118 N·m (12 kgf·m, 87 lbf·ft)

1ST/2ND
SYNCHRO HUB

SYNCHRO CONE*

SYNCHRO RING*

INNER RING*

Check for wear
and operation.

Check for wear and
operation.

*: The components of the triple cone synchro assembly.

Check for wear
and damage.
Note the direction
of installation.

Check for wear
and operation.
Note the direction
of installation.

Replace.
NOTE: Left-hand threads.

Note the direction
of installation.

08/08/21 14:48:33 61SNR030_130_0123

*02

02

*03

*04

Special Tools Required

13-122

Manual Transmission

A

D

B

C

D

A

B

C

A

B

C

A

B

• Inner driver handle, 40 mm 07746-0030100
• Inner bearing driver attachment, 30 mm

07746-0030300

NOTE: Refer to the Exploded View, as needed, during
this procedure.

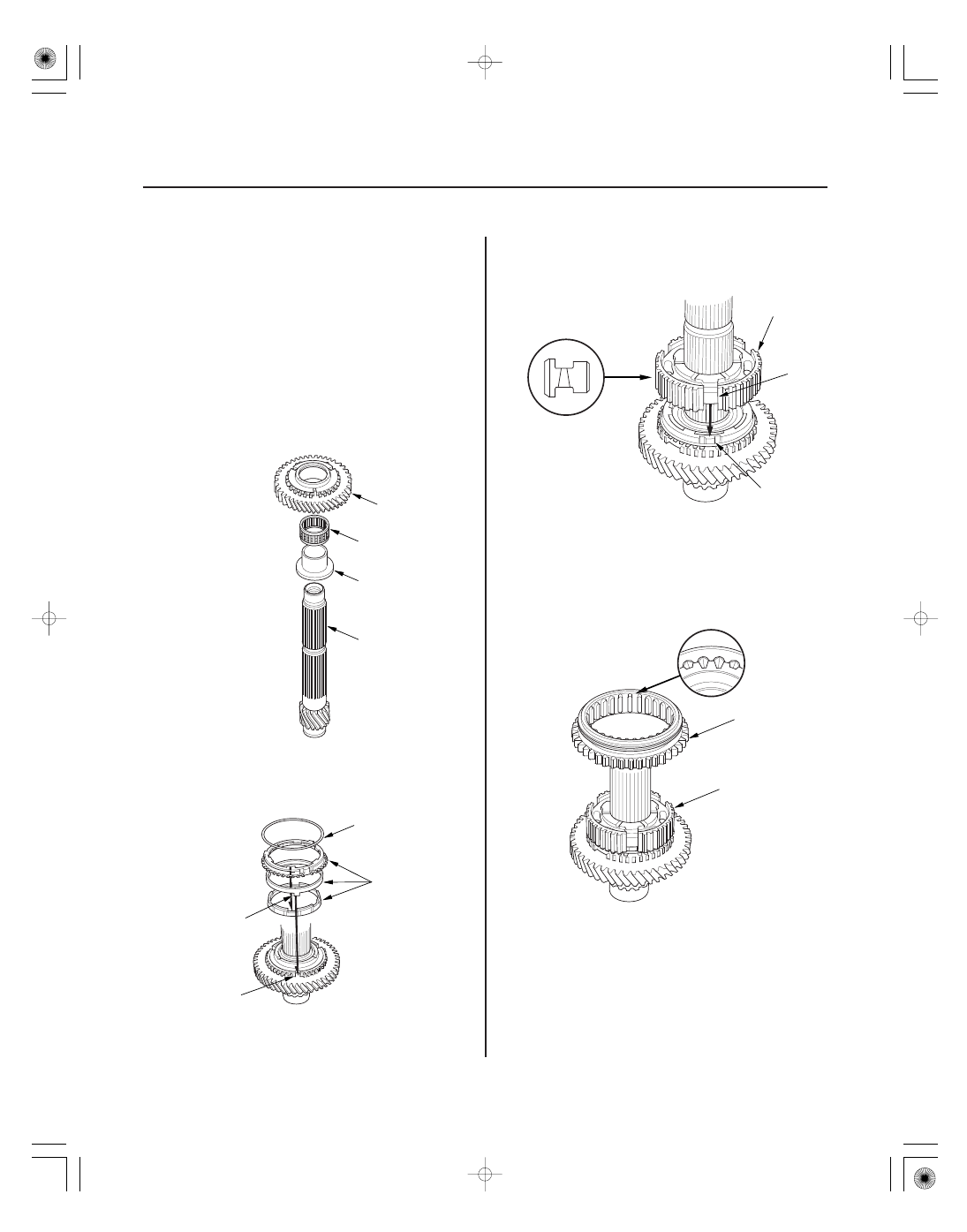

1. Clean all parts in solvent, dry them, and apply MTF

to all contact surfaces.

2. Install the 1st gear distance collar (A), the needle

bearing (B), and 1st gear (C) onto the countershaft
(D).

3. Install the triple cone synchro assembly (A) by

aligning the synchro ring fingers (B) with the
grooves (C) in 1st gear, then install the synchro
spring (D).

4. Install the 1st/2nd synchro hub (A) by aligning the

synchro ring fingers (B) with the grooves (C) in the
1st/2nd synchro hub.

5. Install the reverse gear (A) by aligning the slots of

reverse gear and the 1st/2nd synchro hub (B). After
installing, check the operation of the 1st/2nd
synchro hub set.

NOTE: Make sure to align the slots in the 1st/2nd
synchro hub as shown.

08/08/21 14:48:34 61SNR030_130_0124

*05

*06

*07

*08

13-123

D

B

C

A

A

C

B

D

B

D

C

A

C
07746-0030100

D
25,480 N
(2,600 kgf,
5,730 lbf) max.

A

B

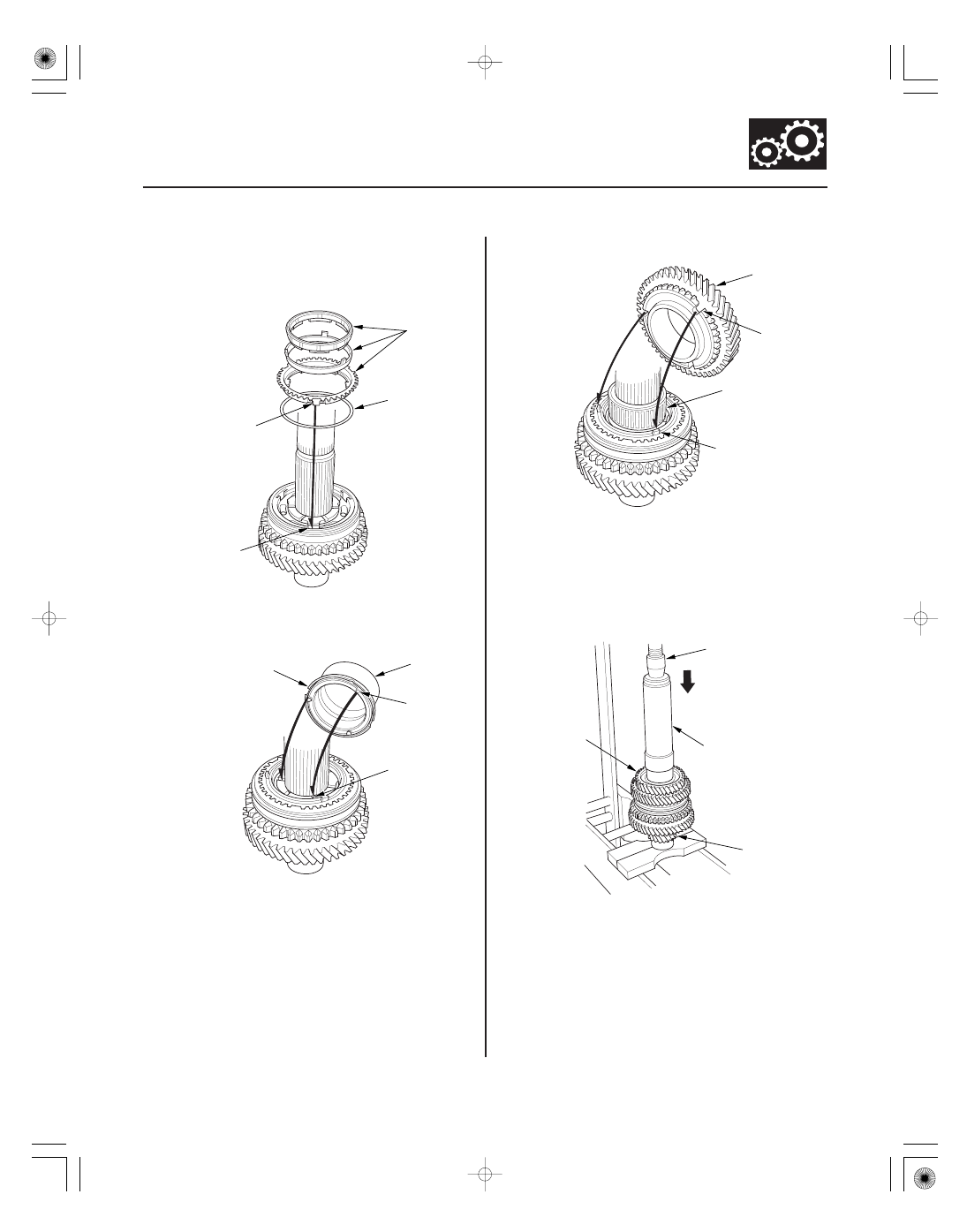

6. Install the triple cone synchro assembly (A) with the

synchro spring (B) by aligning the synchro ring
fingers (C) with the grooves (D) in the 1st/2nd
synchro hub.

7. Install the distance collar (A) and the friction

damper (B) by aligning the friction damper fingers
(C) with the grooves (D) in the 1st/2nd synchro hub.

8. Install the needle bearing (A).

9. Install 2nd gear (B) by aligning the synchro cone

fingers (C) with the grooves (D) in 2nd gear.

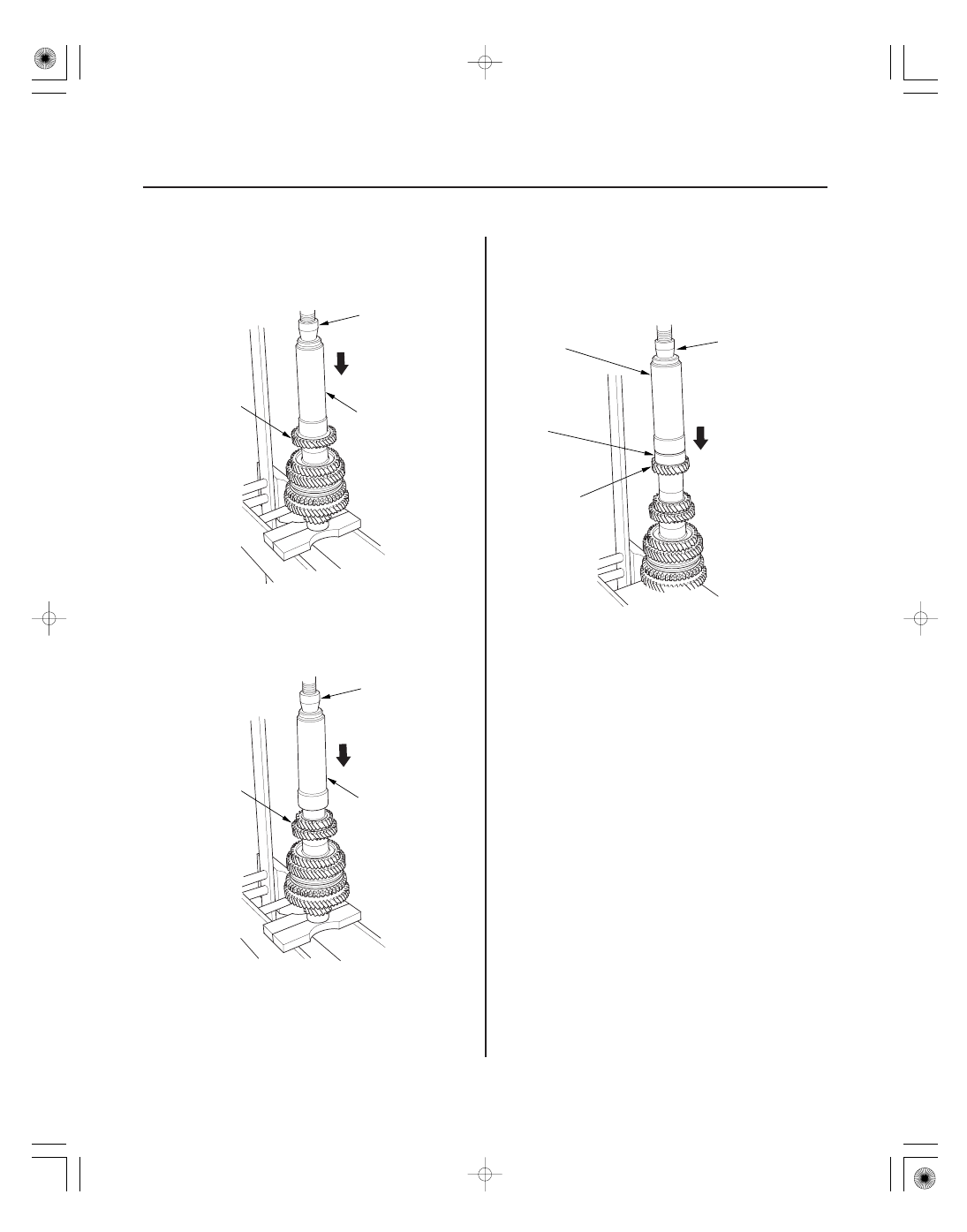

10. Support the countershaft (A) on steel blocks, then

press on 3rd gear (B) using the 40 mm inner driver
handle (C) and a press (D).

NOTE: Do not exceed the maximum pressure.

08/08/21 14:48:35 61SNR030_130_0125

*09

*10

*11

13-124

Manual Transmission

B
07746-0030100

C
25,480 N
(2,600 kgf,
5,730 lbf) max.

A

B
07746-0030100

C
25,480 N
(2,600 kgf,
5,730 lbf) max.

A

B
07746-0030100

A

D
25,480 N
(2,600 kgf,
5,730 lbf) max.

C
07746-0030300

11. Press on 4th gear (A) using the 40 mm inner driver

handle (B) and a press (C).

NOTE: Do not exceed the maximum pressure.

12. Press on 5th gear (A) using the 40 mm inner driver

handle (B) and a press (C).

NOTE: Do not exceed the maximum pressure.

13. Press on 6th gear (A) using the 40 mm inner driver

handle (B), the 30 mm inner bearing driver
attachment (C), and a press (D).

NOTE: Do not exceed the maximum pressure.

08/08/21 14:48:36 61SNR030_130_0126
