Standard:

0.20

0.59 mm (0.008

0.023 in.)

Service Limit: 1.3 mm (0.051 in.)

Standard: 13.4

13.7 mm (0.528

0.539 in.)

Standard:

0.05

0.25 mm (0.002

0.010 in.)

Service Limit: 0.50 mm (0.020 in.)

Standard: 15.00

15.10 mm (0.591

0.594 in.)

13-104

Manual Transmission

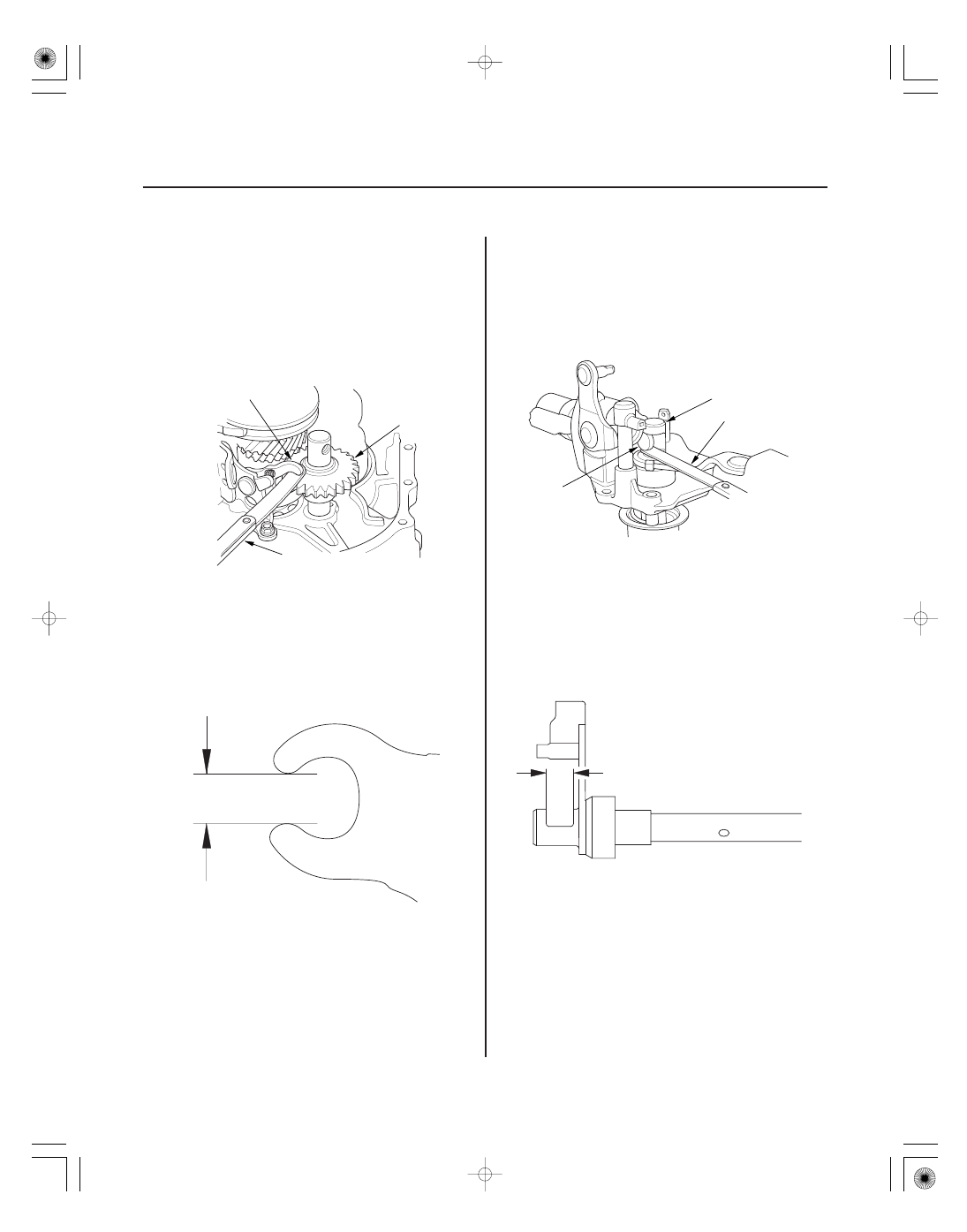

Reverse Shift Fork Clearance
Inspection

Change Lever Clearance Inspection

1. Measure the clearance between the reverse idler

gear (A) and the reverse shift fork (B) with a feeler
gauge (C). If the clearance exceeds the service limit,
go to step 2.

2. Measure the width of the reverse shift fork.

• If the width is not within the standard, replace the

reverse shift fork.

• If the width is within the standard, replace the

reverse idler gear.

1. Measure the clearance between the change lever

(A) and the select lever (B) with a feeler gauge (C). If
the clearance exceeds the service limit, go to step
2.

2. Measure the groove width of the change lever.

• If the groove width is not within the standard,

replace the change lever.

• If the groove width is within the standard, replace

the select lever.

08/08/21 14:47:58 61SNR030_130_0106

＊０１

ＳＮＲ９ＡＡ９Ｅ３４１５０３３９０９１ＭＦＡＴ００

13-105

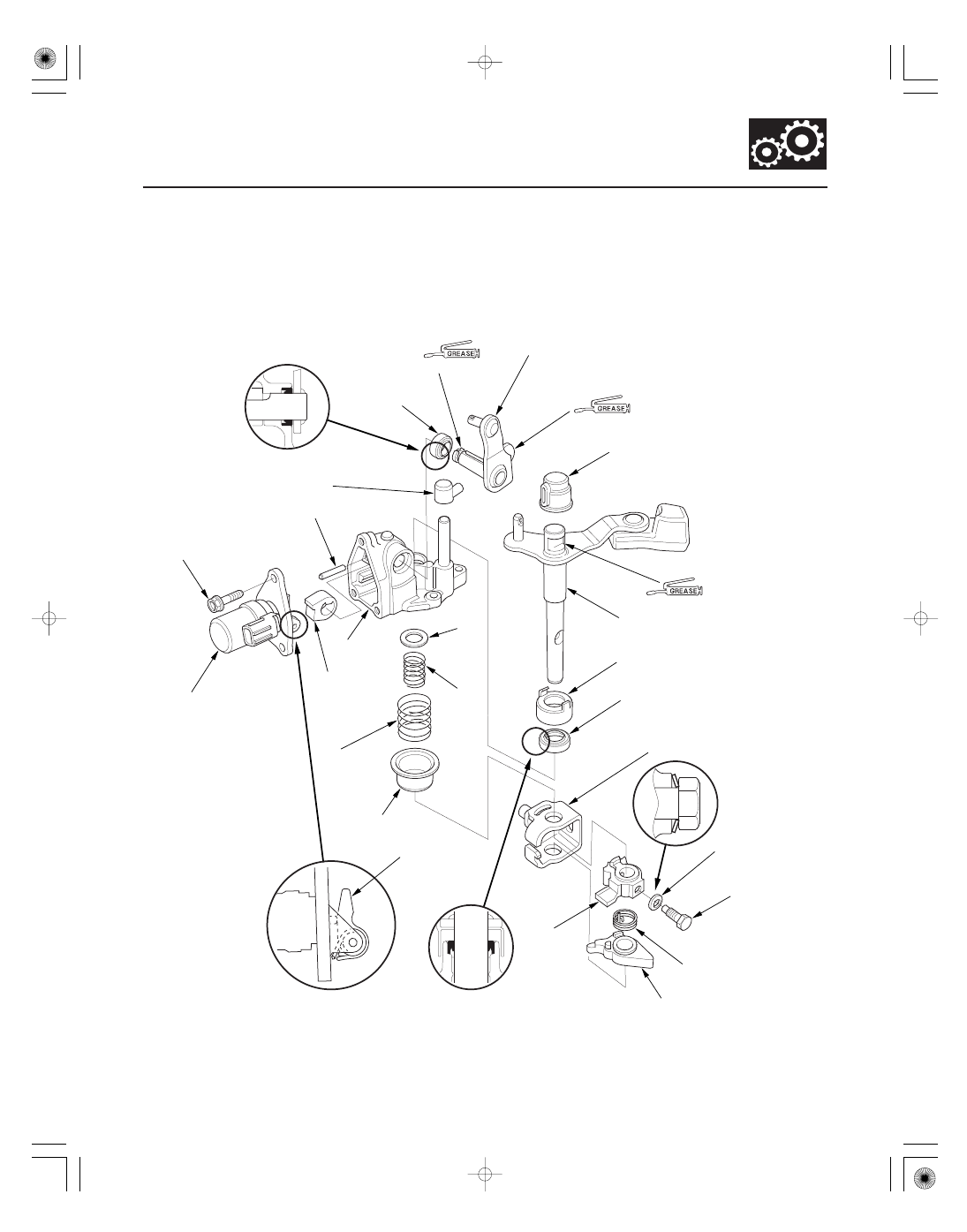

Change Lever Assembly Disassembly/Reassembly

DUST COVER

OIL SEAL

SHIFT ARM
COVER

SELECT STOP
PLATE

DUST SEAL

INTERLOCK

5TH/6TH
SELECT
SPRING

WASHER

REVERSE LOCKOUT
SOLENOID

(MOLYBDENUM)

1ST/2ND
SELECT
SPRING

SELECT
LOCK CAM A

MBS RETURN
SPRING

CHANGE
LEVER COVER

SHIFT
ARM

(MOLYBDENUM)

SELECT LEVER

SELECT
LOCK CAM B

ROLLER

CHANGE LEVER

6 x 1.0 mm
12 N·m
(1.2 kgf·m,
8.7 lbf·ft)

8 mm
SPRING
WASHER

8 mm
SPECIAL BOLT
31 N·m
(3.2 kgf·m,
23 lbf·ft)

MBS ARM

BREATHER CAP

NOTE:

• Do not install components if too much time has passed after applying liquid gasket. Instead, remove the old residue,

and reapply liquid gasket.

• Prior to reassembling, clean all parts in solvent, dry them, and apply grease to the contact surfaces as shown.

Replace.

Apply liquid gasket
(08C70-X0331S) to
the sealing surface.

Be careful not to damage the dust seal
when installing it.

Turn toward the front of
the vehicle, and install it.

08/08/21 14:47:58 61SNR030_130_0107

０１

０２

０３

０４

ＳＮＲ９ＡＡ９Ｅ３４１５０３５４９０１ＭＡＡＴ００

−

Standard:

0.35

0.65 mm (0.014

0.026 in.)

Service Limit: 1.0 mm (0.039 in.)

Standard: 7.4

7.6 mm (0.29

0.30 in.)

Standard:

0.2

0.5 mm (0.008

0.020 in.)

Service Limit: 0.62 mm (0.024 in.)

Standard: 16.9

17.0 mm (0.665

0.669 in.)

13-106

Manual Transmission

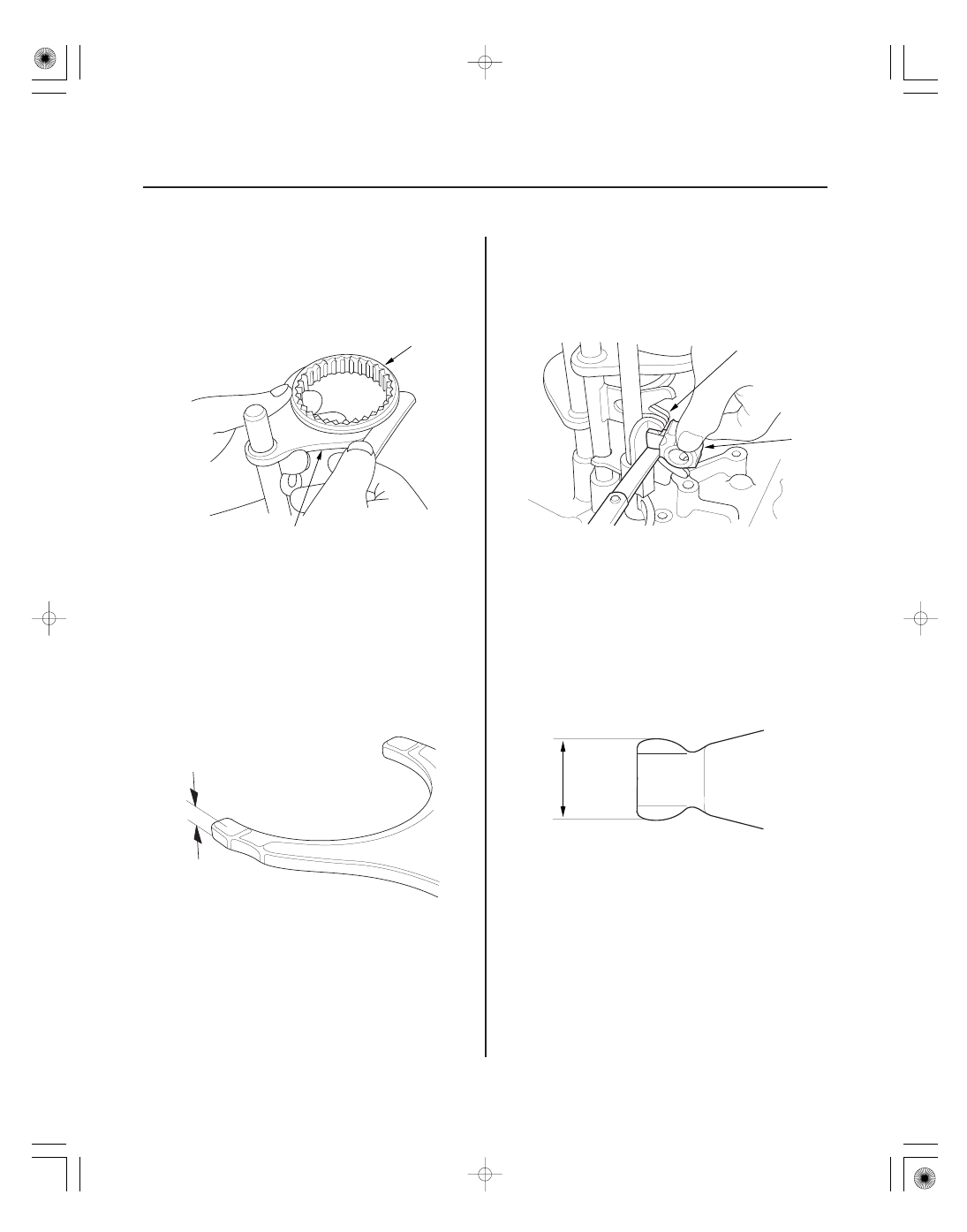

Shift Fork Clearance Inspection

1. Measure the clearance between each shift fork (A)

and its matching synchro sleeve (B). If the
clearance exceeds the service limit, go to step 2.

2. Measure the thickness of the shift fork fingers.

• If the thickness is not within the standard, replace

the shift fork.

• If the thickness is within the standard, replace the

synchro sleeve and the synchro hub as a set.

• If one arm of the shift fork shows more wear than

others, the fork may be bent and needs to be
replaced.

3. Measure the clearance between the shift fork (A)

and the shift arm (B). If the clearance exceeds the
service limit, go to step 4.

4. Measure the width of the shift arm.

• If the width is not within the standard, replace the

shift arm.

• If the width is within the standard, replace the

shift fork or the reverse shift piece.

08/08/21 14:47:59 61SNR030_130_0108

＊０１

ＳＮＲ９ＡＡ９Ｅ３４１５０３５４９０１ＭＦＡＴ００

13-107

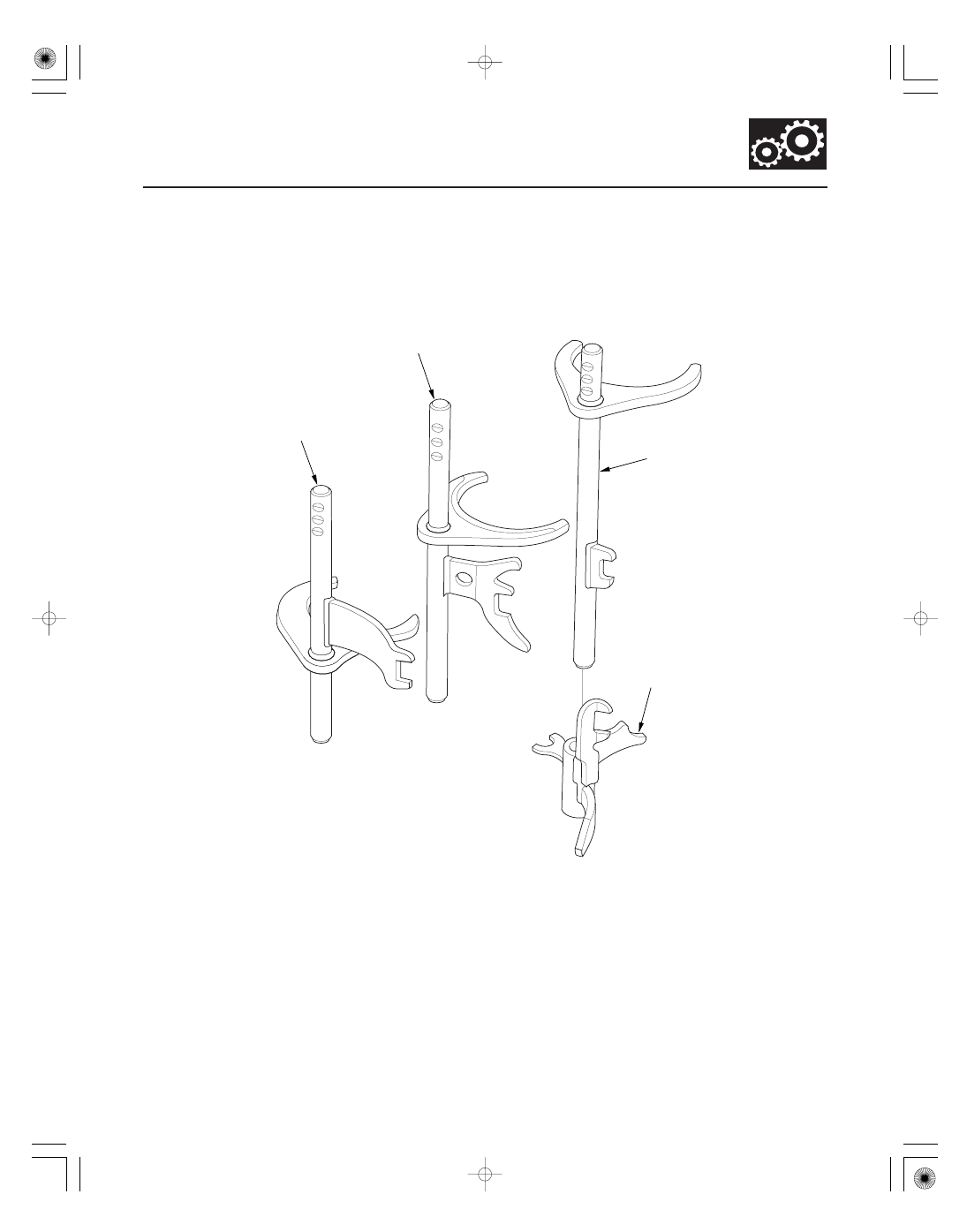

Shift Fork Disassembly/Reassembly

REVERSE SHIFT PIECE

1ST/2ND SHIFT FORK

3RD/4TH SHIFT FORK

5TH/6TH SHIFT FORK

NOTE: Prior to reassembling, clean all the parts in solvent, dry them, and apply MTF to all contact surfaces.

08/08/21 14:47:59 61SNR030_130_0109
