Clutch
Clutch Pedal Cover Replacement
A
B
C
A
B
C
A
B
B
NOTE: This procedure is for models equipped with a
metal clutch pedal plate model.
1. Cover the carpet under the clutch pedal to prevent
metal shavings from getting on the carpet.

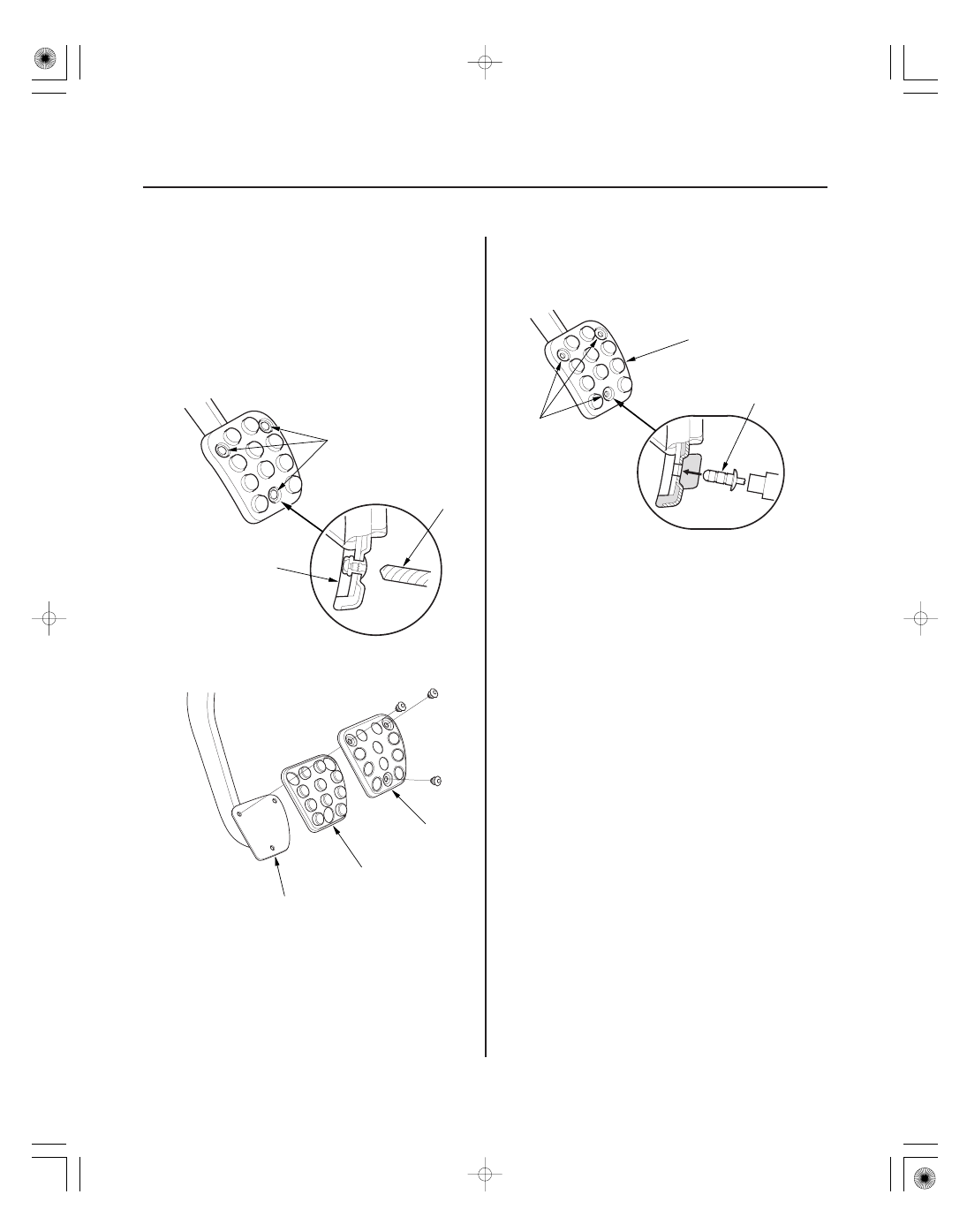

2. Center-punch each of the rivets (A), and drill their
heads off with a 3 mm (0.12 in.) drill bit (B).
NOTE: Do not drill the clutch pedal pad (C).
3. Remove the clutch pedal plate (A) and the clutch
pedal cover (B) from the clutch pedal pad (C).
4. Set the clutch pedal cover to the clutch pedal plate.
5. Install the clutch pedal plate (A) with the rivets (B)
firmly.
6. Using your hand, make sure the clutch pedal cover
is firmly fastened to the pedal.
7. Check the clutch pedal height (see page 12-8).
