Kia Sedona (2008 year). Manual - part 565

Fig. 33: Clock Circuit



2008 Kia Sedona

2008 SYSTEM WIRING DIAGRAMS Kia - Sedona



Microsoft



Saturday, May 22, 2010 3:56:43 PM

Page 67

© 2006 Mitchell Repair Information Company, LLC.



2008 Kia Sedona

2008 SYSTEM WIRING DIAGRAMS Kia - Sedona



Microsoft



Saturday, May 22, 2010 3:56:43 PM

Page 68

© 2006 Mitchell Repair Information Company, LLC.

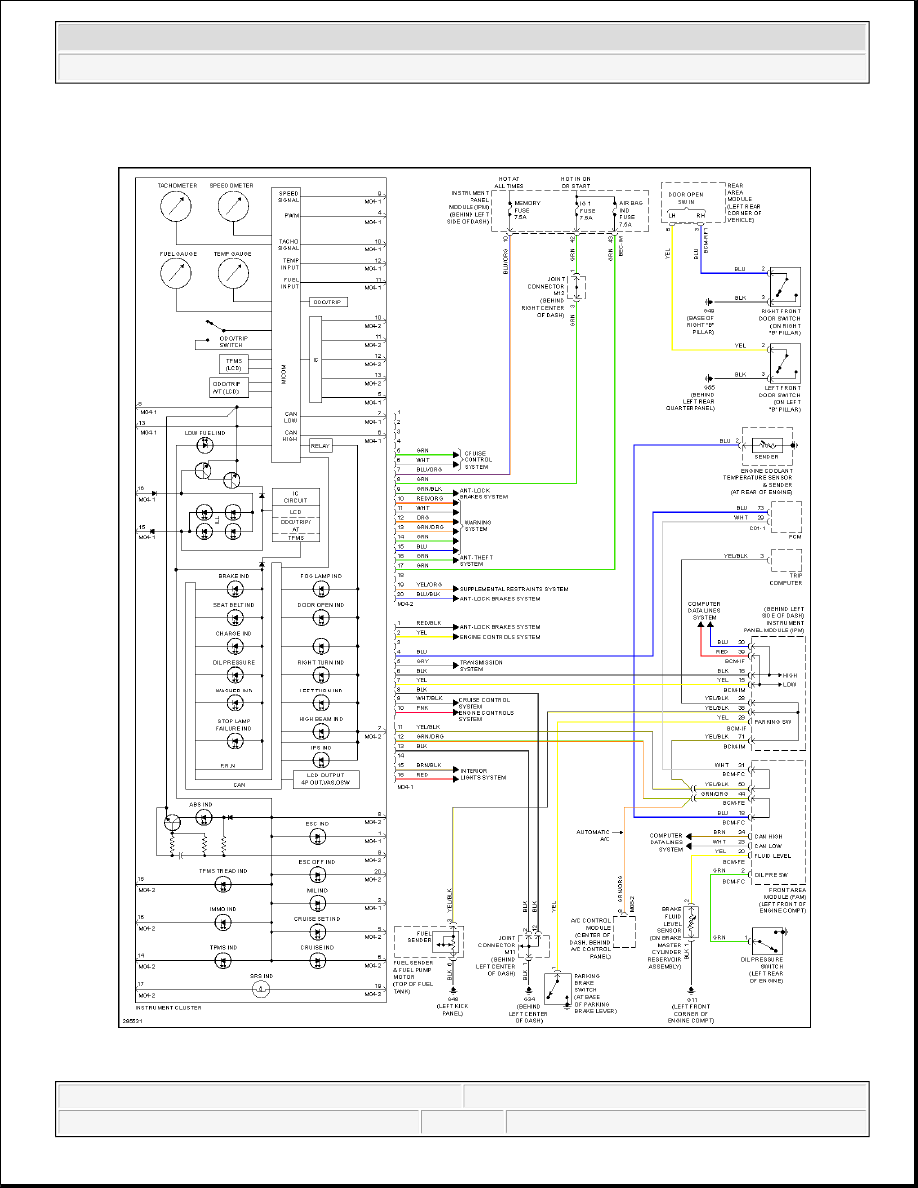

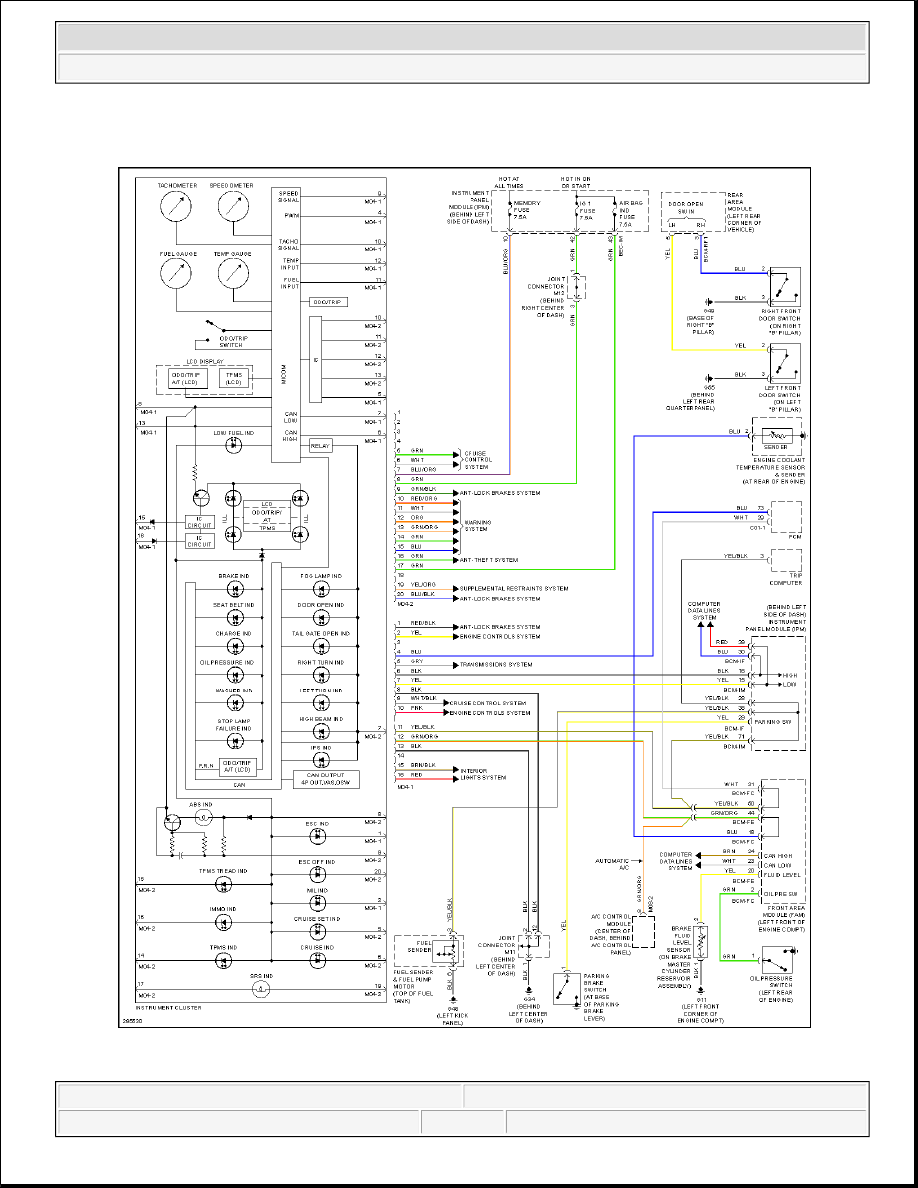

Fig. 34: Instrument Cluster Circuit, W/ Super Vision



2008 Kia Sedona

2008 SYSTEM WIRING DIAGRAMS Kia - Sedona



Microsoft



Saturday, May 22, 2010 3:56:43 PM

Page 69

© 2006 Mitchell Repair Information Company, LLC.



2008 Kia Sedona

2008 SYSTEM WIRING DIAGRAMS Kia - Sedona



Microsoft



Saturday, May 22, 2010 3:56:43 PM

Page 70

© 2006 Mitchell Repair Information Company, LLC.
