Fig. 30: Identifying Starter Relay
Courtesy of KIA MOTORS AMERICA, INC.

3. Using an ohmmeter, check that there is continuity between each terminal.

CONNECTOR TERMINAL CONTINUITY REFERENCE CHART

4. Apply 12V to terminal 85 and ground to terminal 86. Check for continuity between terminals 30 and 87.

See Fig. 31.

Fig. 31: Checking Continuity Between Each Relay Terminal
Courtesy of KIA MOTORS AMERICA, INC.

5. If there is no continuity, replace the starter relay.

6. Install the starter relay.

7. Install the fuse box cover.

Terminal

Continuity

30-87

NO

85-86

YES



2008 Kia Sedona

2008 ENGINE Starting System - Sedona



Microsoft



Saturday, May 22, 2010 4:03:21 PM

Page 18

© 2006 Mitchell Repair Information Company, LLC.

2008 STEERING

Steering Column And Shaft - Sedona

STEERING COLUMN/SHAFT

COMPONENTS

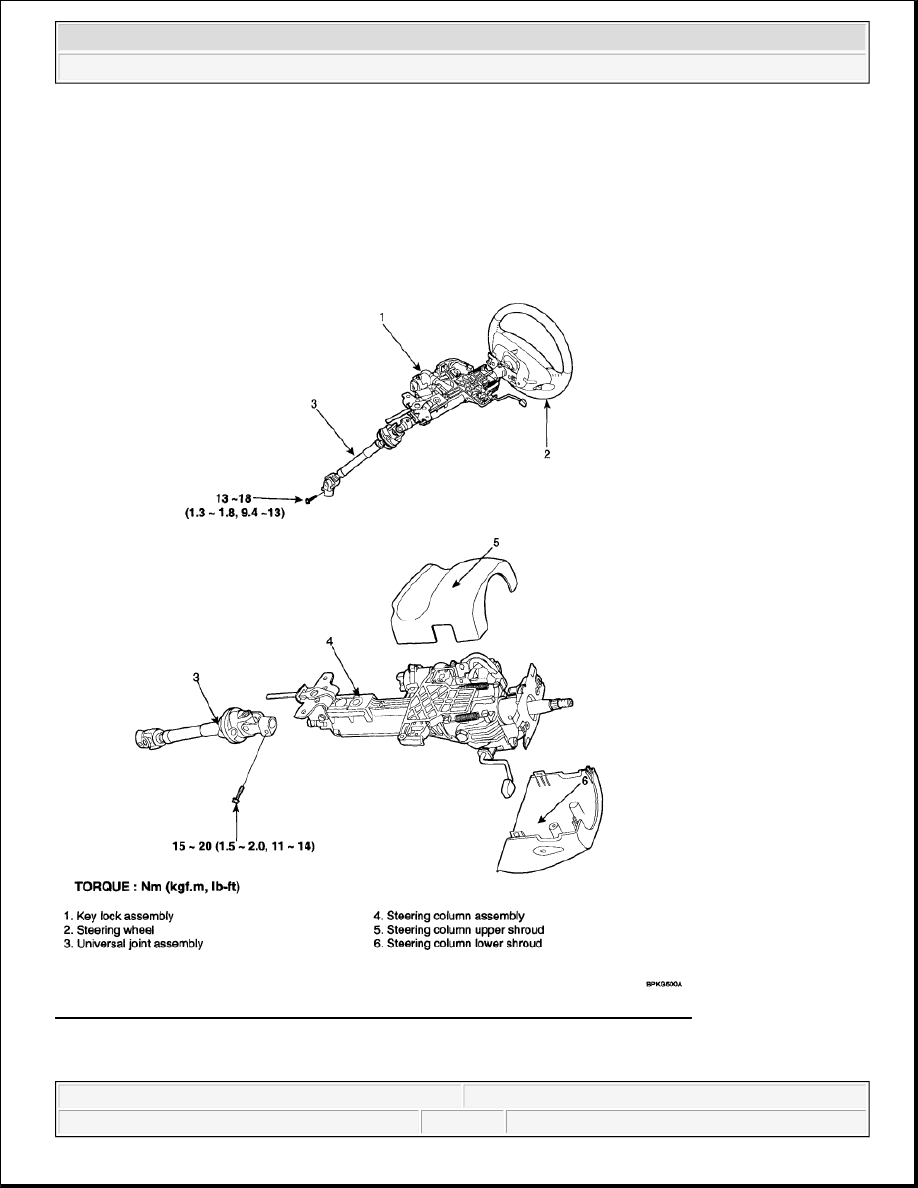

Fig. 1: Identifying Steering Column/Shaft Components With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

REMOVAL



2008 Kia Sedona EX

2008 STEERING Steering Column And Shaft - Sedona





2008 Kia Sedona EX

2008 STEERING Steering Column And Shaft - Sedona



Microsoft



Monday, May 24, 2010 3:48:47 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

Microsoft



Monday, May 24, 2010 3:48:51 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

1. Disconnect the negative terminal (A) from the battery and then wait for 30 seconds.

Fig. 2: Disconnecting Negative Terminal From Battery
Courtesy of KIA MOTORS AMERICA, INC.

2. Loosen the bolts shown in the illustrations and then remove the horn pad (A).

Fig. 3: Identifying Bolts (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona EX

2008 STEERING Steering Column And Shaft - Sedona



Microsoft



Monday, May 24, 2010 3:48:48 PM

Page 2

© 2006 Mitchell Repair Information Company, LLC.

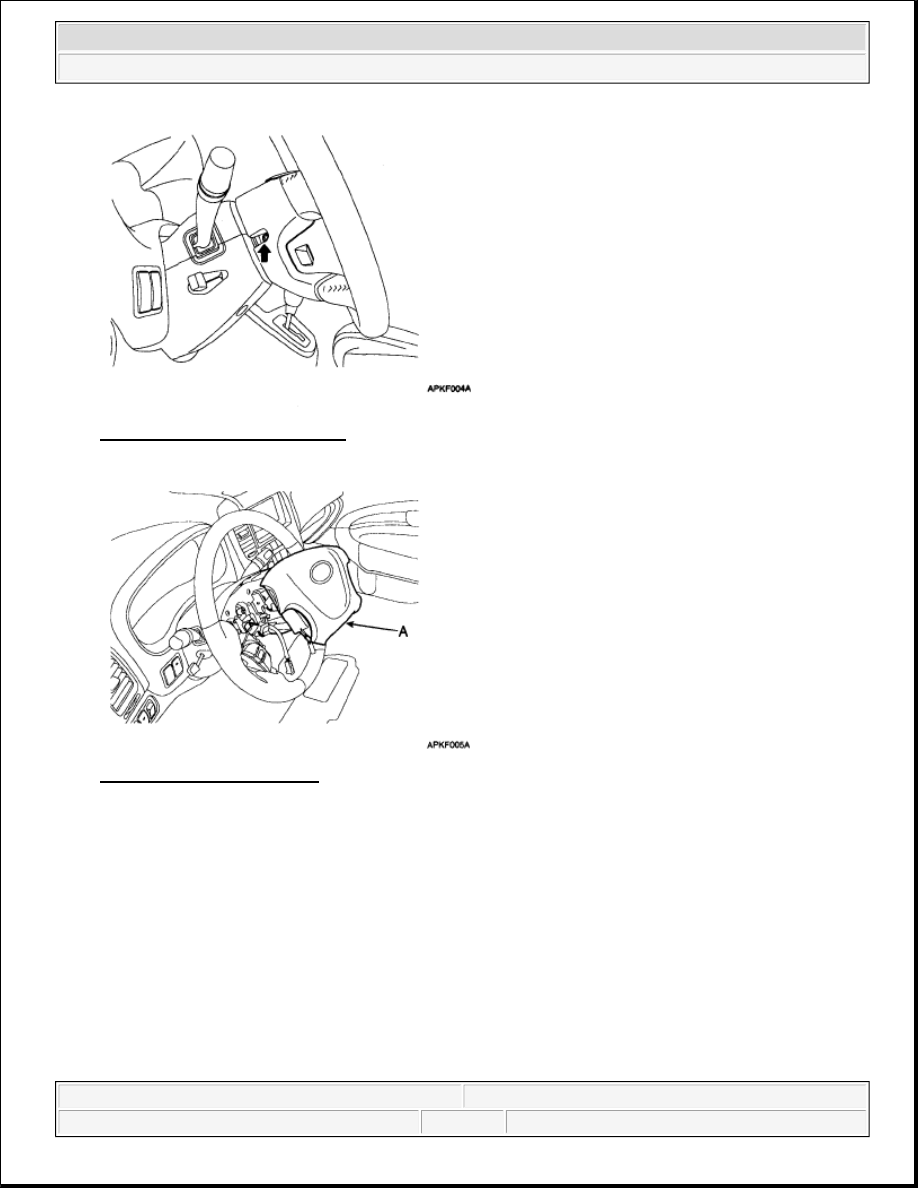

Fig. 4: Identifying Bolts (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig. 5: Identifying Horn Pad
Courtesy of KIA MOTORS AMERICA, INC.

3. Disconnect the connectors and remove the steering wheel lock nut.

Tightening torque N.m (kgf.m, lb-ft):

40-50 (4.0-5.0, 29-36)

4. After making the marks on the steering wheel and shaft for reinstallation, remove the steering wheel

using a SST (09561-11002).

CAUTION: Do not hammer on the steering wheel to remove. It may damage the

steering column.
