Kia Sedona (2008 year). Manual - part 498

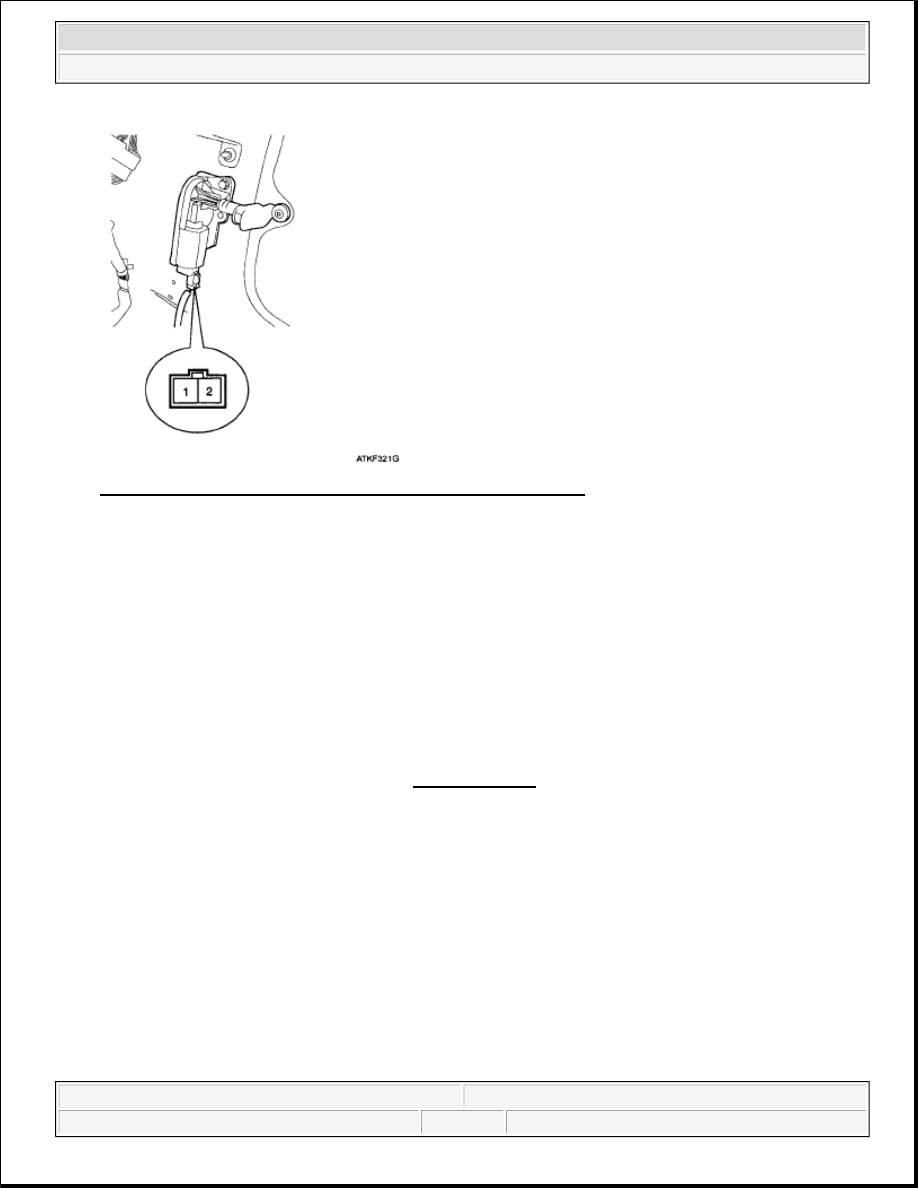

Fig. 11: Identifying Quarter Glass Motor Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.

4. Connect the motor terminals directly to battery voltage and check that the motor operates smoothly. Next,

reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is
abnormal, replace the motor.

POWER WINDOW SWITCH

REPLACEMENT

DRIVER/ASSIST DOOR MODULE (DDM/ADM)

1. Remove (-) negative battery terminal.

2. Remove the front door trim panel. Refer to FRONT DOOR .

3. Disconnect the door module mounting screws (5EA) after disconnecting the module connectors (3EA)

from the motor.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Windows - Sedona



Microsoft



Monday, May 24, 2010 4:10:37 PM

Page 8

© 2006 Mitchell Repair Information Company, LLC.

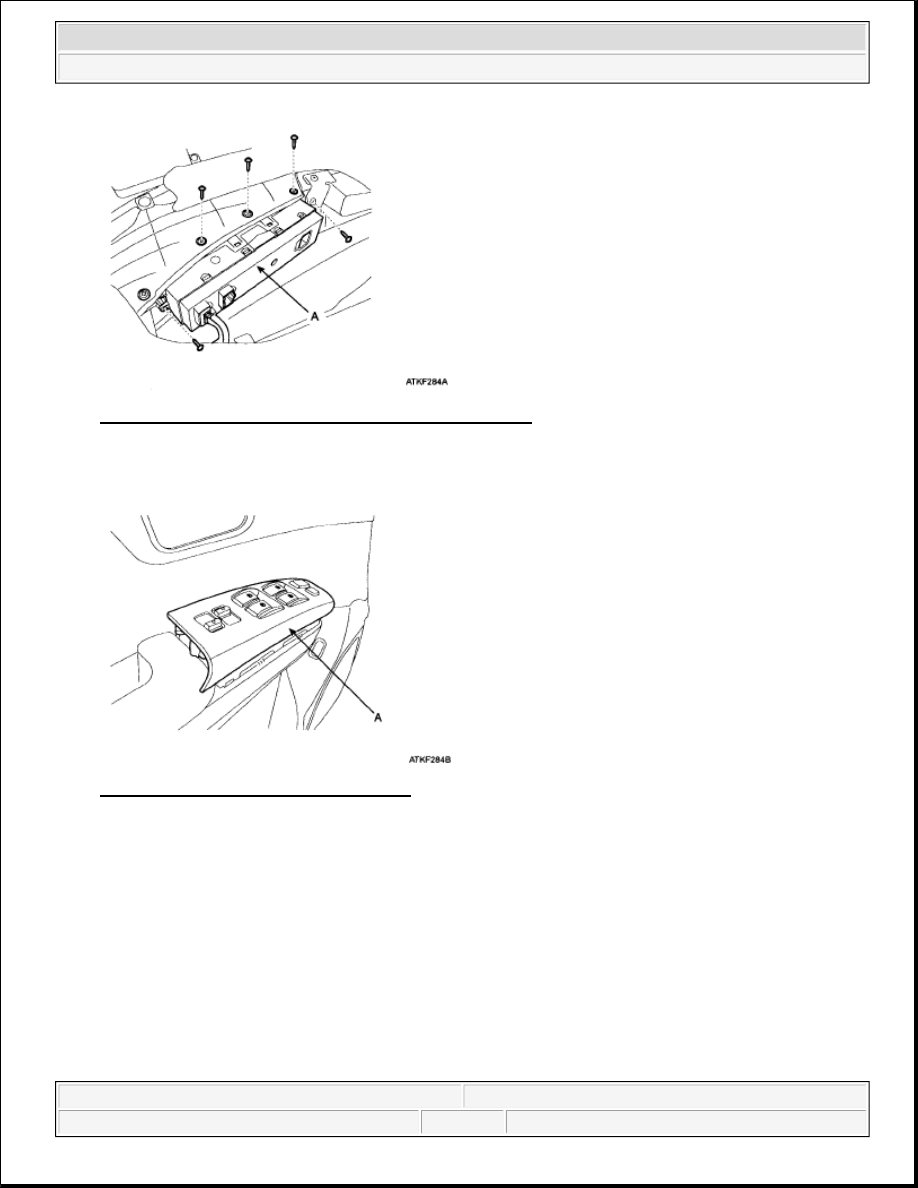

Fig. 12: Identifying Door Module And Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the door module (DDM/ADM) (A) from the front door trim panel.

Fig. 13: Identifying Front Door Modules
Courtesy of KIA MOTORS AMERICA, INC.

5. Installation is the reverse of removal.

SLIDING POWER WINDOW SWITCH

1. Remove (-) negative battery terminal.

2. Disconnect the connector (B) after removing the sliding power window switch (A) from the B pillar trim

(C).



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Windows - Sedona



Microsoft



Monday, May 24, 2010 4:10:37 PM

Page 9

© 2006 Mitchell Repair Information Company, LLC.

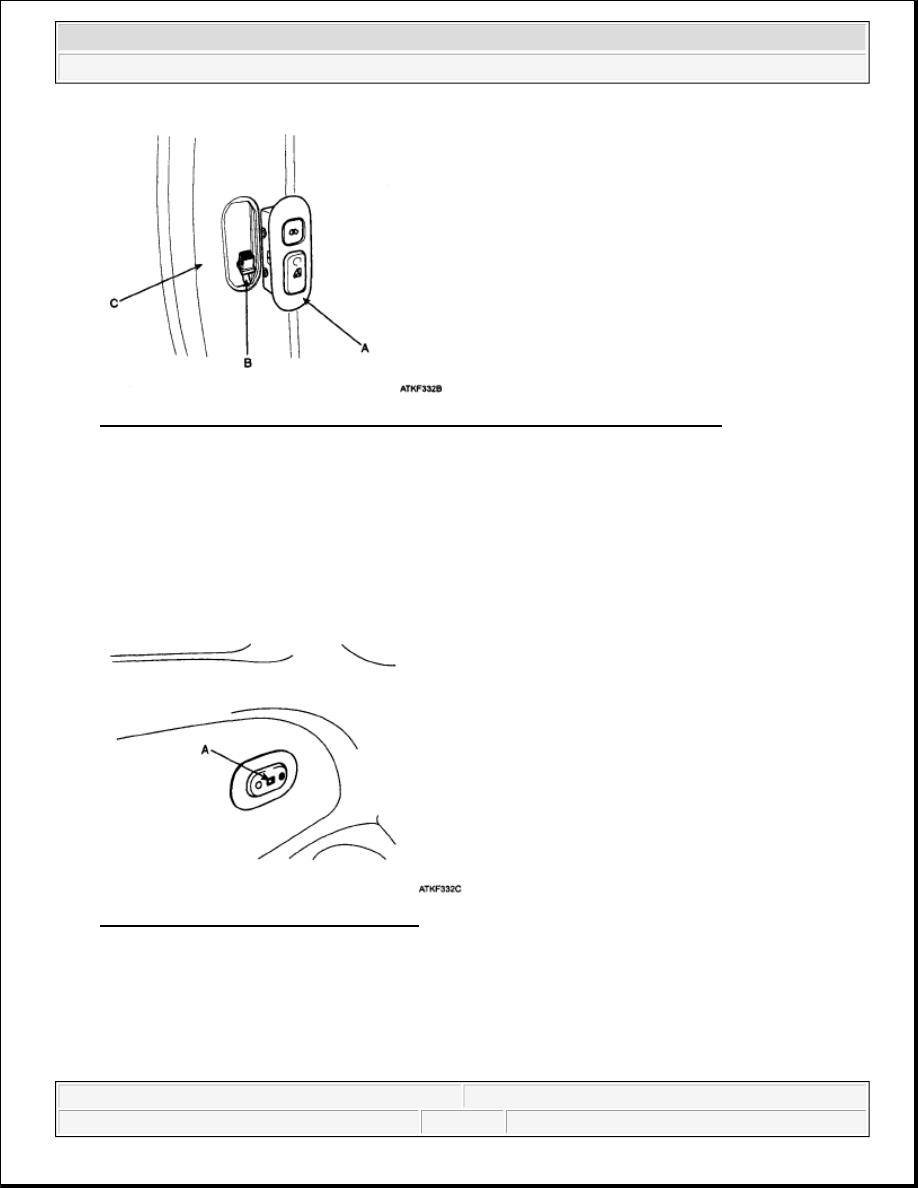

Fig. 14: Identifying Sliding Power Window Switch, Connector And B Pillar Trim
Courtesy of KIA MOTORS AMERICA, INC.

3. Installation is the reverse of removal.

QUARTER GLASS SWITCH

1. Remove (-) negative battery terminal.

2. Disconnect the connector (B) after removing the quarter glass switch (A) from the rear cargo area luggage

trim.

Fig. 15: Identifying Quarter Glass Switch
Courtesy of KIA MOTORS AMERICA, INC.

3. Installation is the reverse of removal.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Windows - Sedona



Microsoft



Monday, May 24, 2010 4:10:37 PM

Page 10

© 2006 Mitchell Repair Information Company, LLC.

2008 SUSPENSION

Rear Suspension System - Sedona

COMPONENTS

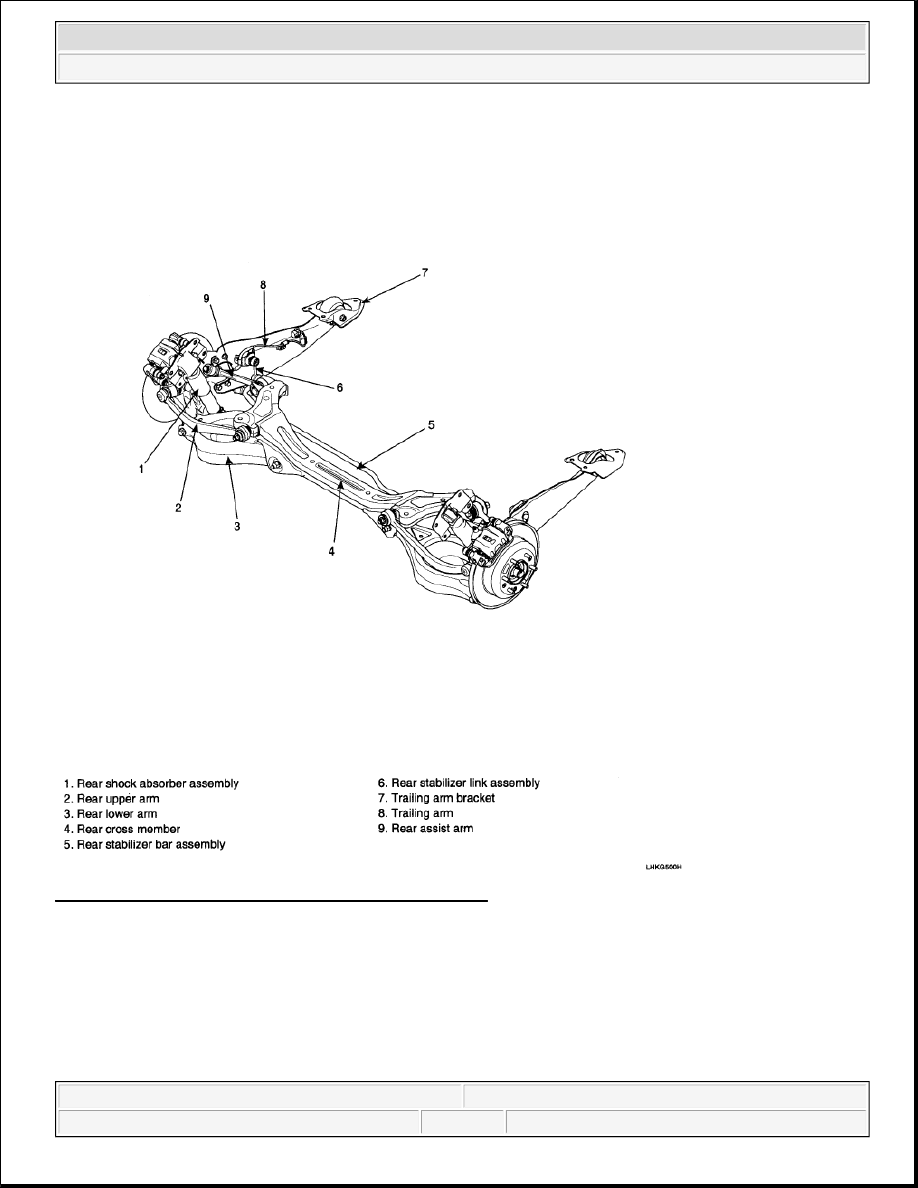

Fig. 1: Identifying Rear Suspension System Components
Courtesy of KIA MOTORS AMERICA, INC.

REAR SHOCK ABSORBER

COMPONENTS



2008 Kia Sedona EX

2008 SUSPENSION Rear Suspension System - Sedona





2008 Kia Sedona EX

2008 SUSPENSION Rear Suspension System - Sedona
