Fig. 79: Identifying Oil Pump Cover Assembly
Courtesy of KIA MOTORS AMERICA, INC.

10. Install the O-ring (A) and the suction pipe mounting bolt.

Tightening torque:

13.6-18.4 N.m (1.36-1.84 kgf.m, 9.84-13.3 lb-ft)

Fig. 80: Identifying O-Ring And Suction Pipe Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona EX

2008 STEERING Mechanical Power Steering System - Sedona



Microsoft



Monday, May 24, 2010 3:50:04 PM

Page 42

© 2006 Mitchell Repair Information Company, LLC.

INSTALLATION

1. Installation is the reverse of removal.

2. Add power steering fluid.

3. Bleed the power steering system. See AIR BLEEDING .

4. Check the oil pump pressure.

CAUTION: The pressure tube does not twist and come in contact with other

components.



2008 Kia Sedona EX

2008 STEERING Mechanical Power Steering System - Sedona



Microsoft



Monday, May 24, 2010 3:50:04 PM

Page 43

© 2006 Mitchell Repair Information Company, LLC.

2008 ACCESSORIES & BODY, CAB

Power Tailgate System - Sedona

COMPONENT LOCATION

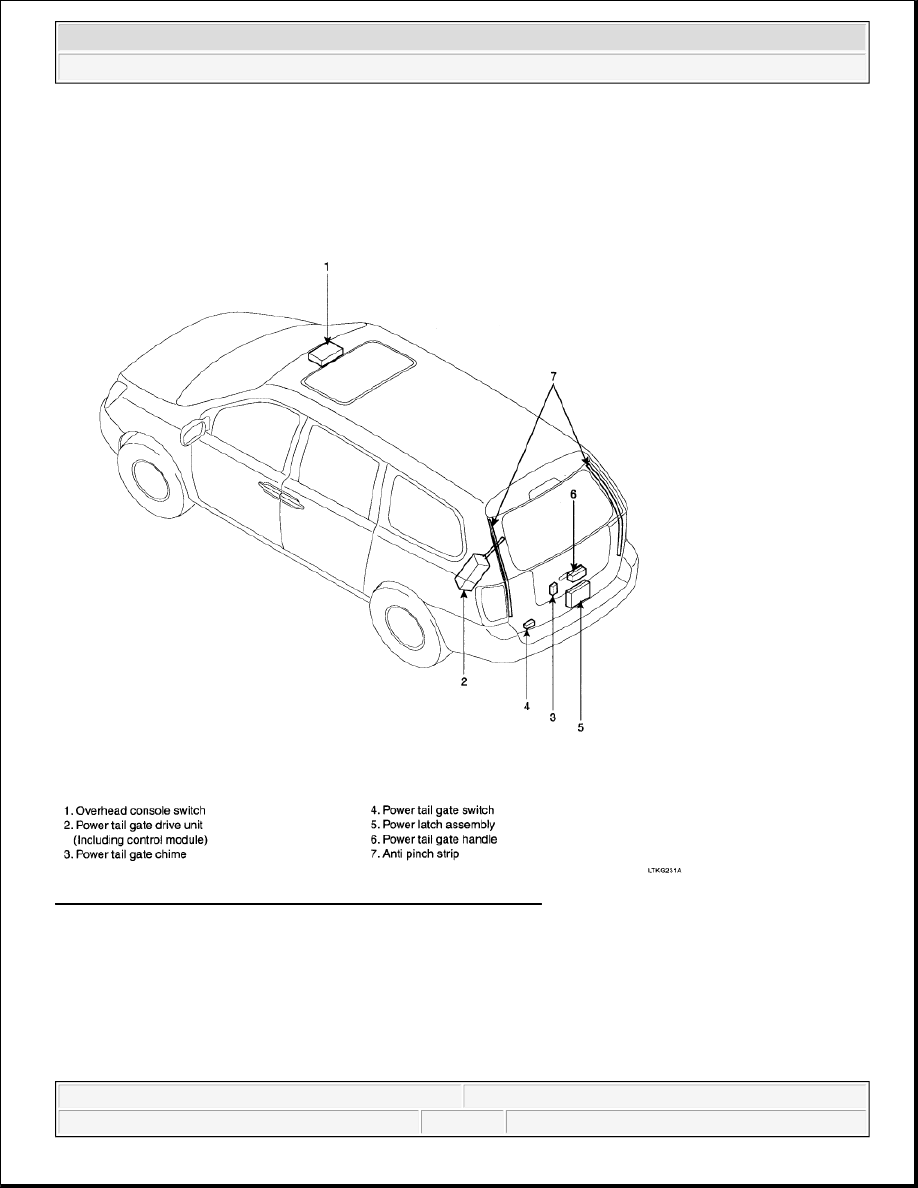

Fig. 1: Identifying Power Tailgate System Component Location
Courtesy of KIA MOTORS AMERICA, INC.

DESCRIPTION

Power tailgate is an electro-mechanical system designed to provide power opening and closing of a vehicle's
tailgate through the push of a button of the transmitter key or tailgate handle or the overhead console or switch
of the tailgate.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Tailgate System - Sedona





2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Tailgate System - Sedona



Microsoft



Monday, May 24, 2010 4:16:59 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

Microsoft



Monday, May 24, 2010 4:17:02 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

The power tailgate will reverse direction of travel if resistance to movement is detected while the tailgate is
being closed. If resistance to movement is detected while the power tailgate is being opened, the tailgate will
stop moving.

1. PTG DRIVE UNIT

Power tailgate drive unit consists of a DC motor, optical sensor, clutch, push rod, rack and wire harness.
PTG drive unit is located in rear left on D-pillar panel. PTG drive unit opens and closes the tailgate
connected push rod automatically.

Fig. 2: Identifying PTG Drive Unit
Courtesy of KIA MOTORS AMERICA, INC.



Optical sensor: Provides tailgate velocity and position information



Drive unit clutch: Transmit motor power to push rod through pinion gear.

2. POWER LATCH

Power latch is located in the lower part of tailgate panel. When tailgate located latching position, cinching
motor (A) has a cinch electrically. And unlatch motor (B) unlatch the latch electrically when receive the
open signal.
