Fig. 9: Identifying Outside Folding Mirror Switch 12-Pin Connector
Courtesy of KIA MOTORS AMERICA, INC.

2. Check for continuity between the terminals in each switch position. See Fig. 10.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Door Mirrors - Sedona



Microsoft



Monday, May 24, 2010 4:12:07 PM

Page 5

© 2006 Mitchell Repair Information Company, LLC.

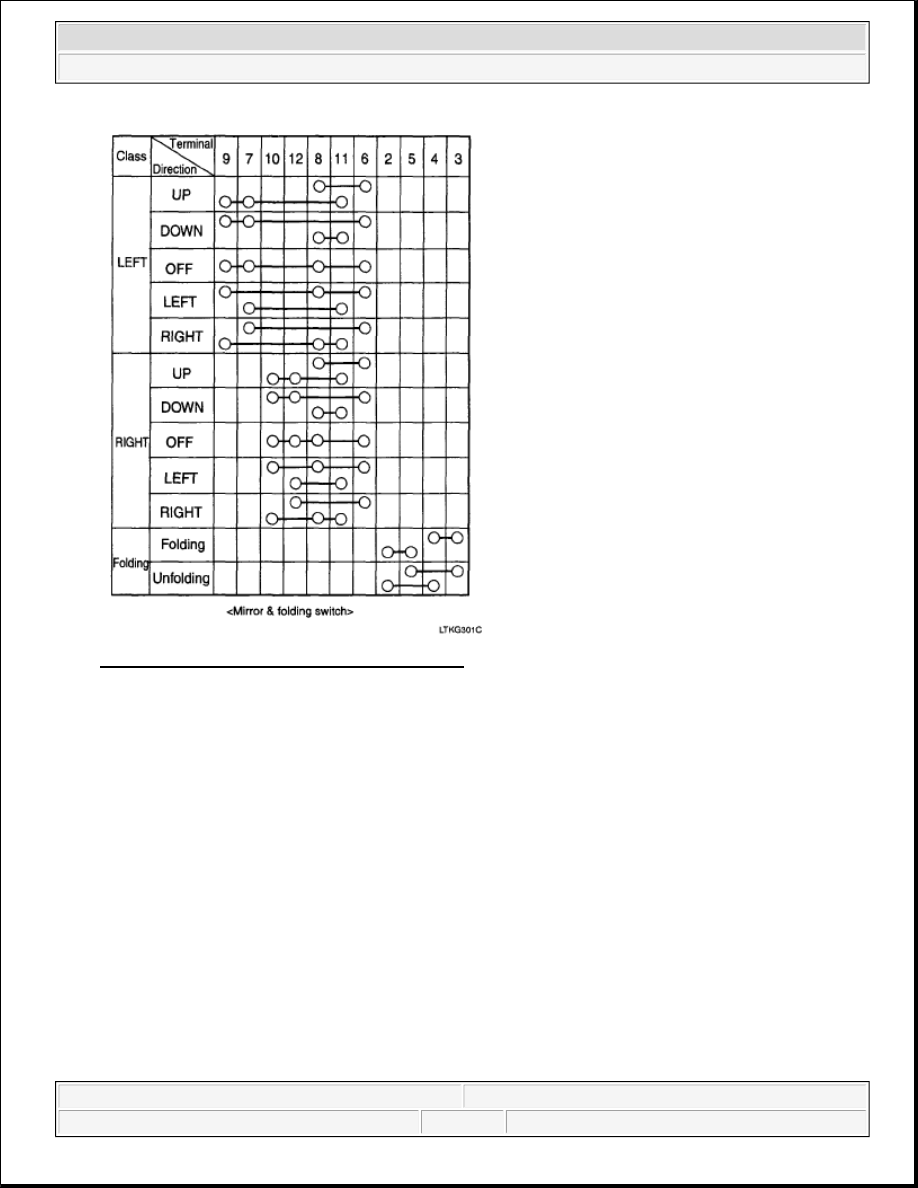

Fig. 10: Testing Outside Folding Mirror Switch
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Door Mirrors - Sedona



Microsoft



Monday, May 24, 2010 4:12:07 PM

Page 6

© 2006 Mitchell Repair Information Company, LLC.

2008 ACCESSORIES & BODY, CAB

Power Sliding Door System - Sedona

COMPONENT LOCATION

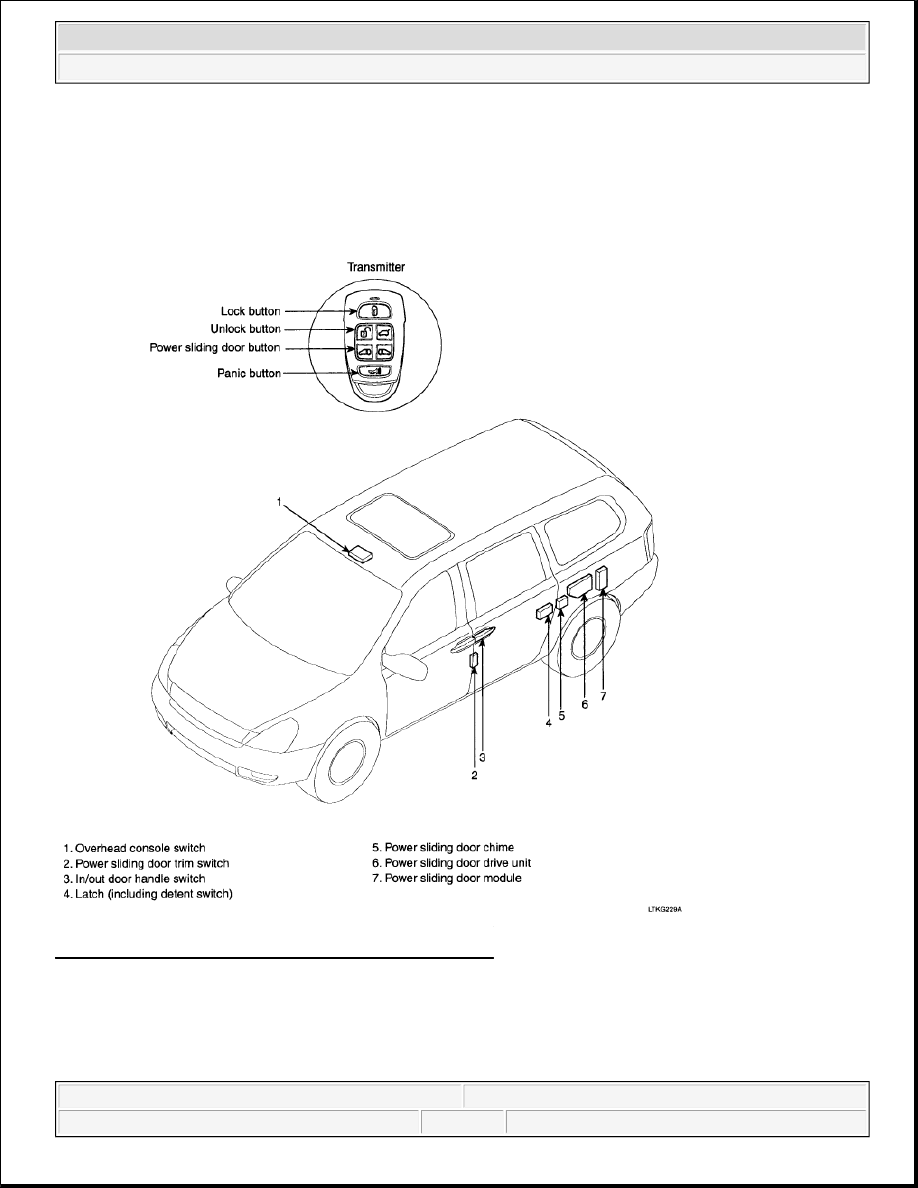

Fig. 1: Power Sliding Door System Component Locations
Courtesy of KIA MOTORS AMERICA, INC.

DESCRIPTION

Power sliding door is an electro-mechanical system designed to provide power opening and closing of a
vehicle's sliding door through the push of a button of the transmitter key or the main control buttons on the



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Sliding Door System - Sedona





2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Sliding Door System - Sedona



Microsoft



Monday, May 24, 2010 4:16:17 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

Microsoft



Monday, May 24, 2010 4:16:20 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

overhead console or the sub control buttons on the center pillar trim or inside/outside door handle switch.

The power sliding door will reverse direction of travel if resistance to movement is detected while the door is
being closed. If resistance to movement is detected while the power sliding door is being opened, the door will
stop moving.

1. DRIVE UNIT

Drive unit (A) consists of a DC motor, optical sensor, clutch, cables and pulleys and wire harness. The
clutch and motor portion of the assembly provides the power and torque required to open or close the
sliding door. The clutch assembly is used to connect or disconnect the motor so that the Sliding Door may
be moved manually, if desired.

Fig. 2: Identifying Drive Unit
Courtesy of KIA MOTORS AMERICA, INC.

2. POWER SLIDING DOOR CONTROL MODULE (PSDM)

The PSD System uses a power sliding door control module (microprocessor controller) to operate the
drive unit. Signals are received from the vehicle and used to start or stop power open or close operations.
The PSDM cannot be adjusted or repaired and if found to be faulty, must be replaced.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Sliding Door System - Sedona



Microsoft



Monday, May 24, 2010 4:16:17 PM

Page 2
