Kia Sedona (2008 year). Manual - part 459

Fig. 6: Identifying Front Fog Lamp Aiming Adjusting Gear
Courtesy of KIA MOTORS AMERICA, INC.

HEAD LAMP AND FOG LAMP AIMING POINT

Fig. 7: Identifying Head Lamp And Fog Lamp Aiming Points
Courtesy of KIA MOTORS AMERICA, INC.

HEAD LAMP AND FOG LAMP AIMING POINTS SPECIFICATION

Unit: mm

Vehicle

condition

H1

H2

H3

W1

W2

W3

L

Without driver

28.3

(719.5)

28.5

(724.5)

14.4

(366)

60.0

(1,526)

50.3

(1,278)

52.5

(1,363)

118.1

(3,000)

With driver

28.1

(714.5)

28.3

(719.5)

14.2

(361)



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Lighting System - Sedona



Microsoft



Monday, May 24, 2010 4:08:00 PM

Page 5

© 2006 Mitchell Repair Information Company, LLC.

1. Turn the low beam on without the driver aboard.

The cut-off line should be projected in the allowable range (shaded region).

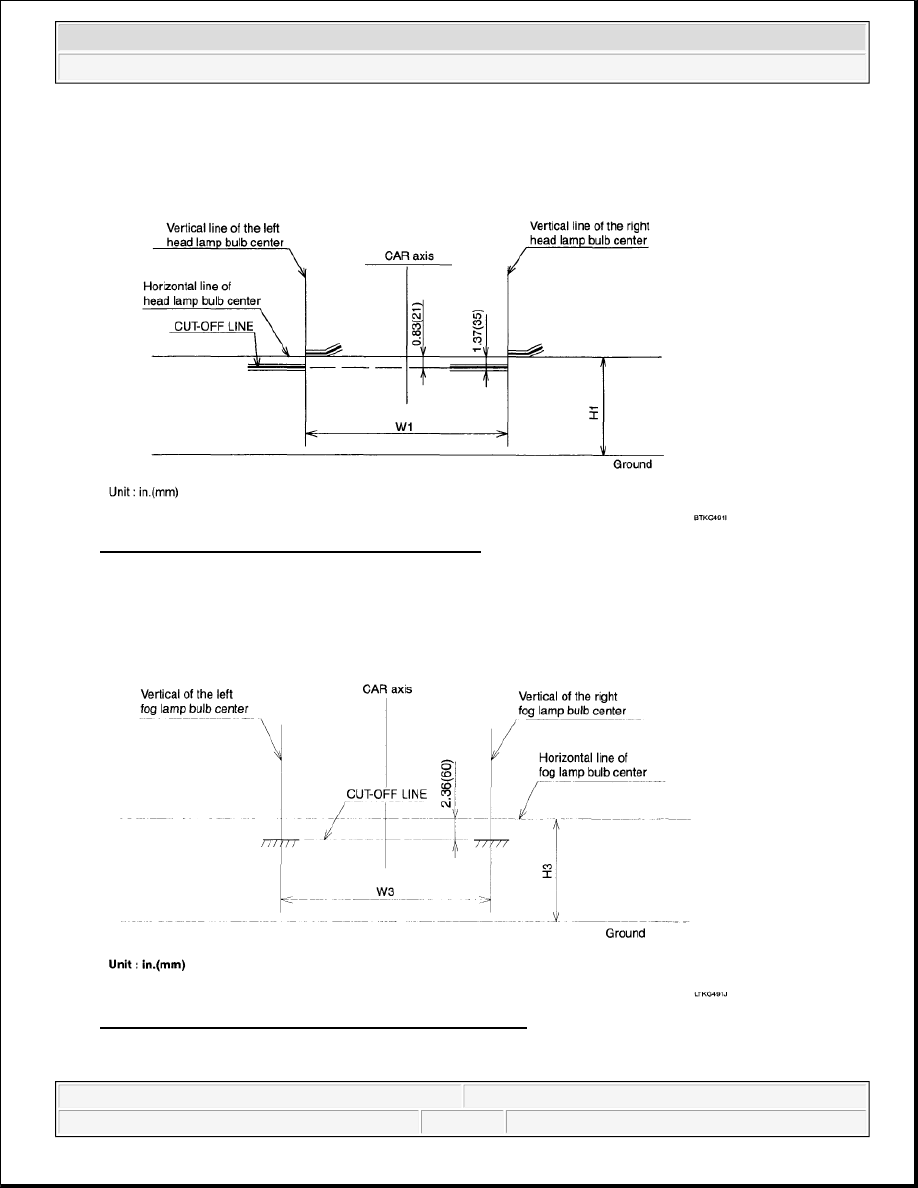

Fig. 8: Identifying Low Beam Aiming Dimensions
Courtesy of KIA MOTORS AMERICA, INC.

2. Turn the front fog lamp on without the driver aboard.

The cut-off line should be projected in the allowable range (shaded region)

Fig. 9: Identifying Front Fog Lamp Aiming Dimensions
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Lighting System - Sedona



Microsoft



Monday, May 24, 2010 4:08:00 PM

Page 6

© 2006 Mitchell Repair Information Company, LLC.

TURN SIGNAL LAMP

REPLACEMENT

FRONT TURN SIGNAL LAMP

1. Disconnect the negative (-) battery terminal.

2. Remove front lamp assembly.

3. Remove the socket in a counterclockwise direction.

Fig. 10: Identifying Turn Signal Lamp Bulb
Courtesy of KIA MOTORS AMERICA, INC.

4. Replace the bulb (A).

REAR TURN SIGNAL LAMP

1. Disconnect the negative (-) battery terminal.

2. Remove the rear lamp assembly (A) after removing the mounting screw (3 EA) and connector.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Lighting System - Sedona



Microsoft



Monday, May 24, 2010 4:08:00 PM

Page 7

© 2006 Mitchell Repair Information Company, LLC.

Fig. 11: Identifying Rear Lamp Assembly And Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the socket in a counterclockwise direction and replace the bulbs.

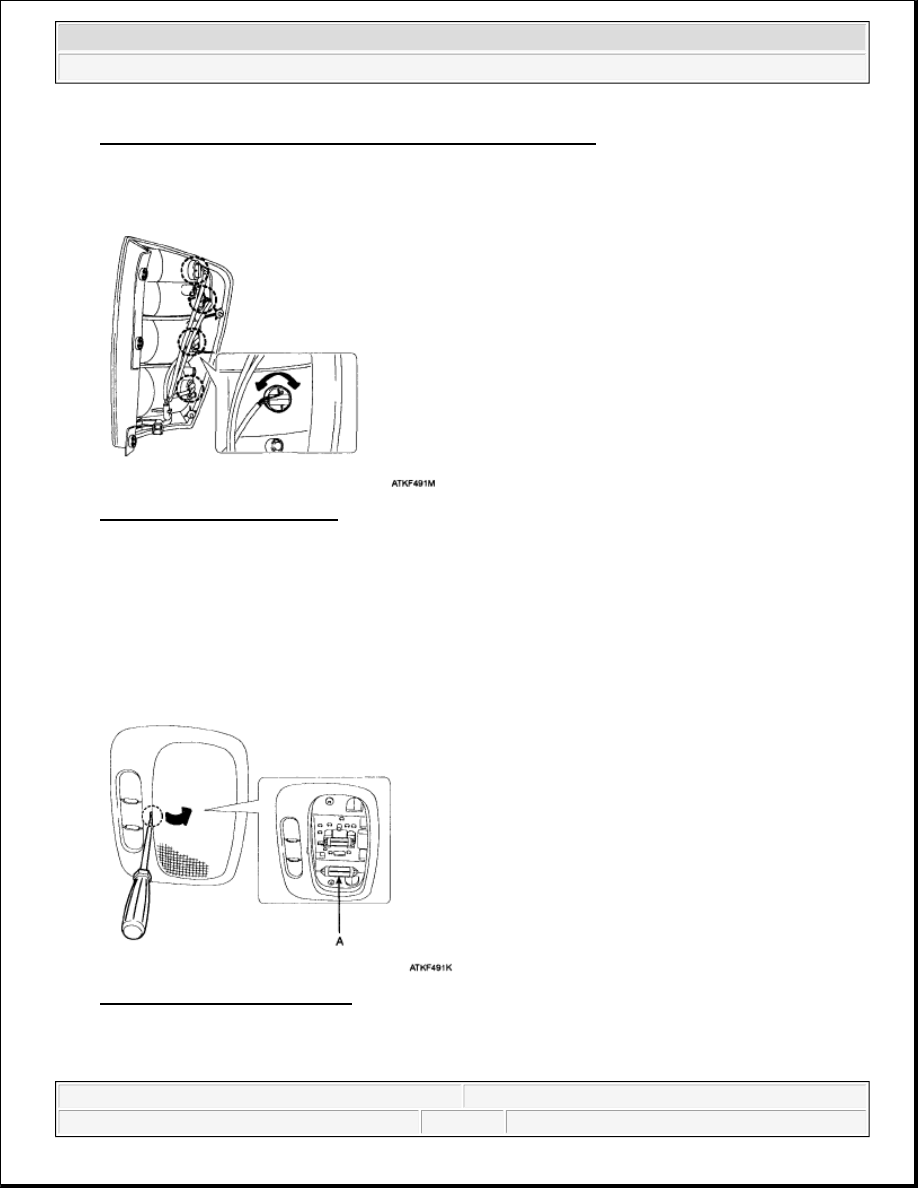

Fig. 12: Removing Bulb Socket
Courtesy of KIA MOTORS AMERICA, INC.

ROOM LAMP

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

2. Detach the lamp lens from the room lamp with a flat-tip screwdriver (-) then replace the bulb.

Fig. 13: Identifying Holding Clip
Courtesy of KIA MOTORS AMERICA, INC.

3. Pull the bulb down and replace it with a new one.
