Kia Sedona (2008 year). Manual - part 447

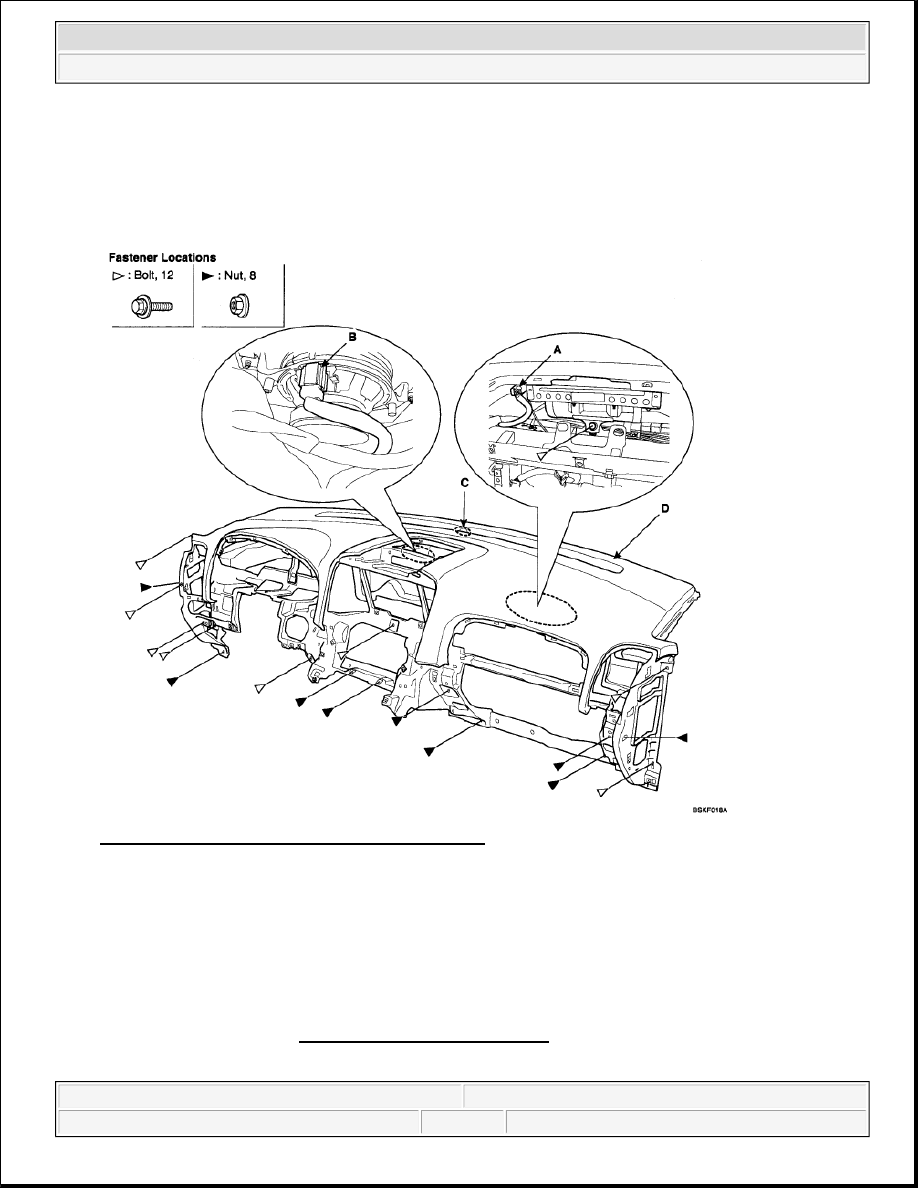

Fig. 35: Identifying Crash Pad Fastener Locations
Courtesy of KIA MOTORS AMERICA, INC.

COWL CROSSBAR ASSEMBLY REPLACEMENT

1. Remove the crash pad. See CRASH PAD REPLACEMENT.

2. Remove the connectors.

are not pinched.



Make sure the connectors are plugged in properly, and the antenna
lead is connected properly.



Enter the anti-theft code for the radio, then enter.

NOTE:



When prying with a flat-tipped screwdriver, wrap it with protective tape,
and apply protective tape around the related parts, to prevent damage.



Put on gloves to protect your hands.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Interior - Sedona



Microsoft



Monday, May 24, 2010 4:05:48 PM

Page 23

© 2006 Mitchell Repair Information Company, LLC.

3. Loosen the bolts and nuts, then remove cowl crossbar assembly (A).

4. Installation is the reverse of removal.

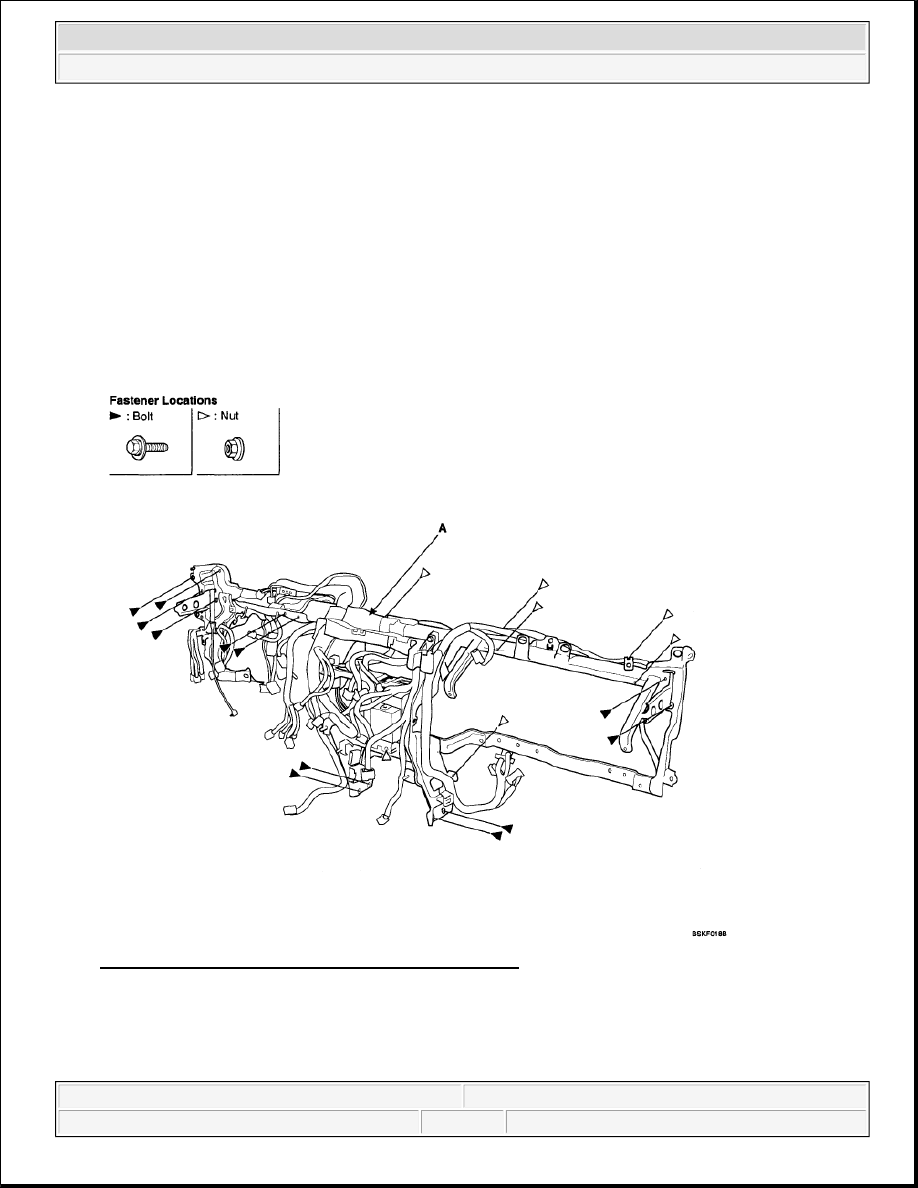

Fig. 36: Identifying Cowl Crossbar Fastener Locations
Courtesy of KIA MOTORS AMERICA, INC.

ROOF TRIM

COMPONENTS

NOTE:



Make sure the crash pad fits onto the guide pins correctly.



Before tightening the bolts, make sure the crash pad wire harnesses
are not pinched.



Make sure the connectors are plugged in properly, and the antenna
lead is connected properly.



Enter the anti-theft code for the radio, then enter the customer's radio
station presets.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Interior - Sedona



Microsoft



Monday, May 24, 2010 4:05:48 PM

Page 24

© 2006 Mitchell Repair Information Company, LLC.

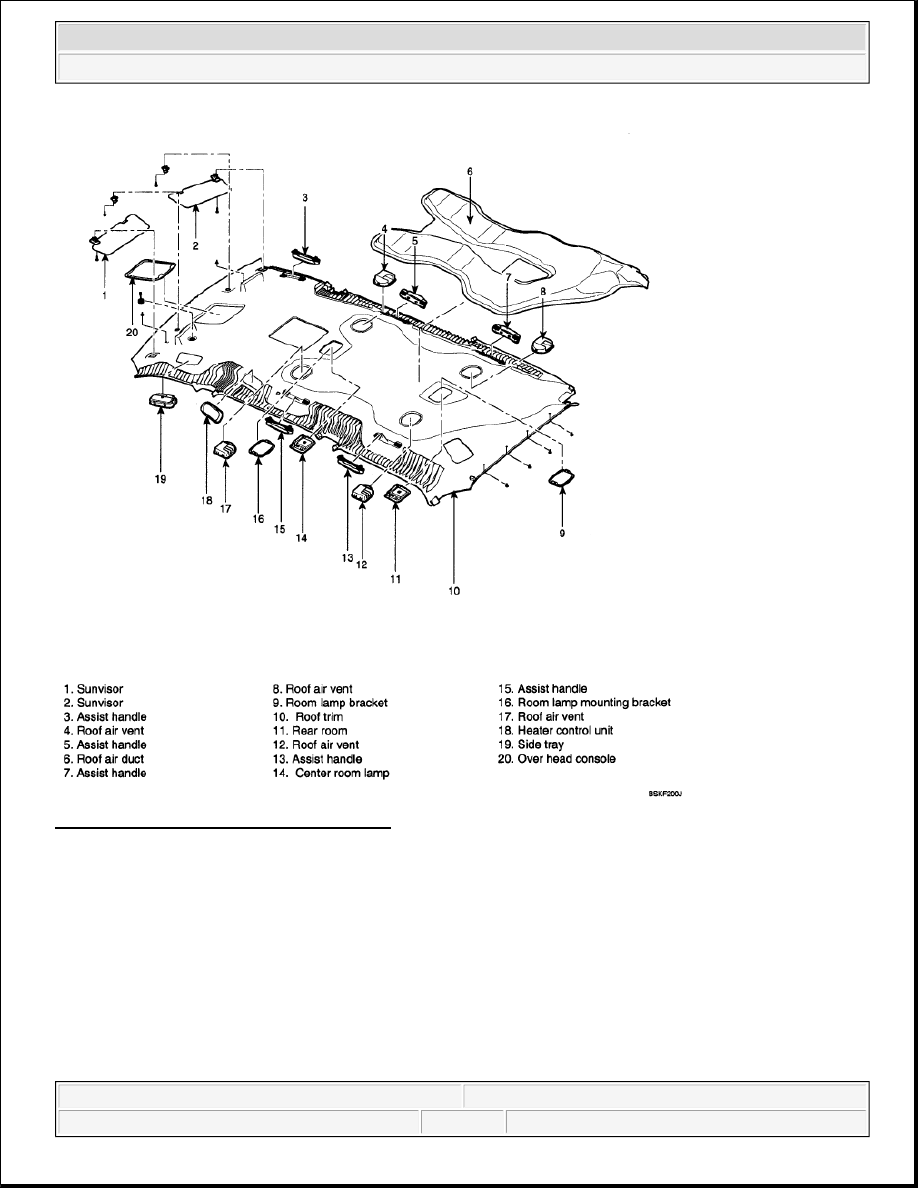

Fig. 37: Identifying Roof Trim Components
Courtesy of KIA MOTORS AMERICA, INC.

REPLACEMENT

SUNVISOR REPLACEMENT

1. Loosen the mounting screws, then sunvisor (A) and holder (B).

2. Disconnect the connector (C).



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Interior - Sedona



Microsoft



Monday, May 24, 2010 4:05:48 PM

Page 25

© 2006 Mitchell Repair Information Company, LLC.

Fig. 38: Identifying Sunvisor, Holder And Connector
Courtesy of KIA MOTORS AMERICA, INC.

3. Installation is the reverse of removal.

S/G CASE REPLACEMENT

1. Using a screwdriver, remove the side tray (A).

Fig. 39: Identifying Side Tray And Screw
Courtesy of KIA MOTORS AMERICA, INC.

2. Installation is the reverse of removal.
