1. Remove the rear control panel (A) and then disconnect the rear control panel connector (B).

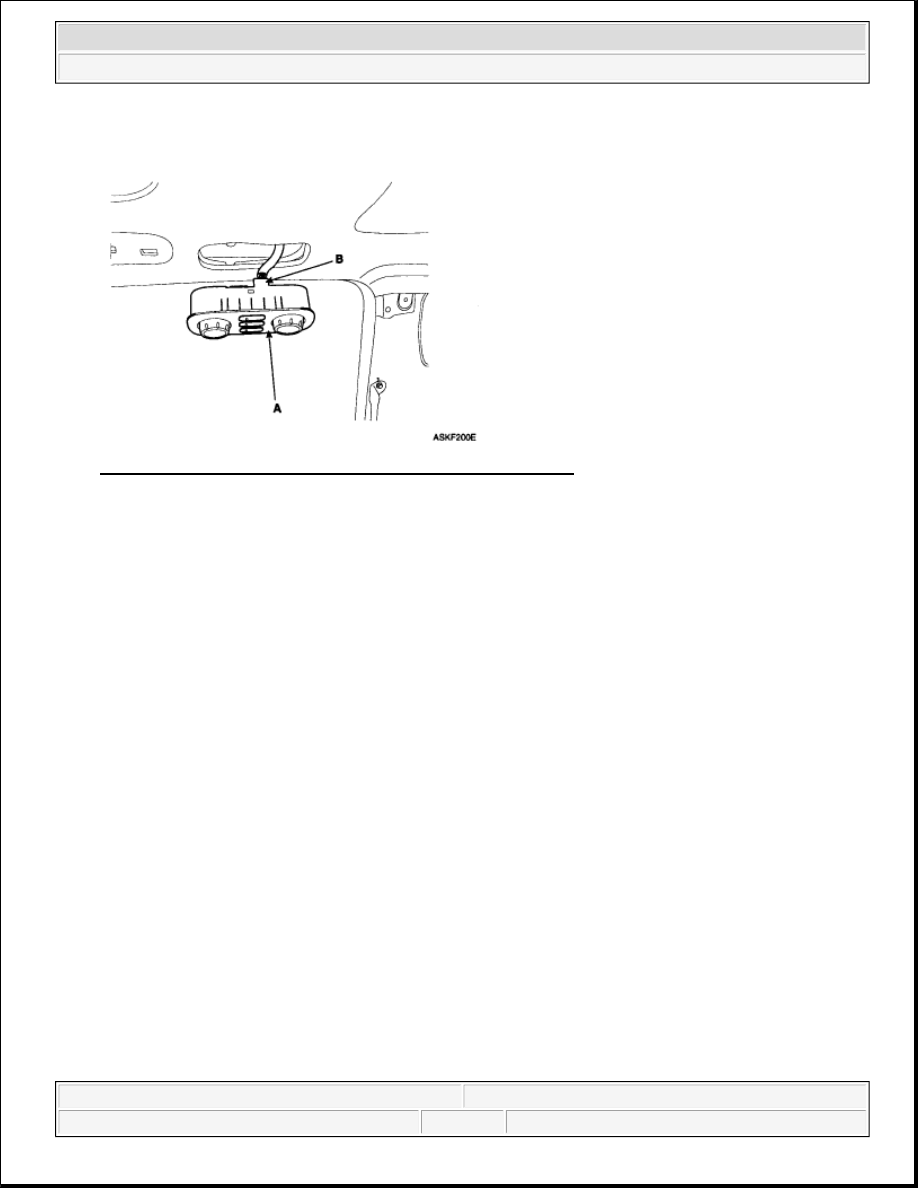

Fig. 19: Identifying Rear Heater Control Unit And Connector

2. Installation is the reverse order of removal.



2008 Kia Sedona EX

2008 HVAC Rear Heater - Sedona



Microsoft



Monday, May 24, 2010 4:03:45 PM

Page 14

© 2006 Mitchell Repair Information Company, LLC.

2008 ACCESSORIES & BODY, CAB

Horns - Sedona

COMPONENT LOCATION

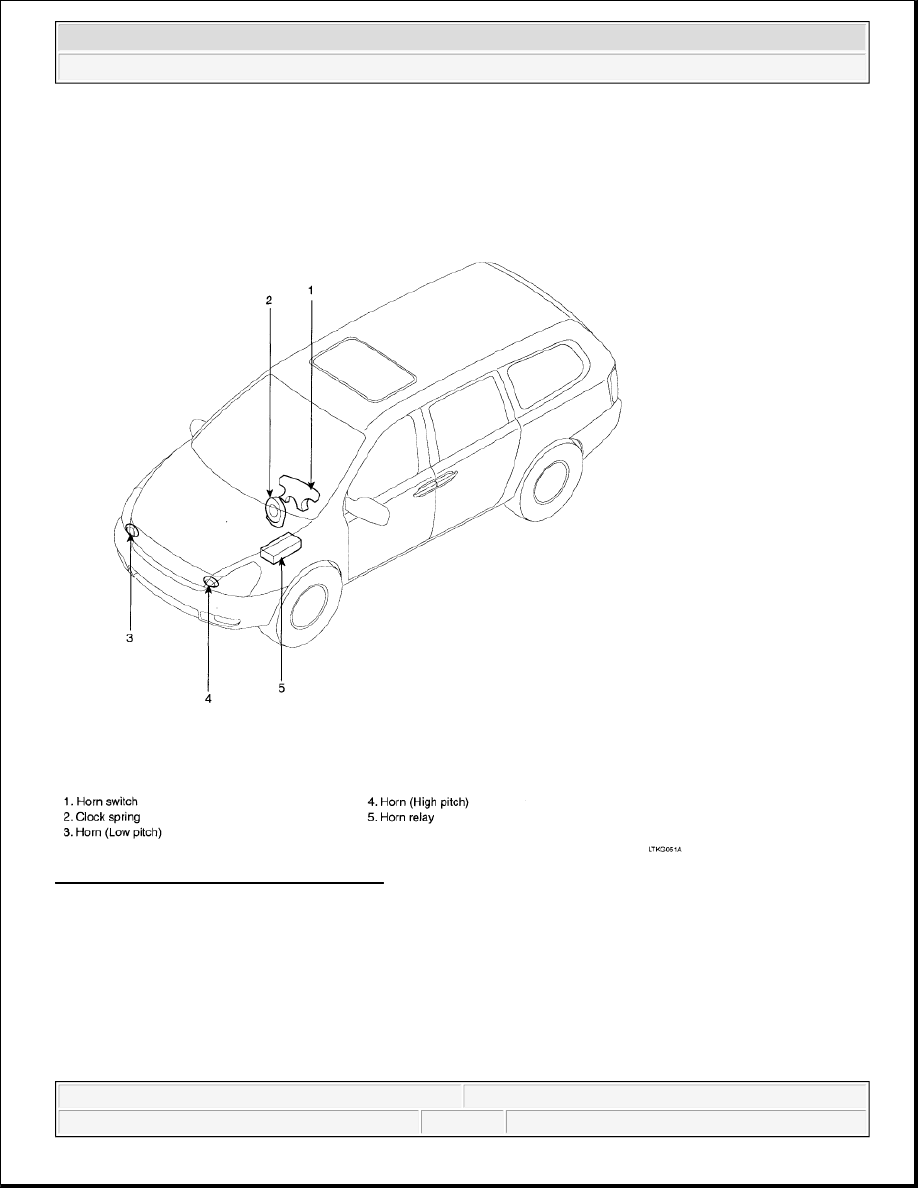

Fig. 1: Horn System Component Locations
Courtesy of KIA MOTORS AMERICA, INC.

HORN

REPLACEMENT

1. Remove the bolt from the high pitch horn and the low pitch horn and disconnect the horn connector, then

remove the horn.

2. Installation is the reverse of removal.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Horns - Sedona





2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Horns - Sedona



Microsoft



Monday, May 24, 2010 4:12:43 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

Microsoft



Monday, May 24, 2010 4:12:46 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

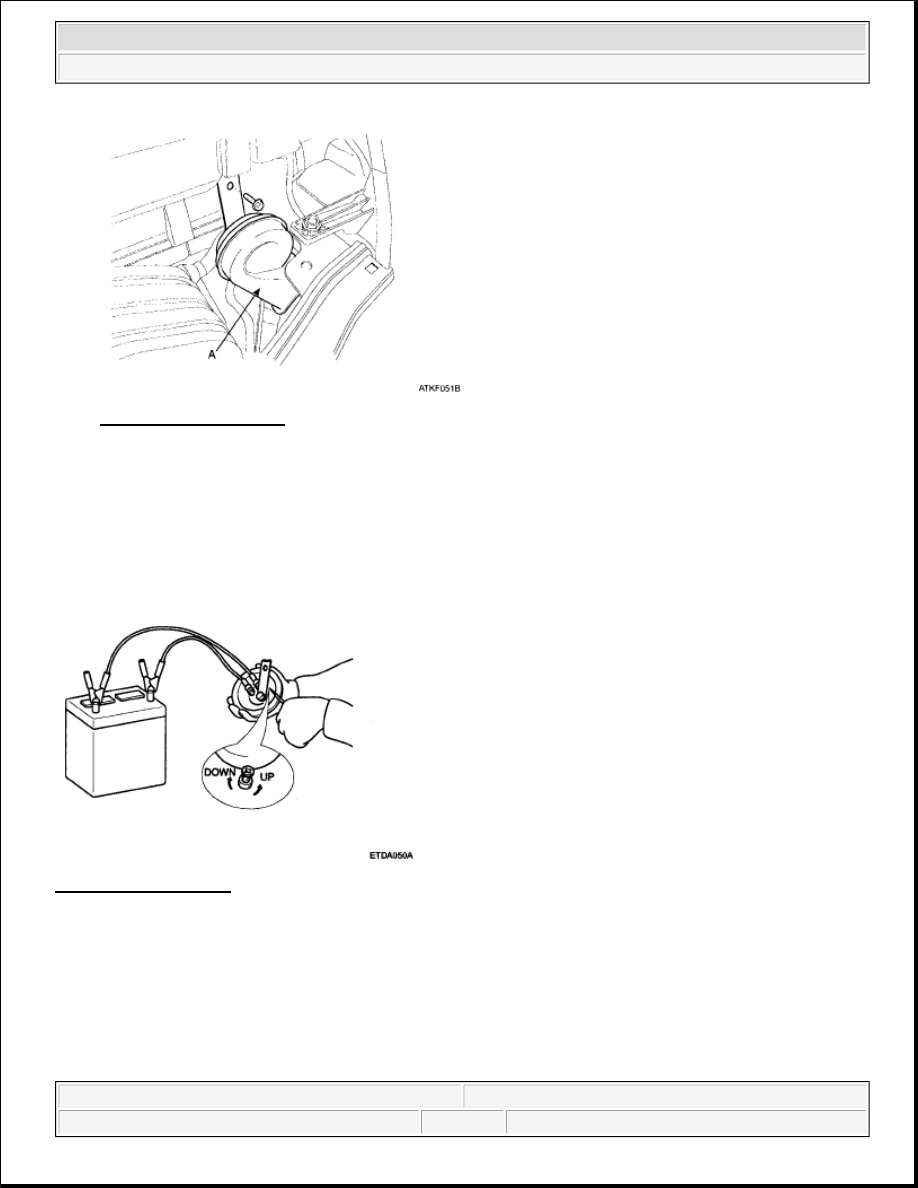

Fig. 2: Identifying Horn
Courtesy of KIA MOTORS AMERICA, INC.

ADJUSTMENT

Operate the horn, and adjust the tone to a suitable level by turning the adjusting screw.

Fig. 3: Adjusting Horn
Courtesy of KIA MOTORS AMERICA, INC.

INSPECTION

Test the horn by connecting battery voltage to the terminal 1, and ground terminal 2.

The horn should make a sound. If the horn fails to make a sound, replace it.

NOTE:

After adjustment, apply a small amount of paint around the screw head to keep
it from loosening.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Horns - Sedona



Microsoft



Monday, May 24, 2010 4:12:43 PM

Page 2

© 2006 Mitchell Repair Information Company, LLC.

2008 HVAC

HVAC General - Sedona

SPECIFICATION

AIR CONDITIONER

AIR CONDITIONER SPECIFICATION

BLOWER UNIT

BLOWER UNIT CHART

HEATER AND EVAPORATOR UNIT

HEATER AND EVAPORATOR UNIT CHART

Item

Specification

3.8L

Compressor

Type

Fixed type (Swash plate)

Oil type & Capacity

FD46XG (PAG), 210 ± 10cc

Pulley type

6PK-TYPE

Displacement

214cc/rev

Condenser

Heat rejection

19,500 ± 5% kcal/hr

APT (A/C pressure transducer)

The method to measure the

pressure

Vout = 0.00878835* pa +

0.37081095

Expansion valve

Type

Block (L-TYPE)

Refrigerant

Type

R-134a

Capacity [oz. (g)]

31.7 ± 0.88 (900 ± 25)

Item

Specification

Fresh and recirculation

Operating method

Actuator

Blower

Type

Sirocco

Speed step

Auto + 8 speed (Automatic)

1-8 speed (Manual)

Speed control

Power Mosfet

Air filter

Type

Particle filter

Item

Specification

Heater

Type

Pin & Tube type

Heating capacity

4,700 ± 5% kcal/hr

Mode operating method

Actuator

Temperature operating method

Actuator

Evaporator

Temperature control type

Evaporator temperature sensor
