Kia Sedona (2008 year). Manual - part 434

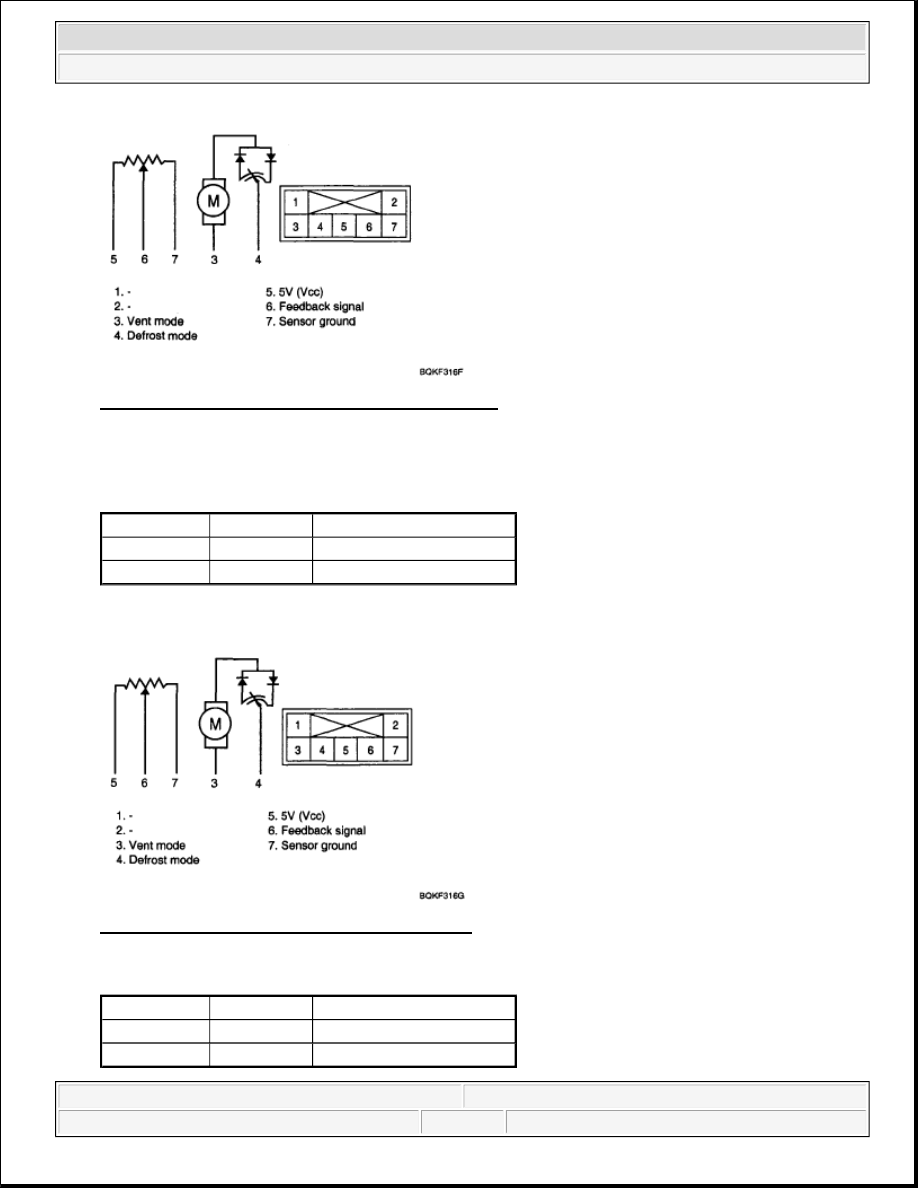

Fig. 17: Mode Control Actuator Circuit (Passenger)
Courtesy of KIA MOTORS AMERICA, INC.

5. Check the voltage between terminals 6 and 7.

DOOR POSITION CHART

[DRIVER]

Fig. 18: Mode Control Actuator Circuit (Driver)
Courtesy of KIA MOTORS AMERICA, INC.

DOOR POSITION CHART

Door position Voltage (6-7)

Error detecting

Vent

0.3 ± 0.15V

Low voltage: 0.1V or less

Defrost

4.7 ± 0.15V High voltage: 4.9V or more

Door position Voltage (6-5)

Error detecting

Vent

0.3 ± 0.15V

Low voltage: 0.1V or less

Defrost

4.7 ± 0.15V High voltage: 4.9V or more



2008 Kia Sedona EX

2008 HVAC Heater - Sedona



Microsoft



Monday, May 24, 2010 4:03:13 PM

Page 13

© 2006 Mitchell Repair Information Company, LLC.

It will feedback current position of actuator to controls.

6. If the measured voltage is not as specified, substitute with a known-good mode control actuator and check

for proper operation.

7. If the problem is corrected, replace the mode control actuator.

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

2. Remove the driver' s crash pad lower panel. Refer to CRASH PAD .

3. Disconnect the mode control actuator connector (A) after removing the air duct.

4. Loosen the mounting screws and then remove the mode control actuator (B).

[PASSENGER]

Fig. 19: Identifying Mode Control Actuator And Connector (Passenger)
Courtesy of KIA MOTORS AMERICA, INC.

[DRIVER]



2008 Kia Sedona EX

2008 HVAC Heater - Sedona



Microsoft



Monday, May 24, 2010 4:03:13 PM

Page 14

© 2006 Mitchell Repair Information Company, LLC.

Fig. 20: Identifying Mode Control Actuator And Connector (Driver)
Courtesy of KIA MOTORS AMERICA, INC.

5. Installation is the reverse order of removal.



2008 Kia Sedona EX

2008 HVAC Heater - Sedona



Microsoft



Monday, May 24, 2010 4:03:13 PM

Page 15

© 2006 Mitchell Repair Information Company, LLC.

2008 HVAC

Rear Heater - Sedona

REAR HEATER UNIT

COMPONENT LOCATION

Fig. 1: Identifying Rear Heater Unit Component Location

COMPONENTS
