COMPONENTS

Fig. 2: Identifying Front Strut Assembly Components With Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

REMOVAL

1. Loosen the wheel nuts slightly.

Raise the front of the vehicle, and make sure it is securely supported.

2. Remove the front wheel and tire (A) from front hub (B).

2008 Kia Sedona EX

2008 SUSPENSION Front Suspension - Sedona

Microsoft

Monday, May 24, 2010 3:45:00 PM

Page 2

Fig. 3: Identifying Wheel & Tire Assembly And Front Hub Assembly
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the brake hose bracket bolt (A, B) from the front strut assembly.

Fig. 4: Identifying Brake Hose Bracket Bolt
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the speed sensor (A) and wire (B) bolts from the front knuckle.

CAUTION: Be careful not to damage hub bolts (C) when removing the front

wheel and tire (A).

2008 Kia Sedona EX

2008 SUSPENSION Front Suspension - Sedona

Microsoft

Monday, May 24, 2010 3:45:00 PM

Page 3

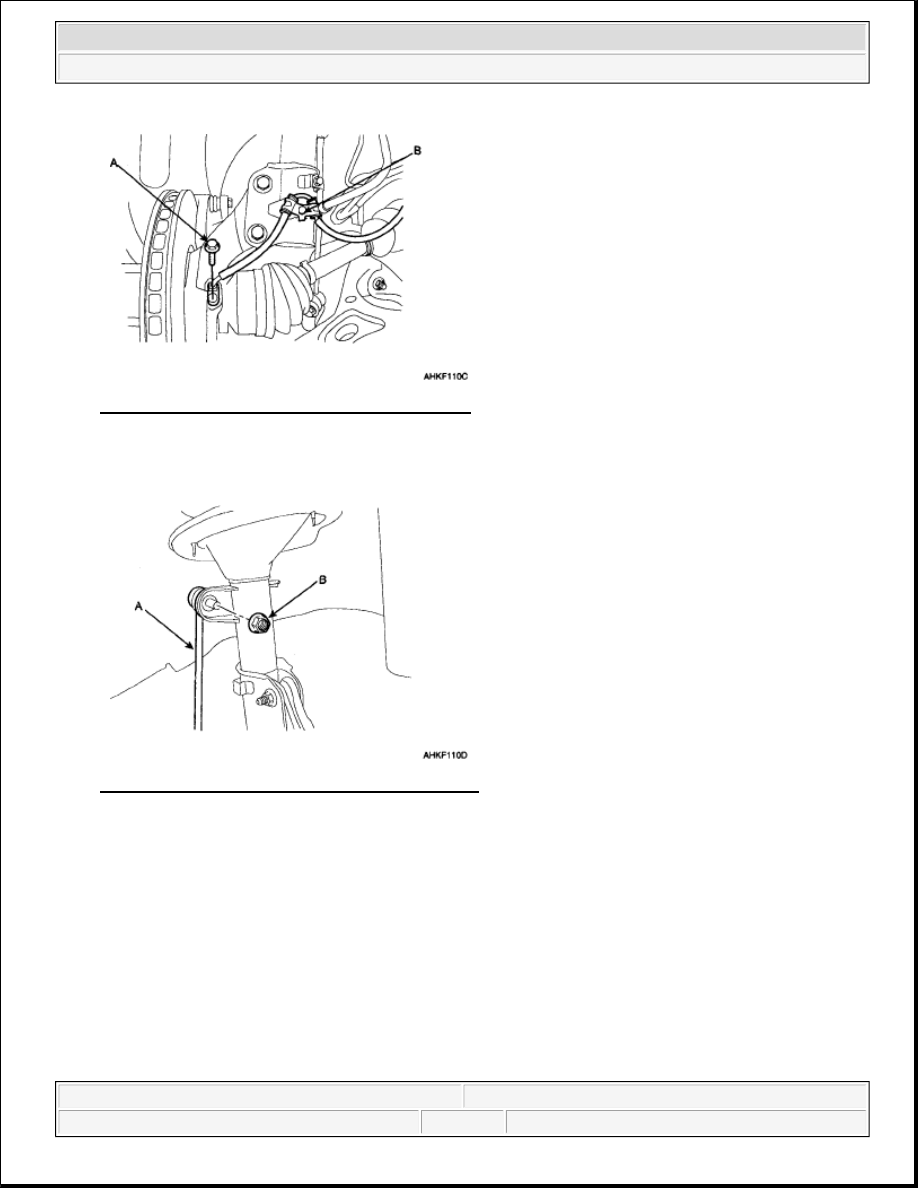

Fig. 5: Identifying Speed Sensor And Wire Bolts
Courtesy of KIA MOTORS AMERICA, INC.

5. Remove the front stabilizer link (A) nut (B) from the strut assembly.

Fig. 6: Identifying Front Stabilizer Link And Nut
Courtesy of KIA MOTORS AMERICA, INC.

6. Remove the strut upper mounting nuts (A).

2008 Kia Sedona EX

2008 SUSPENSION Front Suspension - Sedona

Microsoft

Monday, May 24, 2010 3:45:00 PM

Page 4

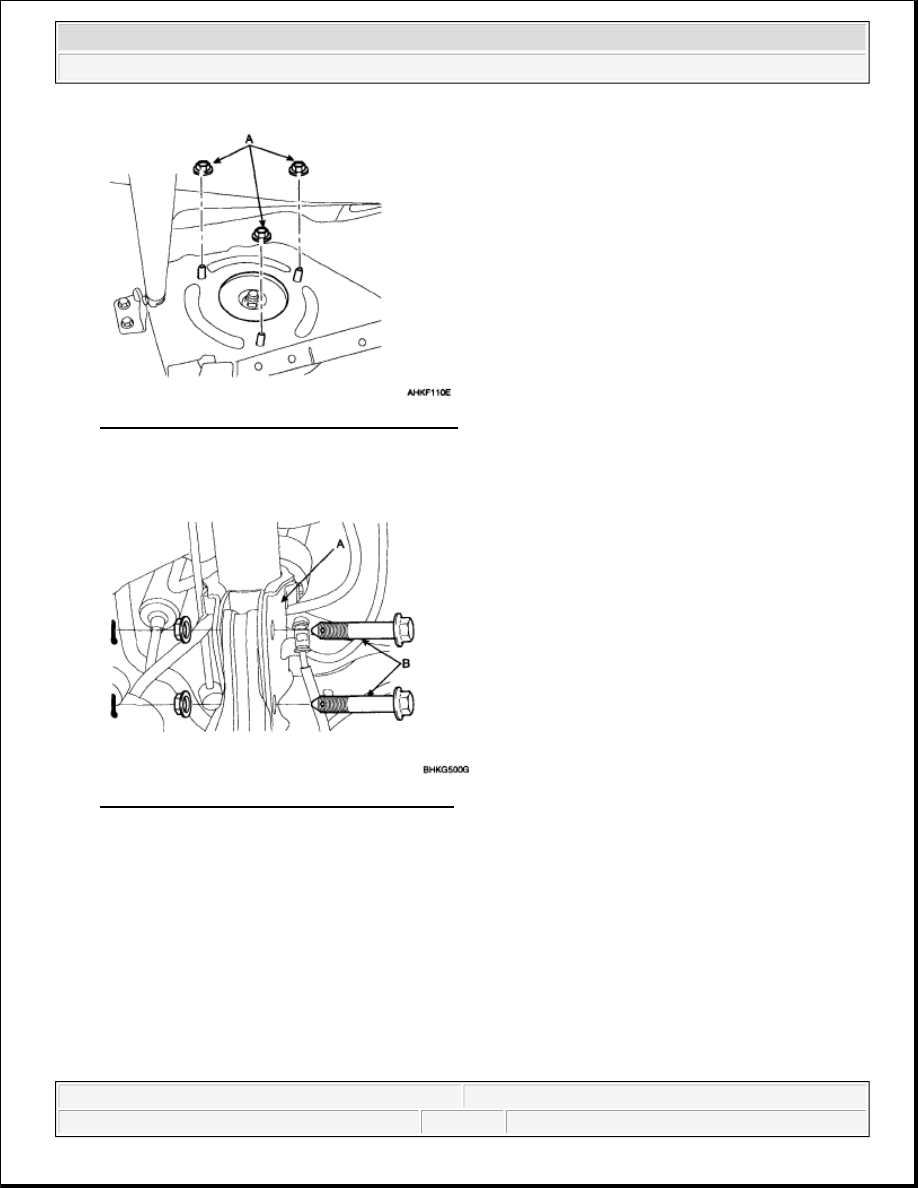

Fig. 7: Identifying Strut Upper Mounting Nuts
Courtesy of KIA MOTORS AMERICA, INC.

7. Remove the front strut assembly (A) bolts (B) from the front knuckle.

Fig. 8: Identifying Front Strut Assembly Bolts
Courtesy of KIA MOTORS AMERICA, INC.

DISASSEMBLY

1. Using the special tool (09546-26000), compress the coil spring (A).
