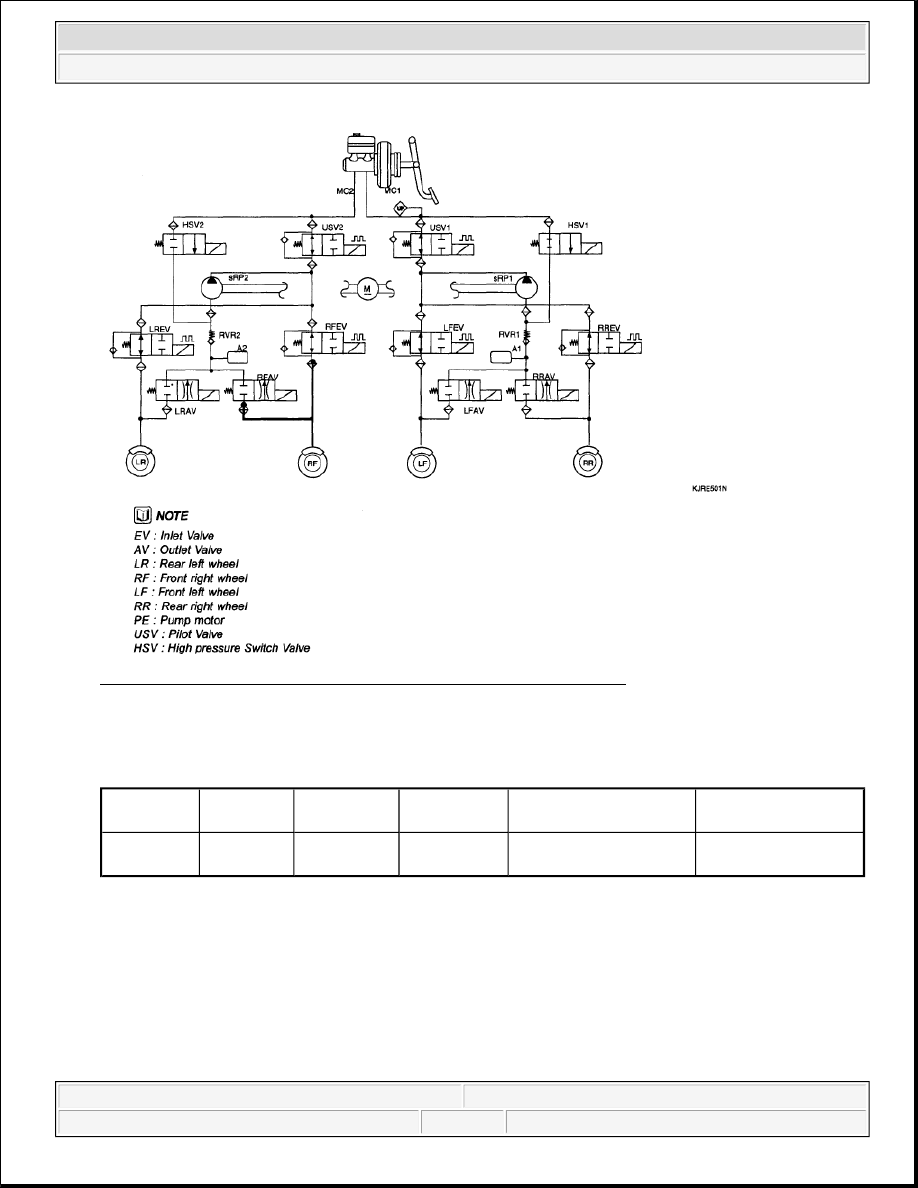

Fig. 13: ESC Operation Diagram - Hold Mode (FR Only Controlled)
Courtesy of KIA MOTORS AMERICA, INC.

4. ESC DECREASE MODE (FR is only controlled)

ESC DECREASE MODE (FR ONLY CONTROLLED) REFERENCE



Inlet valve
(EV)

Outlet valve
(AV)

Pilot valve
(USV)

High pressure switch
valve (HSV)

Pump motor

Normal
braking

Close

Open

Close (Partial) Open

ON (Motor speed low
control)



2008 Kia Sedona

2008 BRAKES ESP (Electronic Stability Program) - Sedona



Microsoft



Saturday, May 22, 2010 6:53:50 PM

Page 10

© 2006 Mitchell Repair Information Company, LLC.

Fig. 14: ESC Operation Diagram - ESC Decrease Mode (FR Only Controlled)
Courtesy of KIA MOTORS AMERICA, INC.

Fig. 15: Identifying Warning Lamp Locations
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona

2008 BRAKES ESP (Electronic Stability Program) - Sedona



Microsoft



Saturday, May 22, 2010 6:53:50 PM

Page 11

© 2006 Mitchell Repair Information Company, LLC.

ABS WARNING LAMP MODULE

The active ABS warning lamp module indicates the self-test and failure status of the ABS. The ABS warning
lamp shall be on:



During the initialization phase after IGN ON. (continuously 3 seconds).



In the event of inhibition of ABS functions by failure.



During diagnostic mode.



When the ECU Connector is separated from ECU.

EBD/PARKING BRAKE WARNING LAMP MODULE

The active EBD warning lamp module indicates the self-test and failure status of the EBD. However, in case the
Parking Brake Switch is turned on, the EBD warning lamp is always turned on regardless of EBD functions.
The EBD warning lamp shall be on:



During the initialization phase after IGN ON. (continuously 3 seconds).



When the Parking Brake Switch is ON or brake fluid level is low.



When the EBD function is out of order.



During diagnostic mode.



When the ECU Connector is separated from ECU.

ESC WARNING LAMP (ESC SYSTEM)

The ESC warning lamp indicates the self-test and failure status of the ESC.

The ESC warning lamp is turned on under the following conditions :



During the initialization phase after IGN ON. (continuously 3 seconds).



In the event of inhibition of ESC functions by failure.



When driver turn off the ESC function by on/off switch.



During diagnostic mode.

ESC FUNCTION LAMP (ESC SYSTEM)

The ESC function lamp indicates the self-test and operating status of the ESC.

The ESC Function lamp operates under the following conditions :



During the initialization phase after IGN ON. (continuously 3 seconds).



When the ESC control is operating. (Blinking - 2Hz)

ESC ON/OFF SWITCH (ESC SYSTEM)



2008 Kia Sedona

2008 BRAKES ESP (Electronic Stability Program) - Sedona



Microsoft



Saturday, May 22, 2010 6:53:50 PM

Page 12

© 2006 Mitchell Repair Information Company, LLC.

The ESC On/Off Switch shall be used to toggle the ESC function between On/Off states based upon driver
input. The On/Off switch shall be a normally open, momentary contact switch.

Initial status of the ESC function is on and the switch is used to request an ESC status change.

COMPONENTS

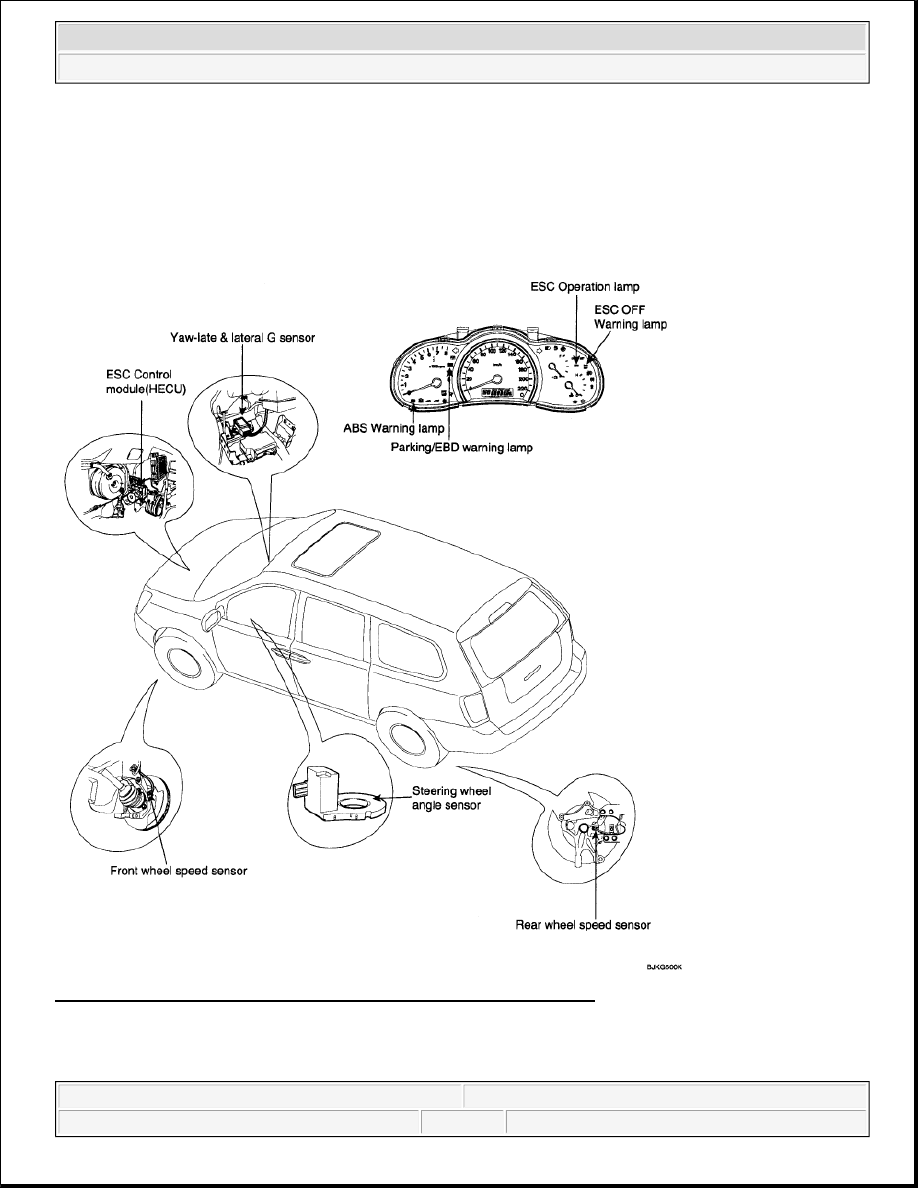

Fig. 16: Identifying Electronic Stability Control Components Location
Courtesy of KIA MOTORS AMERICA, INC.

ESC CIRCUIT DIAGRAMS
