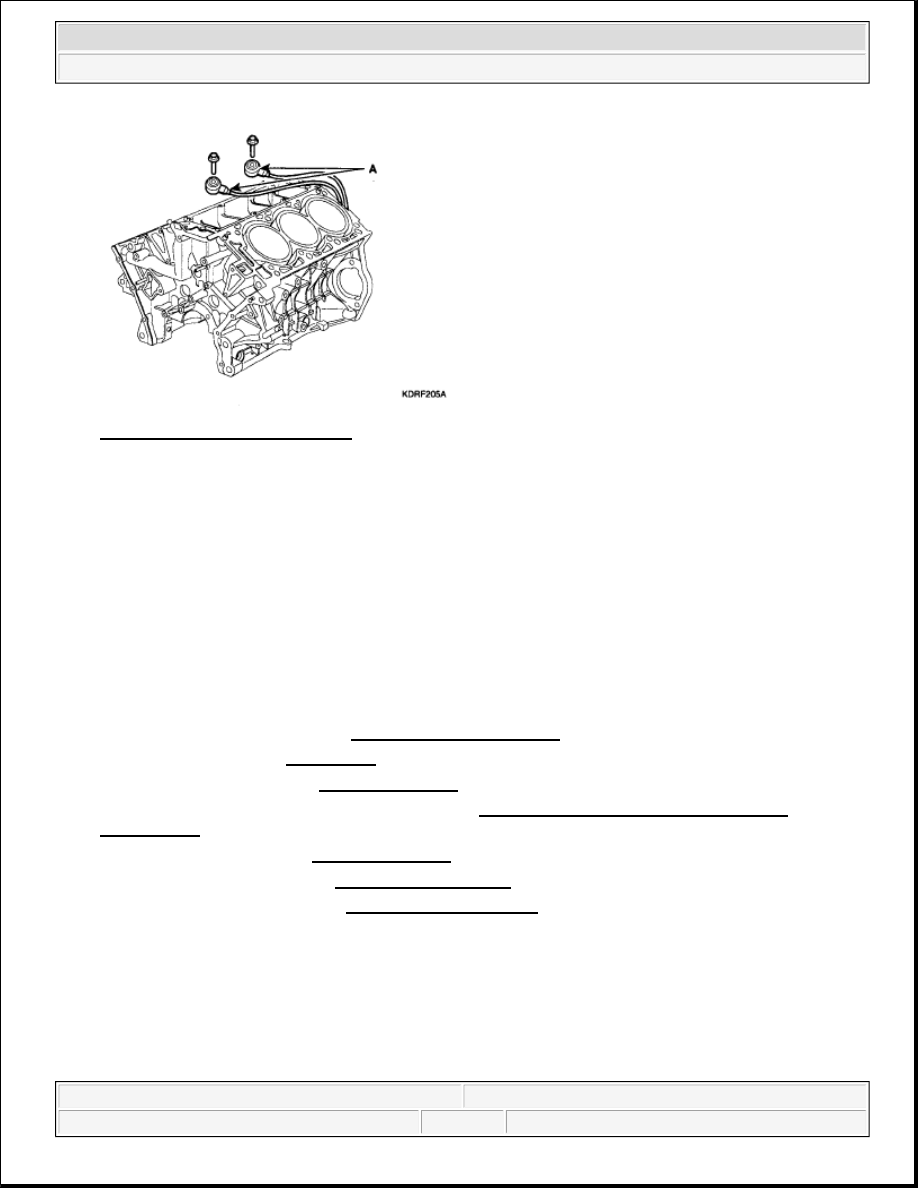

Fig. 187: Locating Knock Sensor
Courtesy of KIA MOTORS AMERICA, INC.

18. Install drive plate.

Tightening torque

71.54-75.46 N.m (7.3-7.7 kgf.m, 52.80-55.69 lb-ft)

INSTALLATION

1. Install power steering pump.

2. Install generator.

3. Install air conditioner compressor

4. Install oil filter assembly. Refer to OIL FILTER ASSEMBLY.

5. Install oil pump. Refer to OIL PUMP.

6. Install cylinder head. Refer to INSTALLATION.

7. Install water temperature control assembly. Refer to WATER TEMPERATURE CONTROL

ASSEMBLY.

8. Install timing chain. Refer to INSTALLATION.

9. Install intake manifold. Refer to INTAKE MANIFOLD.

10. Install exhaust manifold. Refer to EXHAUST MANIFOLD.

COOLING SYSTEM

COMPONENT



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:38 PM

Page 130

© 2006 Mitchell Repair Information Company, LLC.

Fig. 188: Identifying Cooling System Components And Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:38 PM

Page 131

© 2006 Mitchell Repair Information Company, LLC.

Fig. 189: Identifying Radiator And Fan Components
Courtesy of KIA MOTORS AMERICA, INC.

ENGINE COOLANT REFILLING AND BLEEDING

1. Make sure the engine and radiator are cool to the touch.

2. Remove radiator cap.

3. Loosen the drain plug, and drain the coolant.

WARNING:

Never remove the radiator cap when the engine is hot. Serious scalding
could be caused by hot fluid under high pressure escaping from the
radiator.

CAUTION: When pouring engine coolant, be sure to shut the relay box lid and not to

let coolant spill on the electrical parts or the paint. If any coolant spills,
rinse it off immediately.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:38 PM

Page 132

© 2006 Mitchell Repair Information Company, LLC.

4. Tighten the radiator drain plug securely.

5. Remove, drain and reinstall the reservoir. Fill the tank halfway to the "F" mark with water, then up to the

"F" mark with antifreeze.

6. Fill fluid mixture with coolant and water (4:6) slowly through the radiator cap. Push the upper/lower

hoses of the radiator to ensure proper air bleeding.

7. Start the engine.

When the cooling fan operates and coolant circulates, refill coolant through the radiator cap.

8. Repeat 7 until the cooling fan cycles 3-5 times and bleed air sufficiently out of the cooling system.

9. Install the radiator cap and fill the reservoir tank to the "MAX" line with coolant.

10. Run the vehicle under idle until the cooling fan operates 2-3 times.

11. Stop the engine and wait until the cooling system is cool to the touch.

12. Repeat 6 to 11 until the coolant level doesn't fall any more, bleed air out of the cooling system.

CAP TESTING

1. Remove the radiator cap, wet its seal with engine coolant, then install it no pressure tester.

NOTE:



Use only genuine antifreeze/coolant.



For best corrosion protection, the coolant concentration must be
maintained year-round at 50% minimum.

Coolant concentrations less than 50% may not provide sufficient
protection against corrosion or freezing.



Coolant concentrations greater then 60% will impair cooling
efficiency and are not recommended.

CAUTION:



Do not mix different brands of antifreeze/coolants.



Do not use additional rust inhibitors or antirust products; they
may not be compatible with the coolant.

NOTE:

Proper cooling system operation depends on the absence of trapped air
within the system. It is essential that the cooling system be properly filled
and bled before returning the vehicle to service.
