Kia Sedona (2008 year). Manual - part 363

Fig. 157: Identifying Crankshaft Journal Mark Location
Courtesy of KIA MOTORS AMERICA, INC.

DISCRIMINATION OF CRANKSHAFT

DISCRIMINATION OF CRANKSHAFT

PLACE OF IDENTIFICATION MARK (CRANKSHAFT BEARING)

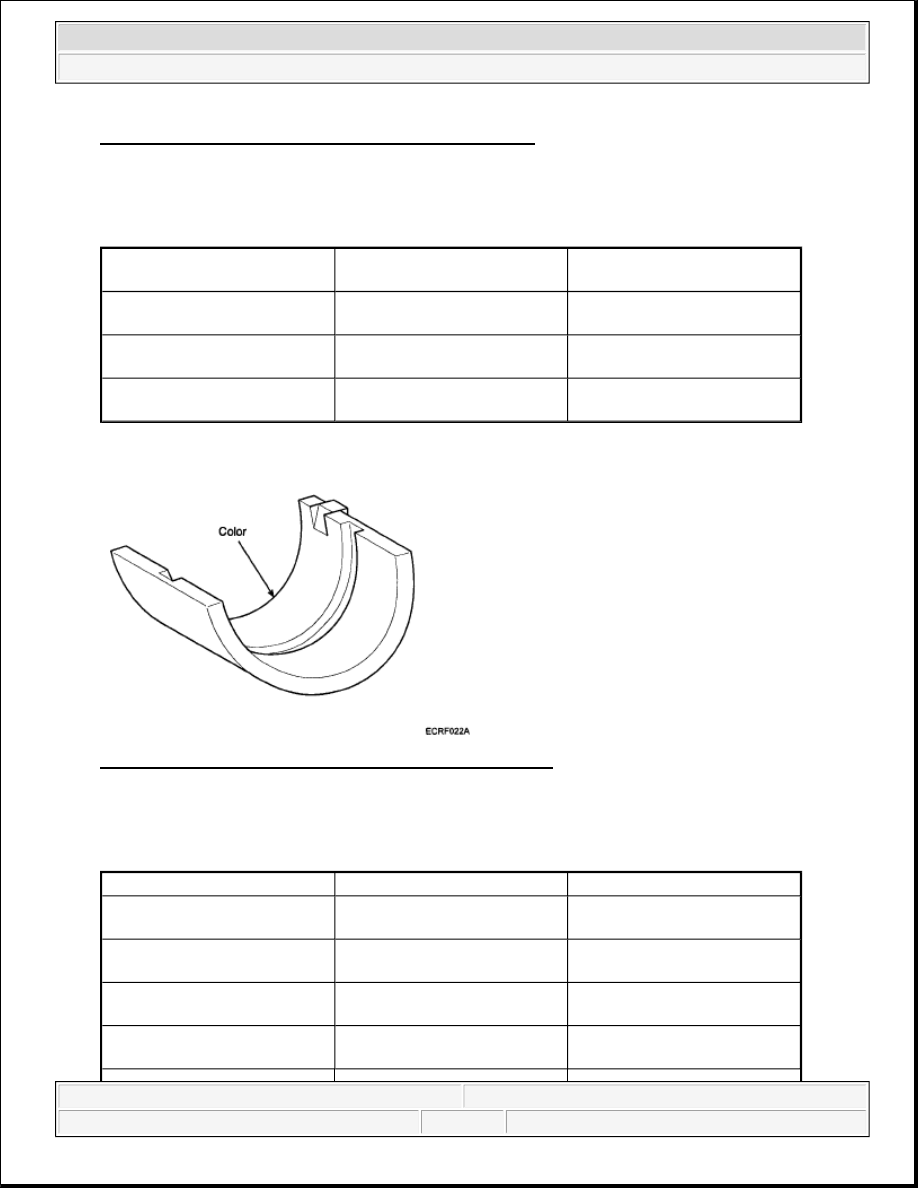

Fig. 158: Identifying Mark (Color) On Crankshaft Bearing
Courtesy of KIA MOTORS AMERICA, INC.

DISCRIMINATION OF CRANKSHAFT BEARING

DISCRIMINATION OF CRANKSHAFT BEARING

CLASS

MARK

OUTSIDE DIAMETER OF

JOURNAL

I

1 or A

68.954-68.960 mm (2.7147-

2.7150 in.)

II

2 or B

68.948-68.954 mm (2.7145-

2.7147 in.)

III

3 or C

68.942-68.948 mm (2.7142-

2.7145 in.)

CLASS

MARK

THICKNESS OF BEARING

E

BLUE

2.277-2.280 mm (0.0896-

0.0897 in.)

D

BLACK

2.274-2.277 mm (0.0895-

0.0896 in.)

C

BROWN

2.271-2.274 mm (0.0894-

0.0895 in.)

B

GREEN

2.268-2.271 mm (0.0893-

0.0894 in.)



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:37 PM

Page 110

© 2006 Mitchell Repair Information Company, LLC.

SELECTION

CRANKSHAFT BORE IDENTIFICATION MARK REFERENCE

4. Check crankshaft end play.

Using a dial indicator, measure the thrust clearance while prying the crankshaft back and forth with a
screwdriver.

Standard end play

0.10-0.28 mm (0.0039-0.0110 in.)

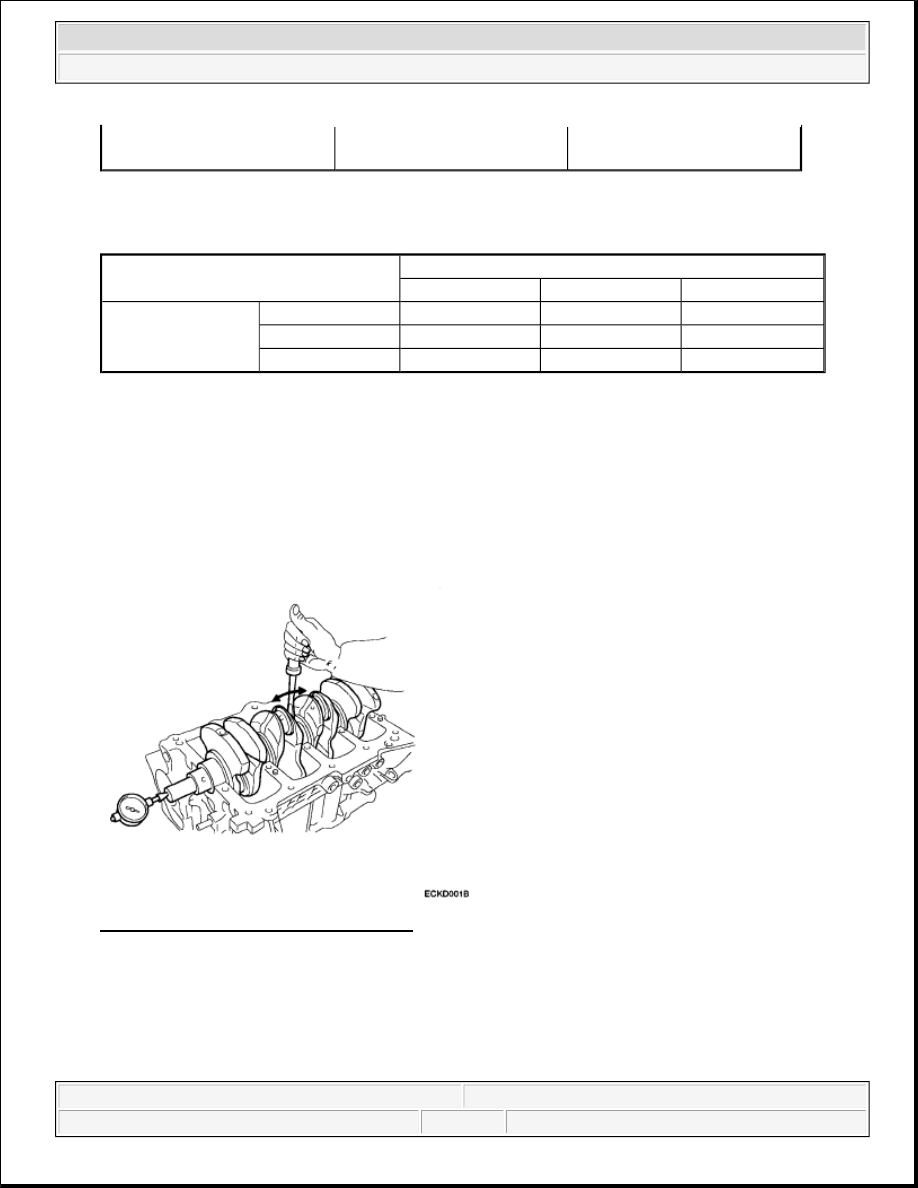

Fig. 159: Checking Crankshaft End Play
Courtesy of KIA MOTORS AMERICA, INC.

If the end play is greater than maximum, replace the thrust bearings as a set.

Thrust bearing thickness

2.41-2.45 mm (0.0949-0.0964 in.)

A

YELLOW

2.265-2.268 mm (0.0892-

0.0893 in.)



CRANKSHAFT BORE IDENTIFICATION MARK

a (A)

b (B)

c (C)

CRANKSHAFT

IDENTIFICATION

MARK

1 or A

A (YELLOW)

B (GREEN)

C (BROWN)

2 or B

B (GREEN)

C (BROWN)

D (BLACK)

3 or C

C (BROWN)

D (BLACK)

E (BLUE)



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:37 PM

Page 111

© 2006 Mitchell Repair Information Company, LLC.

5. Inspect main journals and crank pins

Using a micrometer, measure the diameter of each main journal and crank p in.

Main journal diameter: 68.942-68.960 mm (2.7142-2.7149 in.)

Crank pin diameter: 54.954-54.972 mm (2.1635-2.1642 in.)

Fig. 160: Measuring Diameter Of Main Journal And Crank Pin
Courtesy of KIA MOTORS AMERICA, INC.

CONNECTING RODS

1. When reinstalling, make sure that cylinder numbers put on the connecting rod and cap at disassembly

match. When a new connecting rod is installed, make sure that the notches for holding the bearing in
place are on the same side.

2. Replace the connecting rod if it is damaged on the thrust faces at either end. Also if step wear or a

severely rough surface of the inside diameter of the small end is apparent, the rod must be replaced as
well.

3. Using a connecting rod aligning tool, check the rod for bend and twist. If the measured value is close to

the repair limit, correct the rod by a press. Any connecting rod that has been severely bent or distorted
should be replaced.

Allowable bend of connecting rod :

0.05 mm/100 mm (0.0020 in./3.94 in.) or less



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:38 PM

Page 112

© 2006 Mitchell Repair Information Company, LLC.

Allowable twist of connecting rod :

0.1 mm/100 mm (0.0039 in./3.94 in.) or less

CYLINDER BLOCK

1. Remove gasket material.

Using a gasket scraper, remove all the gasket material from the top surface of the cylinder block.

2. Clean cylinder block

Using a soft brush and solvent, thoroughly clean the cylinder block.

3. Inspect top surface of cylinder block for flatness.

Using a precision straight edge and feeler gauge, measure the surface contacting the cylinder head gasket
for warpage.

Flatness of cylinder block gasket surface

Standard: Less than 0.05 mm (0.0020 in.), Less than 0.02 mm (0.0008 in.) /150 x 150

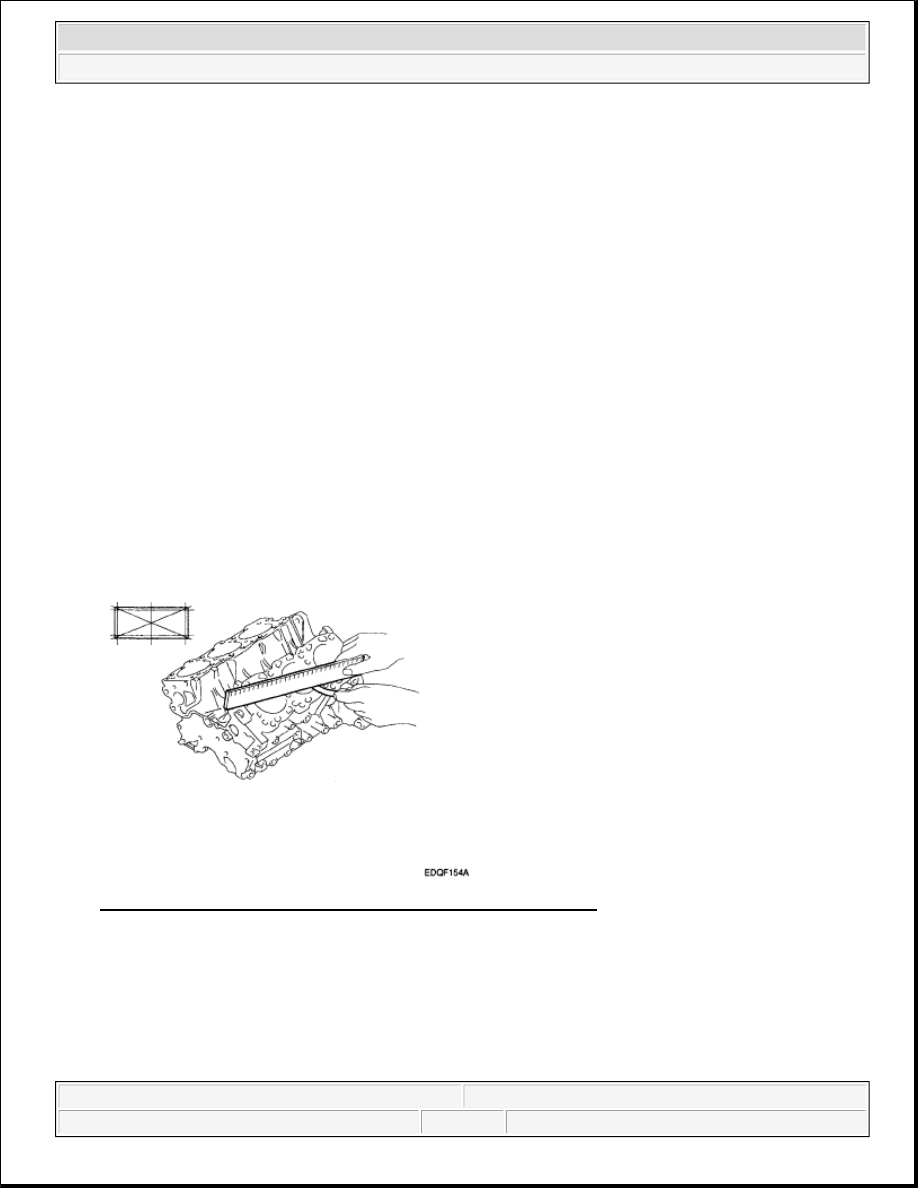

Fig. 161: Inspecting Top Surface Of Cylinder Block For Flatness
Courtesy of KIA MOTORS AMERICA, INC.

4. Inspect cylinder bore diameter

Visually check the cylinder for vertical scratches.

If deep scratches are present, replace the cylinder block.
