Kia Sedona (2008 year). Manual - part 309

Fig. 17: Rear Of Engine
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona

2008 KIA Sedona



Microsoft



Saturday, May 22, 2010 4:06:51 PM

Page 26

© 2006 Mitchell Repair Information Company, LLC.

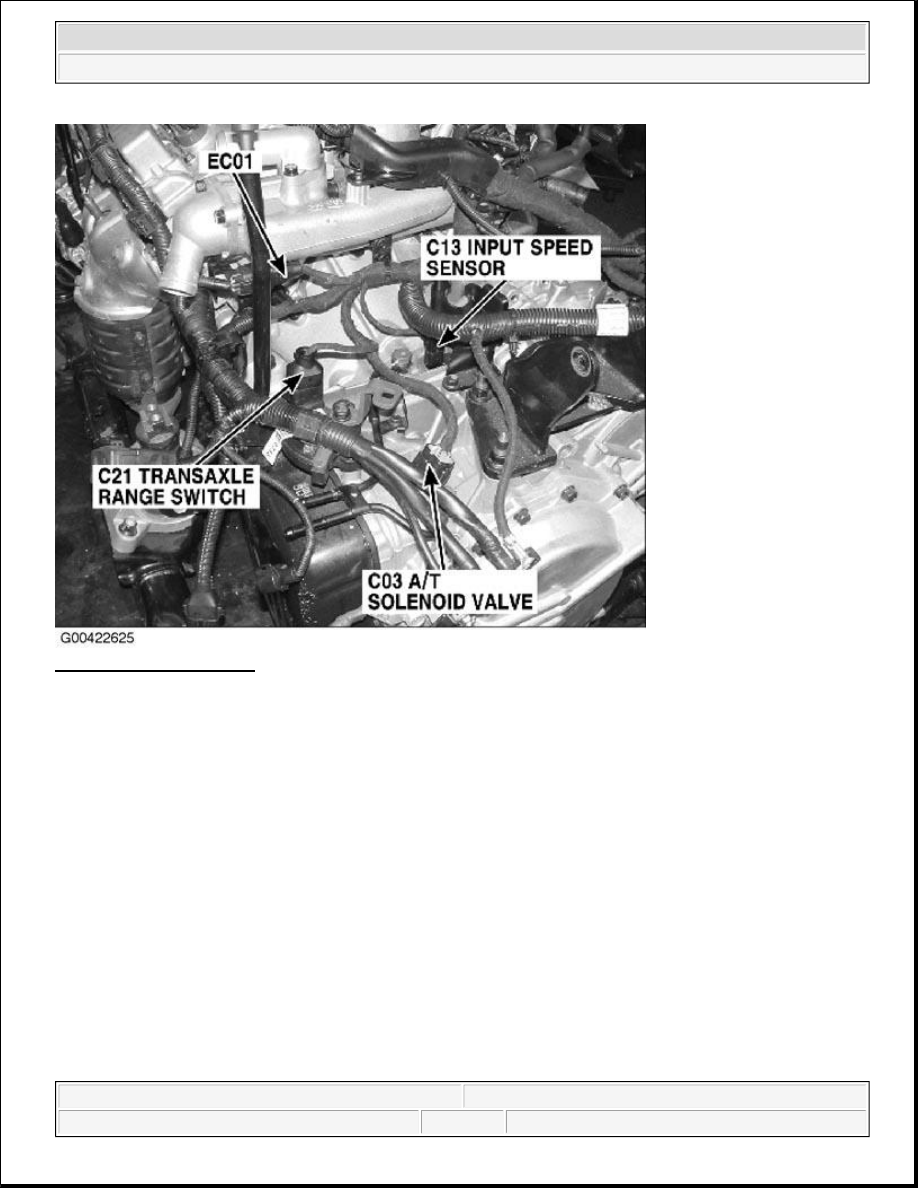

Fig. 18: Top Of Transaxle
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona

2008 KIA Sedona



Microsoft



Saturday, May 22, 2010 4:06:51 PM

Page 27

© 2006 Mitchell Repair Information Company, LLC.

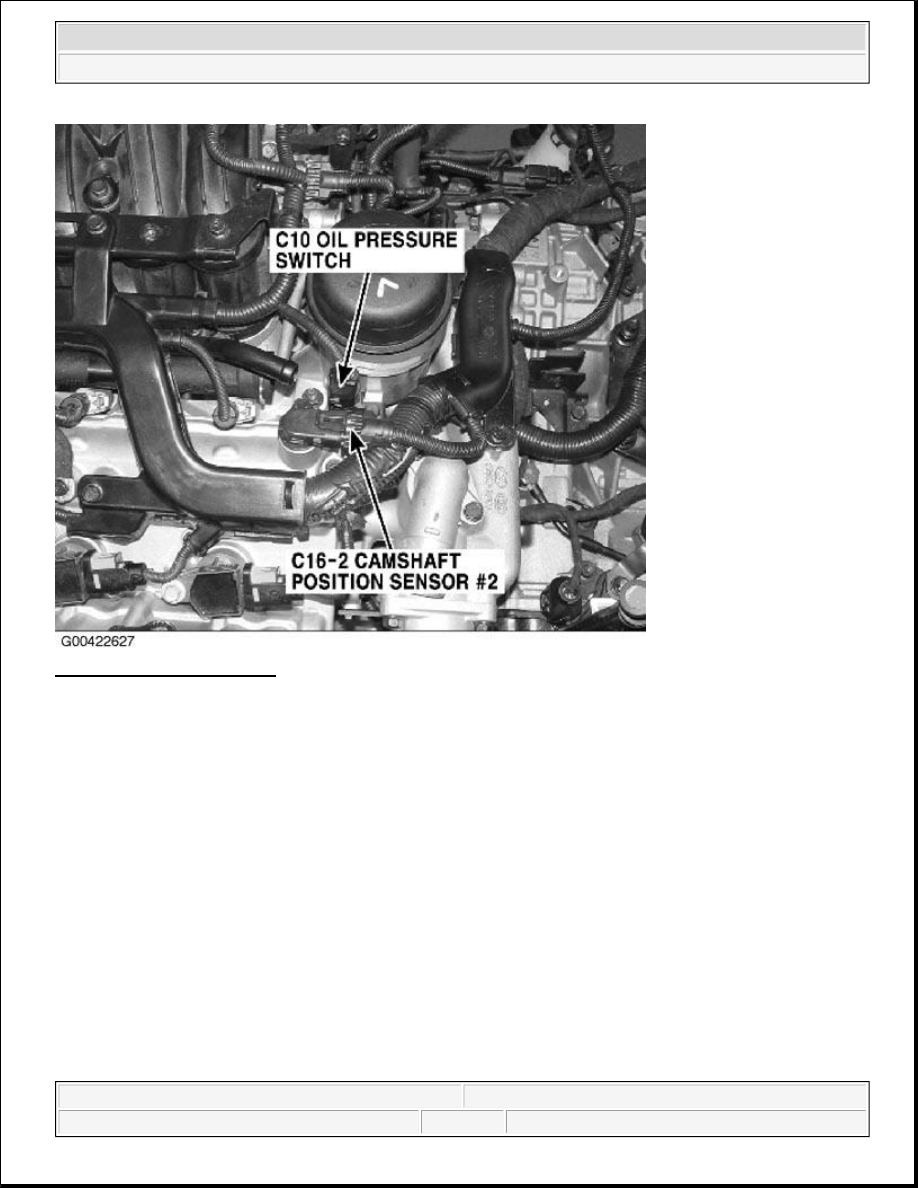

Fig. 19: Front Of Engine
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona

2008 KIA Sedona



Microsoft



Saturday, May 22, 2010 4:06:51 PM

Page 28

© 2006 Mitchell Repair Information Company, LLC.

Fig. 20: Left Rear Of Engine
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona

2008 KIA Sedona



Microsoft



Saturday, May 22, 2010 4:06:51 PM

Page 29

© 2006 Mitchell Repair Information Company, LLC.
