Fig. 23: Identifying Damper And Glove Box
Courtesy of KIA MOTORS AMERICA, INC.

2. Remove the glove box (A) from the lift (B).

Fig. 24: Identifying Glove Box And Lift
Courtesy of KIA MOTORS AMERICA, INC.

3. Disconnect the pine (A), then remove the glove box (B).

2008 Kia Sedona

2008 ACCESSORIES & BODY, CAB Interior - Sedona

Microsoft

Saturday, May 22, 2010 6:56:13 PM

Page 11

Fig. 25: Identifying Pine And Glove Box
Courtesy of KIA MOTORS AMERICA, INC.

4. Installation is the reverse of removal.

COVER REPLACEMENT

1. Remove the crash pad side cover (A), crash pad center under cover (B).

1. Crash pad side cover.

NOTE:



When prying with a flat-tipped screwdriver, wrap it with protective tape,
and apply protective tape around the related parts, to prevent damage.



Put on gloves to protect your hands.

2008 Kia Sedona

2008 ACCESSORIES & BODY, CAB Interior - Sedona

Microsoft

Saturday, May 22, 2010 6:56:13 PM

Page 12

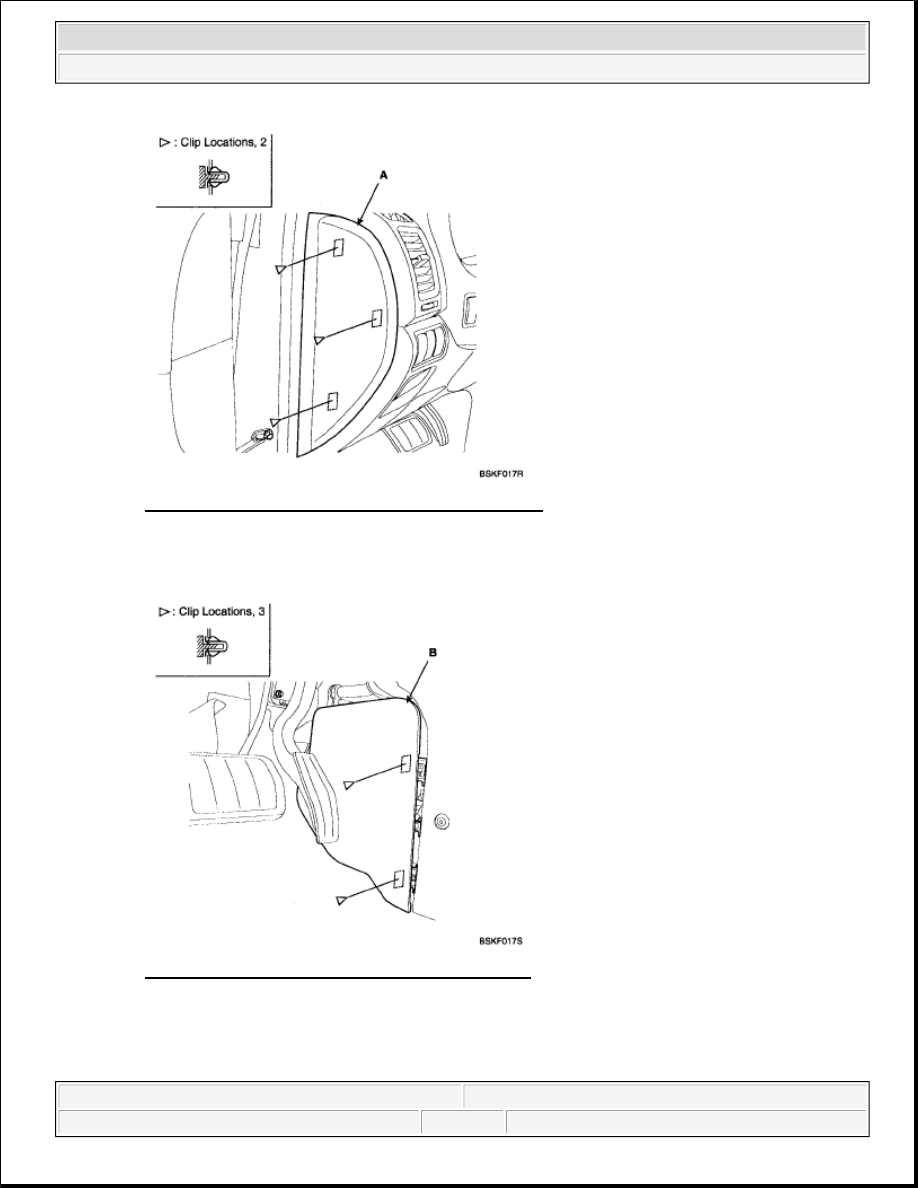

Fig. 26: Identifying Crash Pad Side Cover And Clip
Courtesy of KIA MOTORS AMERICA, INC.

2. Front crash pad center under cover, LH.

Fig. 27: Identifying Center Under Cover And Clip
Courtesy of KIA MOTORS AMERICA, INC.

3. Front crash pad center under cover, RH.

2008 Kia Sedona

2008 ACCESSORIES & BODY, CAB Interior - Sedona

Microsoft

Saturday, May 22, 2010 6:56:13 PM

Page 13

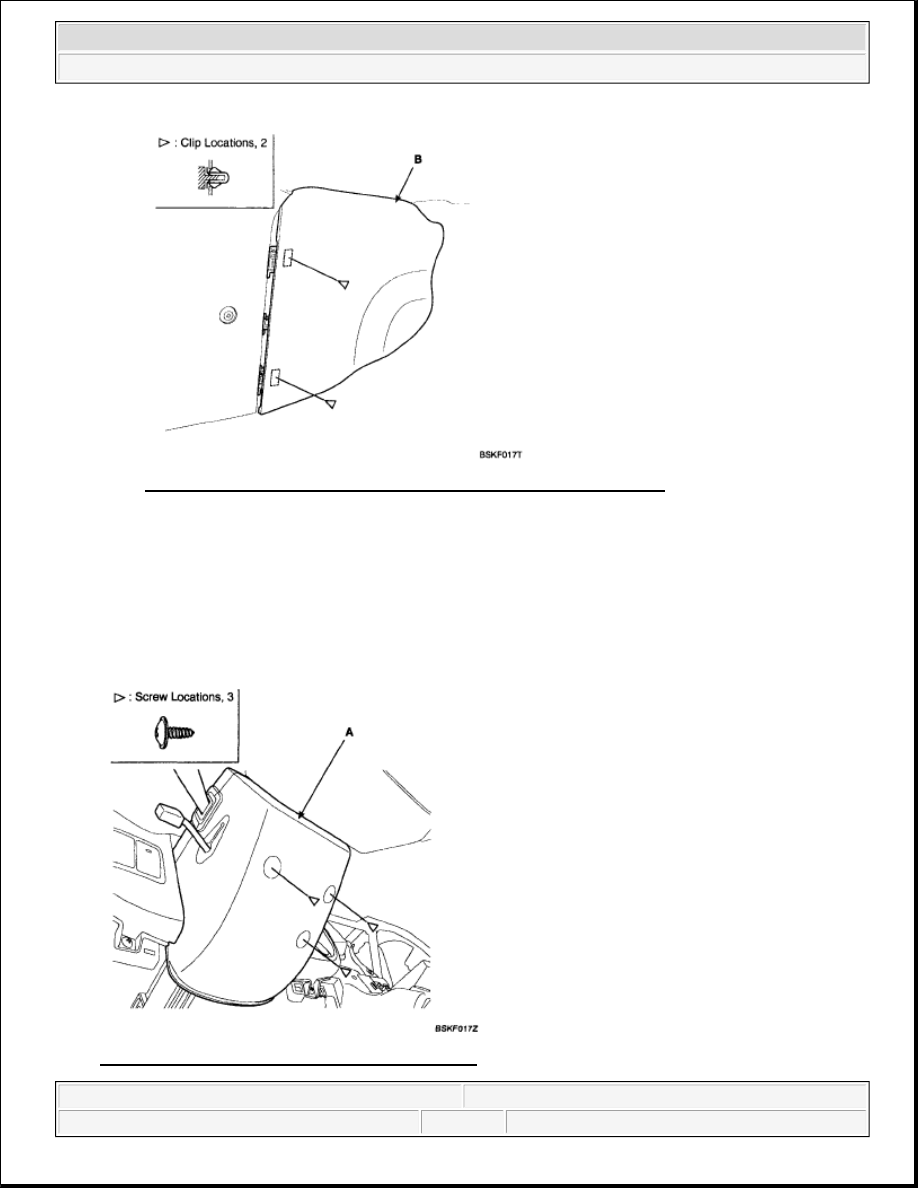

Fig. 28: Identifying Front Crash Pad Center Under Cover And Clip
Courtesy of KIA MOTORS AMERICA, INC.

2. Installation is the reverse of removal.

SHROUD REPLACEMENT

1. Loosen the screws.

2. Disconnect the connector, then remove the shroud assembly (A).

Fig. 29: Identifying Shroud Assembly And Screw
Courtesy of KIA MOTORS AMERICA, INC.
