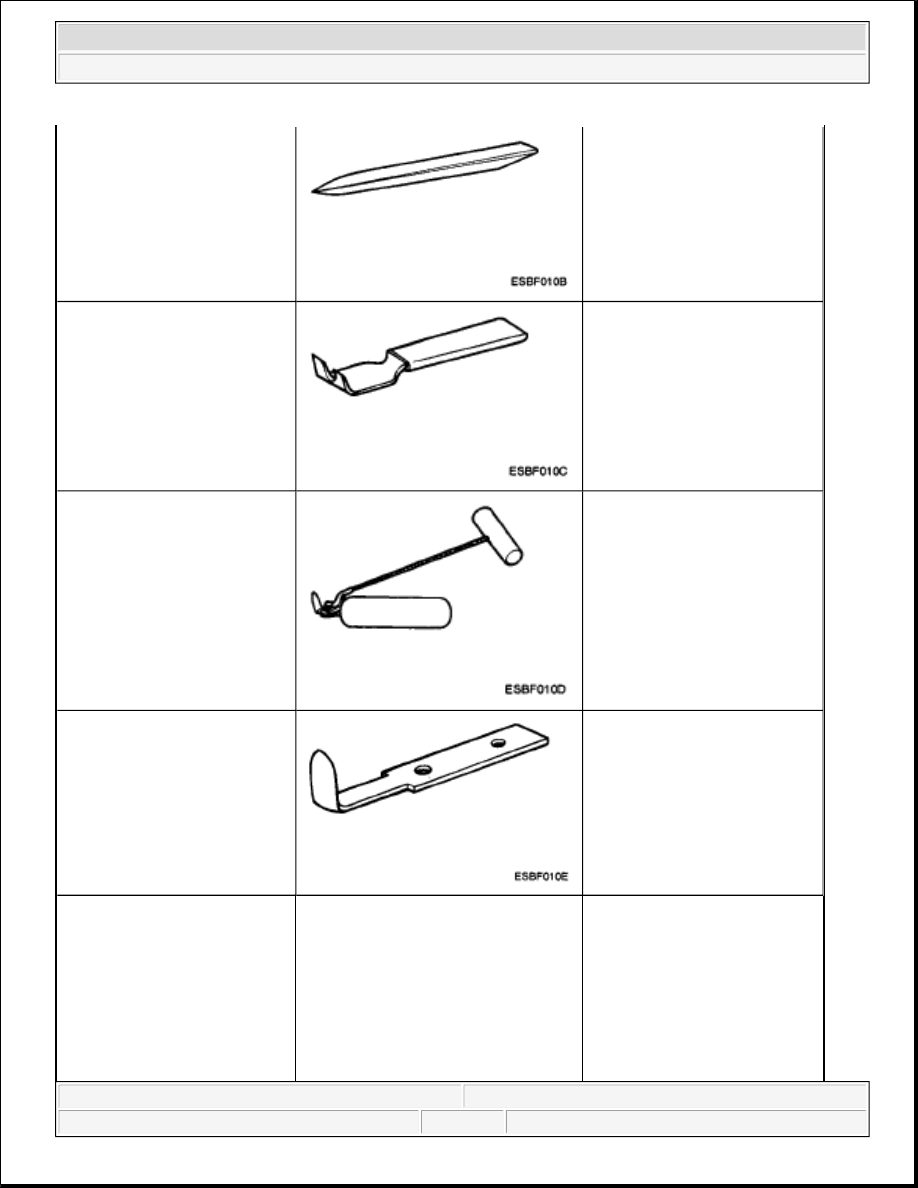

09853-31000
Headliner clip remover

Removal of the headliner clips

09861-31100
Sealant cut-out tool

Cutting the sealant of the
windshield
(Use with 09861-31200)

09861-31200
Sealant cutting blade

Cutting the sealant of the
windshield
(Use with 09861-31100)

09861-31300
Sealant gun

Application of the sealant to the
windshield



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Body (Interior & Exterior) - General - Sedona



Microsoft



Monday, May 24, 2010 4:05:08 PM

Page 3

© 2006 Mitchell Repair Information Company, LLC.

TROUBLESHOOTING

TROUBLESHOOTING CHART

09681-31400
Glass holder

Removal and installation of the
windshield

09681-31000
Windshield molding remover

Removal of the windshield
molding

09880-4F000
Hog ring clip installer

Installation of the hog ring clip

Symptom

Suspect Area

Remedy



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Body (Interior & Exterior) - General - Sedona



Microsoft



Monday, May 24, 2010 4:05:08 PM

Page 4

© 2006 Mitchell Repair Information Company, LLC.

Water leaks from sunroof

Dirt accumulated in drain tube

Clear dirt inside of drain

Clogged drain tube

Blow air into drain to remove dirt

Broken or dislocated drain tube,
defective
Or cracked clip

Check tube installation and Flange
contact

Deteriorated roof lid weatherstrip Replace
Excessive roof lid-to-body
clearance and Improperly fitted
weatherstrip

Adjust

Wind noise around sunroof

Loose or deformed deflector, gaps
In body work

Retighten adjust or replace

Sunroof lid makes a noise when
moving

Foreign particles lodged in guide
rail

Check drive cable and guide Rails
for foreign particles

Loose guide rails and lid

Retighten

Motor runs but sunroof does not
move or moves only partially

Foreign particles lodged in guide
rail

Check drive cable and guide Rails
for foreign particles

Incorrect engagement of motor
pinion With drive cable

Check for loose motor installation
And damaged pinion

Decrease in motor's clutch slipping
force

Adjust

Increased sunroof sliding
resistance Or interference of
sunroof with drive cables,
weatherstrip, etc. due to
maladjustment of sunroof

Adjust or replace

Noise in motor (clutch slipping
Noise from motor when sunroof Is
fully opened or closed is not An
unusual noise)

Incorrect engagement of motor
pinion With drive cable

Check pinion installation and
Retighten motor

Worn out or damaged motor
pinion bearing

Replace motor assembly

Worn out or deformed drive cable Replace

Door glass fails to operate Up and
down

Incorrect window glass installation Adjust position
Damaged or faulty regulator arm
or regulator

Correct or replace

Door does not open or close
completely

Incorrect door installation

Adjust position

Defective door check assembly

Correct or replace

Door hinge requires grease

Apply grease

Hood does not open or close
completely

Striker and latch not properly
aligned

Adjust

Incorrectly installed hood

Adjust

Incorrect hood bumper height

Adjust

Water leak through windshield
end rear window

Defective seal

Fill with sealant

Defective flange

Correct



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Body (Interior & Exterior) - General - Sedona



Microsoft



Monday, May 24, 2010 4:05:08 PM

Page 5

© 2006 Mitchell Repair Information Company, LLC.

2008 BRAKES

Brake System - General - Sedona

SPECIFICATIONS

BRAKE SYSTEM SPECIFICATIONS

Item

Specification

Master cylinder



Type

Tandem type



I.D. mm (in)

26.99/(1.063)



Piston stroke mm (in)

30 (1.18)



Fluid level warning sensor

Provided

Brake booster



Type

8 + 9 in Tandem



Boosting ratio

9.0: 1

Front brake (Disc)



Type

Floating type with ventilated disc



Disc O.D.

298 mm (11.73 in)



Disc thickness

28 mm (1.10 in)



Pad thickness

10.5 mm (0.41 in)



Cylinder type

Double piston



Cylinder I.D.

Ø48 mm (Ø1.89 in)

Rear Brake (Disc)



Type

Floating type with solid disc



Disc O.D.

302 mm (11.89 in)



Disc thickness

12 mm (0.47 in)



Pad thickness

10 mm (0.39 in)



Cylinder type

Single piston



Cylinder I.D

Ø42.9 mm (Ø1.69 in)

Parking Brake



Type

DIH (Drum in hat)



Actuation

Foot brake



Drum

Ø190 mm (Ø7.48 in)

O.D=Outer Diameter
I.D=Inner Diameter
