After a repair, it is essential to verify that the fault has been corrected.

1. Connect scan tool and select "Diagnostic Trouble Codes (DTCs)" mode and then clear DTC.

2. Operate the vehicle and monitor the DTC on the scan tool.

3. Are any DTC s present?

YES

Go to the applicable troubleshooting procedure.

NO

System is performing to specification at this time.

DTC B2406 AIR MIX MOTOR (DRIVER)

COMPONENT LOCATION

Fig. 150: Identifying Temperature Control Actuator Component Location
Courtesy of KIA MOTORS AMERICA, INC.

GENERAL DESCRIPTION

Temperature control actuator located at heater unit, regulates the temperature by the procedure as follows.
Signal from control unit adjusts position of temp, door by operating temp, motor and then temperature will be
regulated by the hot/cold air ratio decided by position of temp. door.

DTC DESCRIPTION

The A/C controller sets DTC B2406 if the air mix actuator doesn't move to intended position within 40sec (In
this case, A/C controller try to move temp, door for 2sec. 3 times, every 20 sec. before setting DTC).

DTC DETECTING CONDITION



2008 Kia Sedona EX

2008 HVAC Blower & A/C Controls (Automatic) - Sedona



Microsoft



Monday, May 24, 2010 3:56:09 PM

Page 134

© 2006 Mitchell Repair Information Company, LLC.

DTC DETECTING CONDITION CHART

SPECIFICATION

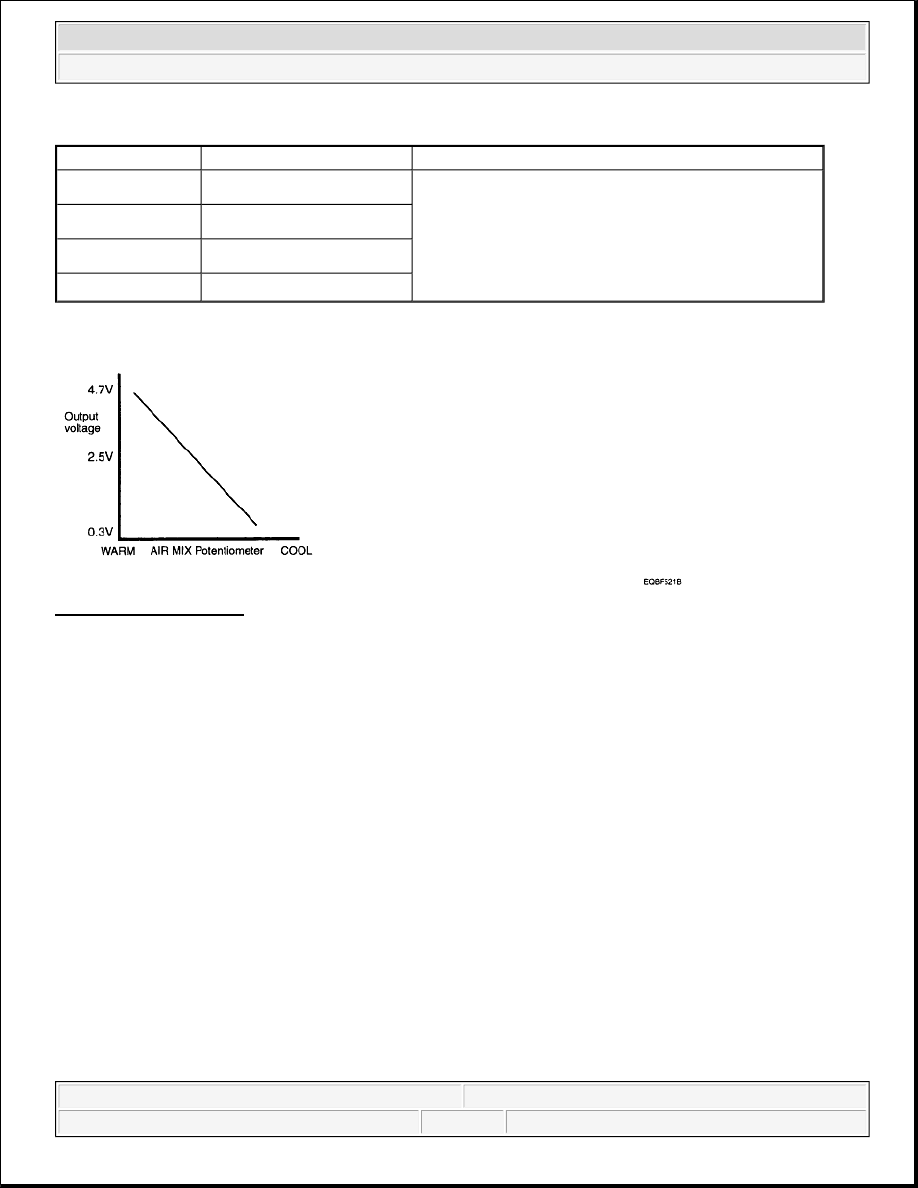

Fig. 151: Air Mix Graph
Courtesy of KIA MOTORS AMERICA, INC.

MONITOR SCAN TOOL DATA

1. Connect scan tool to Data Link Connector (DLC).

2. Engine "ON"

3. Monitor the "Driver Air Mix Potentiometer" Parameter on the scan tool while operating temp, switch.

Item

Detecting Condition

Possible cause

DTC Strategy



Voltage check



Poor connection of connected part



Open circuit in harness



Short circuit in harness



Faulty driver Air Mix potentiometer



Fault A/C Control Unit

Threshold value



< 0.1V

Detecting time



0.3 sec

FAIL SAFE

-



2008 Kia Sedona EX

2008 HVAC Blower & A/C Controls (Automatic) - Sedona



Microsoft



Monday, May 24, 2010 3:56:09 PM

Page 135

© 2006 Mitchell Repair Information Company, LLC.

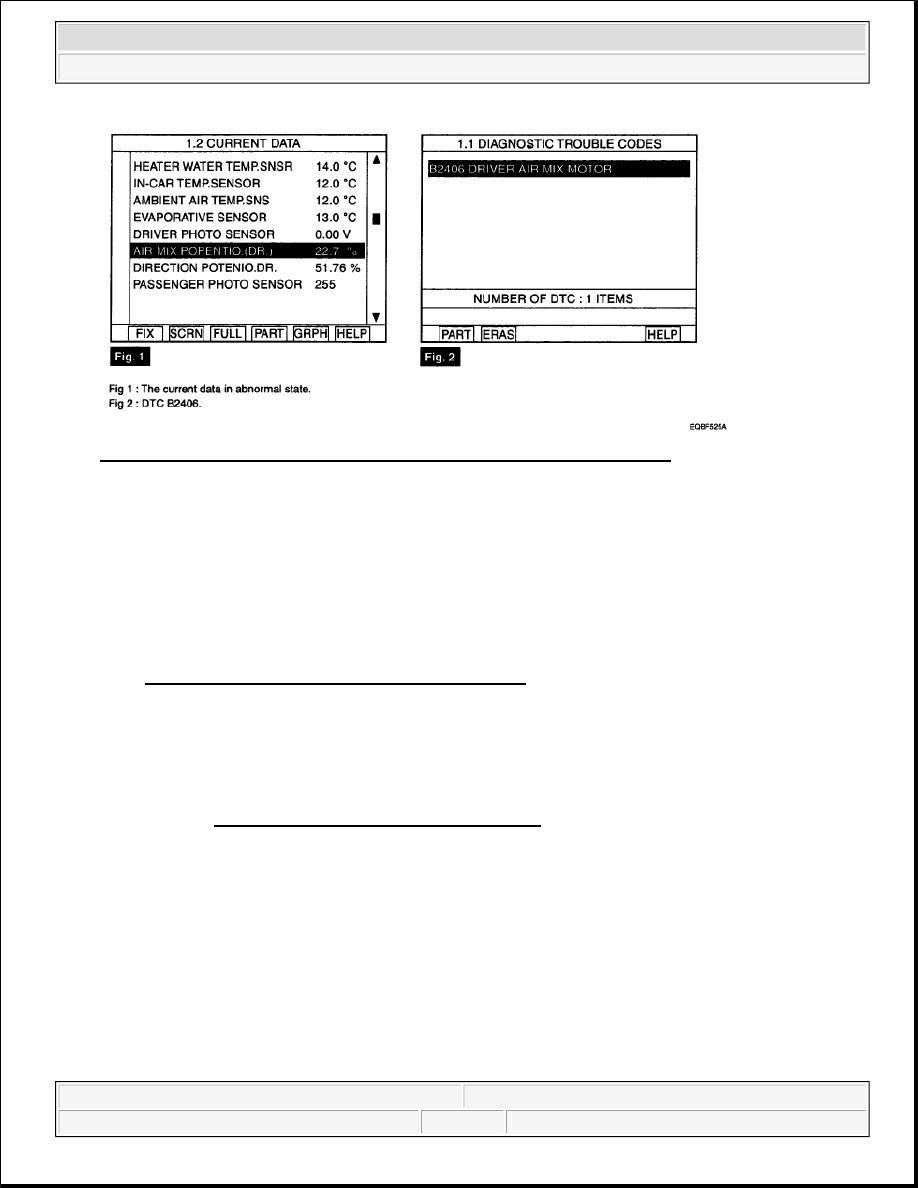

Fig. 152: Diagnosis Function Screen Display - Air Mix Potentiometer (DR)
Courtesy of KIA MOTORS AMERICA, INC.

4. Are the DTC B2406 present and is parameter of "Driver AIR MIX Potentiometer" fixed?

There is any fault in Driver AIR MIX Motor. If the parameter of "Driver AIR MIX DOOR" is 30% or
less when the actuator operates to the hot position, or If the parameter is 60% and more when the actuator
operates to the cold position.

YES

Go to TERMINAL AND CONNECTOR INSPECTION procedure.

NO

Fault is intermittent caused by poor contact in the sensor's and/or A/C controller's connector or was
repaired and A/C controller memory was not cleared. Thoroughly check connectors for looseness, poor
connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary
and then go to "VERIFICATION OF VEHICLE REPAIR" procedure.

TERMINAL AND CONNECTOR INSPECTION

1. Many malfunctions in the electrical system are caused by poor harness and terminals.

Faults can also be caused by interference from other electrical systems, and mechanical or chemical
damage.

2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination,

deterioration, or damage.

3. Has a problem been found?



2008 Kia Sedona EX

2008 HVAC Blower & A/C Controls (Automatic) - Sedona



Microsoft



Monday, May 24, 2010 3:56:09 PM

Page 136

© 2006 Mitchell Repair Information Company, LLC.

YES

Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR" procedure.

NO

Go to "SIGNAL CIRCUIT INSPECTION" procedure.

SIGNAL CIRCUIT INSPECTION

1. Check for open in harness.

1. Ignition "OFF"

2. Disconnect Driver Air Mix potentiometer.

3. Measure resistance between terminal "3, 4" of Driver Air Mix Motor and terminal "1, 2" of A/C

control unit.

Specification: Approx. 0 ohms

Fig. 153: Checking Resistance Between Terminal "3, 4" Of Driver Air Mix Motor And
Terminal "1, 2" Of A/C Control Unit
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured resistance within specifications?

YES

Go to step 2.

NO

Check for open in signal harness. Repair as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

2. Check for short to ground in harness.
