DTC DESCRIPTION

The A/C controller sets DTC B1207 if there is a short to power in the Direction potentiometer.

DTC DETECTING CONDITION

DTC DETECTING CONDITION CHART

SPECIFICATION

Refer to DTC B1206.

MONITOR SCAN TOOL DATA

1. Connect scan tool to Data Link Connector (DLC).

2. Engine "ON"

3. Monitor the "DR. DIRECTION POTENTIO." parameter on the scan tool while operating mode switch.

Fig. 44: Diagnosis Function Screen Display - Direction Potentiometer PA
Courtesy of KIA MOTORS AMERICA, INC.

4. Are the DTC B1207 present and is parameter of "DR. DIRECTION POTENTIO." fixed?

Parameter of "DR. DIRECTION POTENTIO." will be fixed at 100% (or any value above 90%), or 0%

Item

Detecting Condition

Possible cause

DTC Strategy



Voltage check



Short circuit in harness



Faulty driver direction
potentiometer



Open circuit in harness

Threshold value



> 4.9V

Detecting time



0.3 sec

FAIL SAFE



Fix vent position



2008 Kia Sedona EX

2008 HVAC Blower & A/C Controls (Automatic) - Sedona



Microsoft



Monday, May 24, 2010 3:56:07 PM

Page 38

© 2006 Mitchell Repair Information Company, LLC.

(or any value below 10%), if there is any fault in Driver Direction potentiometer.

YES

Go to TERMINAL AND CONNECTOR INSPECTION procedure.

NO

Fault is intermittent caused by poor contact in the sensor's and/or A/C controller's connector or was
repaired and A/C controller memory was not cleared. Thoroughly check connectors for looseness, poor
connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary
and then go to "VERIFICATION OF VEHICLE REPAIR" procedure.

TERMINAL AND CONNECTOR INSPECTION

Refer to DTC B1206.

SIGNAL CIRCUIT INSPECTION

1. Check for short in harness.

1. Ignition "OFF"

2. Disconnect Driver mode Actuator.

3. Measure resistance between terminal "5" and "6" of Driver Direction potentiometer.

Specification: Approx. infinity ohms

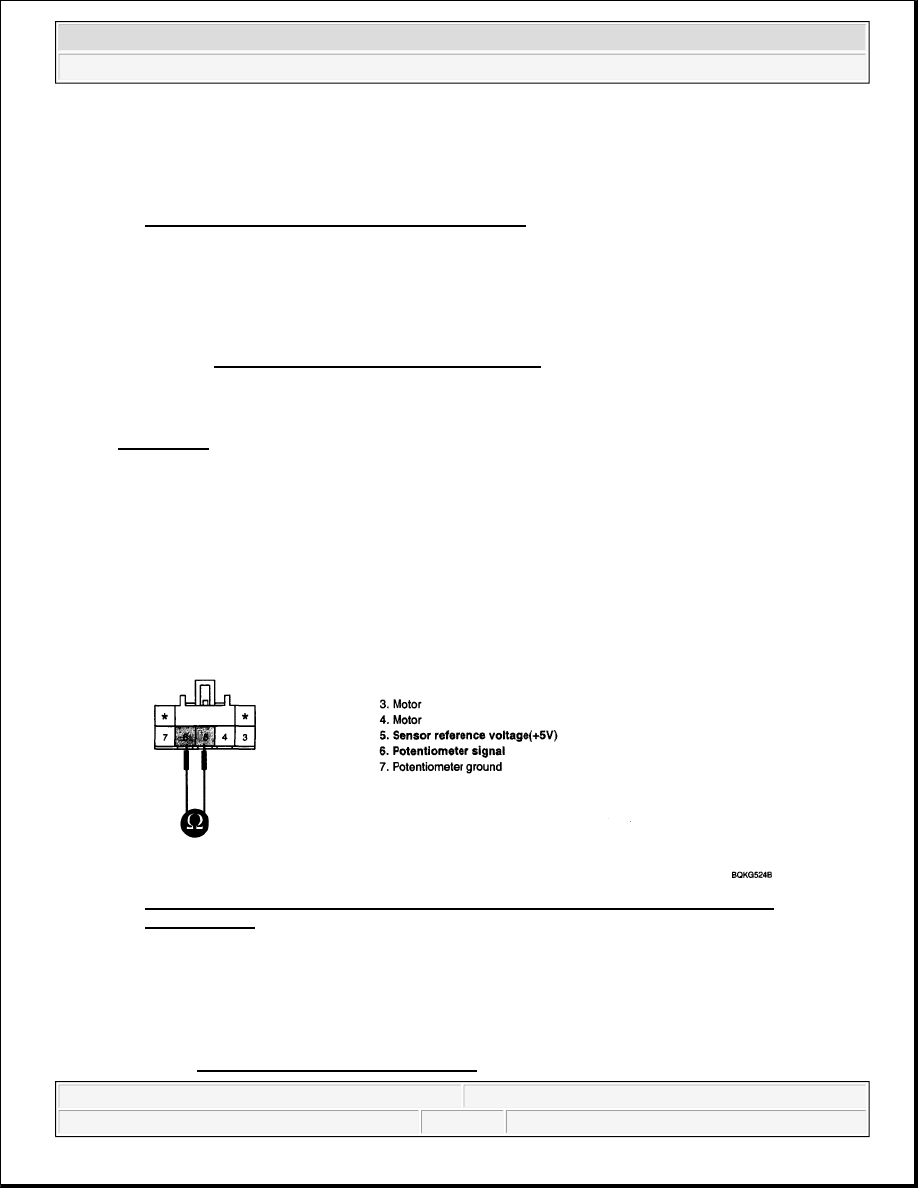

Fig. 45: Checking Resistance Between Terminal "5" And "6" Of Driver Direction
Potentiometer
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured resistance within specifications?

YES

Go to "GROUND CIRCUIT INSPECTION" procedure.



2008 Kia Sedona EX

2008 HVAC Blower & A/C Controls (Automatic) - Sedona



Microsoft



Monday, May 24, 2010 3:56:07 PM

Page 39

© 2006 Mitchell Repair Information Company, LLC.

NO

Check for open in signal harness. Repair as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

GROUND CIRCUIT INSPECTION

1. Check for open in ground harness.

1. Ignition "OFF"

2. Disconnect Driver mode Actuator.

3. Measure resistance between terminal "7" of evaporator sensor and chassis ground.

Specification: Approx. 0 ohms

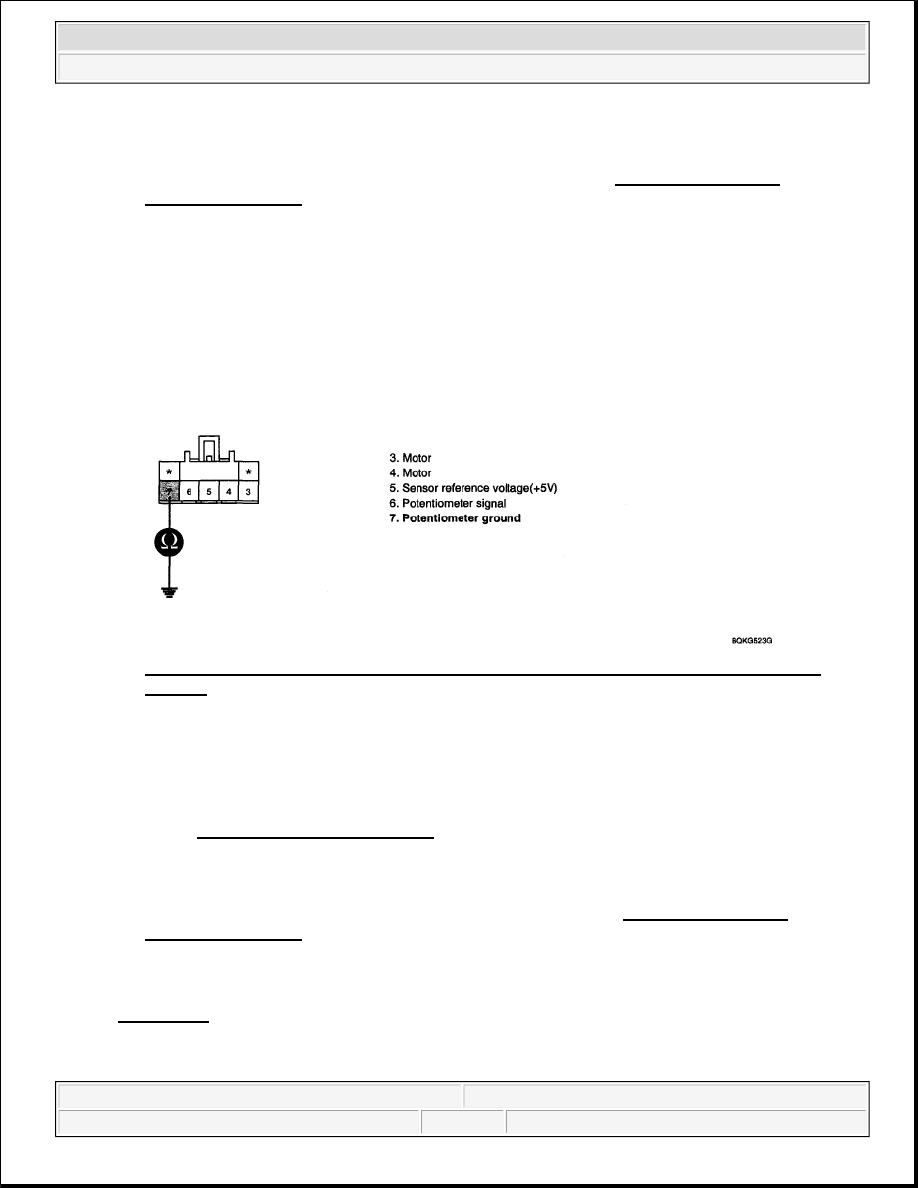

Fig. 46: Checking Resistance Between Terminal "7" Of Evaporator Sensor And Chassis
Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured resistance within specifications?

YES

Go to "COMPONENT INSPECTION" procedure.

NO

Check for open in ground harness. Repair as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

COMPONENT INSPECTION

Refer to DTC B1206.

VERIFICATION OF VEHICLE REPAIR



2008 Kia Sedona EX

2008 HVAC Blower & A/C Controls (Automatic) - Sedona



Microsoft



Monday, May 24, 2010 3:56:07 PM

Page 40

© 2006 Mitchell Repair Information Company, LLC.

Refer to DTC B1206.

DTC B1208 INTAKE POTENTIOMETER OPEN

COMPONENT LOCATION

Fig. 47: Identifying Intake Actuator Component Location
Courtesy of KIA MOTORS AMERICA, INC.

GENERAL DESCRIPTION

Intake door located at heater unit controls the inlet of car. When driver operates the intake switch, A/C
controller recirculation receives mode signal from intake switch and operates intake door actuator to turn intake
door to intended position, (with fresh mode signal, intake door is closed and with fresh mode signal, intake door
is opened).

DTC DESCRIPTION

The A/C controller sets DTC B1208 if there is an open circuit or poor connection in the intake potentiometer.

DTC DETECTING CONDITION

DTC DETECTING CONDITION

DTC DETECTING CONDITION CHART

Item

Detecting Condition

Possible cause

DTC Strategy



Voltage check



Poor connection of
connected part



Open circuit in harness



Short circuit in harness



Faulty driver intake
potentiometer

Threshold value



< 0.1V

Detecting time



0.3 sec

FAIL SAFE



If temperature setting 17-
24.5°C(63-76°F) fix at max.
cooling position.
