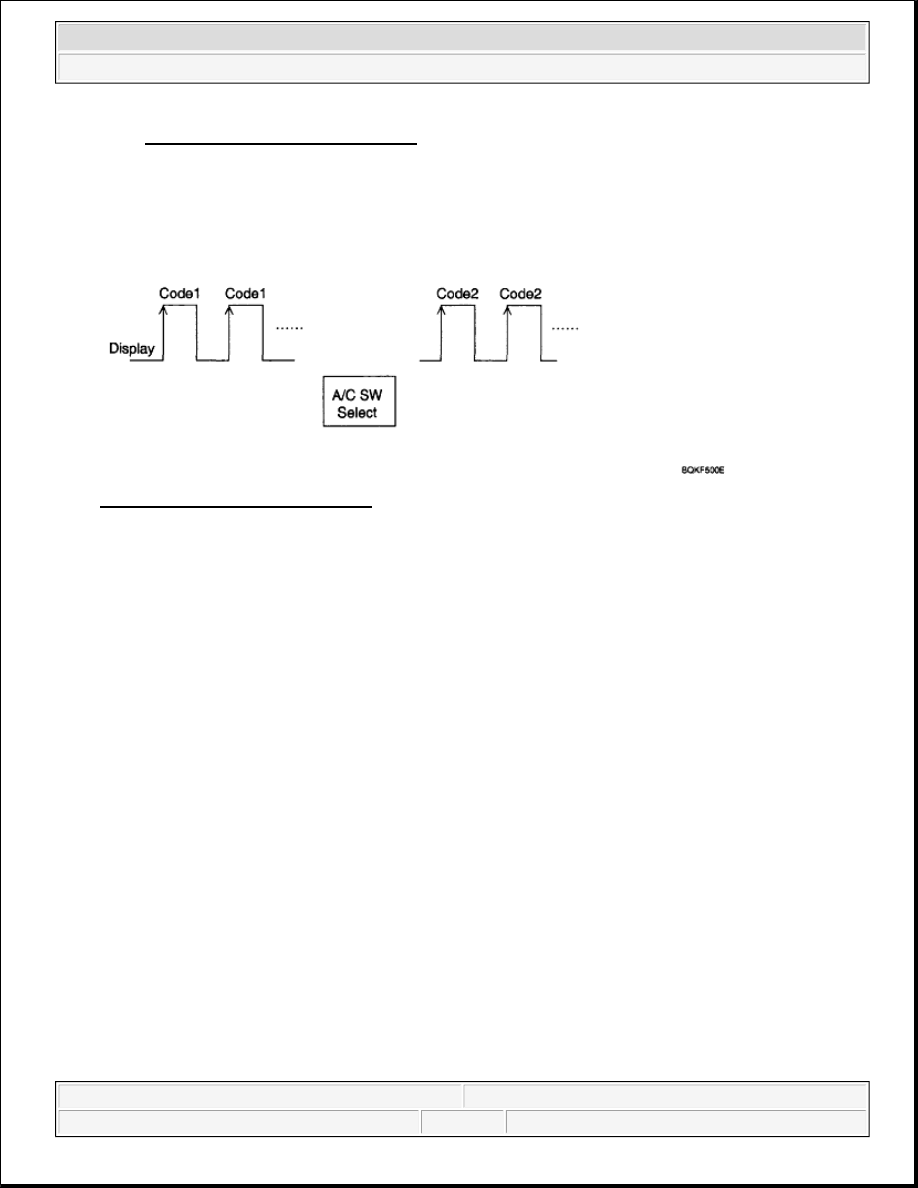

Fig. 4: Identifying Blinking Pattern
Courtesy of KIA MOTORS AMERICA, INC.

3. STEP operation

A. Normal or one fault code is same as a continuance operation.

B. DTC code of more two.

Fig. 5: Identifying Blinking Pattern
Courtesy of KIA MOTORS AMERICA, INC.

4. Diagnostic procedure refer to DTC code.

5. Fail safe

1. In-car temperature sensor: Control with the value of 25°C (77°F)

2. Ambient temperature sensor: Control with the value of 20°C (67°F)

3. Evaporator temperature sensor: Control with the value of -2°C (28.4°F)

4. Humidity sensor: Control with the value of 10%

5. Temperature sensor: Control with the value of -2°C (28.4°F)

6. Temperature control actuator (Air mix potentiometer):

If temperature setting 17-24.5°C, fix at maximum cooling position.

If temperature setting 25-32°C, fix at maximum heating position.

7. Mode control actuator (Direction potentiometer):

Fix vent position, while selecting vent mode.

Fix defrost position, while selecting all except vent mode.

8. Intake control actuator:

Fix fresh position, while selecting fresh mode.

Fix recirculation position, while selecting recirculation mode.



2008 Kia Sedona EX

2008 HVAC Blower & A/C Controls (Automatic) - Sedona



Microsoft



Monday, May 24, 2010 3:56:07 PM

Page 6

© 2006 Mitchell Repair Information Company, LLC.

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

2. Remove the center air vent. Refer to INTERIOR .

3. Remove the heater & A/C controller (A) after loosening 4 screws.

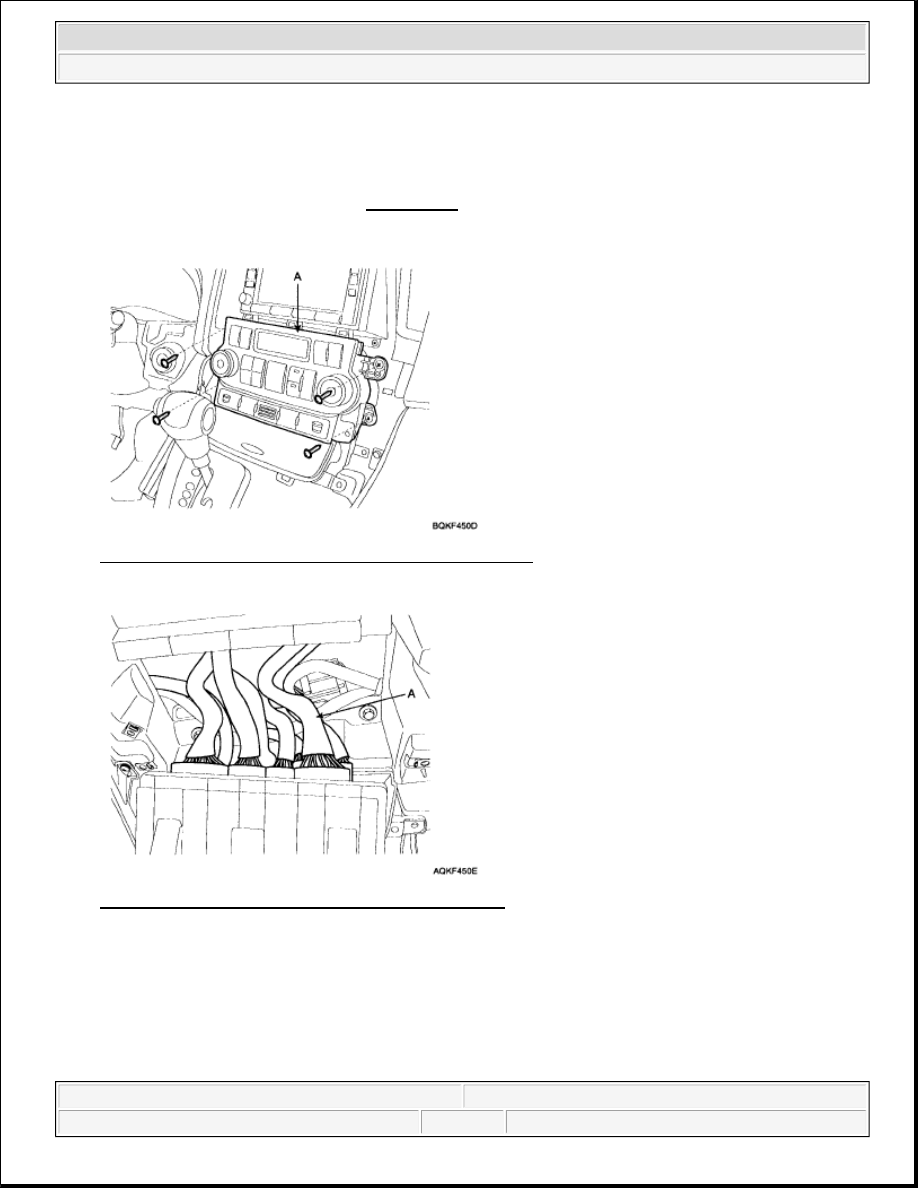

Fig. 6: Identifying Heater & A/C Controller And Screws
Courtesy of KIA MOTORS AMERICA, INC.

Fig. 7: Identifying Heater & A/C Controller Harness
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the heater & A/C controller (A).



2008 Kia Sedona EX

2008 HVAC Blower & A/C Controls (Automatic) - Sedona



Microsoft



Monday, May 24, 2010 3:56:07 PM

Page 7

© 2006 Mitchell Repair Information Company, LLC.

Fig. 8: Identifying Heater & A/C Controller
Courtesy of KIA MOTORS AMERICA, INC.

5. Installation is the reverse order of removal.

DTC B1200 HUMIDITY SENSOR OPEN (HIGH)

COMPONENT LOCATION

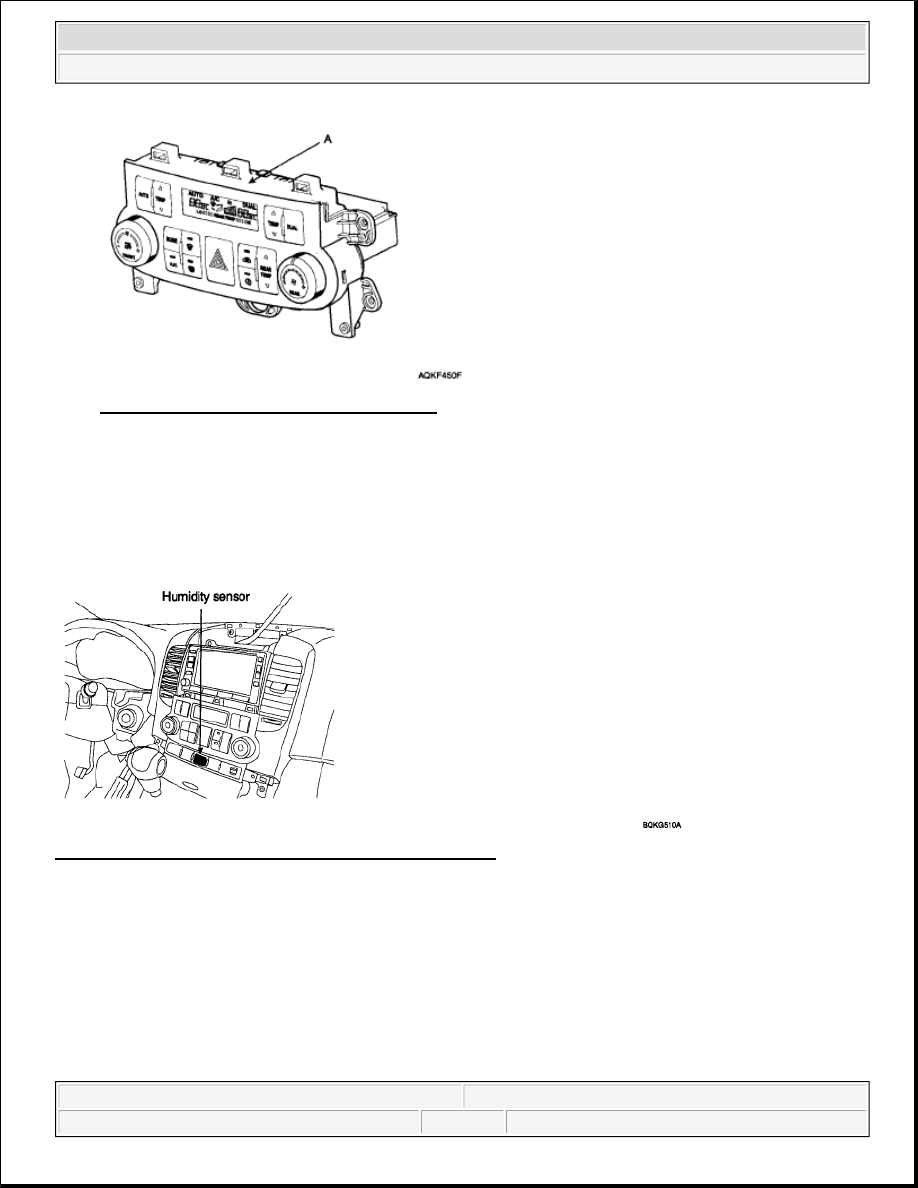

Fig. 9: Identifying Humidity Sensor Component Location
Courtesy of KIA MOTORS AMERICA, INC.

GENERAL DESCRIPTION

Humidity sensor located at crush pad, detects in-car humidity for in-car humidity control. If ambient air
temperature or in-car humidity is outside certain range, it will turn on A/C to control in-car humidity for
preventing in-car fogging. Air conditioner operation depends on ambient temperature and humidity.

DTC DESCRIPTION

The A/C controller sets DTC B1200 if there is an open circuit in humidity sensor signal harness or the measured



2008 Kia Sedona EX

2008 HVAC Blower & A/C Controls (Automatic) - Sedona



Microsoft



Monday, May 24, 2010 3:56:07 PM

Page 8

© 2006 Mitchell Repair Information Company, LLC.

frequency value of sensor is more than threshold value (about 7,100Hz)

DTC DETECTING CONDITION

DTC DETECTING CONDITION CHART

SPECIFICATION

FREQUENCY SPECIFICATION

MONITOR SCAN TOOL DATA

1. Connect scan tool to data link connector (DLC).

2. Engine "ON"

3. Monitor the "Humidity Sensor" Parameter on the scan tool while drying the humidity sensor with a hair

drier or heat gun adjusted to a low heat setting.

Fig. 10: Diagnosis Function Screen Display - Humidity Sensor
Courtesy of KIA MOTORS AMERICA, INC.

Item

Detecting Condition

Possible cause

DTC Strategy



Frequency check



Open Circuit in signal
harness



Faulty Humidity Sensor



Faulty A/C control unit

Threshold value



> 7,100 Hz

Detecting time



0.01 sec

FAIL SAFE



Control with the value of
10%

Relative humidity (%)

Frequency (Hz)

Relative humidity (%)

Frequency (Hz)

50

6,728

95

6,110
