Fig. 280: Measuring Resistance Between Both Terminals Of Stop Lamp Light Bulb
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured resistance within the specification?

YES

Go to step 2.

NO

Replacing the light bulb with `light bulb for test', if normal operating condition is confirmed,
Replace `light bulb for test' with "new light bulb' and go to "VERIFICATION OF VEHICLE
REPAIR".

2. Check RAM

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF"

3. Check if DTC is erased after replacing RAM with "RAM for test".

4. Is the DTC erased?

YES

Replace "RAM for test" with "new RAM" and go to "VERIFICATION OF VEHICLE
REPAIR".

NO

Check connecting condition of connector and go to "VERIFICATION OF VEHICLE REPAIR".

VERIFICATION OF VEHICLE REPAIR

Refer to DTC B2115.

DTC B2581 RIGHT TAIL LICENSE SIDE MARKER LAMP CIRCUIT OPEN ERROR

COMPONENT LOCATION



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:22 PM

Page 325

© 2006 Mitchell Repair Information Company, LLC.

Refer to DTC B2579.

GENERAL DESCRIPTION

Refer to DTC B2579.

DTC DESCRIPTION

B2581 is set when open in right clearance lamp/tail license side marker lamp circuit is detected.

DTC DETECTING CONDITION

Refer to DTC B2537.

MONITOR DTC STATUS

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF" & RAM: "ON"

3. Select "Diagnostic Trouble Codes (DTCs)" mode and monitor "DTC Status" parameter

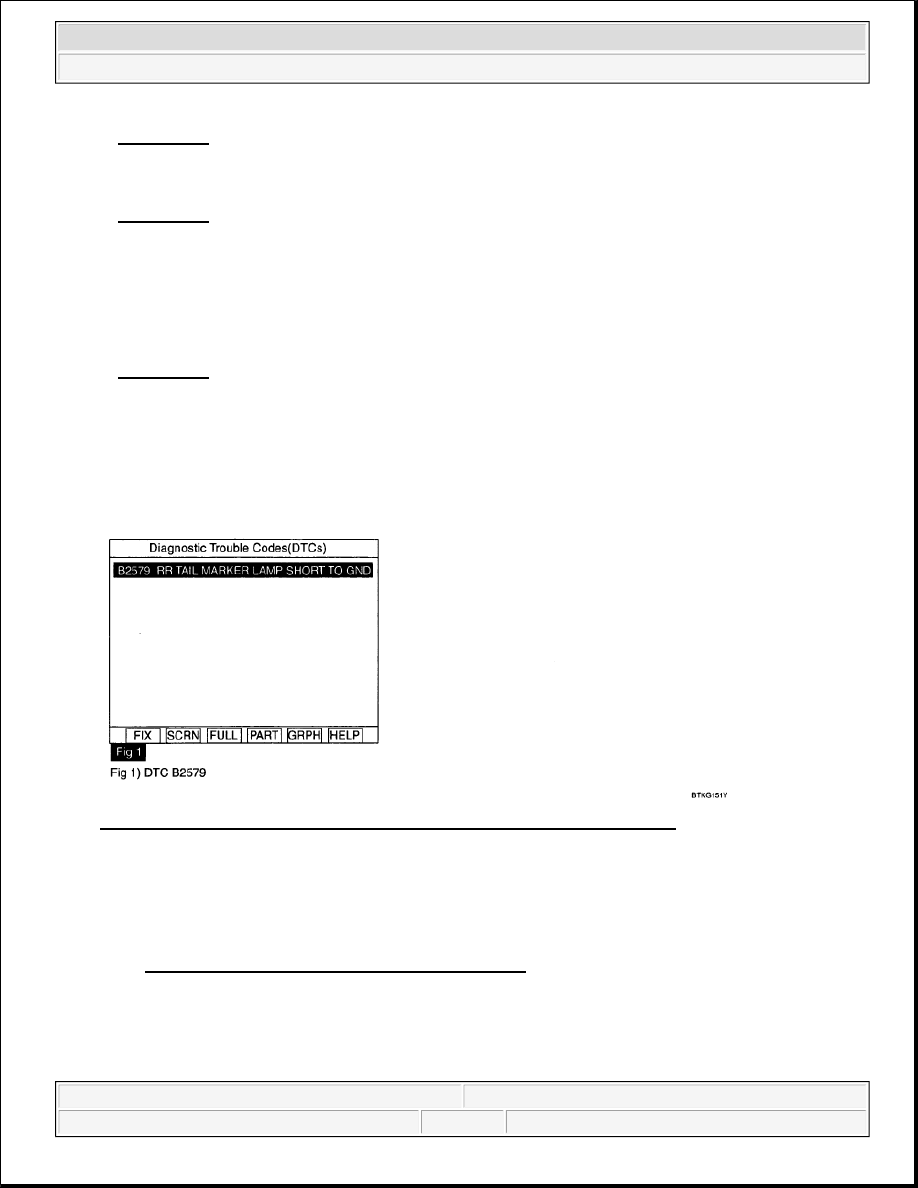

Fig. 281: Identifying Scan Tool Display - Diagnostic Trouble Codes (DTCs)
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the DTC B2581 present?

YES

Go to TERMINAL AND CONNECTOR INSPECTION.

NO

Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and
ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending,



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:22 PM

Page 326

© 2006 Mitchell Repair Information Company, LLC.

corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to
"VERIFICATION OF VEHICLE REPAIR" procedure.

TERMINAL AND CONNECTOR INSPECTION

Refer to DTC B2119.

POWER SUPPLY CIRCUIT INSPECTION

1. Check open in power circuit

1. Ignition "ON" & engine "OFF"

2. Measure the resistance between tail license side marker lamp power circuit connector terminal at

RAM side (BCM-RF2-35) and fog lamp (F19-3).

3. Measure the resistance between tail license side marker lamp power circuit connector terminal at

RAM side (BCM-RR2-16) and clearance lamp (R12-2).

Specification: 0 ohms

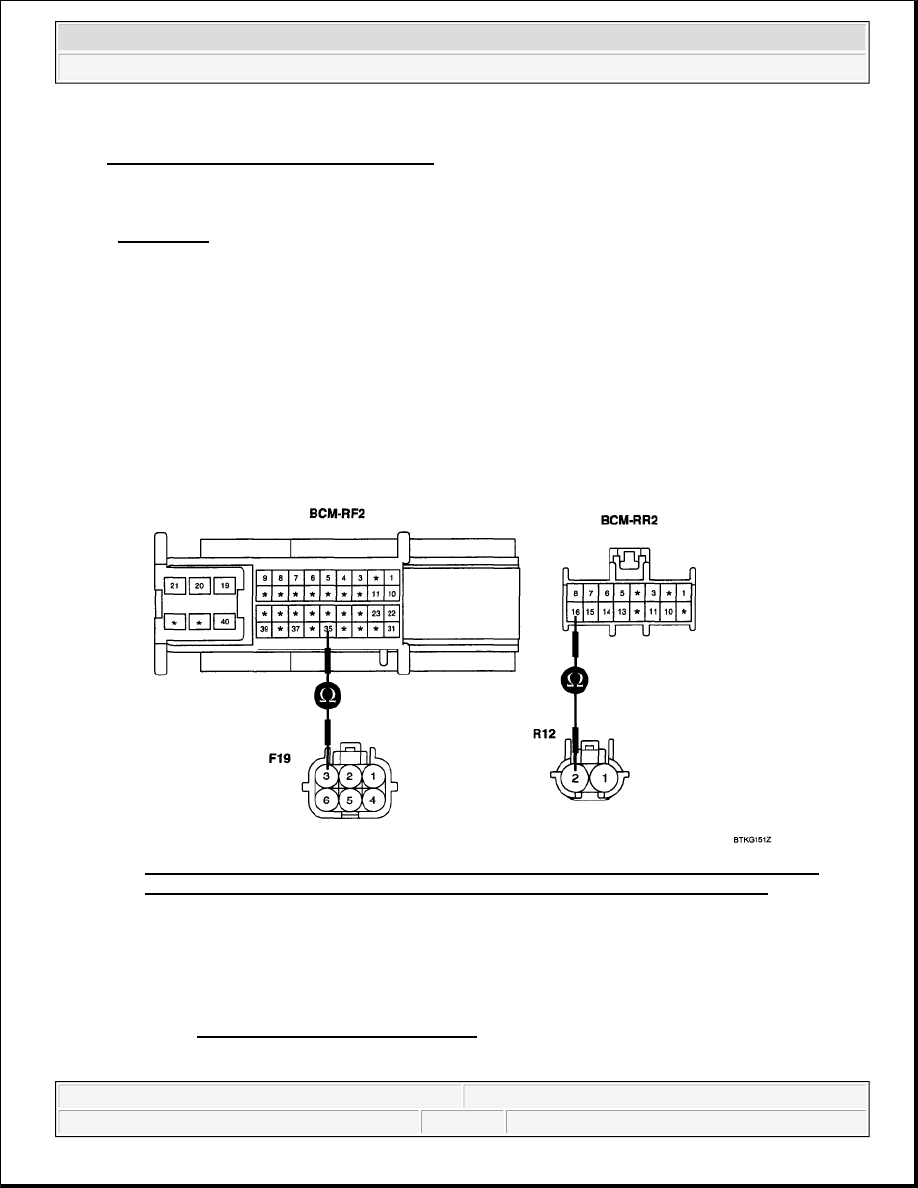

Fig. 282: Measuring Resistance Between Tail License Side Marker Lamp Power Circuit
Connector Terminal At RAM Side (BCM-RR2-16) And Clearance Lamp (R12-2)
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured resistance within the specification?

YES

Go to "GROUND CIRCUIT INSPECTION".

NO



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:22 PM

Page 327

© 2006 Mitchell Repair Information Company, LLC.

Repair open in power circuit and Go to "VERIFICATION OF VEHICLE REPAIR".

GROUND CIRCUIT INSPECTION

1. Check open in ground circuit

1. Ignition "ON" & engine "OFF"

2. Measure the resistance between clearance lamp ground circuit (F19-6) and chassis ground.

3. Measure the resistance between tail license side marker lamp ground circuit (R12-1) and chassis

ground.

Specification: 0 ohms

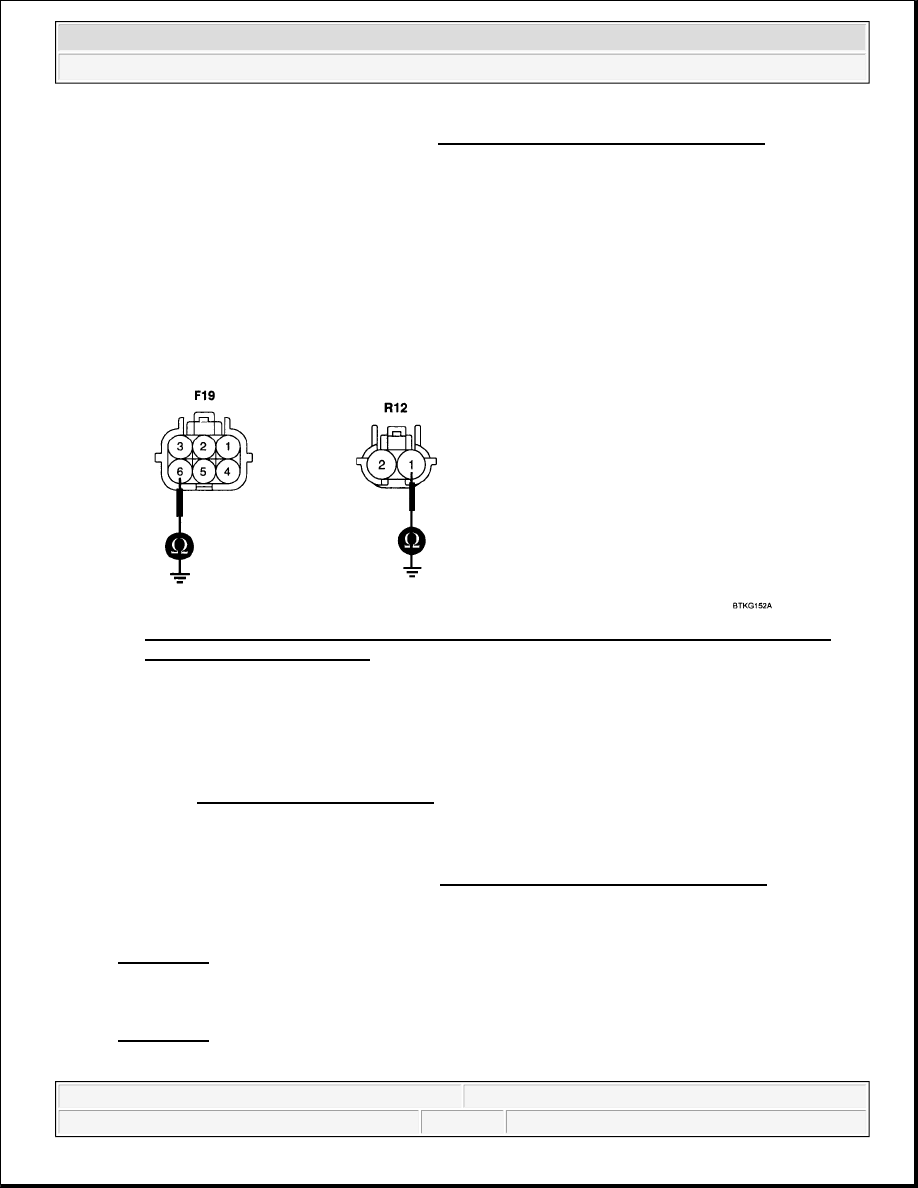

Fig. 283: Measuring Resistance Between Tail License Side Marker Lamp Ground Circuit
(R12-1) And Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured resistance within the specification?

YES

Go to "COMPONENT INSPECTION".

NO

Repair open in ground circuit and go to "VERIFICATION OF VEHICLE REPAIR".

COMPONENT INSPECTION

Refer to DTC B2579.

VERIFICATION OF VEHICLE REPAIR

Refer to DTC B2119.

DTC B2583 LEFT TAIL LICENSE SIDE MARKER LAMP CIRCUIT SHORT TO GROUND ERROR
