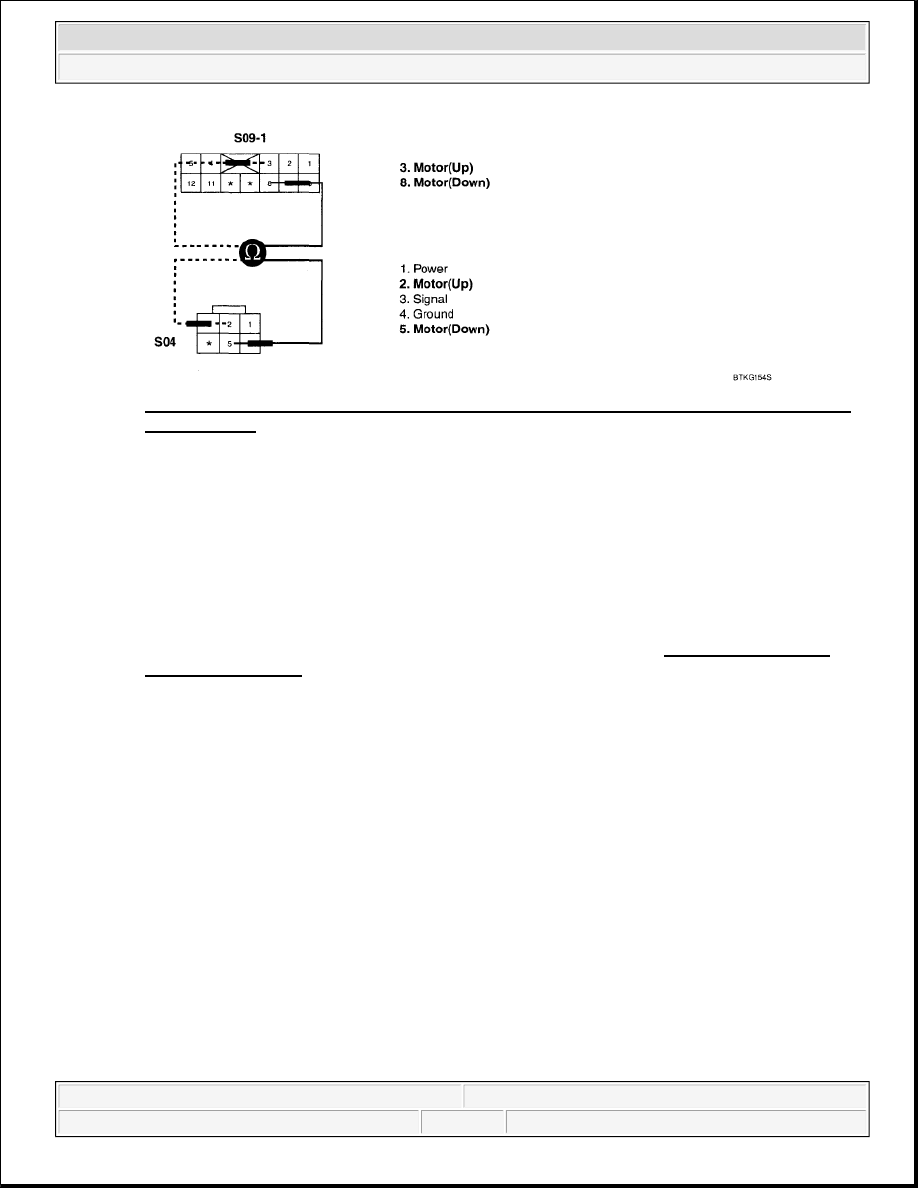

Fig. 142: Measuring Resistance Between Terminal 8 Of IMS And Terminal 5 Of Power Seat
Recline Motor
Courtesy of KIA MOTORS AMERICA, INC.

5. Is the measured resistance within specifications?

YES

Go to step 2.

NO

Check for open in motor power harness. Repair as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

2. Check for short in harness

1. Ignition "OFF"

2. Disconnect rear height motor.

3. Measure resistance between terminal "3" of rear height motor and chassis ground.

4. Measure resistance between terminal "8" of rear height motor and chassis ground.

Specification: Approx. infinity ohms



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:18 PM

Page 173

© 2006 Mitchell Repair Information Company, LLC.

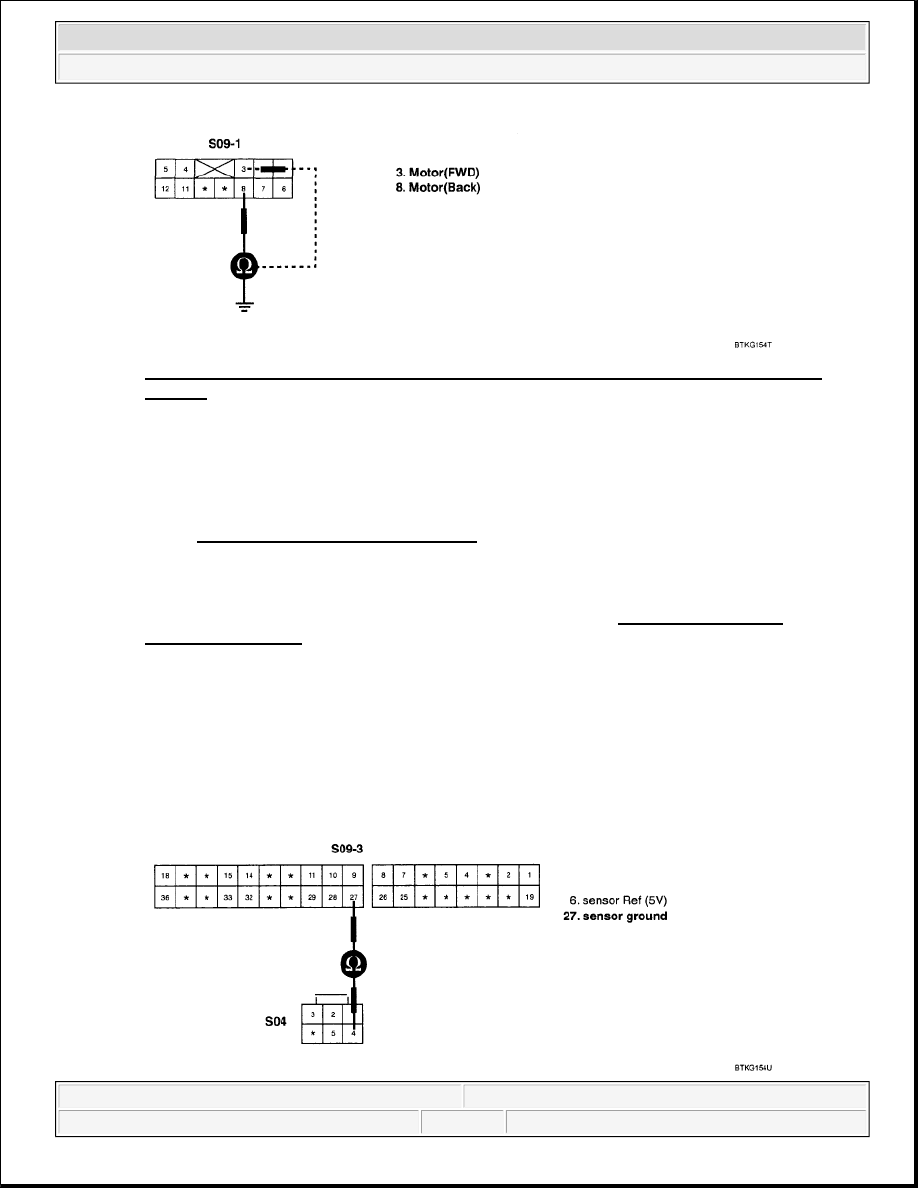

Fig. 143: Measuring Resistance Between Terminal 8 Of Rear Height Motor And Chassis
Ground
Courtesy of KIA MOTORS AMERICA, INC.

5. Is the measured resistance within specifications?

YES

Go to "GROUND CIRCUIT INSPECTION" procedure.

NO

Check for short in power harness. Repair as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

GROUND CIRCUIT INSPECTION

1. Check for open in harness

1. Ignition "OFF".

2. Measure resistance between terminal "4" of rear height motor and terminal "27" of IMS.

Specification: Approx. infinity ohms



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:18 PM

Page 174

© 2006 Mitchell Repair Information Company, LLC.

Fig. 144: Measuring Resistance Between Terminal 4 Of Rear Height Motor And Terminal 27
Of IMS
Courtesy of KIA MOTORS AMERICA, INC.

3. Is the measured resistance within specifications?

YES

Go to "COMPONENT INSPECTION" procedure.

NO

Check for open in ground harness. Repair as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

COMPONENT INSPECTION

1. Check IMS

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF"

3. Substitute with a known-good IMS and Check if the DTC is erased.

4. Is the DTC erased?

YES

Substitute with a known-good IMS and check for proper operation.

If the problem is corrected, replace IMS and then go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

NO

Go to step 2.

2. Check rear height motor

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF"

3. Select `ACTUATION TEST mode on scan tool and press [F1] to start



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:18 PM

Page 175

© 2006 Mitchell Repair Information Company, LLC.

Fig. 145: Identifying Scan Tool Display - Actuation Test Of Rear Height Motor
Courtesy of KIA MOTORS AMERICA, INC.

4. Dose rear height motor work properly?

YES

Go to step 3.

NO

Substitute with a known-good power seat slide motor and check for proper operation. If the
problem is corrected, replace power seat slide motor and then go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

3. Check rear height sensor

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF"

3. Measure waveform between terminal "10" of IMS and chassis ground. While operating power seat

recline switch.

Specification: Refer the specifications in Fig. 147 (6 pulses or more in 1 sec)
