2008 ACCESSORIES & BODY, CAB

BCM (Body Control Module) - Sedona

BODY NETWORK SYSTEM

DESCRIPTION

All modules are linked a low speed CAN network.

The input information for the modules is coming from both the CAN network and the hardware components
(actuators and sensors).



FAM (Front Area Module)



Headlamp low/high beam control (with DRL)



Park lamp control



Front fog lamp control



Front turn signal lamp control



Windshield wiper control



Windshield deicer



Diagnostics



IPM (In-Panel Module)



RKE (Remote Keyless Control)



VAS (Voice Alarm System)



Ignition key hole illumination



Switch indicators control



Panel light control



Seat belt warning



Auto light/DRL control (Logic)



Windshield/Rear wiper control (Logic)



Turn and Hazard lamp control (Logic)



Central door lock (Logic)



Windshield deicer timer



Rear glass defog timer



Gateway for ISO-9141 (K-Line)



RAM (Rear Area Module)



Tail lamp control



Turn and Hazard lamp control



Back up lamp control



Rear fog lamp control



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona





2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:15 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

Microsoft



Monday, May 24, 2010 4:19:26 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.



Stop lamp outage detection



Sliding door power window/Quarter glass control



Room lamp control



Rear wiper control



Rear glass defog



Fuel filler door open solenoid control



ADM (Assist Drive Module)



DDM (Driver Drive Module)

MODULE INTRODUCTION

FAM/IPM/RAM consists of a power board and an electronic board. The power board contains circuit protection
devices and switching devices. The electronic board uses Intelligent Power Switching (IPS) for HS/LS load
control, logic functions and CAN/K-Line communication. The power board and electronic board are connected
with pin blocks for the Front Area Module (FAM) and VCD (Variable Connection Displacement) for the In-
Panel Module (IPM) and the Rear Area Module (RAM).

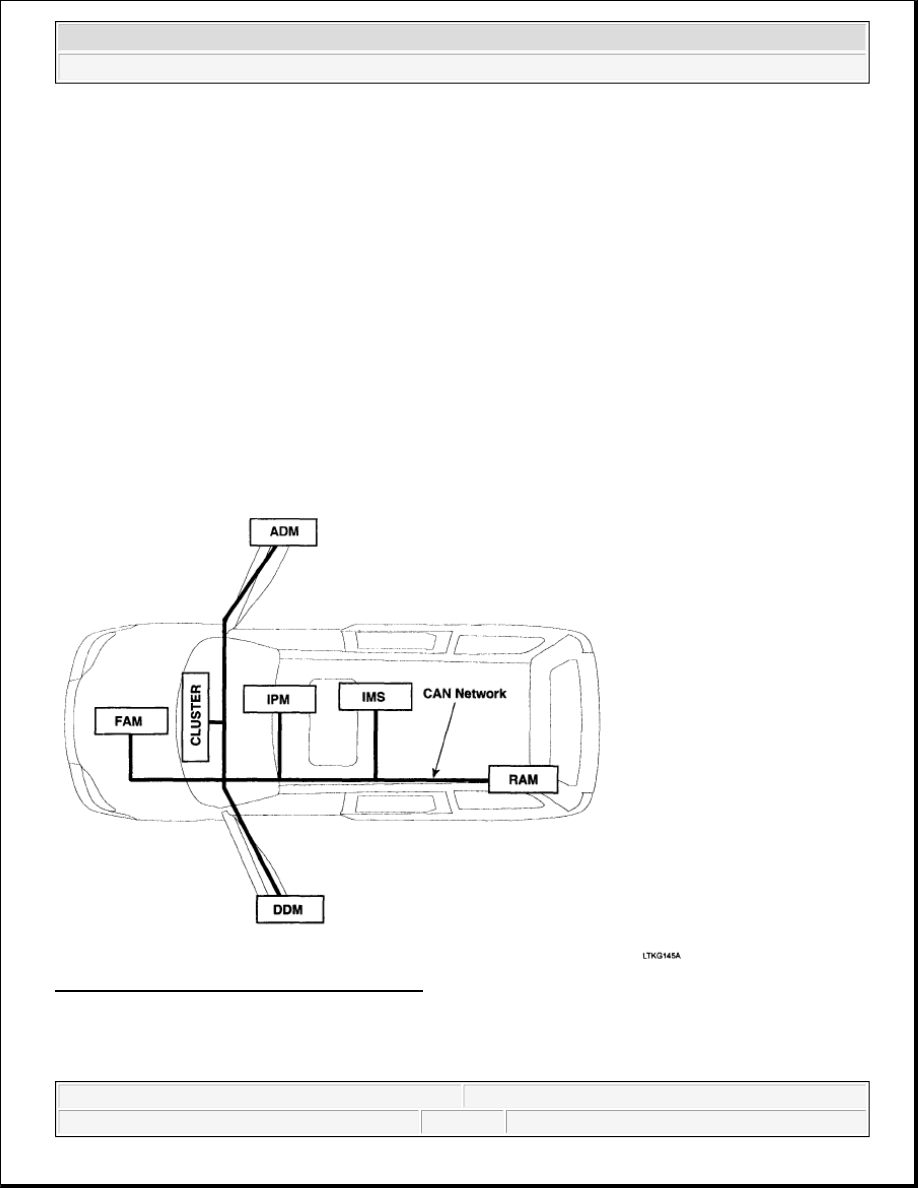

Fig. 1: Body Network System Module Locations
Courtesy of KIA MOTORS AMERICA, INC.

FUNCTIONS



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:15 PM

Page 2

© 2006 Mitchell Repair Information Company, LLC.

EXTERIOR LIGHTING FUNCTIONS

The exterior lighting function has to provide the lighting and signalling of the vehicle; it monitors different
available lights in front or at the back of the vehicle:



Park and Tail lamps (with Side marker lamps)



License plate lamps



Headlamps Low Beam



Headlamps High Beam



Front and Rear fog lamps (with the Rear fog lamp switch indicator)



Stop lamps



Backup lamps



Turn signal and side repeater lamps

PARK/TAIL LAMPS FUNCTION

1. Necessary conditions to switch ON:



By putting the headlamp switch in position `Park and Tail lamp' or `headlamp Low Beam' or Auto
light activation or DRL activation

2. Necessary conditions to switch OFF:



If they are released by the headlamp switch (Auto light function deactivated) and if DRL function
is deactivated



If the Auto light function is active but the Auto light Sensor signal status is OFF or Battery Saver
function is active.

3. Functional diagram

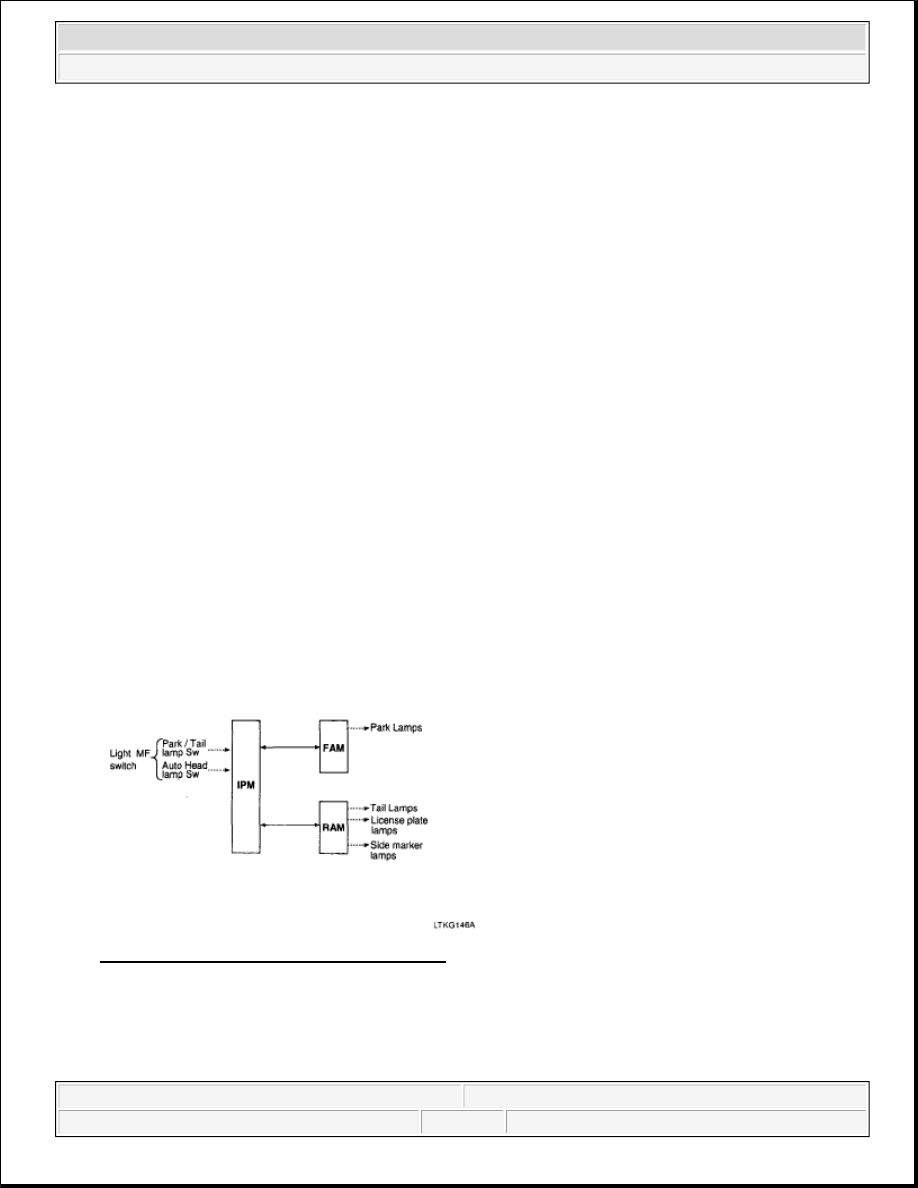

Fig. 2: Park/Tail Lamps Functional Diagram
Courtesy of KIA MOTORS AMERICA, INC.

HEADLAMPS LOW BEAM FUNCTION

1. Necessary conditions to switch ON:



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:15 PM

Page 3

© 2006 Mitchell Repair Information Company, LLC.



By putting the headlamp switch in position `headlamp Low Beam' or Auto light activation or DRL
activation.

2. Necessary conditions to switch OFF:



If they are released by the headlamp switch (Auto light function deactivated) and if the DRL
function is deactivated



If the Auto light function is active but the Auto light sensor signal status is not `HL ON'.

3. Functional diagram

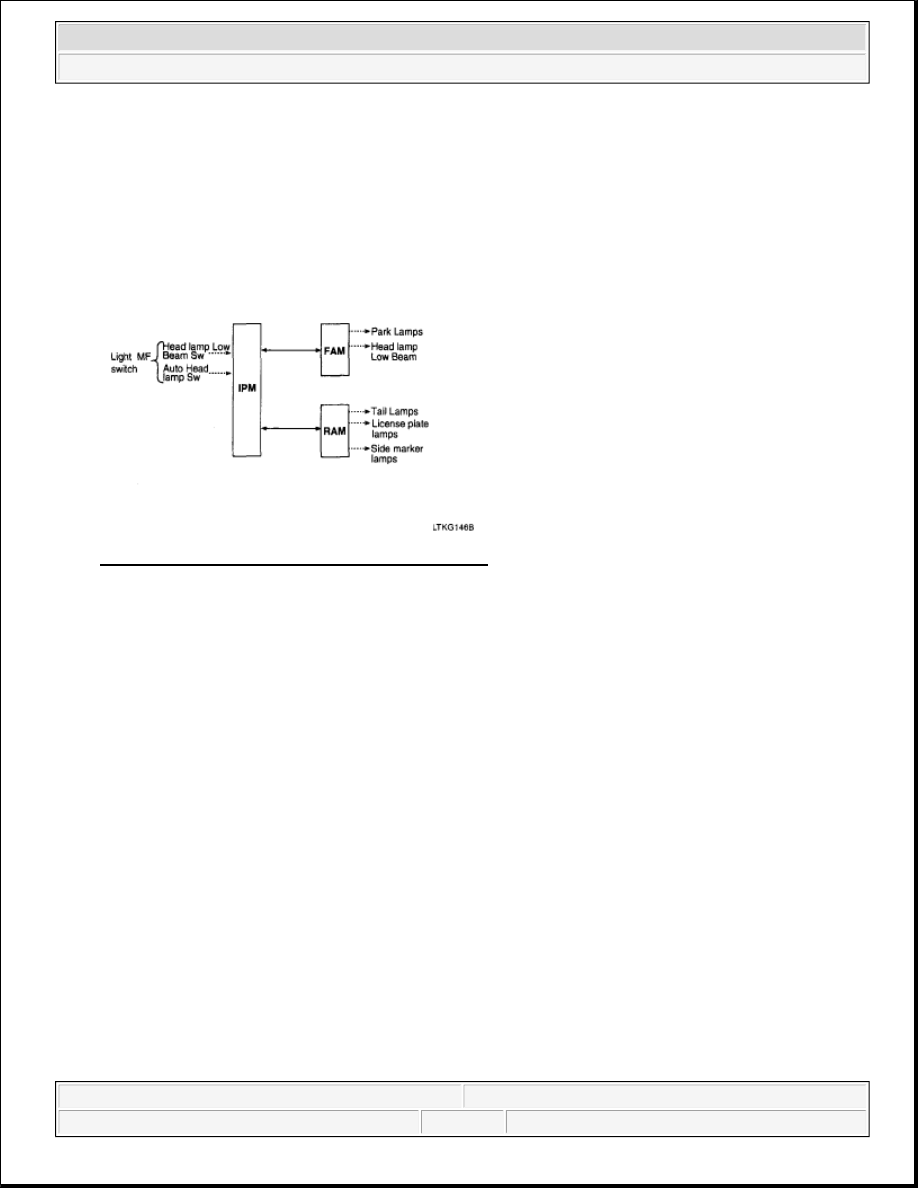

Fig. 3: Headlamps Low Beam Functional Diagram
Courtesy of KIA MOTORS AMERICA, INC.

HEADLAMPS HIGH BEAM FUNCTION

1. Necessary conditions to switch ON:



By pushing down the High Beam lever switch if



the headlamp switch is in position `headlamp Low Beam' or the headlamps Low Beam have
been turned ON by the Auto light function.



By pulling the High Beam lever switch toward the driver (Flash to pass activation)



By the DRL function activation for Canada.

2. Necessary conditions to switch OFF:



By pulling back the High Beam lever switch (manual reset by the driver) or



If the headlamps Low Beam are turned OFF or If the Auto light function is active but the Auto light
Sensor signal status is not `HL ON') or



By releasing the Flash To Pass activation and



If the DRL function is deactivated for Canada.

3. Functional diagram
