Kia Sedona (2008 year). Manual - part 112

harness connector.

Specification: Approximately 2.7-3.4 ohms [20°C (68°F)]

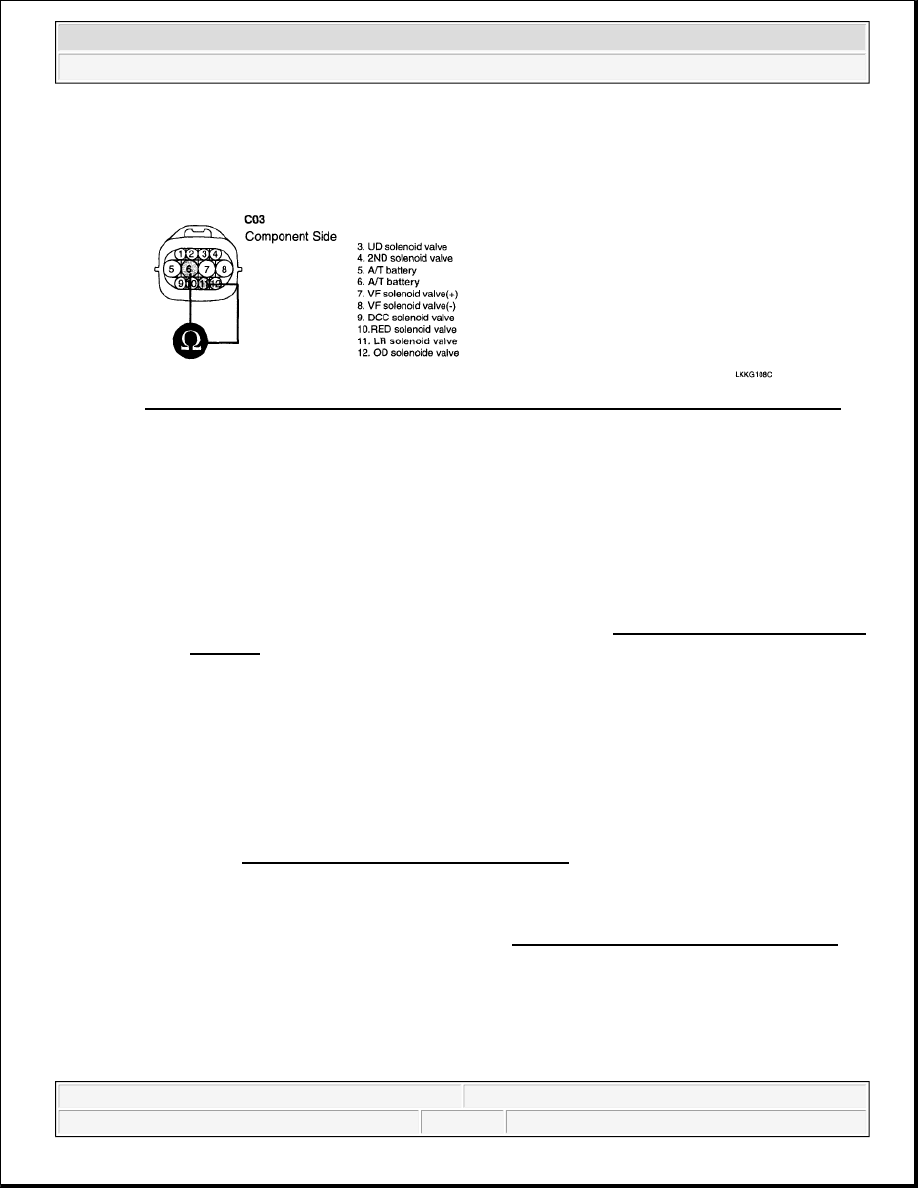

Fig. 92: Measuring Resistance Between Terminal ATM Solenoid Valve Harness Connector
Courtesy of KIA MOTORS AMERICA, INC.

4. Is resistance within specification?

YES



Go to step 2.

NO



Replace LR SOLENOID VALVE as necessary and go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

2. CHECK PCM/TCM

1. Connect scan tool to data link connector (DLC).

2. Ignition "ON" & Engine "OFF".

3. Select A/T solenoid valve actuator test and operate actuator test.

4. Can you hear operating sound for LR SOLENOID VALVE actuator testing function?

YES



Go to "VERIFICATION OF VEHICLE REPAIR" procedure.

NO



Replace PCM/TCM as necessary and go to "VERIFICATION OF VEHICLE REPAIR"
procedure.

ACTUATOR TEST CONDITION

1. IG SWITCH ON

2. TRANSAXLE RANGE SWITCH is normal



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:53 PM

Page 107

© 2006 Mitchell Repair Information Company, LLC.

3. P RANGE

4. Vehicle Speed 0 mph (0 km/h)

5. Throttle position sensor < 1V

6. IDLE SWITCH ON

7. ENGINE RPM 0

VERIFICATION OF VEHICLE REPAIR

Refer to DTC P0741.

DTC P0755 SHIFT CONTROL SOLENOID VALVE B CIRCUIT MALFUNCTION

COMPONENT LOCATION

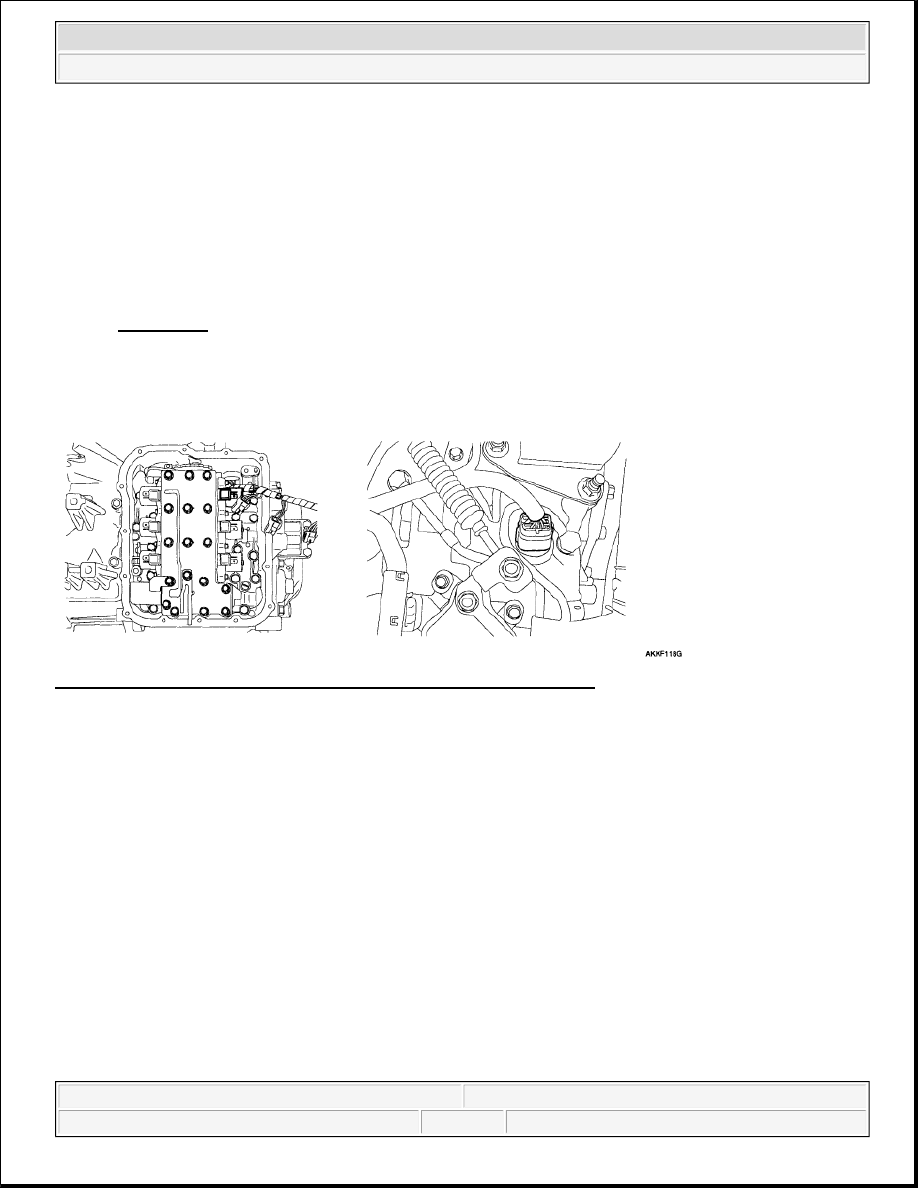

Fig. 93: Identifying Shift Control Solenoid Valve Component Location
Courtesy of KIA MOTORS AMERICA, INC.

GENERAL DESCRIPTION

The Automatic transmission changes the gear position of the transmission by utilizing a combination of clutches
and brakes, which are controlled by solenoid valves. This automatic transmission consists of a: LR (Low and
Reverse Brake), 2ND (2nd Brake), UD (Under Drive Clutch), OD (Over Drive Clutch), REV (Reverse Clutch),
and a RED (Reduction Brake, only for 5 speed transmissions). The UD Clutch is engaged in the 1st gear, 2nd
gear and 3rd gear positions.

DTC DESCRIPTION

The TCM checks the Under Drive Clutch Control Signal by monitoring the feedback signal from the solenoid
valve drive circuit. If an unexpected signal is monitored (for example, high voltage is detected when low
voltage is expected, or low voltage is detected when high voltage is expected), the TCM judges that Under
Drive control solenoid circuit is malfunctioning and sets this code.

DTC DETECTING CONDITION



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:54 PM

Page 108

© 2006 Mitchell Repair Information Company, LLC.

DTC DETECTING CONDITION CHART

SPECIFICATION

Refer to DTC P0750.

SCHEMATIC DIAGRAM

Refer to DTC P0750.

SIGNAL WAVEFORM

Fig. 94: Signal Waveform Graph
Courtesy of KIA MOTORS AMERICA, INC.

MONITOR SCAN TOOL DATA

Item

Detecting Condition

Possible cause

DTC Strategy



Check voltage range



Open or short in circuit



Faulty UD SOLENOID
VALVE



Faulty PCM/TCM

Enable Conditions



16V > Voltage Battery >
11V



In gear state (no gear
shifting) 500 msec is passed
from turn on the relay



A/T Relay = ON



Engine state = RUN

Threshold value



Out of available voltage
range

Diagnostic Time



More than 5 seconds

Fail Safe



Locked in 3rd gear (Control
relay off)



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:54 PM

Page 109

© 2006 Mitchell Repair Information Company, LLC.

1. Connect scan tool to data link connector (DLC)

2. Engine "ON".

3. Monitor the "UD SOL. VALVE" parameter on the scan tool.

4. Shift gear at each position.

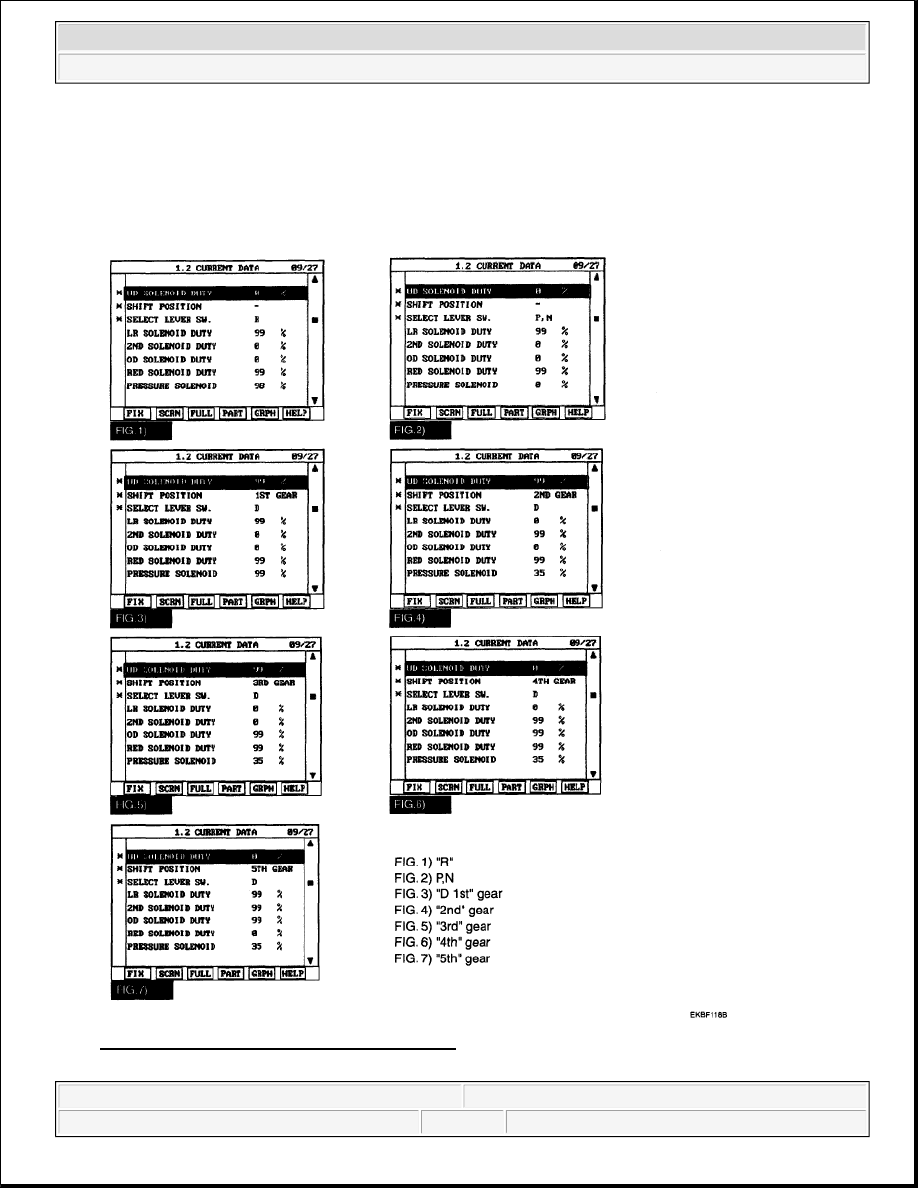

Fig. 95: Scan Tool Display - UD Solenoid Duty
Courtesy of KIA MOTORS AMERICA, INC.
