Fig. 63: Identifying Gear 5 Incorrect Ratio Component Location
Courtesy of KIA MOTORS AMERICA, INC.

GENERAL DESCRIPTION

The value of the input shaft speed should be equal to the value of the output shaft speed, when multiplied by the
5th gear ratio, while the transaxle is engaged in the 5th gear. For example, if the output speed is 1,000 RPM and
the 5th gear ratio is 0.868, then the input speed is 868 RPM.

DTC DESCRIPTION

This code is set if the value of input shaft speed is not equal to the value of the output shaft, when multiplied by
the 5th gear ratio, while the transaxle is engaged in 5th gear. This malfunction is mainly caused by mechanical
troubles such as control valve sticking or solenoid valve malfunctioning rather than an electrical issue.

DTC DETECTING CONDITION

DTC DETECTING CONDITION CHART

Item

Detecting Condition

Possible cause

DTC Strategy



5th gear incorrect ratio



Faulty Input speed sensor



Faulty output speed sensor



Faulty OD, DIR clutch or
2nd brake

Enable Conditions



Engine speed > 450 RPM



Output speed > 300 RPM



Shift stage 5th. gear



Input speed > 0 RPM



A/T oil temp output > or = -
23°C (-9.4°F)



11V < or = Battery Voltage <
or = 16V



TRANSAXLE RANGE
SWITCH is normal

Threshold value



| input speed - output speed x
5th gear ratio | > or = 200



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:53 PM

Page 75

© 2006 Mitchell Repair Information Company, LLC.

SIGNAL WAVEFORM

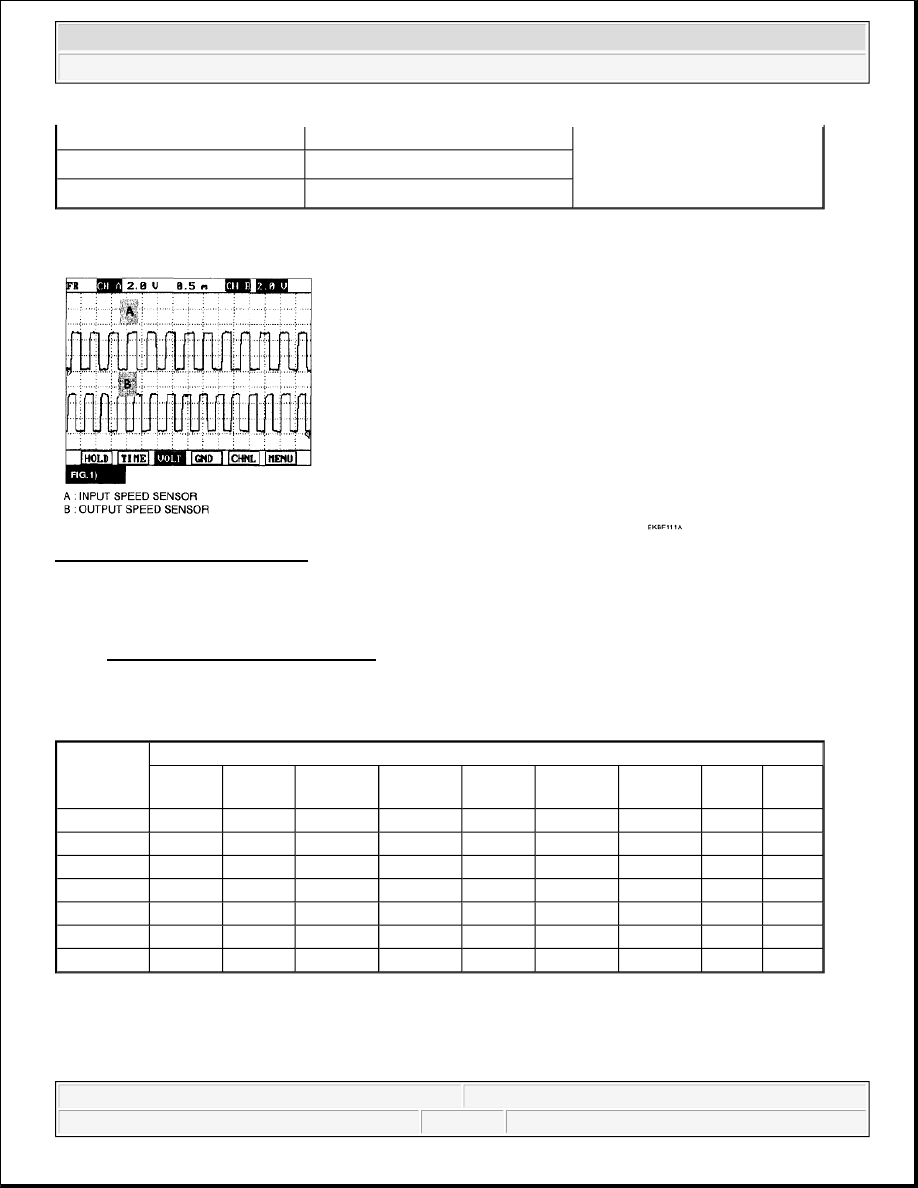

Fig. 64: Signal Waveform Graph
Courtesy of KIA MOTORS AMERICA, INC.

MONITOR SCAN TOOL DATA

Go to "SIGNAL CIRCUIT INSPECTION" procedure

OPERATING ELEMENT OF EACH SHIFTING RANGE

OPERATING ELEMENT OF EACH SHIFTING RANGE

Low & Reverse Brake is released when the vehicle speed over the 5 MPH (7 km/h)

SIGNAL CIRCUIT INSPECTION

RPM

Diagnostic Time



More than 4sec

Fail Safe



Locked into 3rd gear

GEAR

POSITION

ELEMENT

L/R

BRAKE

2ND

BRAKE

U/D

CLUTCH

O/D

CLUTCH

RED

BRAKE

DIR

CLUTCH

REV

CLUTCH 0WC1 0WC2

1st

o



o



o





•

•

2nd



o

o



o







•

3rd





o

o

o







•

4th



o



o

o







•

5th



o



o



o







REV

o







o



o





N, P

o







o











2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:53 PM

Page 76

© 2006 Mitchell Repair Information Company, LLC.

1. Connect Scan tool.

2. Engine "ON".

3. Monitor the "INPUT & OUTPUT SPEED SENSOR" parameter on the scan tool.

4. Accelerate the Engine speed until about 2000 RPM in the 5th gear.

Specification: INPUT SPEED - (OUTPUT SPEED x GEAR RATIO) < or = 200 RPM

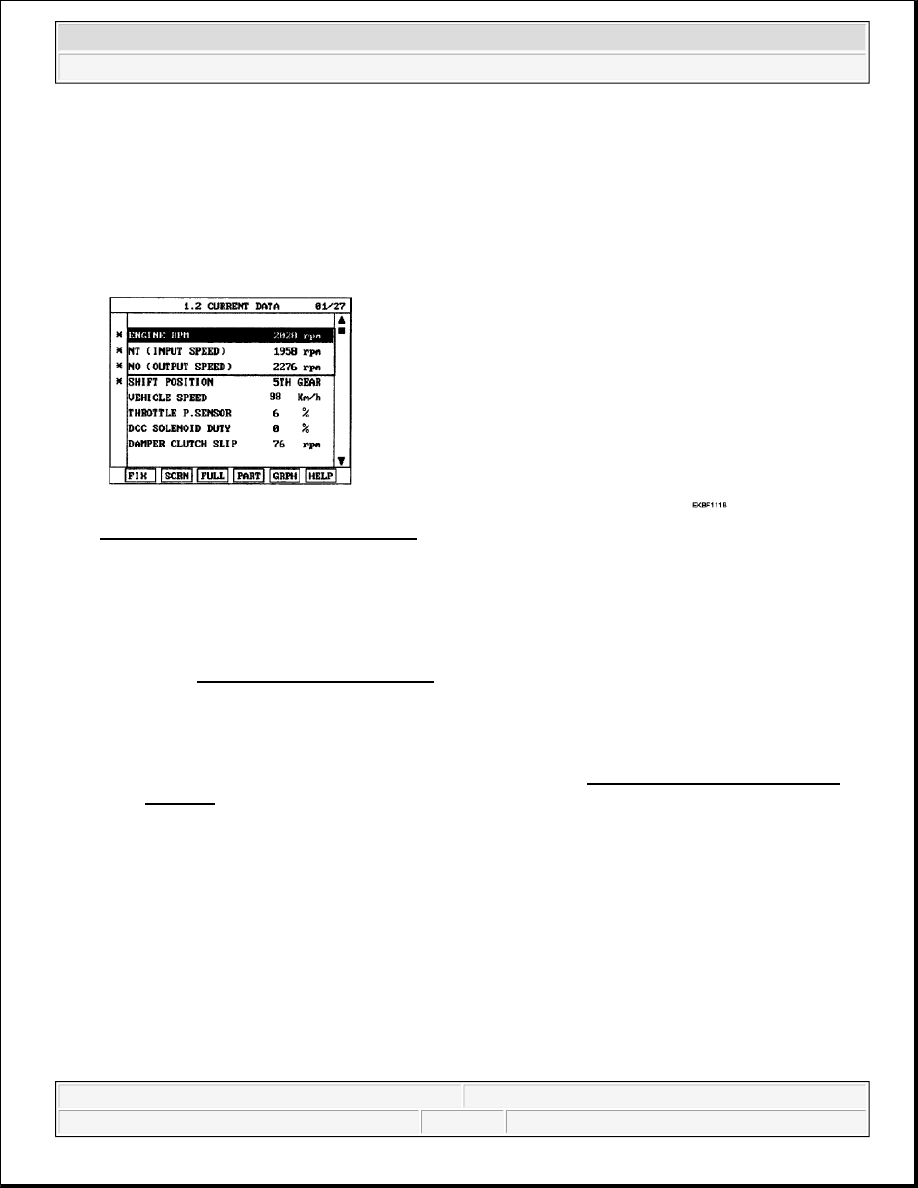

Fig. 65: Scan Tool Display - Engine RPM
Courtesy of KIA MOTORS AMERICA, INC.

5. Does "INPUT & OUTPUT SPEED SENSOR" follow the reference data?

YES



Go to "COMPONENT INSPECTION" procedure.

NO



Check for electrical noise of circuit in INPUT & OUTPUT SPEED SENSOR or Replace INPUT &
OUTPUT SPEED SENSOR. Repair as necessary and Go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

COMPONENT INSPECTION



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:53 PM

Page 77

© 2006 Mitchell Repair Information Company, LLC.

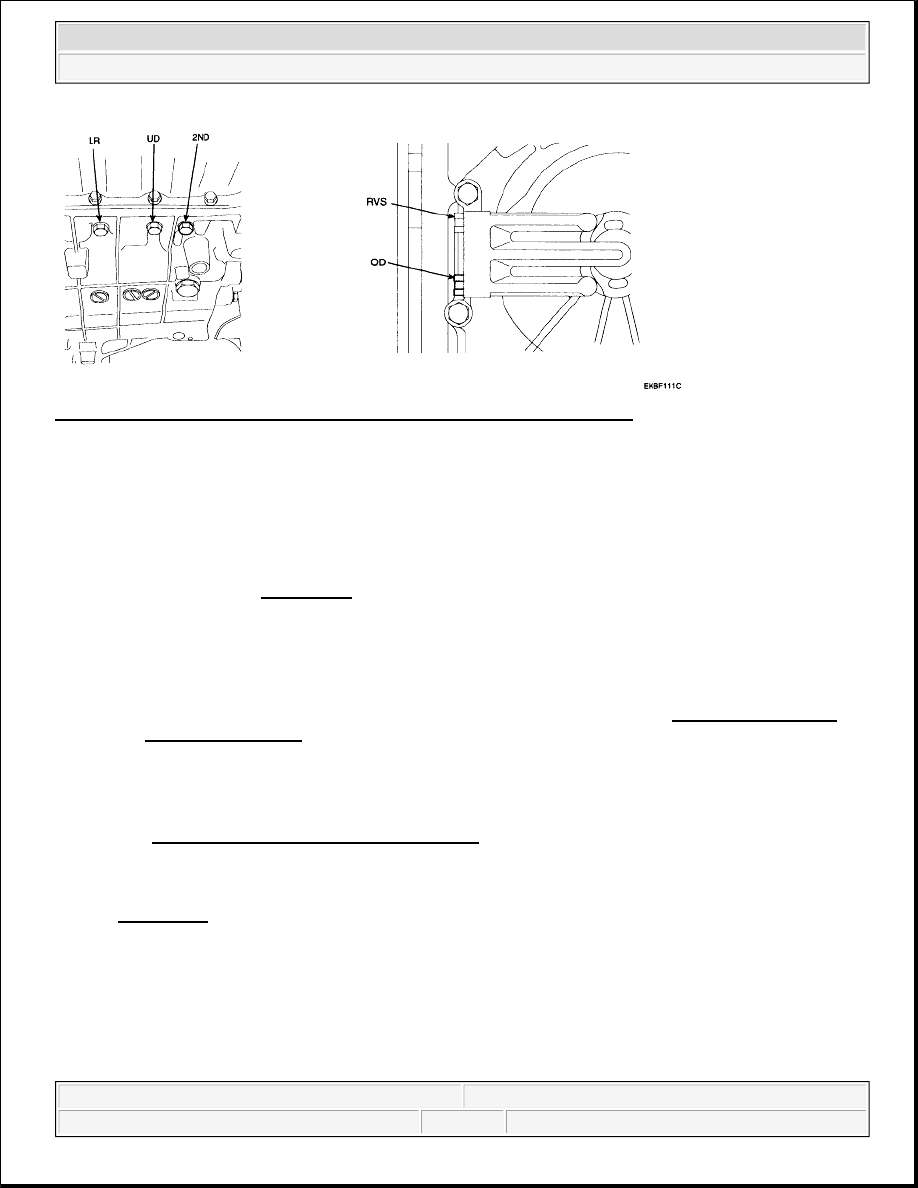

Fig. 66: Identifying Connect Oil Pressure Gauge To "OD" And "2nd" Port
Courtesy of KIA MOTORS AMERICA, INC.

1. Connect oil pressure gauge to "OD" and "2nd" and "DIR" port.

2. Engine "ON".

3. Drive a car with gear position "5".

4. Compare it with reference data as below.

Specification: refer to DTC P0731.

5. Is oil pressure value within specification?

YES



Repair AUTO TRANSAXLE (Clutch or Brake) as necessary and Go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

NO



Replace AUTO TRANSAXLE (BODY CONTROL VALVE faulty) as necessary and Go to
"VERIFICATION OF VEHICLE REPAIR" procedure.

VERIFICATION OF VEHICLE REPAIR

Refer to DTC P0731.

DTC P0741 TORQUE CONVERTER CLUTCH CIRCUIT - STUCK OFF

GENERAL DESCRIPTION

The PCM/TCM controls the locking and unlocking of the Torque Converter Clutch (or Damper Clutch), to the
input shaft of the transmission, by applying hydraulic pressure. The main purpose of T/C clutch control is to
save fuel by decreasing the hydraulic load inside the T/C. The PCM/TCM outputs duty pulses to control the
