SPECIFICATION

Refer to DTC P0717.

SCHEMATIC DIAGRAM

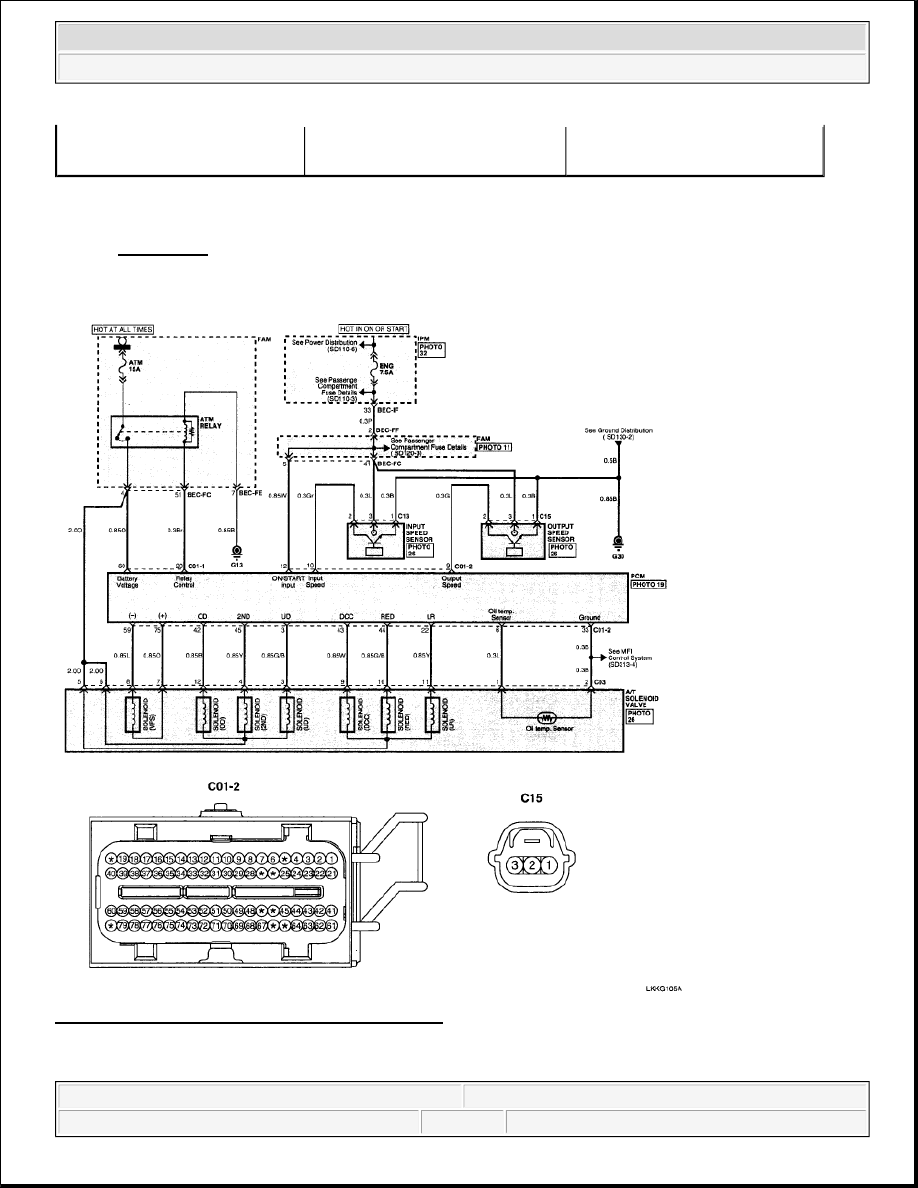

Fig. 36: Output Speed Sensor Diagram - No Signal
Courtesy of KIA MOTORS AMERICA, INC.

SIGNAL WAVEFORM



Manual shifting is possible
(2nd --> 3rd, 3rd --> 2nd)



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:52 PM

Page 47

© 2006 Mitchell Repair Information Company, LLC.

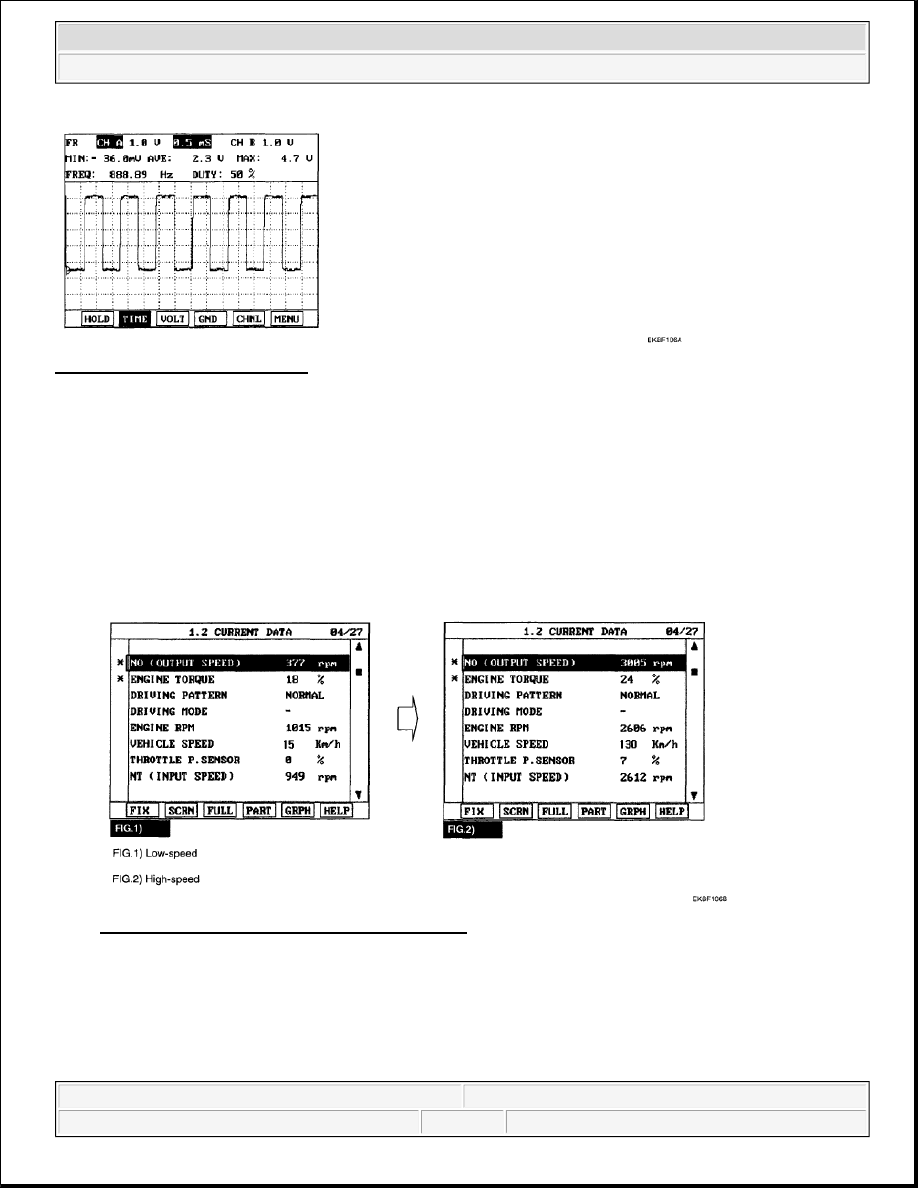

Fig. 37: Signal Waveform Graph
Courtesy of KIA MOTORS AMERICA, INC.

MONITOR SCAN TOOL DATA

1. Connect scan tool to data link connector (DLC).

2. Engine "ON".

3. Monitor the "OUTPUT SPEED SENSOR" parameter on the scan tool.

4. Driving at speed of over 30 Km/h (19 MPH).

Specification: Increasing Gradually

Fig. 38: Scan Tool Display - NO (Output Speed)
Courtesy of KIA MOTORS AMERICA, INC.

5. Does "Output speed sensor" follow the reference data?

YES



Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:52 PM

Page 48

© 2006 Mitchell Repair Information Company, LLC.

repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness,
poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as
necessary and go to "VERIFICATION OF VEHICLE REPAIR" procedure.

NO



Go to "TERMINAL & CONNECTOR INSPECTION" procedure.

TERMINAL & CONNECTOR INSPECTION

Refer to DTC P0717.

SIGNAL CIRCUIT INSPECTION

1. Ignition "ON" & Engine "OFF".

2. Disconnect the "OUTPUT SPEED SENSOR" connector.

3. Measure voltage between terminal "2" of the OUTPUT SPEED SENSOR harness connector and chassis

ground.

Specification: approx. 5V

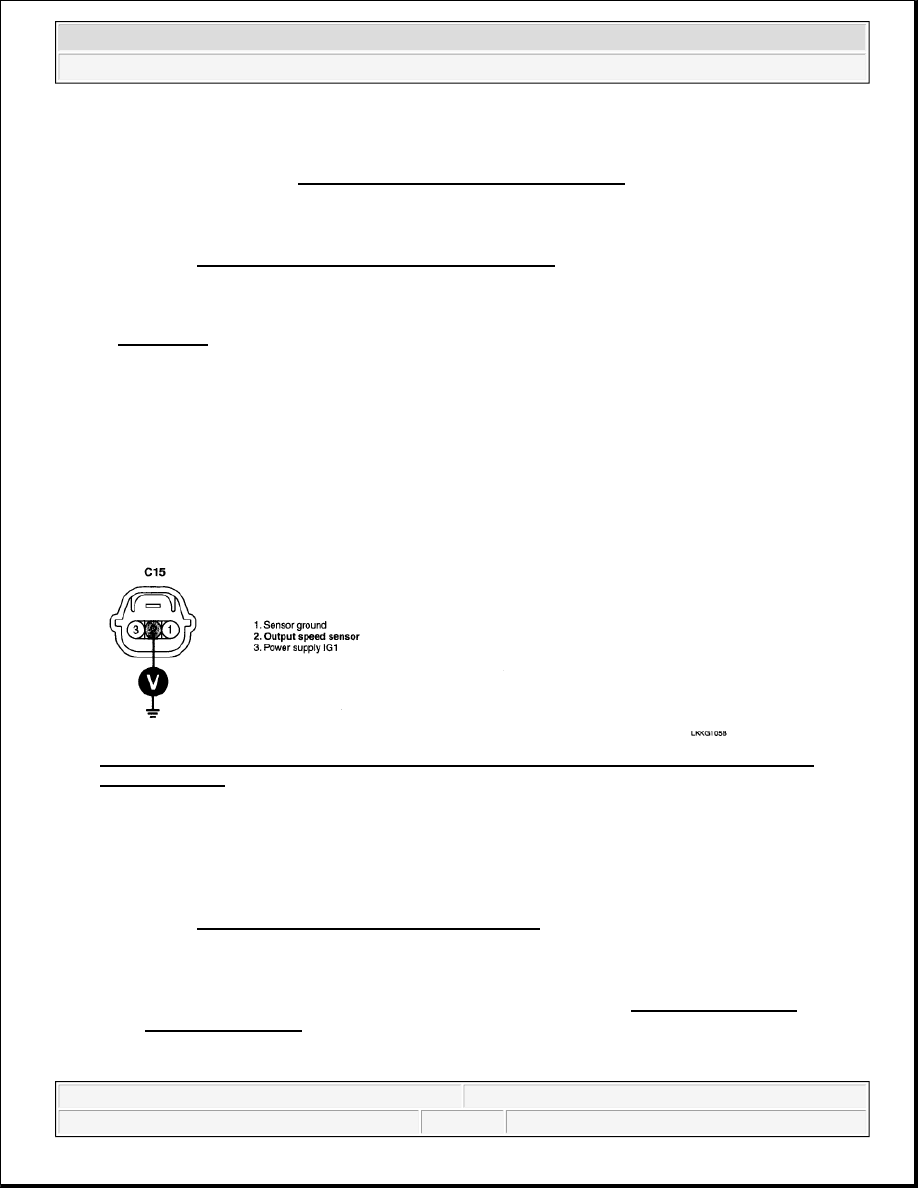

Fig. 39: Measuring Voltage Between Terminal Output Speed Sensor Harness Connector And
Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is voltage within specification?

YES



Go to "POWER SUPPLY CIRCUIT INSPECTION" procedure.

NO



Check for open or short in harness. Repair as necessary and Go to "VERIFICATION OF
VEHICLE REPAIR" procedure.



If signal circuit in harness is OK, Go to step 2.



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:53 PM

Page 49

© 2006 Mitchell Repair Information Company, LLC.

POWER SUPPLY CIRCUIT INSPECTION

1. Ignition "ON" & Engine "OFF".

2. Disconnect the "OUTPUT SPEED SENSOR" connector.

3. Measure voltage between terminal "3" of the "OUTPUT SPEED SENSOR" harness connector and

chassis ground.

Specification: approx. B+

Fig. 40: Measuring Voltage Between Terminal Harness Connector And Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is voltage within specification?

YES



Go to "GROUND CIRCUIT INSPECTION" procedure.

NO



Check for open in harness. Repair as necessary and Go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

GROUND CIRCUIT INSPECTION

1. Ignition "ON" & Engine "OFF".

2. Disconnect the "OUTPUT SPEED SENSOR" connector.

3. Measure resistance between terminal "1" of the OUTPUT SPEED SENSOR harness connector and

chassis ground.



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:53 PM

Page 50

© 2006 Mitchell Repair Information Company, LLC.
