DTC P0707 TRANSAXLE RANGE SWITCH - LOW INPUT

COMPONENT LOCATION

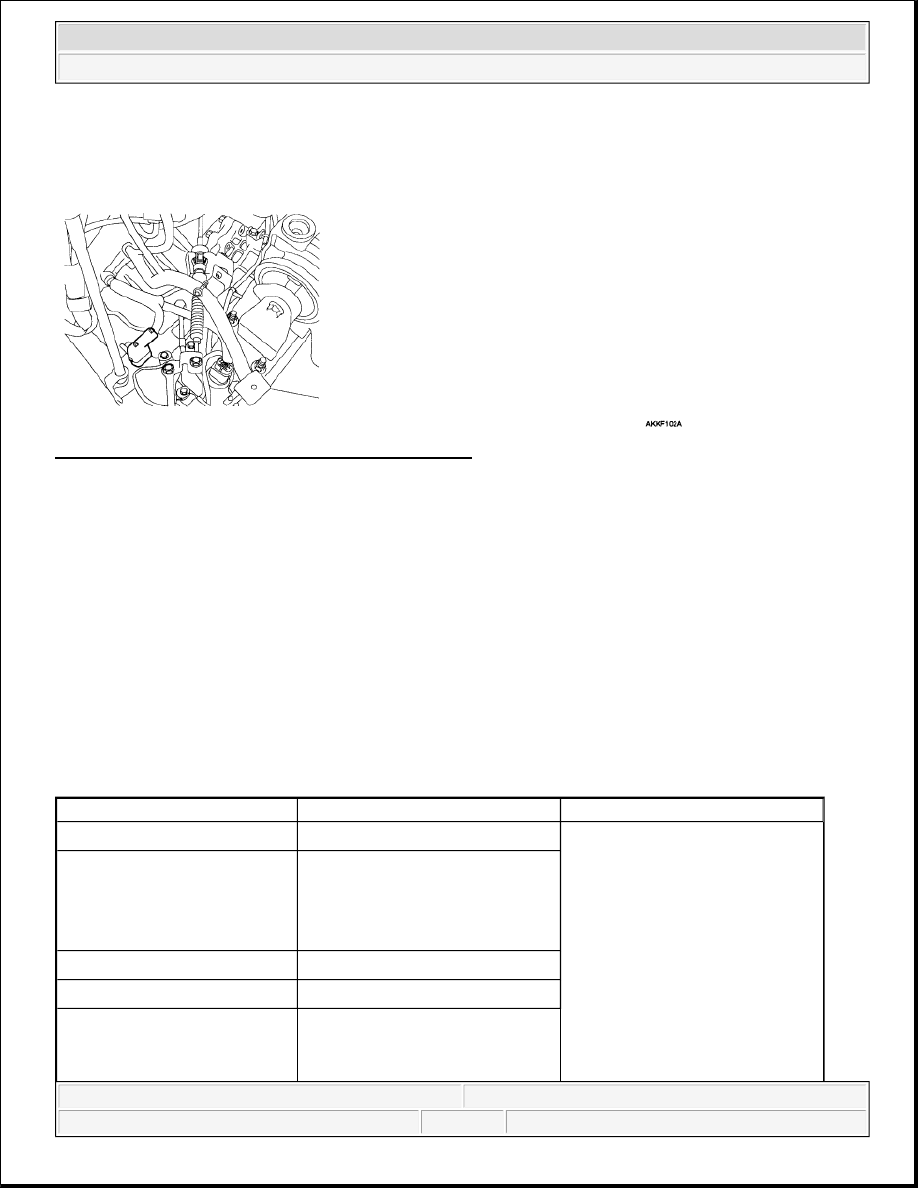

Fig. 12: Transaxle Range Switch Component Location
Courtesy of KIA MOTORS AMERICA, INC.

GENERAL DESCRIPTION

The Transaxle Range Switch sends the shift lever position information to the TCM (PCM) using a 12V (battery
voltage) signal. When the shift lever is in the D (Drive) position the output signal of Transaxle Range Switch is
12V and in all other positions the voltage is 0V. The TCM (PCM) judges the shift lever position by reading all
signals, for the Transaxle Range Switch, simultaneously.

DTC DESCRIPTION

The TCM (PCM) sets this code when the Transaxle Range Switch has no output signal for more than 30
seconds.

DTC DETECTING CONDITION

DTC DETECTING CONDITION CHART

Item

Detecting Condition

Possible cause

DTC Strategy



Check for no signal



Open or short in circuit



Faulty TRANSAXLE
RANGE SWITCH



Faulty TCM (PCM)

Enable Conditions



Engine state = "RUN"



11V < or = Battery Voltage <
or = 16V



TPS > or = 3%

Threshold value



No signal detected

Diagnostic Time



More than 30 seconds

Fail Safe



Recognition as previous
signal.



When P-D or R-D or



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:52 PM

Page 19

© 2006 Mitchell Repair Information Company, LLC.

SCHEMATIC DIAGRAM

D-R SHIFT is
detected, it is regarded
as N-D or N-R though
"N" signal is not
detected



When sports mode
S/W is ON without P,
R, N, D-RANGE
signals, it is regarded
sports mode. (DTC is
not set)



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:52 PM

Page 20

© 2006 Mitchell Repair Information Company, LLC.

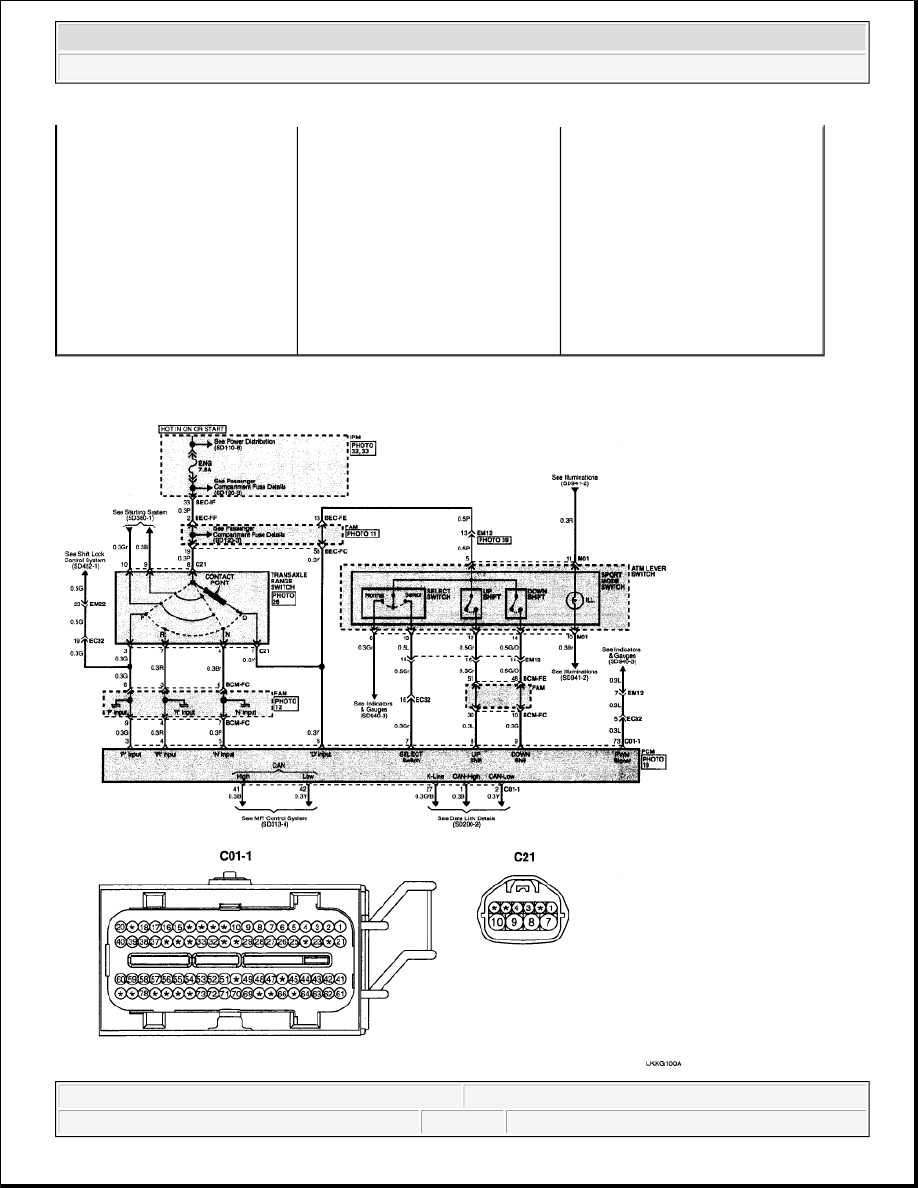

Fig. 13: Transaxle Range Switch Diagram - Low Input
Courtesy of KIA MOTORS AMERICA, INC.

MONITOR SCAN TOOL DATA

1. Connect scan tool to data link connector (DLC).

2. Ignition "ON" & Engine "OFF".

3. Monitor the "TRANSAXLE RANGE SWITCH" parameter on the scan tool.

4. Shift selector lever from "P" range to other range.

Fig. 14: Scan Tool Display - Transaxle Range Switch
Courtesy of KIA MOTORS AMERICA, INC.

5. Does "TRANSAXLE RANGE SWITCH" follow the reference data?

YES



Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM) connectors or was
repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness,
poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as
necessary and go to "VERIFICATION OF VEHICLE REPAIR" procedure.

NO



Go to "TERMINAL & CONNECTOR INSPECTION" procedure.

TERMINAL & CONNECTOR INSPECTION

1. Many malfunctions in the electrical system are caused by poor harness and terminal condition. Faults can

also be caused by interference from other electrical systems, and mechanical or chemical damage.

2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination,

deterioration, or damage.

3. Has a problem been found?



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:52 PM

Page 21

© 2006 Mitchell Repair Information Company, LLC.

YES



Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR" procedure.

NO



Go to "POWER CIRCUIT INSPECTION" procedure.

POWER SUPPLY CIRCUIT INSPECTION

1. CHECK POWER TO RANGE SWITCH

1. Disconnect "TRANSAXLE RANGE SWITCH" connector.

2. Ignition "ON" & Engine "OFF".

3. Measure voltage between terminal "8" of the sensor harness connector and chassis ground.

Specification: approx. B+

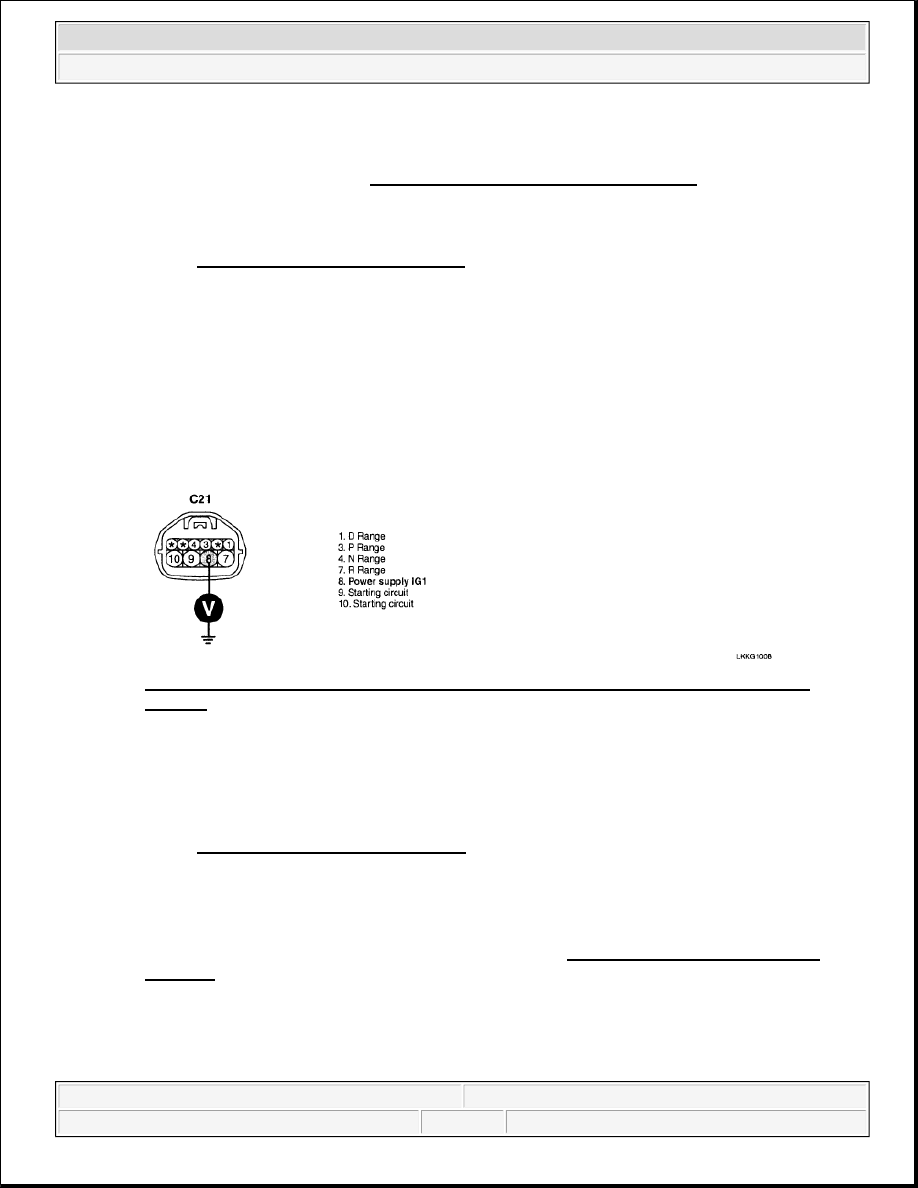

Fig. 15: Measuring Voltage Between Terminal Sensor Harness Connector And Chassis
Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is voltage within specifications?

YES



Go to "SIGNAL CIRCUIT INSPECTION" procedure.

NO



Check that Fuse 10A is installed or not blown.



Check for open in harness. Repair as necessary and go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

SIGNAL CIRCUIT INSPECTION

1. Ignition "OFF".
