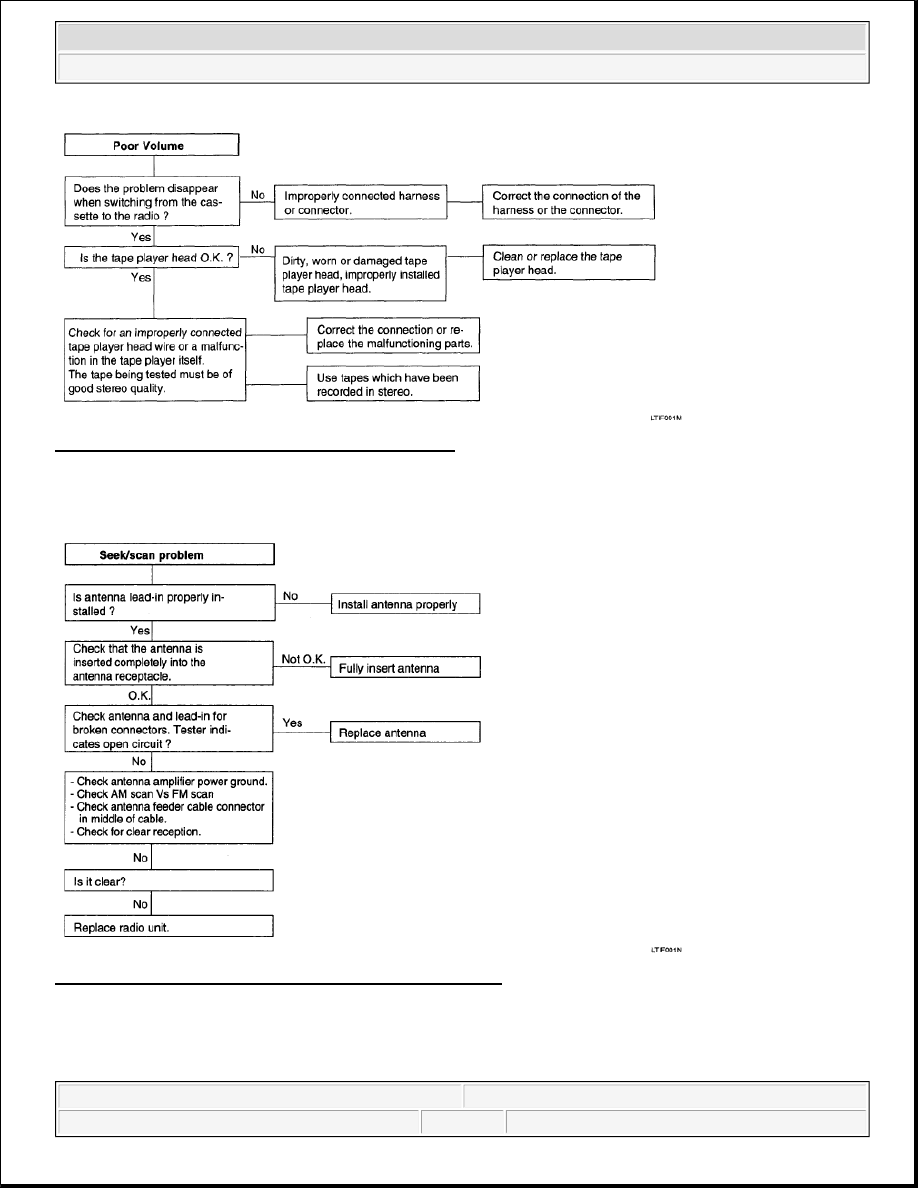

Fig. 52: Troubleshooting Flow Chart - Poor Volume
Courtesy of KIA MOTORS AMERICA, INC.

CHART 8

Fig. 53: Troubleshooting Flow Chart - Seek/Scan Problem
Courtesy of KIA MOTORS AMERICA, INC.

CHART 9



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Audio System - Sedona



Microsoft



Monday, May 24, 2010 4:15:06 PM

Page 32

© 2006 Mitchell Repair Information Company, LLC.

Fig. 54: Troubleshooting Flow Chart - Eating Tape
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Audio System - Sedona



Microsoft



Monday, May 24, 2010 4:15:06 PM

Page 33

© 2006 Mitchell Repair Information Company, LLC.

2008 ACCESSORIES & BODY, CAB

Auto Lighting Control System - Sedona

COMPONENT LOCATION

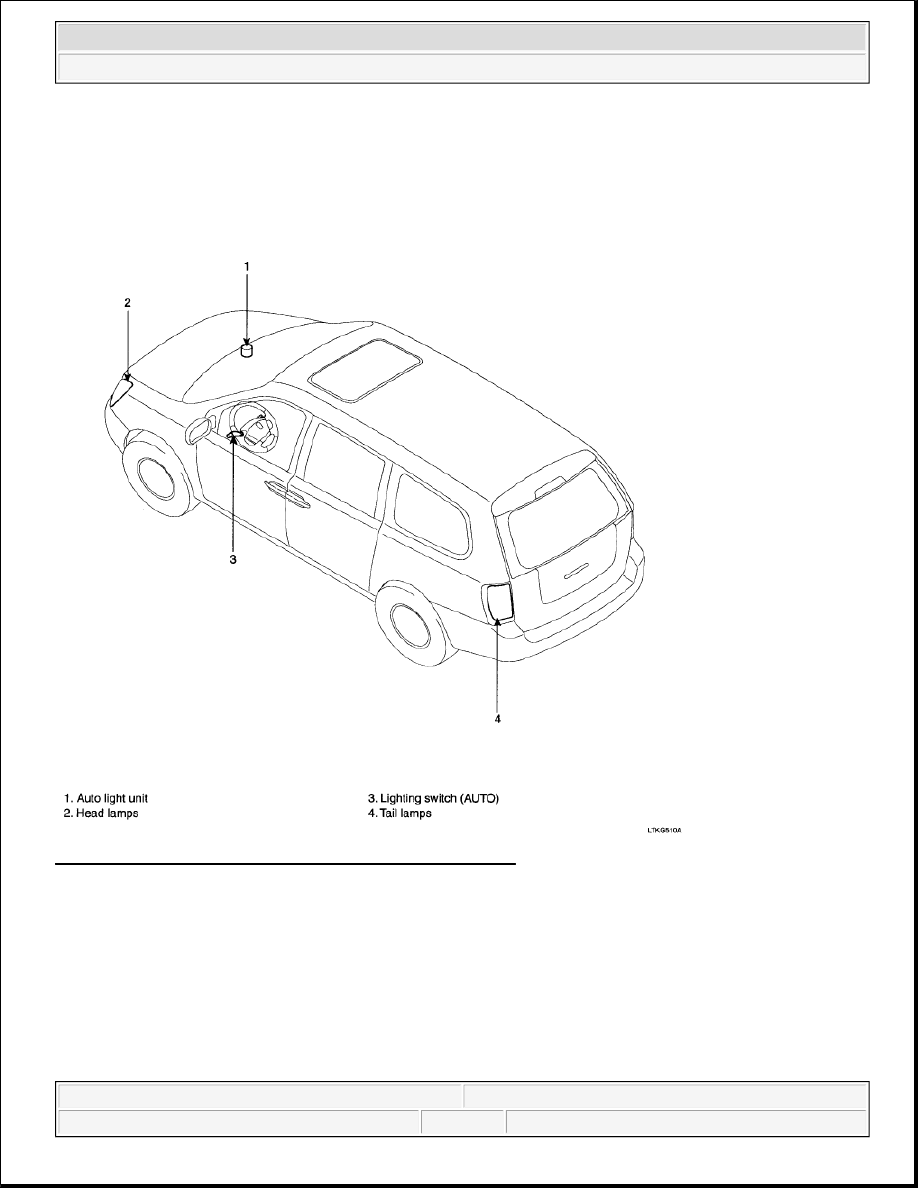

Fig. 1: Auto Lighting Control System Component Locations
Courtesy of KIA MOTORS AMERICA, INC.

DESCRIPTION

The auto light control system operates by using the auto light switch.

If you set the multi-function switch to "AUTO" position, the tail lamp and headlamp will be turned
automatically on or off according to external illumination.

AUTO LIGHT SWITCH



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Auto Lighting Control System - Sedona





2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Auto Lighting Control System - Sedona



Microsoft



Monday, May 24, 2010 4:08:38 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

Microsoft



Monday, May 24, 2010 4:08:41 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

INSPECTION

Check for continuity between terminals while operating the auto light switch.

Fig. 2: Auto Light Switch Connector Terminal Identification
Courtesy of KIA MOTORS AMERICA, INC.

Fig. 3: Testing Auto Light Switch
Courtesy of KIA MOTORS AMERICA, INC.

AUTO LIGHT SENSOR

INSPECTION

While operating the auto light switch, check if the operations are normal as shown in Fig. 4.

1. Auto light sensor value is always read at IGN ON.

2. Light is turned ON after 1 second ± 0.1 second when auto light sensor value is same as light ON input
