Kia Sedona (2008 year). Manual - part 79

Fig. 17: Identifying Front Center Speaker
Courtesy of KIA MOTORS AMERICA, INC.

2. Installation is the reverse of removal.

INSPECTION

1. Check the speaker with an ohmmeter. If an ohmmeter indicates the correct impedance of the speaker

when checking between the speaker (+) and speaker (-) of the same channel, the speaker is OK.

Specified impedance: 2-4 ohms

Fig. 18: Checking Speaker With Ohmmeter
Courtesy of KIA MOTORS AMERICA, INC.

ANTENNA

REPLACEMENT

1. Remove the right C filler trim (A) and luggage side trim. Refer to INTERIOR TRIM .



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Audio System - Sedona



Microsoft



Monday, May 24, 2010 4:15:06 PM

Page 12

© 2006 Mitchell Repair Information Company, LLC.

Fig. 19: Identifying Right C Filler Trim
Courtesy of KIA MOTORS AMERICA, INC.

2. Remove the diversity (C) after removing 1P connector (A) and radio feeder cable (B).

Fig. 20: Identifying Diversity, 1P Connector And Feeder Cable
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the glass antenna radio amplifier (A) - Left/Right each - after removing radio feeder cable (B)

and amplifier wiring (C) from the glass antenna radio amplifier (A).



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Audio System - Sedona



Microsoft



Monday, May 24, 2010 4:15:06 PM

Page 13

© 2006 Mitchell Repair Information Company, LLC.

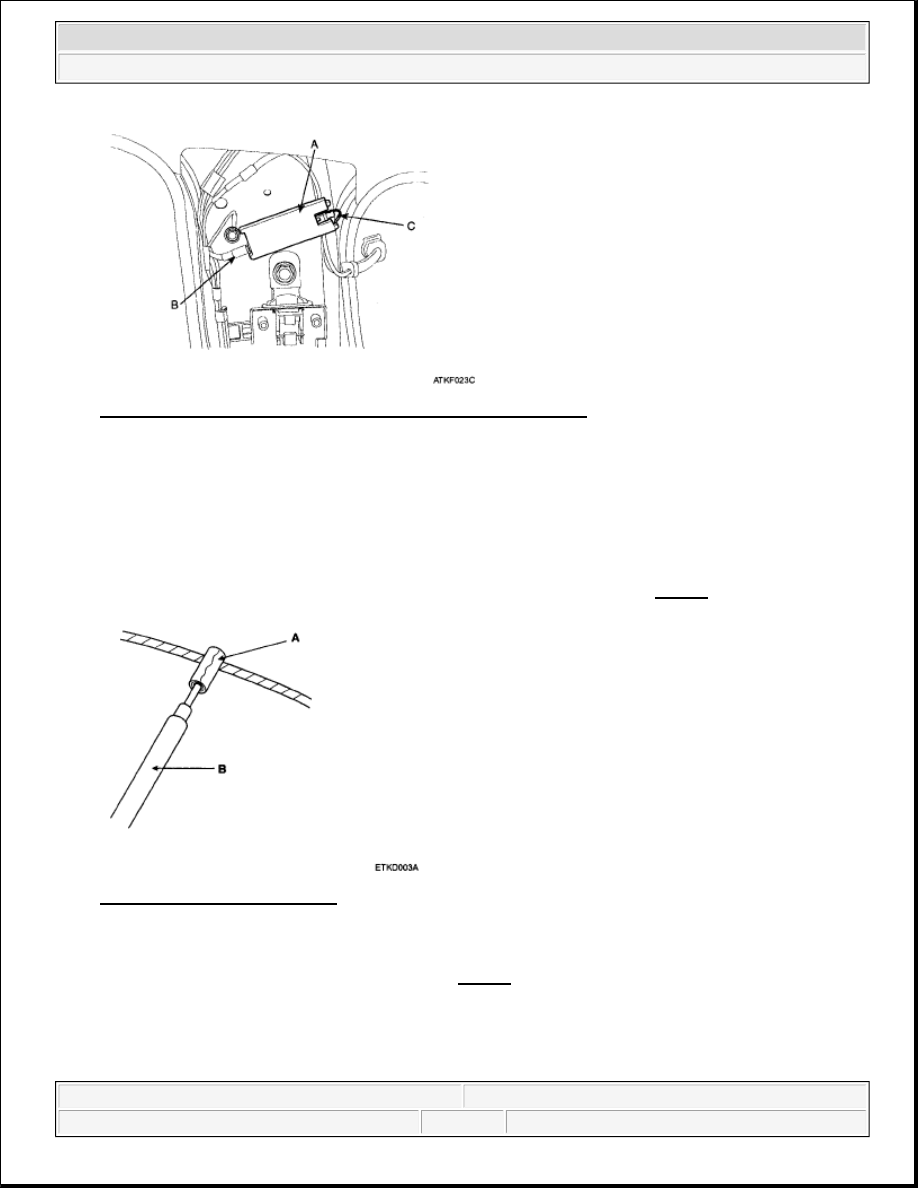

Fig. 21: Identifying Radio Amplifier, Feeder Cable And Wiring
Courtesy of KIA MOTORS AMERICA, INC.

4. Installation is the reverse of removal.

INSPECTION

GLASS ANTENNA TEST

1. Wrap aluminum foil (A) around the tip of the tester probe (B) as shown. See Fig. 22.

Fig. 22: Testing Glass Antenna
Courtesy of KIA MOTORS AMERICA, INC.

2. Touch one tester probe to the glass antenna terminal (A), and move the other tester probe along the

antenna wires to check that continuity exists. See Fig. 23.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Audio System - Sedona



Microsoft



Monday, May 24, 2010 4:15:06 PM

Page 14

© 2006 Mitchell Repair Information Company, LLC.

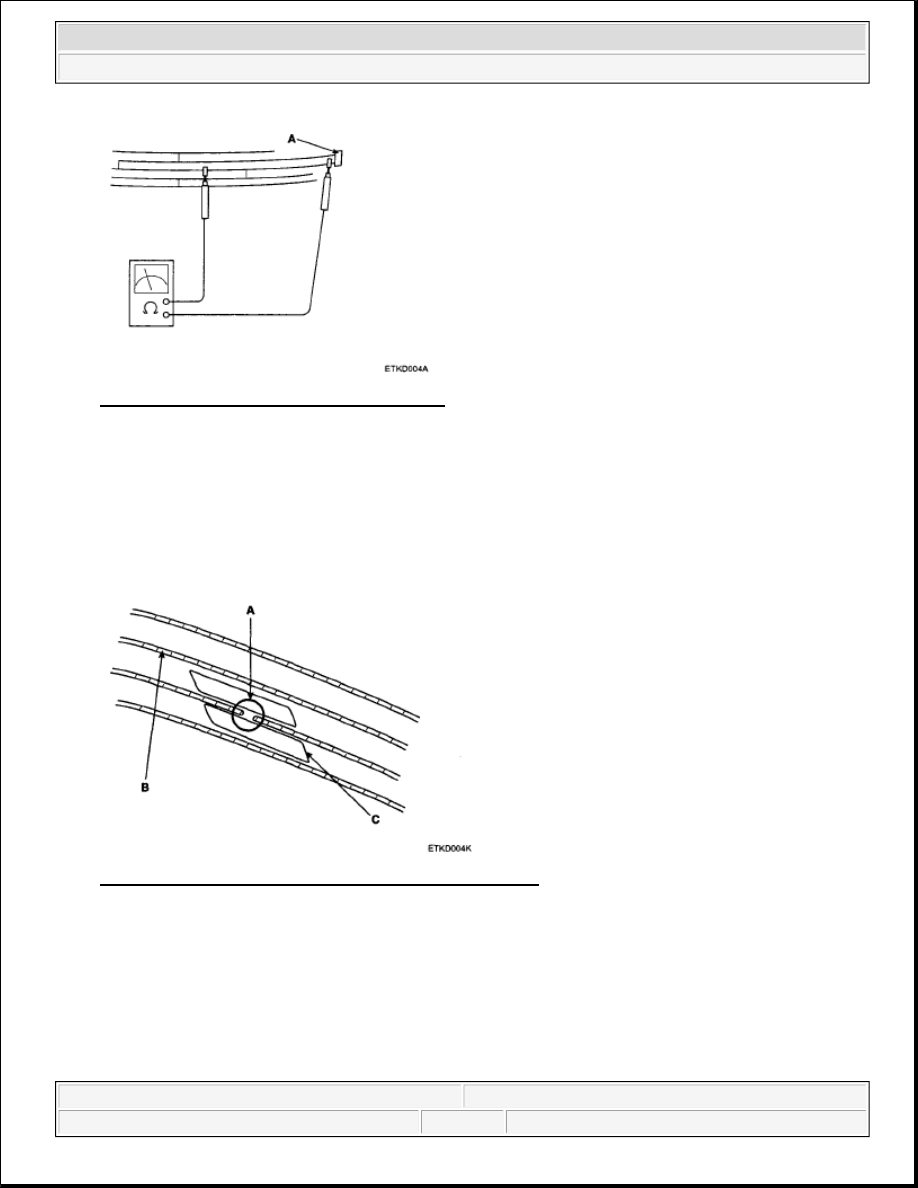

Fig. 23: Checking Antenna Wires Continuity
Courtesy of KIA MOTORS AMERICA, INC.

GLASS ANTENNA REPAIR

1. Lightly rub the area around the broken section (A) with fine steel wool, and then clean it with alcohol.

Fig. 24: Masking Broken Portion Of Glass Antenna Wire
Courtesy of KIA MOTORS AMERICA, INC.

2. Carefully mask above and below the broken portion of the glass antenna wire (B) with cellophane tape

(C).

3. Using a small brush, apply a heavy coat of silver conductive paint (A) extending about 1/8" on both sides

of the break. Allow 30 minutes to dry.

NOTE:

To make an effective repair, the broken section must be no longer than one
inch.

NOTE:

Thoroughly mix the paint before use.
