Kia Sedona (2008 year). Manual - part 63



Check the STPS.

NO



Repair or replace the wiring harness between the STPS and the SRSCM.

3. CHECK THE SEAT TRACK POSITION SENSOR (STPS)

1. Measure current between the terminal 1 of STPS and 30 of SRSCM.

Specification (current): 12-17 mA (Rearward status), 5-7 mA (Forward status)

2. Is the measured current within specification?

YES



Go to next stop.

NO



Replace the STPS.

4. CLEAR THE DTC AND CHECK THE VEHICLE AGAIN

Refer to CLEAR THE DTC AND CHECK THE VEHICLE AGAIN.

DTC B1388 SEAT TRACK POSITION SENSOR [DRIVER] OPEN OR SHORT TO BATTERY

DTC DESCRIPTION

The Seat Track Position Sensor (STPS) circuit consists of the SRSCM and STPS. The SRSCM sets above DTC
(s) if it detects open or short to battery line on the STPS circuit. The "Seat Forward" status currently represents a
seat position in which the deployment of the second stage airbag is prohibited.

DTC DETECTING CONDITION

DTC DETECTING CONDITION

SCHEMATIC DIAGRAM

DTC

Condition

Probable cause

B1388



Open between STPS and SRSCM



Short to battery line between STPS and
SRSCM



STPS Malfunction



SRSCM Malfunction



Open or short to battery line circuit on
wiring harness



STPS



SRSCM



2008 Kia Sedona EX

2008 RESTRAINTS Troubleshooting (Airbag) - Sedona



Microsoft



Monday, May 24, 2010 3:55:01 PM

Page 55

© 2006 Mitchell Repair Information Company, LLC.

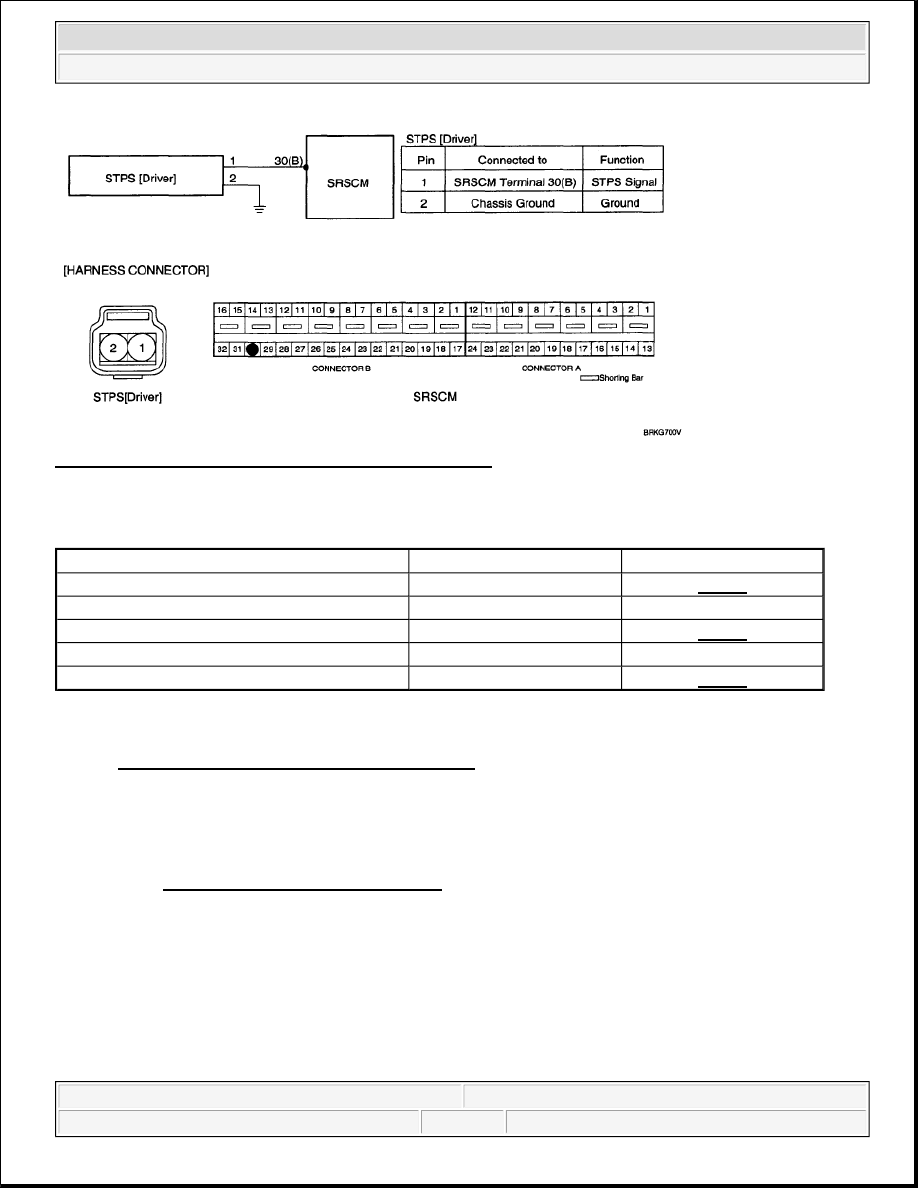

Fig. 50: Seat Track Position Sensor - Schematic Diagram

SPECIFICATION

SEAT TRACK POSITION SENSOR CURRENT SPECIFICATION

TERMINAL & CONNECTOR INSPECTION

Refer to TERMINAL & CONNECTOR INSPECTION.

INSPECTION PROCEDURE

1. PREPARATION

Refer to PREPARATION OF INSPECTION.

2. CHECK OPEN CIRCUIT

1. Disconnect the STPS connector.

2. Measure resistance between the terminal 1 of STPS harness connector and the terminal 30 of

SRSCM harness connector (B).

specification (resistance): below 1 ohms

STPS Status

Current (mA)

Related DTC

Open or Short to Battery

< 3.98

B1388

Forward

5-7



Defect

8.62-9.94

B1389

Rearward

12-17



Short or Short to Ground

> 20.83

B1387



2008 Kia Sedona EX

2008 RESTRAINTS Troubleshooting (Airbag) - Sedona



Microsoft



Monday, May 24, 2010 3:55:01 PM

Page 56

© 2006 Mitchell Repair Information Company, LLC.

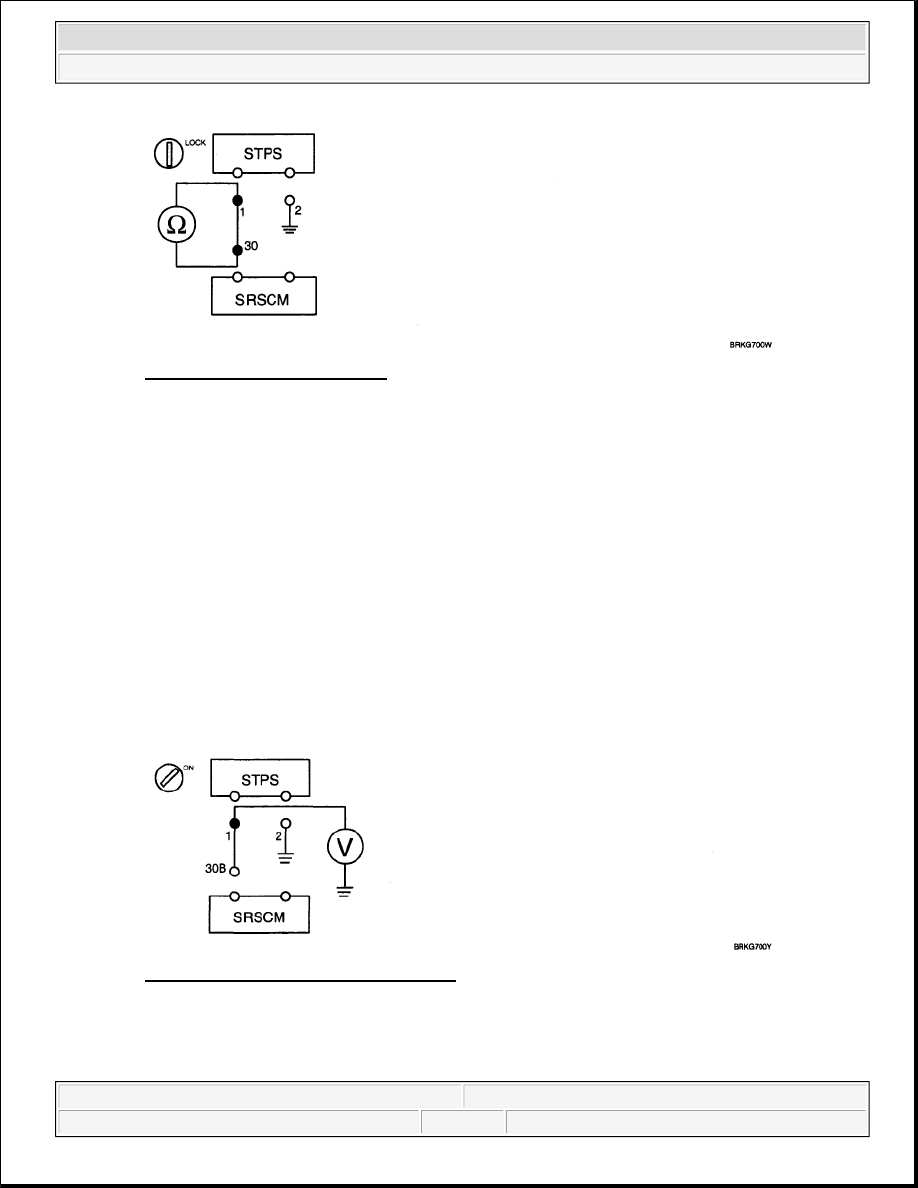

Fig. 51: Checking Open Circuit

3. Is the measured resistance within specification?

YES



Check short to ground.

NO



Repair the open circuit on wiring harness between the STPS and the SRSCM.

3. CHECK SHORT TO BATTERY LINE

1. Connect the battery negative cable to the battery.

2. Turn the ignition switch to ON.

3. Measure voltage between the terminal 1 of STPS harness connector and chassis ground.

specification (voltage): Approximately 0 V

Fig. 52: Checking Short To Battery Line

4. Is the measured voltage within specification?

YES



2008 Kia Sedona EX

2008 RESTRAINTS Troubleshooting (Airbag) - Sedona



Microsoft



Monday, May 24, 2010 3:55:01 PM

Page 57

© 2006 Mitchell Repair Information Company, LLC.



CHECK THE SEAT TRACK POSITION SENSOR (STPS).

NO



Repair the short to battery line circuit on wiring harness between the STPS and the SRSCM.

4. CHECK THE SEAT TRACK POSITION SENSOR (STPS)

1. Measure current between the terminal 1 of STPS and 30 of SRSCM.

Specification (current): 12-17 mA (Rearward status), 5-7 mA (Forward status)

2. Is the measured current within specification?

YES



Go to next stop.

NO



Replace the STPS.

5. CLEAR THE DTC AND CHECK THE VEHICLE AGAIN

Refer to CLEAR THE DTC AND CHECK THE VEHICLE AGAIN.

DTC B1389 SEAT TRACK POSITION SENSOR [DRIVER] DEFECT

DTC DESCRIPTION

The Seat Track Position Sensor (STPS) circuit consists of the SRSCM and STPS. The SRSCM sets above DTC
(s) if it detects the STPS fault. The "Seat Forward" status currently represents a seat position in which the
deployment of the second stage airbag is prohibited.

DTC DETECTING CONDITION

DTC DETECTING CONDITION

SCHEMATIC DIAGRAM

DTC

Condition

Probable cause

B1389



STPS Malfunction



SRSCM Malfunction



STPS



SRSCM
