DTC B1364 SEAT BELT PRETENSIONER [FRONT-DRIVER] CIRCUIT SHORT TO BATTERY;
DTC B1370 SEAT BELT PRETENSIONER [FRONT-PASSENGER] CIRCUIT SHORT TO BATTERY

DTC DESCRIPTION

The Seat Belt Pretensioner consists of the SRSCM and two Seat Belt Pretensioners (BPT). The SRSCM sets
above DTC (s) if it detects short to battery line on the BPT circuit.

DTC DETECTING CONDITION

DTC DETECTING CONDITION

SCHEMATIC DIAGRAM

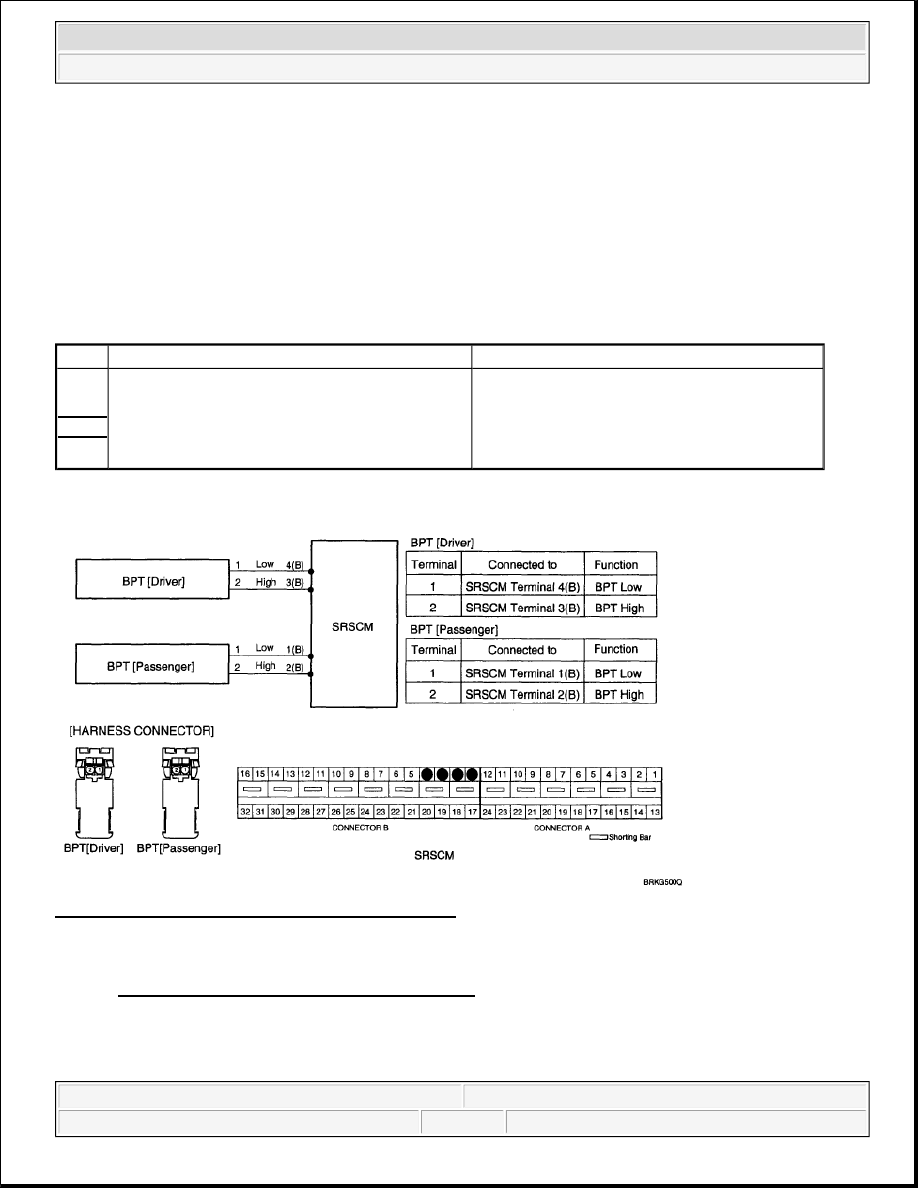

Fig. 38: Seat Belt Pretensioner - Schematic Diagram

TERMINAL & CONNECTOR INSPECTION

Refer to TERMINAL & CONNECTOR INSPECTION.

INSPECTION PROCEDURE

1. PREPARATION

DTC

Condition

Probable cause

B1364
B1370



Short to battery line between BPT and
SRSCM



Seat Belt Pretensioner (BPT) Malfunction



SRSCM Malfunction



Short to battery line circuit on wiring
harness



Seat Belt Pretensioner (BPT) squib



SRSCM



2008 Kia Sedona EX

2008 RESTRAINTS Troubleshooting (Airbag) - Sedona



Microsoft



Monday, May 24, 2010 3:55:01 PM

Page 43

© 2006 Mitchell Repair Information Company, LLC.

Refer to PREPARATION OF INSPECTION.

2. CHECK SHORT TO BATTERY LINE

1. Connect the battery negative cable to the battery.

2. Turn the ignition switch to ON.

3. Measure voltage between the terminal 2 of BPT harness connector and chassis ground.

Specification (voltage): Approximately 0 V

Fig. 39: Checking Short To Battery Line

4. Is the measured voltage within specification?

YES



Check the BPT Module.

NO



Repair the short to battery line circuit on wiring harness between the BPT and the SRSCM.

3. CHECK THE BPT MODULE

1. Replace the Belt Pretensioner (BPT) with a new one.



Refer to SEAT BELT PRETENSIONER .

2. Install the DAB module and connect the DAB connector.

3. Connect the connectors of the PAB, SAB, CAB, BPT, FIS and SIS.

4. Connect the SRSCM connector.

5. Connect the battery negative cable to the battery.

6. Connect a Hi-Scan (Pro) to the data link connector.

7. Turn the ignition switch to ON and check the vehicle again.

Does Hi-Scan (Pro) indicate any DTC related to Belt Pretensioner (BPT)?

YES



2008 Kia Sedona EX

2008 RESTRAINTS Troubleshooting (Airbag) - Sedona



Microsoft



Monday, May 24, 2010 3:55:01 PM

Page 44

© 2006 Mitchell Repair Information Company, LLC.



Go to next step.

NO



Replace BPT module.

4. CLEAR THE DTC AND CHECK THE VEHICLE AGAIN

Refer to CLEAR THE DTC AND CHECK THE VEHICLE AGAIN.

DTC B1378 SIDE AIRBAG [FRONT-DRIVER] RESISTANCE TOO HIGH; DTC B1379 SIDE
AIRBAG [FRONT-DRIVER] RESISTANCE TOO LOW; DTC B1382 SIDE AIRBAG [FRONT-
PASSENGER] RESISTANCE TOO HIGH; DTC B1383 SIDE AIRBAG [FRONT-PASSENGER]
RESISTANCE TOO LOW

DTC DESCRIPTION

The Side Airbag circuit consists of the SRSCM and two Side Airbags (SAB). The SRSCM sets above DTC (s)
if it detects that the resistance of SAB squib is too high or low.

DTC DETECTING CONDITION

DTC DETECTING CONDITION

SCHEMATIC DIAGRAM

DTC

Condition

Probable cause

B1378
B1379
B1382
B1383



Too high or low resistance between SAB high (+)
and SAB low (-)



Side Airbag (SAB) Malfunction



SRSCM Malfunction



Open or short circuit on wiring
harness



Side Airbag (SAB) squib



SRSCM



2008 Kia Sedona EX

2008 RESTRAINTS Troubleshooting (Airbag) - Sedona



Microsoft



Monday, May 24, 2010 3:55:01 PM

Page 45

© 2006 Mitchell Repair Information Company, LLC.

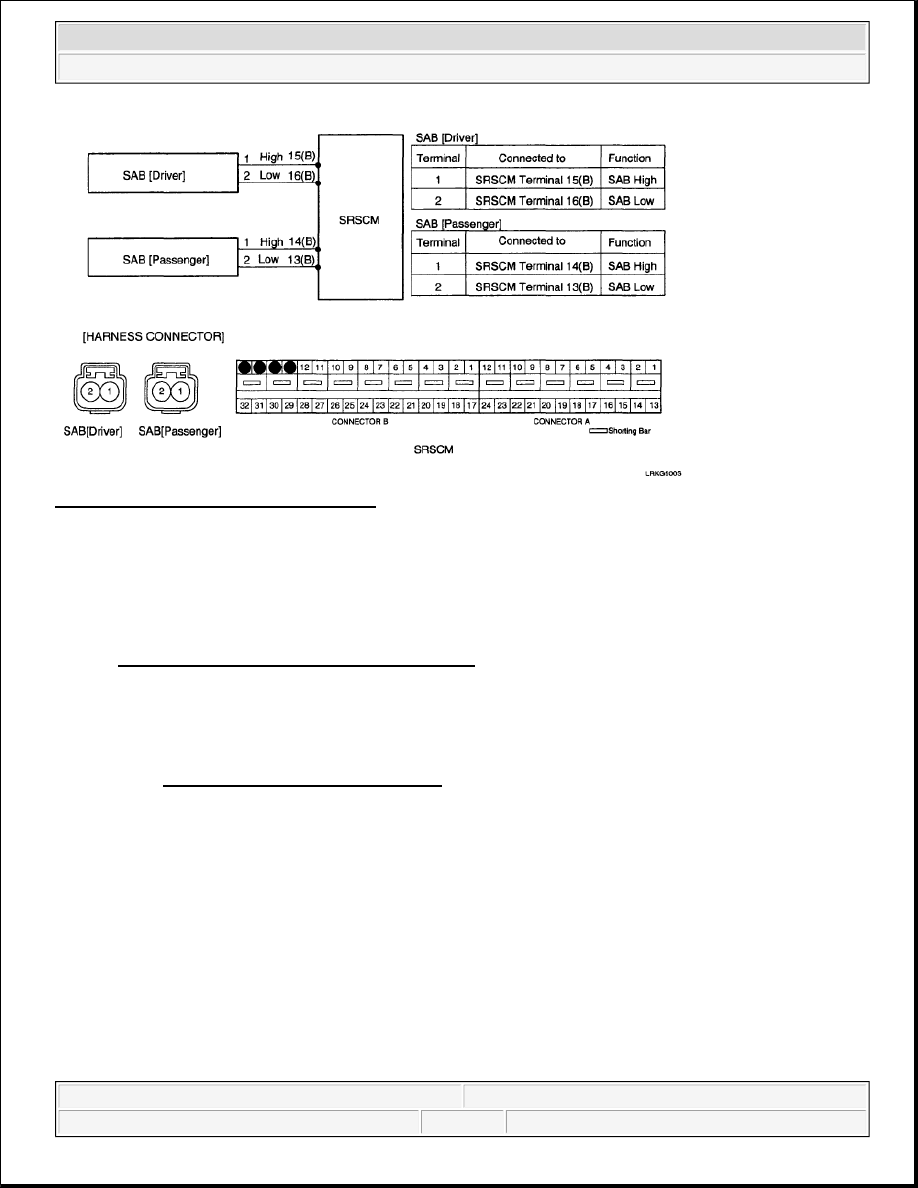

Fig. 40: Side Airbag - Schematic Diagram

SPECIFICATION

SAB resistance: 1.6-4.7 ohms

TERMINAL & CONNECTOR INSPECTION

Refer to TERMINAL & CONNECTOR INSPECTION.

INSPECTION PROCEDURE

1. PREPARATION

Refer to PREPARATION OF INSPECTION.

2. CHECK SAB RESISTANCE

1. Connect the Dummy and the Dummy Adapter on SAB harness connector.

2. Measure resistance between the terminal 15 (14) and 16 (13) of SRSCM harness connector (B).

Specification (resistance): 1.6-4.7 ohms

CAUTION: Never attempt to measure the circuit resistance of the airbag module

(squib) even if you are using the specified tester.
