INSPECTION PROCEDURE

1. PREPARATION

Refer to PREPARATION OF INSPECTION.

2. CHECK FIS CIRCUIT

1. Measure resistance between the terminal 1 of FIS harness connector and the terminal A 23 (21) of

SRSCM harness connector.

2. Measure resistance between the terminal 2 of FIS harness connector and the terminal A 22 (20) of

SRSCM harness connector.

Specification (resistance): below 1 ohms

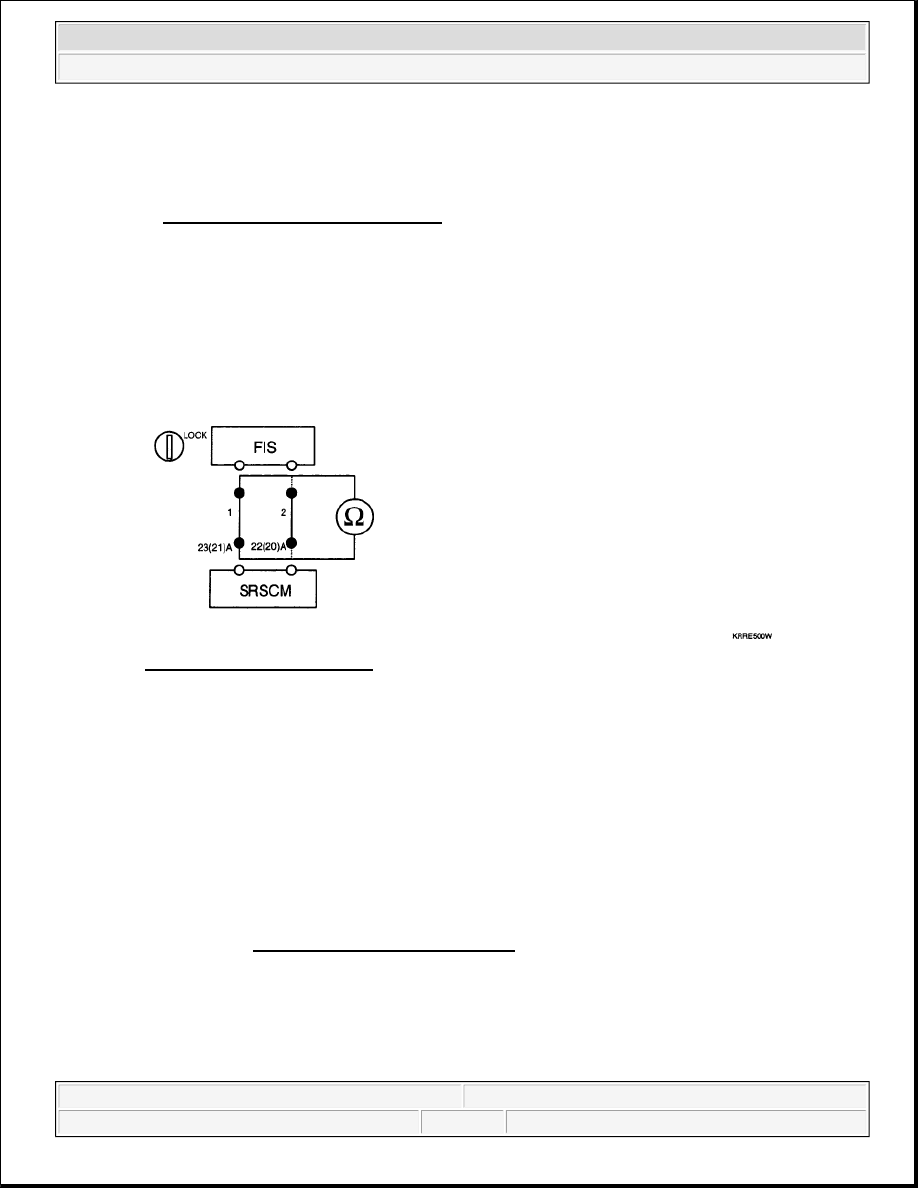

Fig. 15: Checking FIS Circuit

3. Is the measured resistance within specification?

YES



Check Front Impact Sensor.

NO



Repair or replace the wiring harness between the FIS and the SRSCM.

3. CHECK FRONT IMPACT SENSOR

1. Replace the front impact sensor (FIS) with a new one.



Refer to FRONT IMPACT SENSOR (FIS) .

2. Install the DAB module and connect the DAB connector.

3. Connect the connectors of the PAB, SAB, CAB, BPT, FIS and SIS.

4. Connect the SRSCM connector.

5. Connect the battery negative cable to the battery.

6. Connect a Hi-Scan (Pro) to the data link connector.



2008 Kia Sedona EX

2008 RESTRAINTS Troubleshooting (Airbag) - Sedona



Microsoft



Monday, May 24, 2010 3:55:01 PM

Page 19

© 2006 Mitchell Repair Information Company, LLC.

7. Turn the ignition switch to ON and check the vehicle again.

Does Hi-Scan (Pro) indicate any DTC related to FIS?

YES



Go to next step.

NO



Replace the Front Impact Sensor (FIS).

4. CLEAR THE DTC AND CHECK THE VEHICLE AGAIN

Refer to CLEAR THE DTC AND CHECK THE VEHICLE AGAIN.

DTC B1346 (1ST STAGE) DRIVER AIRBAG RESISTANCE TOO HIGH; DTC B1347 (1ST STAGE)
DRIVER AIRBAG RESISTANCE TOO LOW

DTC DESCRIPTION

The Driver Airbag circuit consists of the SRSCM, Clockspring and the Driver Airbag (DAB) which has two
squib circuits. The SRSCM sets above DTC (s) if it detects that the resistance of DAB squib is too high or low.

DTC DETECTING CONDITION

DTC DETECTING CONDITION

SCHEMATIC DIAGRAM

DTC

Condition

Probable cause

B1346
B1347



Too high or low resistance between DAB high (+)
and DAB low (-)



Driver Airbag (DAB) Malfunction



Clockspring Malfunction



SRSCM Malfunction



Open or short circuit on wiring
harness



Driver Airbag (DAB) squib



Clockspring



SRSCM



2008 Kia Sedona EX

2008 RESTRAINTS Troubleshooting (Airbag) - Sedona



Microsoft



Monday, May 24, 2010 3:55:01 PM

Page 20

© 2006 Mitchell Repair Information Company, LLC.

Fig. 16: Driver Airbag - Schematic Diagram

SPECIFICATION

DAB resistance: 1.6-4.7 ohms

TERMINAL & CONNECTOR INSPECTION

Refer to TERMINAL & CONNECTOR INSPECTION.

INSPECTION PROCEDURE

1. PREPARATION

Refer to PREPARATION OF INSPECTION.

2. CHECK DAB RESISTANCE

1. Connect the Dummy and the Dummy Adapter on DAB harness connector.

2. Measure resistance between the terminal 5 and 6 of SRSCM harness connector (A).

Specification (resistance): 1.6-4.7 ohms

CAUTION: Never attempt to measure the circuit resistance of the airbag module

(squib) even if you are using the specified tester.



2008 Kia Sedona EX

2008 RESTRAINTS Troubleshooting (Airbag) - Sedona



Microsoft



Monday, May 24, 2010 3:55:01 PM

Page 21

© 2006 Mitchell Repair Information Company, LLC.

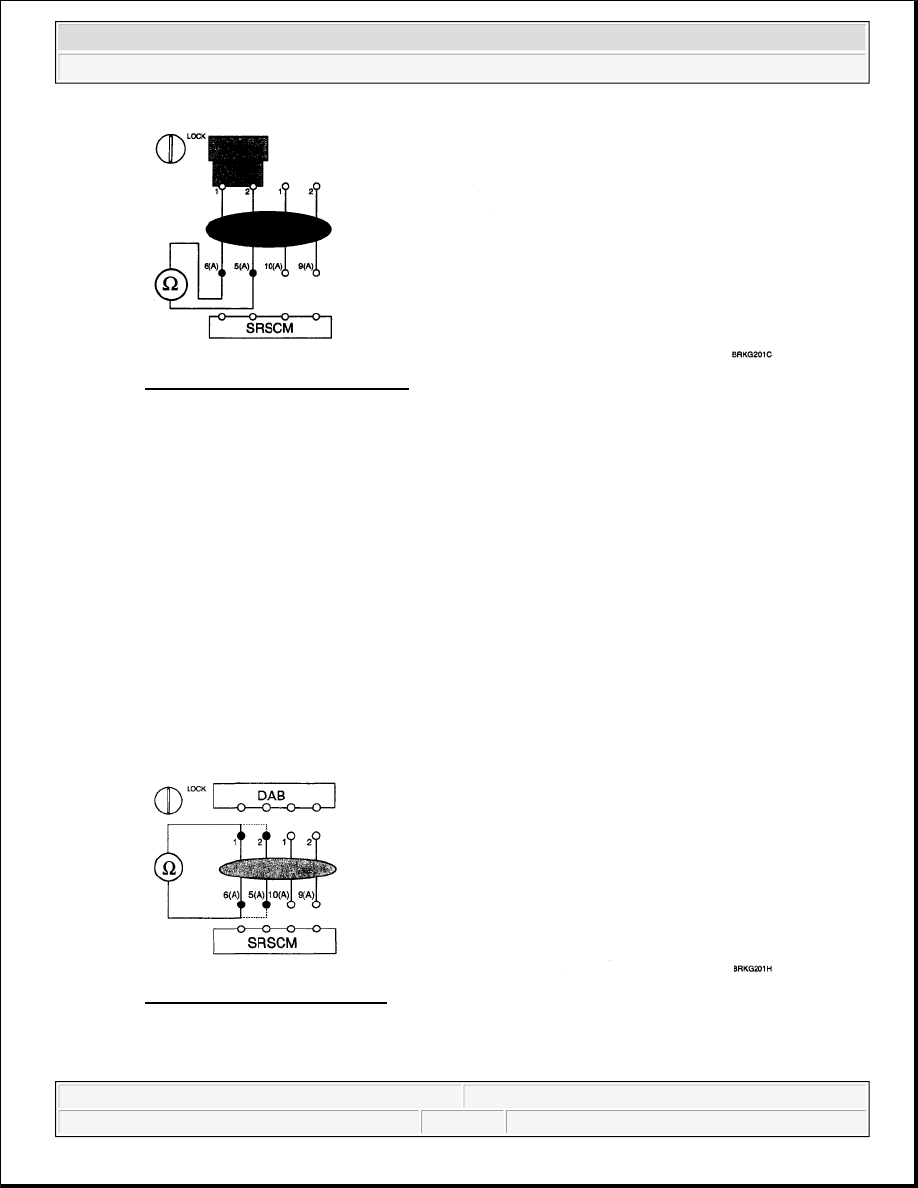

Fig. 17: Checking DAB Resistance

3. Is the measured resistance within specification?

NO



Check open circuit.

YES



Replace the Driver Airbag (DAB) module.

3. CHECK OPEN CIRCUIT

1. Measure resistance between the terminal 1 of DAB harness connector and the terminal 6 of

SRSCM harness connector (A).

2. Measure resistance between the terminal 2 of DAB harness connector and the terminal 5 of

SRSCM harness connector (A).

Specification (resistance): below 1 ohms

Fig. 18: Checking Open Circuit

3. Is the measured resistance within specification?

YES
