PREPARATION OF INSPECTION
1. Turn the ignition switch to LOCK.
2. Disconnect the battery negative cable from the battery and wait for at least 3 minutes.
3. Remove the DAB module and disconnect the DAB connector.
4. Disconnect the connectors of the PAB, SAB, CAB, BPT, FIS and SIS.
5. Disconnect the SRSCM connector.
CLEAR THE DTC AND CHECK THE VEHICLE AGAIN
1. Install the DAB module and connect the DAB connector.
2. Connect the connector of the PAB, SAB, CAB, BPT, FIS and SIS.
3. Connect the SRSCM connector.
4. Connect the battery negative cable to the battery.
5. Connect a Hi-Scan (Pro) to the data link connector.
6. Turn the ignition switch to ON.
7. Clear the DTC stored in the SRSCM memory with the Hi-Scan (Pro)
8. Turn the ignition switch to LOCK and wait for at least 30 seconds.
9. Turn the ignition switch to ON and wait for at least 30 seconds.
10. Check the vehicle again with the Hi-Scan (Pro).
Does the above DTC (s) go off?
YES
Problem is intermittent or was repaired and SRSCM memory was not cleared.
NO
Replace the SRSCM with a new one and then check the vehicle again. At this time, if the vehicle
normally operates with a new one, the fault may be the SRSCM. Replace the SRSCM.

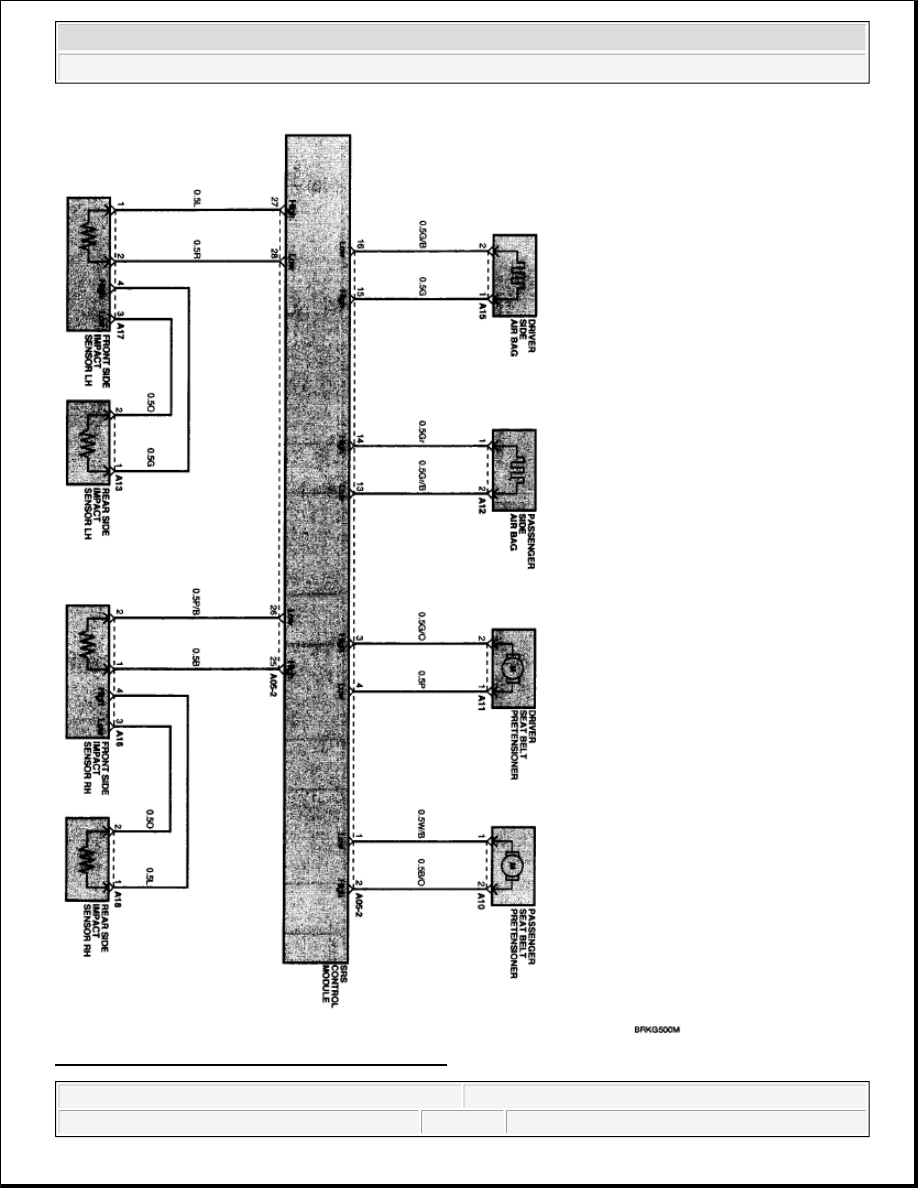

CIRCUIT DIAGRAM
