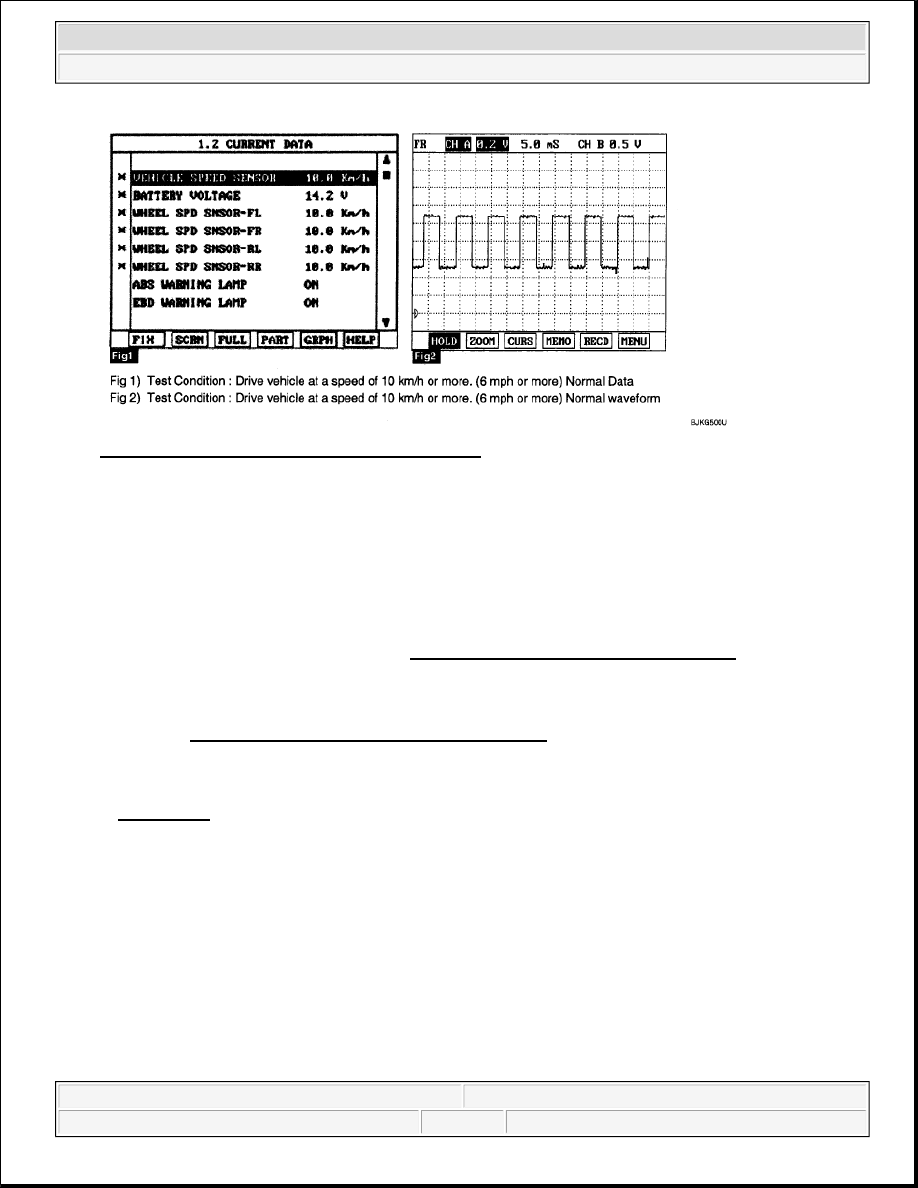

Fig. 34: Scan Tool Display - Vehicle Speed Sensor
Courtesy of KIA MOTORS AMERICA, INC.

5. Is parameter displayed within specifications?

YES



Fault is intermittent caused by poor connection in wheel speed sensor harness and/or HECU's
connector or was repaired and HECU memory was not cleared. Thoroughly check connectors for
looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or
replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR" procedure.

NO



Go to TERMINAL & CONNECTOR INSPECTION procedure.

TERMINAL & CONNECTOR INSPECTION

Refer to DTC C1102.

POWER SUPPLY CIRCUIT INSPECTION

1. Ignition "ON".

2. Measure voltage between terminal (1) of the wheel speed sensor harness connector and chassis ground.

Specification: Approx. B+



2008 Kia Sedona

2008 BRAKES ABS (Anti-Lock Brake System) - Sedona



Microsoft



Saturday, May 22, 2010 6:52:42 PM

Page 45

© 2006 Mitchell Repair Information Company, LLC.

Fig. 35: Measuring Voltage Between Terminal Wheel Speed Sensor Harness Connector And
Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

3. Is the measured voltage within specifications?

YES



Go to "SIGNAL CIRCUIT INSPECTION" procedure.

NO



Check for open or short to GND in wheel speed sensor harness between terminal (1) of the wheel
speed sensor harness connector and terminal of the HECU harness connector. Repair as necessary
and then go to "VERIFICATION OF VEHICLE REPAIR" procedure.



If OK, go to "COMPONENT INSPECTION" procedure.

HECU HARNESS CONNECTOR CHART

SIGNAL CIRCUIT INSPECTION

1. Lift the vehicle.

2. Ignition "ON".

3. Turn the wheel with hand.

4. Measure waveform between terminal of the HECU harness connector and chassis ground.

Specification: High: 1.4 V, Low: 0.7 V

DTC

LOCATION

HECU harness connector (Voltage)

ABS

ESC

DTC C1200

Front Left

16

26

DTC C1203

Front Right

9

9

DTC C1206

Rear Left

6

6

DTC C1209

Rear Right

8

8



2008 Kia Sedona

2008 BRAKES ABS (Anti-Lock Brake System) - Sedona



Microsoft



Saturday, May 22, 2010 6:52:42 PM

Page 46

© 2006 Mitchell Repair Information Company, LLC.

Fig. 36: Measuring Waveform Between Terminal Of HECU Harness Connector And Chassis
Ground
Courtesy of KIA MOTORS AMERICA, INC.

HECU HARNESS CONNECTOR CHART

5. Is the measured waveform within specifications?

YES



Go to "COMPONENT INSPECTION" procedure.

NO



Check for open or short to GND in wheel speed sensor harness between terminal (2) of the wheel
speed sensor harness connector and terminal of the HECU harness connector. Repair as necessary
and then go to "VERIFICATION OF VEHICLE REPAIR" procedure.

If OK, substitute with a known-good Wheel speed sensor and check for proper operation. If
problem is corrected, replace Wheel speed sensor and then go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

COMPONENT INSPECTION

Refer to DTC C1101.

DTC

LOCATION

HECU harness connector

(Signal)

ABS

ESC

DTC C1200

Front Left

5

5

DTC C1203

Front Right

10

10

DTC C1206

Rear Left

17

27

DTC C1209

Rear Right

19

29



2008 Kia Sedona

2008 BRAKES ABS (Anti-Lock Brake System) - Sedona



Microsoft



Saturday, May 22, 2010 6:52:42 PM

Page 47

© 2006 Mitchell Repair Information Company, LLC.

VERIFICATION OF VEHICLE REPAIR

After a repair, it is essential to verify that the fault has been corrected.

1. Connect scan tool and select "Diagnostic Trouble Codes (DTCs)" mode

2. Using a scan tool, Clear DTC.

3. Operate the vehicle within DTC Detecting Condition in General Information. Start and drive vehicle in

gear and maintain vehicle speed at or above 10km/h (6 mph).

4. Are any DTCs present?

YES



Go to the applicable troubleshooting procedure.

NO



System performing to specification at this time.

DTC C1201 FL WHEEL SENSOR-RANGE/PERFORMANCE; DTC C1204 FR WHEEL SENSOR-
RANGE/PERFORMANCE; DTC C1207 RL WHEEL SENSOR-RANGE/PERFORMANCE; DTC
C1210 RR WHEEL SENSOR-RANGE/PERFORMANCE

COMPONENT LOCATION

Refer to DTC C1200.

GENERAL DESCRIPTION

Refer to DTC C1200.

DTC DESCRIPTION

The ABS ECU monitors the wheel speed sensor signal continuously. This code is set when an abnormal signal
due to air gap problem or an abnormal speed change ratio are detected at the vehicle speed between 10 km/h to
80 km/h. Warning lamp is turned OFF unless additional faults are detected when the IG KEY is turned ON
again, and wheel speed is more than 12 Km/h.

DTC DETECTING CONDITION

DTC DETECTING CONDITION CHART

Item

Detecting Condition

Possible cause

DTC strategy



Signal monitoring

Monitoring Period



The monitoring is
active from 10 km/h to
80 km/h and if no
