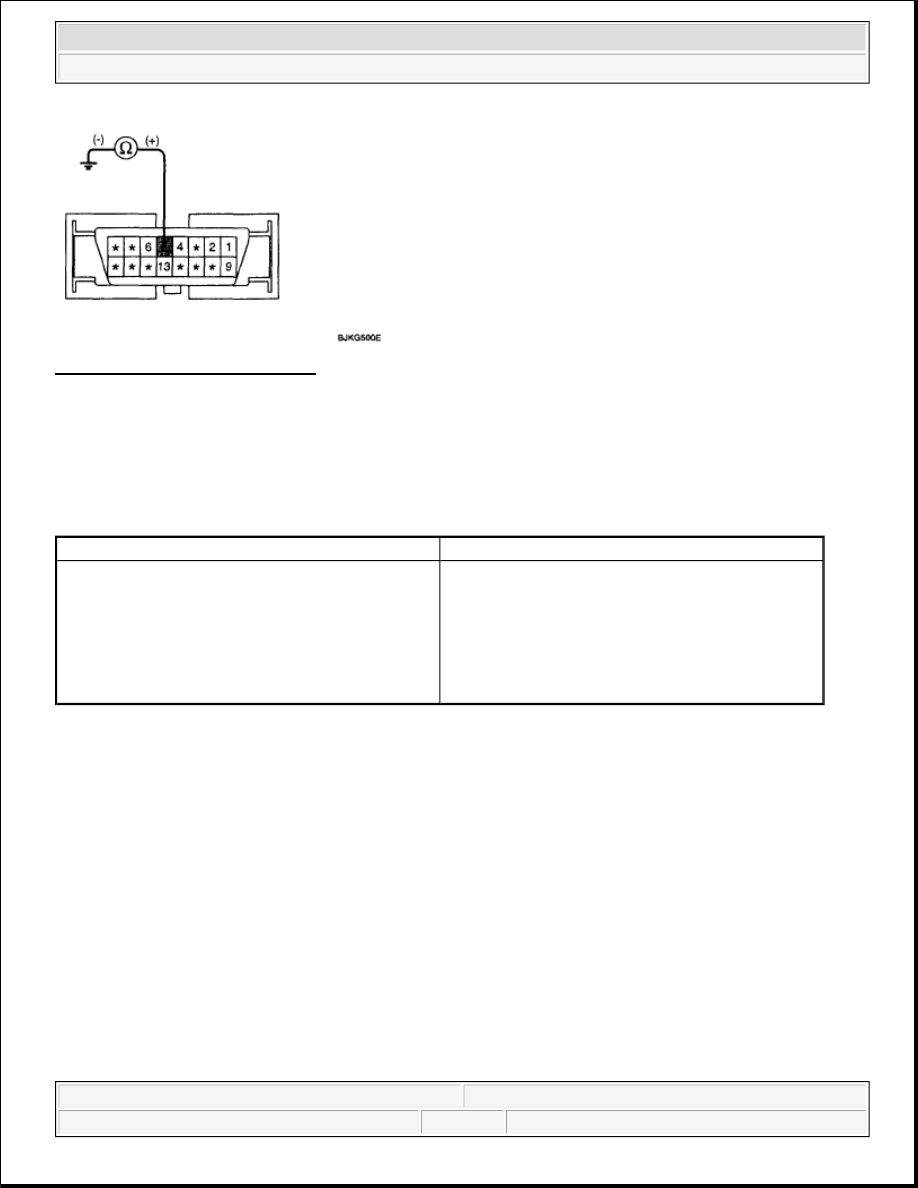

Fig. 19: Checking Ground Circuit
Courtesy of KIA MOTORS AMERICA, INC.

WHEN IGNITION KEY IS TURNED ON (ENGINE OFF), THE ABS WARNING LAMP DOES NOT
LIGHT UP

DETECTING CONDITION

DETECTING CONDITION CHART

INSPECTION PROCEDURES

PROBLEM VERIFICATION

Disconnect the connector from the ABS control module and turn the ignition switch ON.

Does the ABS warning lamp light up?

YES



It is normal. Recheck the ABS control module.

NO



Check the power source for the ABS warning lamp.

CHECK THE POWER SOURCE FOR THE ABS WARNING LAMP

Trouble Symptoms

Possible Cause

When current flows in the HECU the ABS warning
lamp turns from ON to OFF as the initial check.
Therefore if the lamp does not light up, the cause
may be an open in the lamp power supply circuit, a
blown bulb, an open in the both circuits between the
ABS warning lamp and the HECU, and the
inoperative HECU.



Inoperative ABS warning lamp bulb



Blown No.2 fuse (10A) in the engine
compartment junction block



Inoperative ABS warning lamp module



Inoperative HECU



2008 Kia Sedona

2008 BRAKES ABS (Anti-Lock Brake System) - Sedona



Microsoft



Saturday, May 22, 2010 6:52:41 PM

Page 25

© 2006 Mitchell Repair Information Company, LLC.

1. Disconnect the instrument cluster connector and turn the ignition switch ON.

2. Measure the voltage between terminal 8 of the cluster harness side connector and body ground.

Specification: approximately B+

Is voltage within specification?

YES



Repair bulb or instrument cluster assembly.

NO



Check for blown fuse.

Fig. 20: Measuring Voltage Between Terminal Cluster Harness Side Connector And Body Ground
Courtesy of KIA MOTORS AMERICA, INC.

CHECK FOR BLOWN FUSE

Check continuity of fuse (10A) from the engine compartment junction block.

Is there continuity?

YES



Repair an open in the wire between ABS fuse and 1 of cluster connector.

NO



Replace the blown fuse.

EVEN AFTER THE ENGINE IS STARTED, THE ABS WARNING LAMP REMAINS ON



2008 Kia Sedona

2008 BRAKES ABS (Anti-Lock Brake System) - Sedona



Microsoft



Saturday, May 22, 2010 6:52:41 PM

Page 26

© 2006 Mitchell Repair Information Company, LLC.

DETECTING CONDITION

DETECTING CONDITION CHART

INSPECTION PROCEDURES

CHECK DTC OUTPUT.

1. Connect the Scan Tool (pro) to the 16P data link connector located behind the driver's side kick panel.

2. Check the DTC output using Scan Tool (pro).

Is DTC output?

YES



Repair circuit indicated by code output.

NO



Check instrument cluster.

CHECK INSTRUMENT CLUSTER

Disconnect the cluster connector and turn the ignition switch ON.

Does the ABS warning lamp remains ON?

YES



Replace the instrument cluster.

NO



Check for open the wire.

CHECK FOR OPEN IN THE WIRE

Check for continuity in the wire between cluster and ABS control module.

Trouble Symptoms

Possible Cause

If the HECU detects trouble, it lights the ABS
warning lamp while at the same time prohibiting
ABS control. At this time, the HECU records a DTC
in memory. Even though the normal code is output,
the ABS warning lamp remains ON, then the cause
may be probably an open or short in the ABS
warning lamp circuit.



An open in the wire



Inoperative instrument cluster assembly



Inoperative ABS warning lamp module



Inoperative HECU



2008 Kia Sedona

2008 BRAKES ABS (Anti-Lock Brake System) - Sedona



Microsoft



Saturday, May 22, 2010 6:52:41 PM

Page 27

© 2006 Mitchell Repair Information Company, LLC.

Is there continuity?

YES



Replace the ABS control module and recheck.

NO



Repair an open in the wire between cluster and ABS control module.

BLEEDING OF BRAKE SYSTEM

This procedure should be followed to ensure adequate bleeding of air and filling of the ABS unit, brake lines
and master cylinder with brake fluid.

1. Remove the reservoir cap and fill the brake reservoir with brake fluid.

2. Connect a clear plastic tube to the brake caliper bleeder plug and insert the other end of the tube into a

half filled clear plastic bottle.

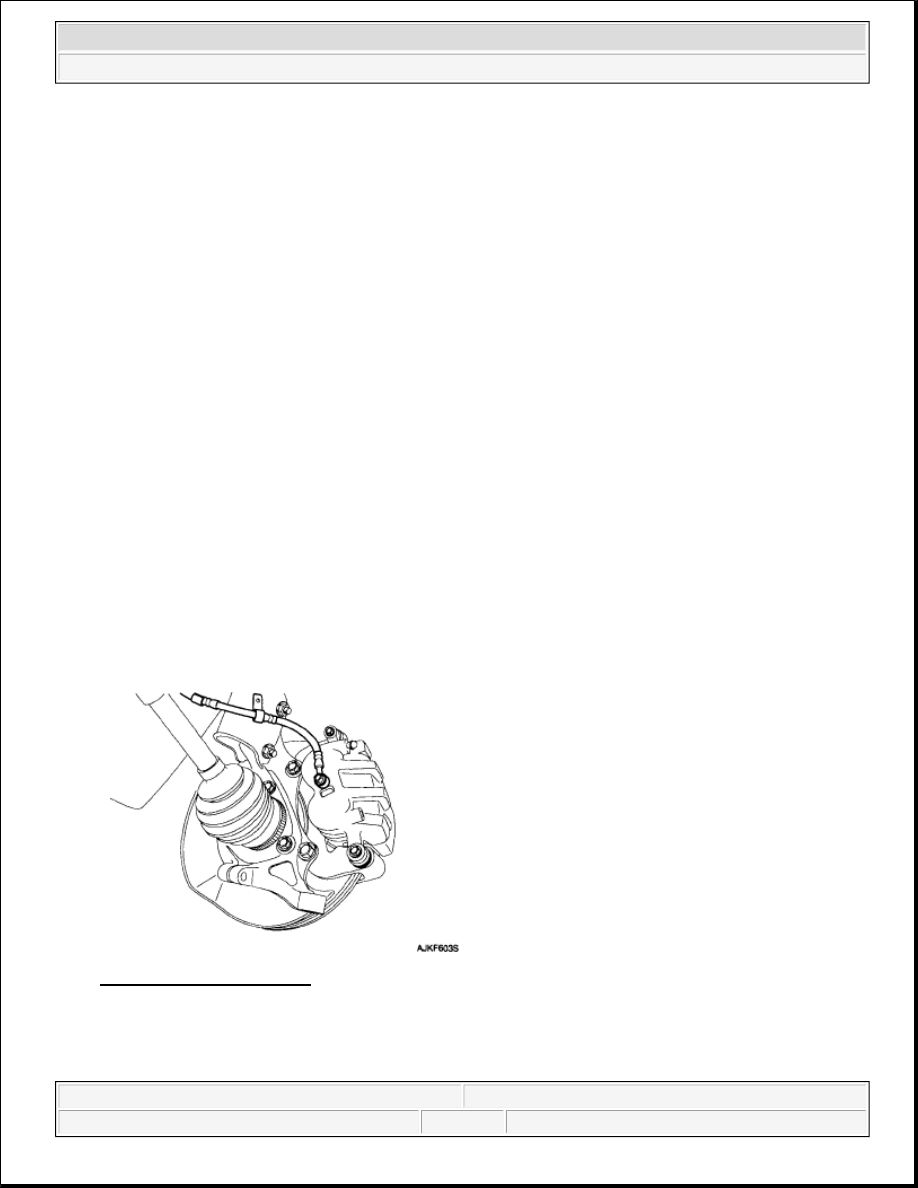

Fig. 21: Identifying Caliper
Courtesy of KIA MOTORS AMERICA, INC.

3. Connect the scan tool to the data link connector located underneath the dash panel.

CAUTION: If there is any brake fluid on any painted surface, wash it off

immediately.

NOTE:

When pressure bleeding, do not depress the brake pedal.
Recommended fluid....... DOT3 or DOT4
