Kia Carens. Manual - part 307

PIN.
● Check if ICU's status and condition are
"Learnt" and "Unlocked".

No

Go to step 2.

2

● Check if connection and wire harness
between ICU and ECU is normal.

Yes

Go to step 3.

No

Repair or replace wire harness.

3

● Perform "Normal Coding" with original
correct PIN.
● Turn the ignition switch to OFF and ON.
● Check if "IMMO" indicator illuminates for
approximately two seconds and goes out.

Yes

Go to step 4.

No

Recheck system or check if PIN entry is
correct.

4

● Perform "ECM CHECK" with original correct
PIN.
● Check if ECU condition is "Unlocked"

Yes

Check Starting System.

No

Go to step 5.

5

● Recheck if connection and wire harness
between ICU and ECU are normal.

Yes

Go to step 6.

No

Repair or replace wire harness.

6

● Perfrom "Neutrailzation" and Normal Coding"
with original correct PIN.
● Turn the ignition switch to START.
● Check if engine starts.

Yes

System is OK.

No

Go to step 7.

7

● Before replacing ECU, must remember and
recorded the original correct PIN.
● Perform "Neutralization" with the original
correct PIN and turn the ignition switch to OFF.
● Remove ECU and store the ECU with the tag
recorded serial inspection.
● Install new virgin or neutralized ECU.
● Perform "Normal Coding" with the original
correct PIN.
● Turn the ignition switch to START.
● Check if engine starts.

Yes

System is OK.

No

Perform "Neutralization" with the original
correct PIN, remove new ECU, and install
original ECU.
Perform "Normal coding" with the original
correct PIN.
Recheck system.

Procedure 4

Perform "ECM CHECK" and "VIM CHECK" with Kia Power Scan Tool. The ECU and ICU installed in vehicle must be in
Learnt Status because they were first enconded by Kis Motor.

Step

Inspection

Action

1

● Perform "Neutralization" and "Normal
Coding" with the original correct PIN.
● Turn the ignition switch to START.
● Check if engine starts.

Yes

System is OK

No

Go to step 2.

2

● Turn the ignition switch to OFF and
disconnect antenna coils connector from ICU.
● Turn the ignition switch to ON and perform
"Limphome" with the original correct PIN
through RR DEF SW.
● Observe if "IMMO" indicator blinks from 2Hz
to 0.5Hz.

Yes

Go to step 3.

No

Go to step 6.

3

● Turn the ignition switch to START.
● Check if engine starts.

Yes

System is OK

No

Go to step 4.

4

● Check if connection and wire harness
between ICU and ECU is normal.

Yes

Go to step 5.

No

Repair or replace wire harness.

5

● Before replacing ECU, must remember and
recorded the original correct PIN.
● Perform "Neutralization" with the original
correct PIN and turn the ignition switch to OFF.
● Remove ECU and store the ECU with the tag
recorded serial inspection.
● Install new virgin or neutrailzed ECU.
● Perform "Normal Coding" with the original
correct PIN.
● Perform "Limphome" with the original correct
PIN and turn the ignition switch to START.
Check if engine starts.

Yes

System is OK

No

Go to step 6.

6

● Before replacing ICU, must remember and
recorded the original correct PIN.
● Perform "Neutralization" with the original
correct PIN and turn the ignition switch to OFF.
● Removal ICU and store the ICU with the tag
recorded a serial inspection.
● Install new virgin or neutralized ICU.
● Perform "Normal Coding" with the original
correct PIN.
● Perform "Limphome" and turn the ignition
switch to START.
● Check if engine starts.

Yes

System is OK

No

Go to step 7.

7

● Check if connection and wire harness
between ICU and ECU is normal.

Yes

Go to step 8.

No

Repair or replace wire harness.

8

● Perform "VIM CHECK" and "ECM CHECK"
with the original correct PIN.
● Check if ICU and ECU status is "Unlocked"

Yes

Check starting system.

No

Perform "Neutralization" with the original
correct PIN, remove new ECU and ICU, and
install original ECU and ICU.
Perform "Normal coding" with the original
correct PIN. Recheck system.

Limphome (override) procedure

This procedure allows the unlocking of the ICU by entering the PIN via the RR DEF SW, in case the transponder code
cannot be read or is unknown. 200ms after ignition-ON, a valid transponder code must have been received, otherwise the
ICU will remain "Locked" and the lamp will start blinking at 2Hz. This can happen through a malfunction of the
transponder, the reading device or an unknown transponder code.
The following grid indicates weather the passage into override procedure is possible according to the status of the ICU:

ICU Status

Is override procedure possible?

Learnt

Yes

Neutralized

Yes

Virgin

No

The PIN has to be entered using the following procedure:

1. Turn the ignition switch to ON. The "IMMO" indicator will blink at 2Hz (duty cycle ON/OFF=1).

2. Press the RR DEF SW and keep the switch pressed. Then, the "IMMO" indicator will blink at 0.6Hz (duty cycle

ON/OFF=0.2) after approximately 1.5 seconds.

3. Release RR DEF SW when the "IMMO" indicator blinks the same times as the number of PIN's (so-called passcode) first

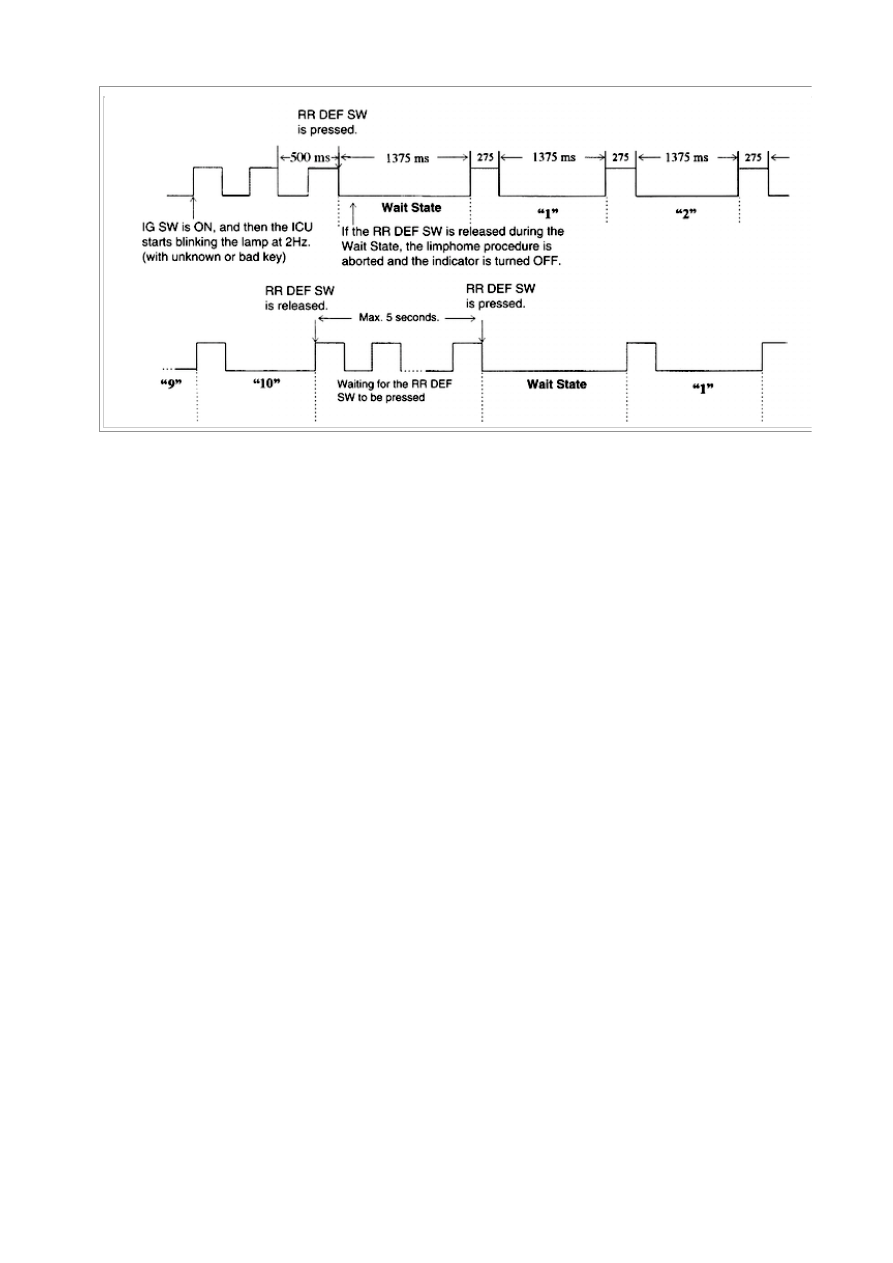

digit. The following figure shows signal of IMMO indicator.

A. If the RR DEF SW is released in the following position;

"1" : the digit entered is one,
"2" : the digit entered is two,
...
"9" : the digit entered is nine,
"10" : the digit entered is zero.

B. If the RR DEF SW is not released after tenth flash the indicator goes OFF and exit limphome procedure.

4. Press the RR DEF SW within approximately five seconds.

Then, the "IMMO" indicator will blink at 0.6Hz (duty cycle ON/OFF=0.2) after approximately 1.5 seconds. If the RR
DEF SWis not pressed within this time-out, the limphome procedure is aborted and the lamp is turned OFF.

5. Replace step and step 4 for entering the rest of the PIN's digits.

A. If the PIN entered correspond to the PIN of ICU, the "IMMO" indicator starts blinking at 0.5Hz (duty cycle

ON/OFF=7) andICU is unlocked and starting is allowed during approximately 20 seconds.

B. If the PIN entry is incorrect, the "IMMO" indicator is turned OFF and starting is not allowed. Repeat limphome

procedure.

6. Start the engine.

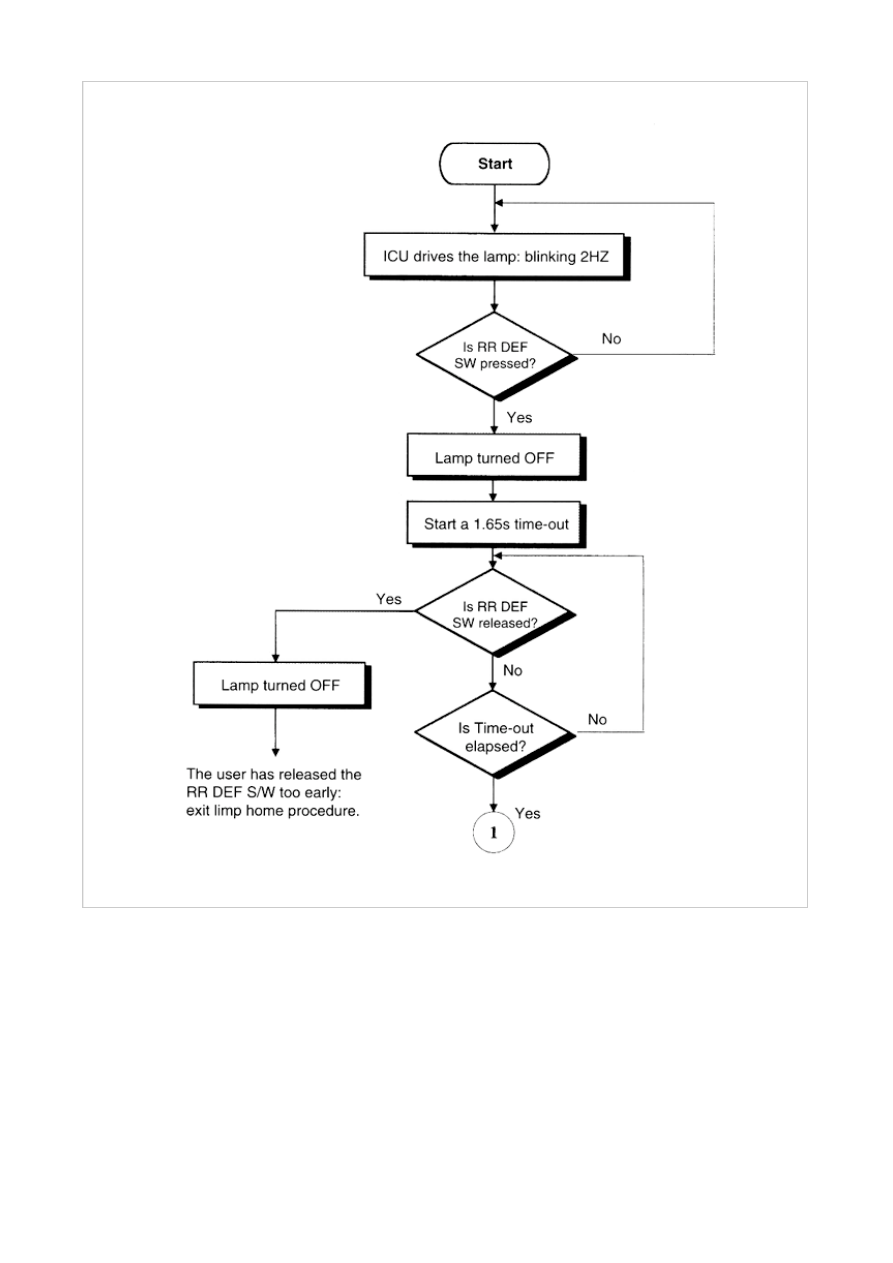

Use the following procedure for only detail reference.
