Kia Carens. Manual - part 295

and terminal B(B) of RH front fog lamp
E-08 and ground.
Is test light ON?

No

Check for poor connection at ground. If
OK, repair open in the wire "B" or replace.

Body Electrical System

Lighting System - Rear Fog Lamps

Body Electrical System

  2001 > 1.8L DOHC >

Headlights leveling device, rear fog lamps

  2001 > 1.8L DOHC >

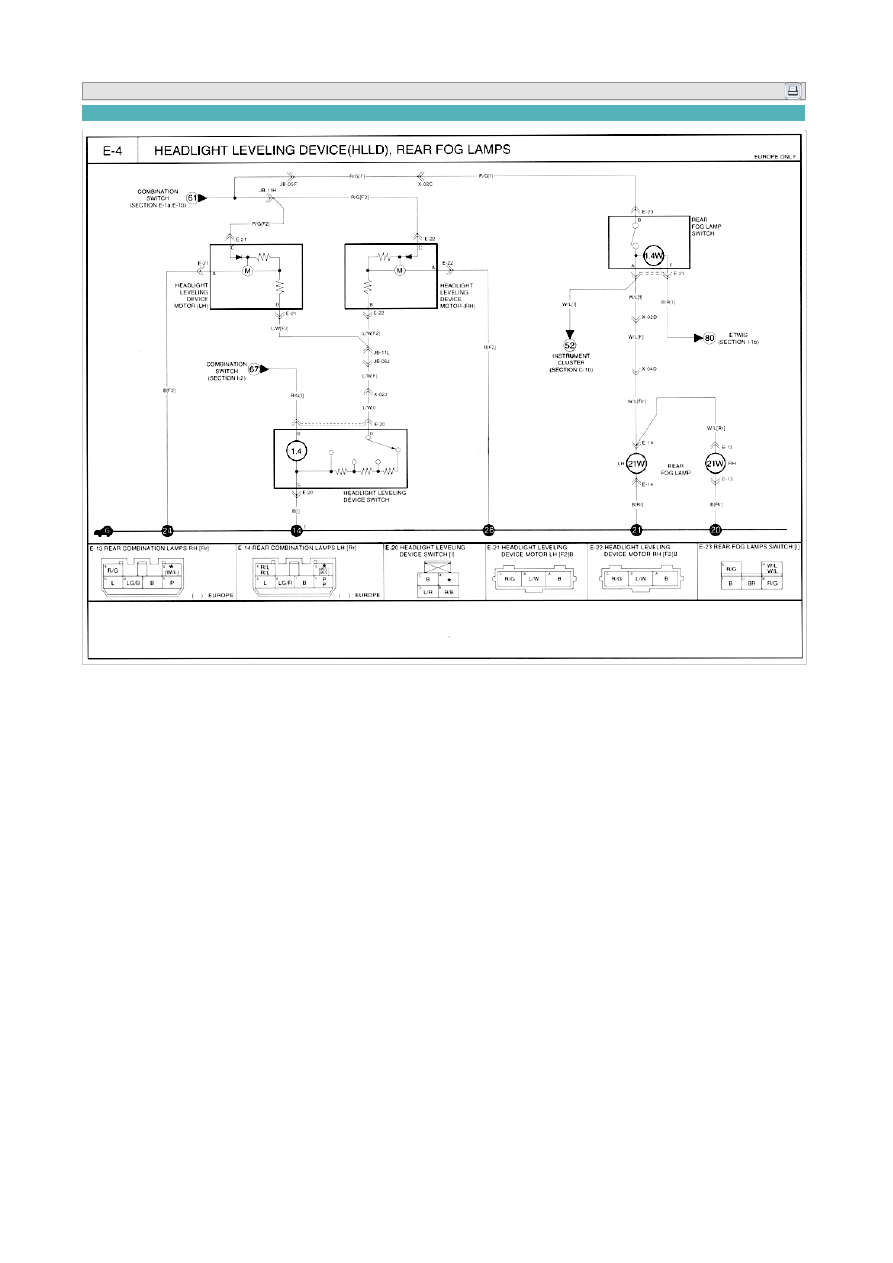

Circuit operation

Rear fog lights (With airbag)<BR>

In case that airbag system is equipped on vehicle, When the headlight switch is turned to "HEAD" position the
one side coil of the HEADLIGHT relay is grounded through light switch (the other side is powered through
"HEAD" fuse).
When the relay is energized, the normally open contacts of the HEADLIGHT relay close, allowing battery
voltage to be applied to the one side of the rear fog lamp switch through "HEAD (25A)" fuse, HEADLIGHT
relay, "RR FOG (10A)" fuse, and R/L wire.
With closed the rear fog lamp switch, battery voltage is applied to the RH and LH rear fog lamp through the
switch and W/L wire. The lamps illuminate.
When the headlight switch is turned to the "OFF" position, ground is removed to one side if the HEADLIGHT
relay coil, de-energizing the relay and turning off the rear fog lamps.
In case that airbag system is not equipped on vehicle, when the headlight switch is turned to "HEAD" position
battery voltage is directly applied from the headlight switch to RH and LH rear fog lamp through "RR
FOG(10A)" fuse and R/G wire.

Rear fog lights (Without airbag)

When the headlight switch is turned to "HEAD" position, battery voltage is directly applied from the headlight
switch toRH and LH rear fog lamp through "RR FOG (10A)" fuse and R/G wire.
