Kia Carens. Manual

2001 > 1.8L DOHC >

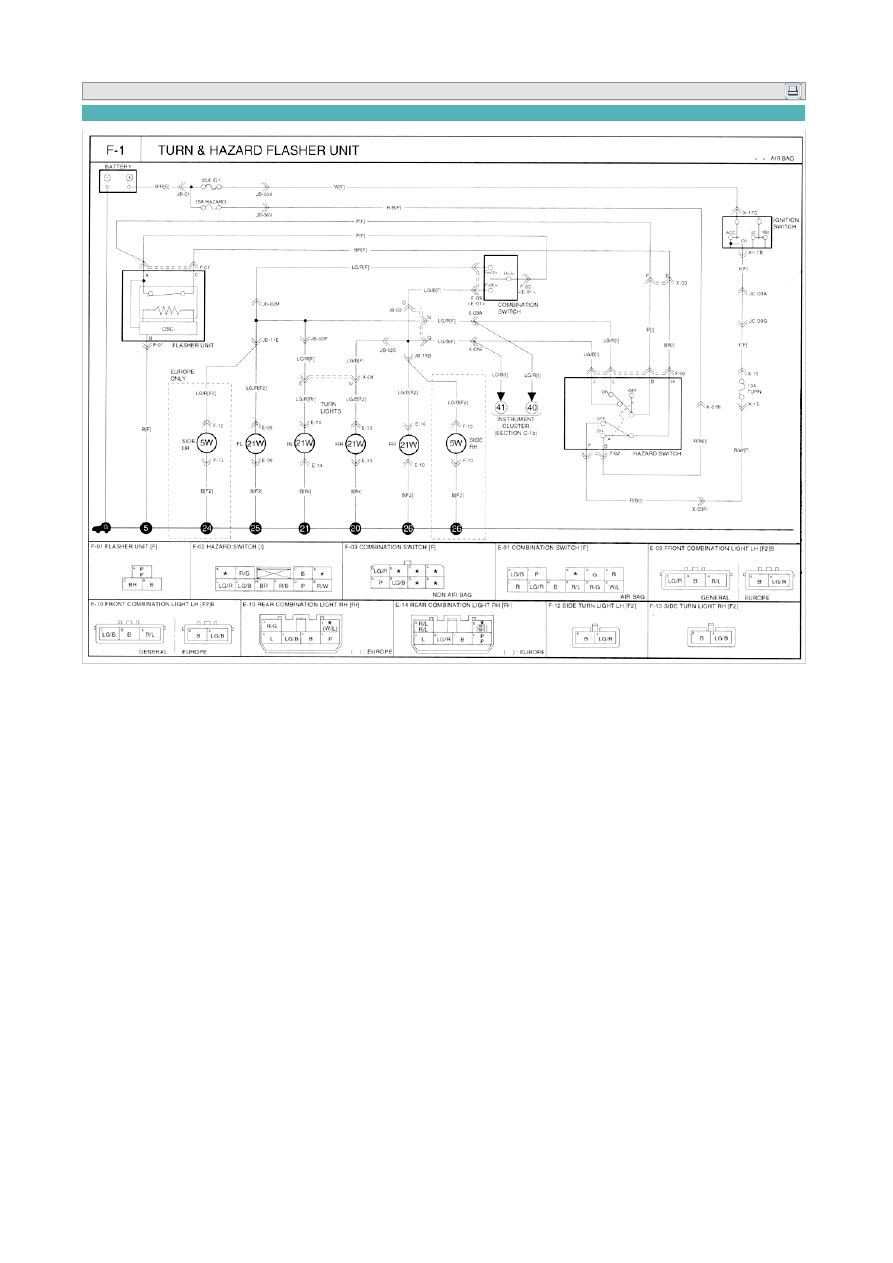

Removal

1. Disconnect negative battery cable.

2. Remove three screws attaching rear combination light assembly to vehicle.

3. Disconnect electrical connector.

4. From outside of vehicle, grasp combination light assembly push combination light assembly outside and

combination light assembly and pull from vehicle using care not to damage gasket.

Installation

1. Install gasket on light assembly with pins through appropriate holes of gasket.

2. Position light assembly on vehicle with studs through mounting holes on vehicle.

3. Install three screws on rear combination light.

4. Connect electrical connector.

5. Connect negative battery cable.

Replacement

Rear combination light assembly bulb

1. Disconnect negative battery cable.

2. Disconnect electrical connector from light assembly.

3. From outside of vehicle, grasp combination light assembly, push combination light assembly outside and

pull from vehicle using care not to damage gasket and combination light assembly.

4. With bulb holder disengaged, pull bulb holder carefully forward relative to vehicle, and remove from light

assembly.

5. Remove bulb as required from bulb holder.

6. Install new bulb of proper type, as shown on bulb holder.

7. Position bulb holder on light assembly and press to engage with light assembly.

8. Install two mounting screws and one nut.

9. Connect negative battery cable.
