Kia Carens. Manual - part 258

  2001 > 1.8L DOHC >

Ground points

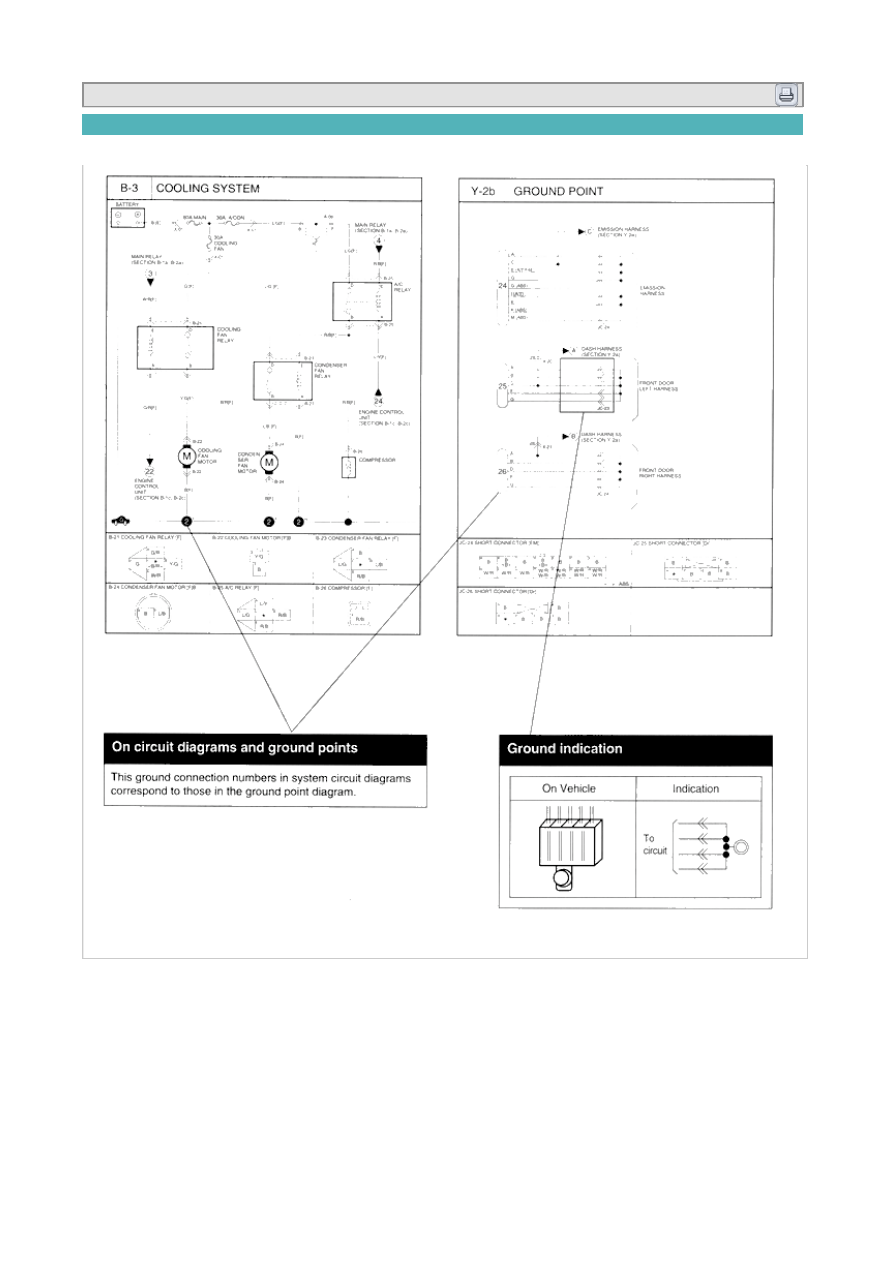

● This shows ground points of the hareness.

System circuit diagram/connector diagram

● These diagrams show the circuis for each system, from the power supply to the ground. The power supply side is on
the upper part of the page, the ground side on the lower part. The diagrmas discribe circuis with the ignition swtich off.
Below is an explanation of the various points in the diagram.
