Kia Carens. Manual - part 229

No.

1

2

3

4

5

6

7

8

9

Dimension
(mm)

1445

655

1366

655

1554

1031

1043

644

424

No.

10

11

12

13

14

15

16

17

Dimension
(mm)

1043

653

750

504

800

504

924

924

Side frame panel

No.

1

2

3

4

5

6

7

8

9

10

11

Dimension
(mm)

1200

2165

1081

2090

385

2055

1030

1999

1089

1112

2014

No.

12

13

14

15

16

17

18

19

20

21

22

Dimension
(mm)

1026

400

1089

977

1674

1332

1003

1641

680

704

1131

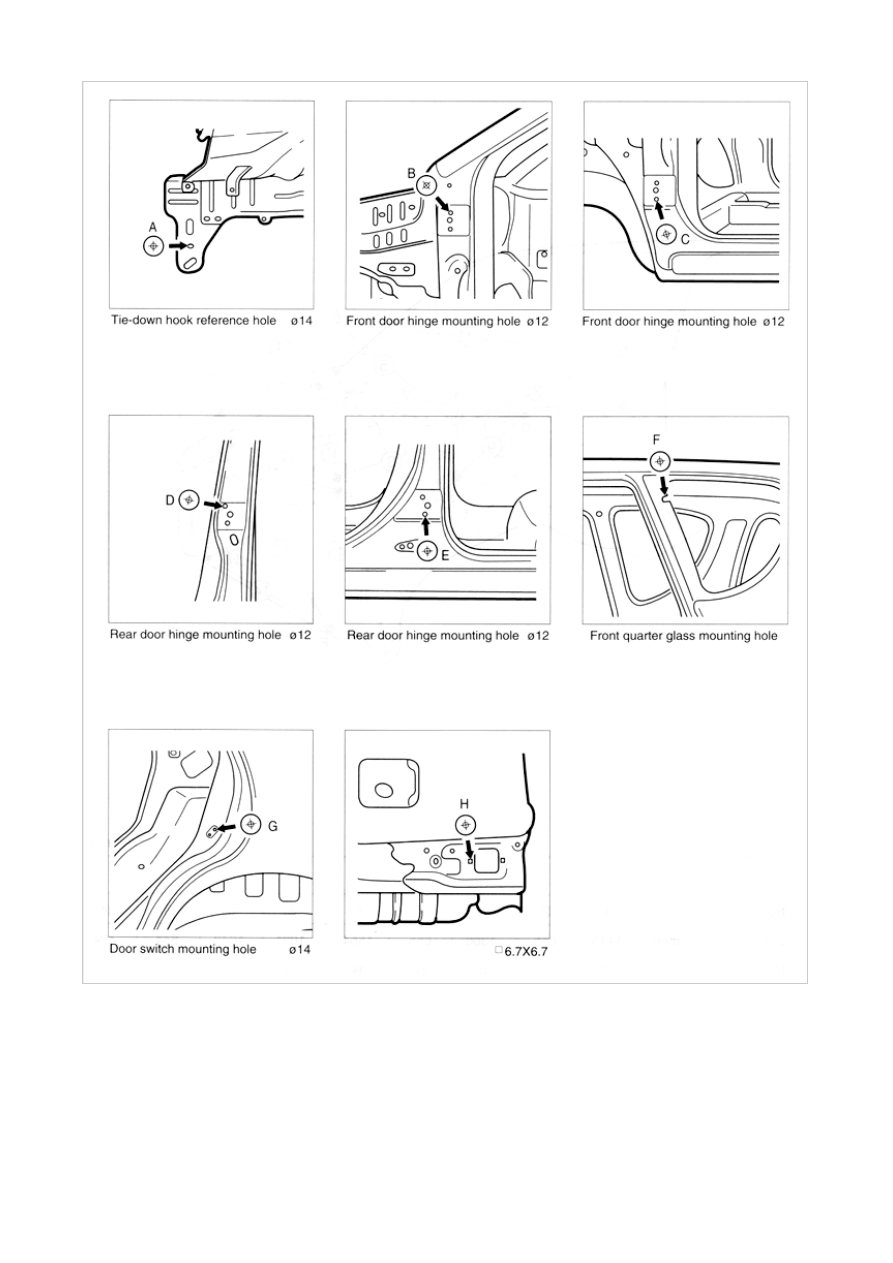

Interior A
